FEATURES

IMPROVED SETTING UP FOR COMMISSIONING
Phase

Installation and polarity of the CT (Current Transformer). The controller allows the user not to have to change phase location where the TC (X/5) is located and/or the reading direction/polarity. The adjustment can be made via the menu on the controller display.

READING OF INSTALLATION VALUES
Current (A)
Total RMS current (A) measured from the CT (X/5).
Voltage (V)
RMS voltage (V).
THD (%) in Current (A)
Instantaneous harmonic distortion indicative of current present in the installation in %.
MAX (A) & (V) Recording
It records in memory the maximum system current and voltage values, starting from TC (X/5) and the capacitor bank voltage.
EVENTS ALARMS BY LED AND RELAY

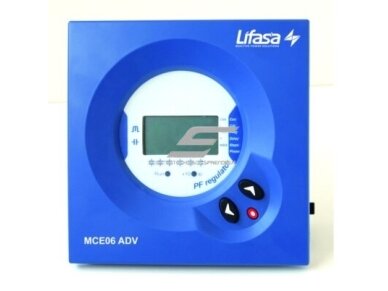

MCE ADV incorporates a LED and an output relay to warn in case that any of the following circumstances happens:

Lack of compensation.
Over-compensation.
Over-voltage.
Over-current.
CT unplugged.
Current below the limits.
(Note: to perform alarm relay it is necessary to have available one step relay).
