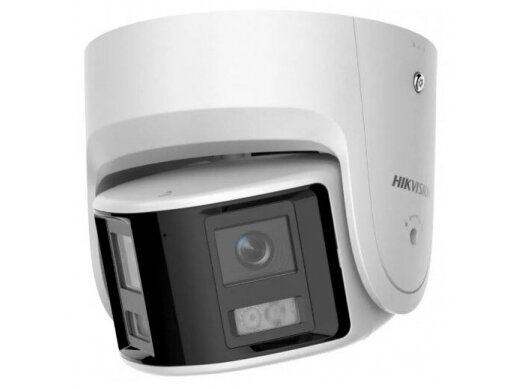

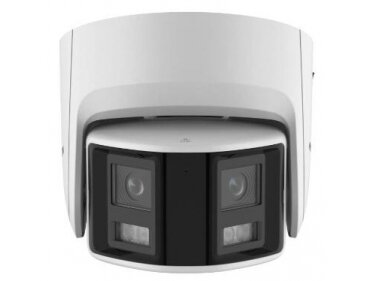

Dviguba vaizdo stebėjimo IP kamera | 4MP | IP67 | Dome | DS-2CD2347G2P-LSU/SL(C) F2.8 | Hikvision

Kamera
Sensorius2 × 1/2.5" Progressive Scan CMOS
Maks. rezoliucija3040 × 1368
Min. apšvietimasColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Užrakto greitis1/3 s to 1/100,000 s
Kampo keitimasPan: -30° to 30°,tilt: -75° to 75°
Lęšis
Lęšio tipasFixed focal lens, dual lens, 2.8 mm
FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Lęšio montavimasM12
Rainelės tipasFixed
DiafragamaF1.0
Ryškumo gylis2 m to ∞
DORI
DORI2.8 mm, D: 38 m, O: 15 m, R: 7.5 m, I: 3.5 m
Apšvietimas
Papildomo apšviešimo tipasWhite Light
Papildomo apšvietimo diapazonasUp to 30 m
Išmanus papildomas apšvietimasYes
Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (3040 × 1368)

60 Hz: 24 fps (3040 × 1368)

Antrinis srautas
50 Hz: 25 fps (1200 × 536, 960 × 432)

60 Hz: 24 fps (1200 × 536, 960 × 432)

Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Vaizdo bitų greitis32 Kbps to 8 Mbps
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Bitų greičio kontrolėCBR,VBR
SVCH.264 and H.265 encoding
ROI1 fixed region(s) for main stream
Garsas
Garso tipasMono sound
Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimasYes
Internetas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
User/Host
Up to 32 users

3 user levels: administrator, operator, and user

SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

KlientasiVMS-4200,Hik-Connect,Hik-Central
Naršyklė
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Diena/Naktis režimasDay,Night,Auto,Schedule
WDR130 dB
SNR≥ 52 dB
Nuotraukų pagražinimasBLC,HLC,3D DNR
Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Įmontuotas mikrofonasYes
Įmontuotas garsiakalbisMax. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
Garsas
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Signalizacija1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
Perkrovimo mygtukasYes
Funkcijos
Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
Išmaniosios funkcijos
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),

Scene change detection

SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
Pagrindinis
Sistemos parametrai
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

Medžiaga
Base: metal, cover: metal

Dydis
Ø140 mm × 145.6 mm (Ø5.5 × 5.7\")"

Pakuotės dydis230 mm × 230 mm × 230 mm (9" × 9" × 9")
Approx. 920 g (2.0 lb.)
Svoris su įpakavimuApprox. 1670 g (3.7 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijosAnti-banding, heartbeat, mirror, flash log, pixel counter
Flashing LightYes
Patvirtinimai
EMC
FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7

Saugumas
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

Aplinkosauga
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

ApsaugaIP67: IEC 60529-2013
