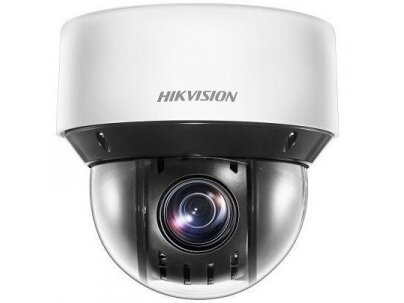

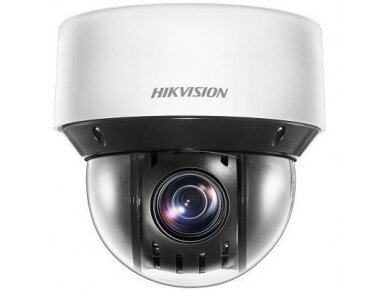

Vaizdo stebėjimo IP kamera | 4MP | IP66 | PTZ | DS-2DE4A425IWG-E | Hikvision

Kamera
Sensorius1/1.8" Progressive Scan CMOS
Maks. rezoliucija1920 × 1080
Min. apšvietimasColor: 0.0005Lux @ (F1.2, AGC ON), B/W:0.0001Lux @ (F1.2, AGC ON), 0 lux with light
Užrakto greitis1/1 s to 1/30000 s
Lėtas užraktasYes
Diena & NaktisIR cut filter
Priartinimas20 × optical, 16 × digital
Lęšis
Židinio nuotolis6.7 mm to 134 mm
Priartinimo greitisApprox. 7 s
FOV
Horizontal field of view: 53° to 4.9° (wide-tele),

Vertical field of view: 31.3° to 2.7° (wide-tele),

Diagonal field of view: 59.6° to 5.6° (wide-tele)

DiafragamaMax. F1.2
FokusavimasAuto, semi-auto, manual
Apšvietimas
Papildomo apšvietimo diapazonas
White light: up to 100 m

IR: up to 150 m

Papildomo apšviešimo tipasHybrid(IR and White Light)
PTZ
Judėjimo kampas (Pan)360°
Judėjimo kampas (Tilt)-15° to 90° (auto flip)
Pan greitisPan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt greitisTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proporcingas PanYes
Iš anksto išsaugoti nustatymai300
Patruliavimas8 patrols, up to 32 presets for each patrol
Išsaugotų rėžimų skenavimas4 pattern scans
Išjungimo atmintisYes
Park ActionPreset, patrol scan, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D pozicijaYes
PTZ būsenos vaizdavimasYes
Išsaugotų nustatymų sustabdymasYes
Užduočių grafikasPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux išvestis
Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Antrinis srautas
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)

Trečias srautas
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG

Vaizdo bitų greitis32 kbps to 16384 kbps
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain Profile
SVCH.264 and H.265 encoding
ROI8 fixed regions for each stream
Garsas
Garso suspaudimasG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
Garso bitų greitis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimasYes
Internetas
Vidinė atmintisNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ProtokolaiIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
User/HostUp to 32 users, 3 user levels: administrator, operator, and user
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
KlientasiVMS-4200, HikCentral Pro, Hik-Connect
NaršyklėIE11, Chrome 57+, Firefox 52+, Safari 11+
Nuotrauka
Diena/Naktis režimasDay, Night, Auto, Schedule
Nuotraukų pagražinimasBLC, HLC, 3D DNR
WDR120 dB
Rūko šalinimasDigital defog
Vaizdo stabilizavimasEIS
Regioninė ekspozicijaYes
Regioninis fokusavimasYes
Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Privatumo kaukė24 programmable polygon privacy masks, mask color or mosaic configurable
SNR> 52 dB
Sąsaja
Interneto sąsaja1 RJ45 10M/100M self-adaptive Ethernet port
Saugyklos vietaBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Signalizacija2 inputs, 1 išvestis
Garsas1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
PerkrovimasYes
Įmontuotas garsiakalbis1 built-in speaker with effective distance reaching max. 30 meters
Funkcijos
Pagrindinės funkcijosMotion detection, video tampering alarm, exception, alarm input and išvestis
Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Išmanus sekimasManual tracking, auto-tracking
Signalizacijos sąsajaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Išmaniosios funkcijos
Veido atpažinimas
Detects up to 5 faces simultaneously.

Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

Perimetro apsauga
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Pagrindinis
Sistemos parametrai
24 VAC, max. 42 W (including max. 12 W for IR and max. 2 W for heater);

Hi-PoE

Darbo sąlygos-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Rasos šalinimasYes
MedžiagaADC12
DydisØ 220 mm × 357.3 mm (Ø8.66" × 14.07")
Approx. 5.5 kg (12.13 lb.)
Patvirtinimai
ApsaugaIP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
EMC
FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2019);

KC (KN 32: 2015, KN 35: 2015)

Saugumas
UL (UL 62368-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 62368-1:2014+A11:2017);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

LOA (SANS IEC60950-1)

Aplinkosauga
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
