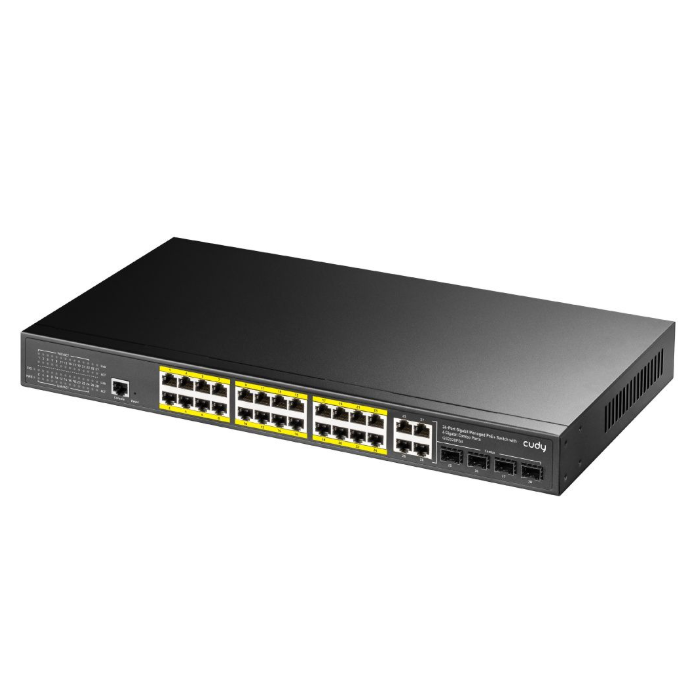

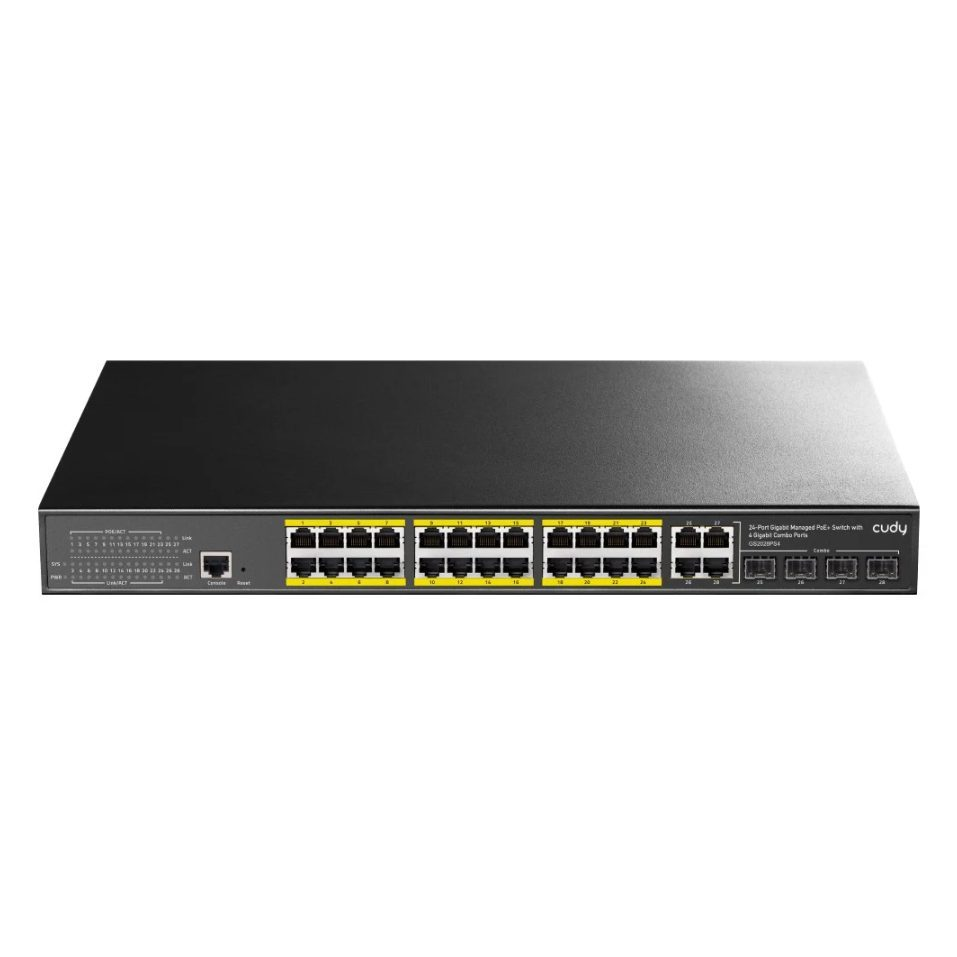

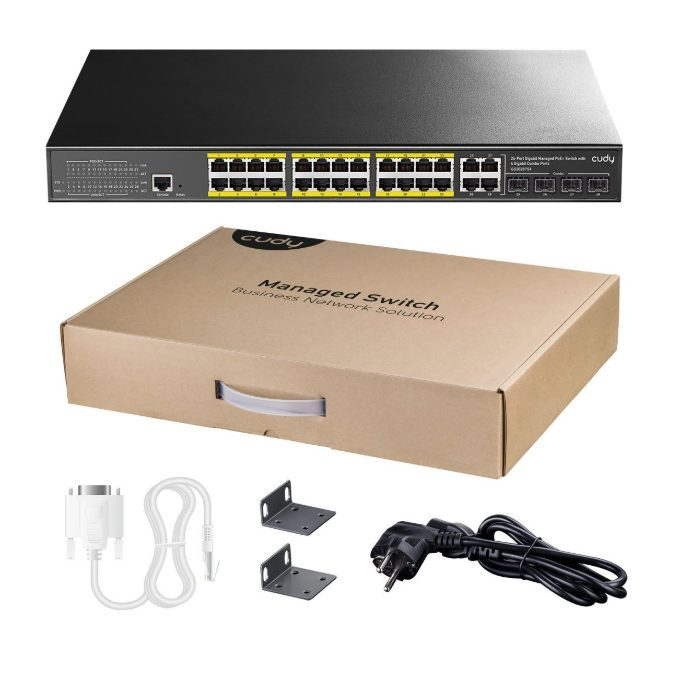

  •   24-Port PoE Switch | 24x PoE + 4x Combo Uplink | Wired Network Expansion | Managed | 400 W | Metal Housing
      24-Port PoE Switch | 24x PoE + 4x Combo Uplink | Wired Network Expansion | Managed | 400 W | Metal Housing 1
      24-Port PoE Switch | 24x PoE + 4x Combo Uplink | Wired Network Expansion | Managed | 400 W | Metal Housing 2

    24-Port PoE Switch | 24x PoE + 4x Combo Uplink | Wired Network Expansion | Managed | 400 W | Metal Housing

    Code: GS2028PS40
    Inquire about this item
    Price 390.83 € VAT incl.
    ( 323.00 € VAT excl. )
    Want another price? Suggest yours!

    A PoE switch designed to provide a reliable networking and power solution in a single device. It is suitable for IP video surveillance systems, offices, commercial facilities, industrial networks, and smart homes where stable connectivity, flexible management, and up to 400 W of PoE power are required.

    The metal enclosure, high data transmission speed, VLAN support, and PoE functionality make this switch suitable for both home users and professionals such as electricians or network engineers seeking a reliable and versatile solution.

  • Product description

    Technical Specifications

    Type: Managed switch
    Model: CUDY GS2028PS4-400W 1.0
    Enclosure: Metal (19" rack-mount)
    RJ45 PoE ports: 24 × 10/100/1000 Mbps
    Combo ports: 4 × 1 Gbps SFP / RJ45
    Console port: 1 × RJ45 (Console)
    PoE standards: IEEE 802.3af / 802.3at
    PoE power per port: up to 30 W
    Total PoE power budget: up to 400 W
    Operating modes: Default / VLAN / Extend
    Switching capacity: 56 Gbps
    Forwarding rate: 41.664 Mpps
    MAC address table: up to 8192 entries
    Power supply: 100–240 V AC
    Max. power consumption: 400 W
    Dimensions: 445 × 285 × 45 mm
    Operating temperature: -10 °C to +50 °C

    Functions

    PoE+ power up to 400 W – powers IP cameras, access points, VoIP phones, and other PoE devices without additional power supplies
    Managed network (VLAN) – traffic segmentation for improved security and stability
    Extend mode – increases PoE device operating distance (especially useful for video surveillance)
    High speed and performance – 56 Gbps switching capacity ensures smooth operation in heavily loaded networks
    SFP / RJ45 Combo ports – flexible choice between fiber or copper uplink connections
    Console port – convenient professional configuration and diagnostics

    Applications

    For home users: Home or office IP video surveillance systems, Smart Home solutions with PoE Wi-Fi access points, small servers or NAS networks
    For electricians / installers: Fast and clean PoE device installation using a single cable, fewer power supplies and installation errors, reliable solution for commercial projects
    For engineers / system integrators: VLAN and traffic management, large MAC address capacity, stable 24/7 operation, integration into larger network infrastructures

    Pros

    High 400 W PoE power budget
    24 PoE ports + 4 Combo uplinks
    Managed features (VLAN, modes)
    Metal, professional-grade enclosure
    High speed and performance
    Suitable for both residential and industrial solutions

    Cons

    Basic networking knowledge required to utilize full functionality
    Higher power consumption under full PoE load

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
