Non-contact infrared (IR) surface temperature sensors
-
Non-contact surface temperature sensors are modern measuring devices that allow accurate determination of an object's surface temperature without physical contact. Using infrared technology, these sensors detect thermal radiation emitted by surfaces and convert it into a temperature value.
These sensors are highly valued both in industry, where avoiding contact contamination is crucial, and in households, where convenient and quick temperature measurement is required without complex installation.
Features:
Fast, non-contact temperature reading
Ability to measure the temperature of hazardous, moving, or hard-to-reach objects
Laser pointer for precise targeting
Adjustable emissivity – enables accurate measurement of different materials (metal, plastic, concrete, etc.)
Can be used manually or mounted on production lines (in some models)
Applications:
Detection of overheating in electrical panels or motors
Monitoring of machine bearings, gearboxes, heat exchangers
Temperature control in food, pharmaceutical, textile industries
Household or commercial use: solar collectors, heating systems
Advantages:
Contactless – safe measurement
Extremely fast – result in less than a second
Suitable for various materials and surfaces
No complex installation or calibration required
Reduces risk when working with hazardous or hot surfaces
Disadvantages:
Not suitable for internal temperature (surface only)
Accuracy may decrease if emissivity is not adjusted to the material
Highly shiny or reflective surfaces may cause errors
Non-contact surface temperature sensors are essential tools for both professional technicians and home users who seek quick and precise surface temperature readings. Ideal for diagnostics, monitoring, and maintenance tasks – helping to detect issues early, save time, and enhance safety. With ease of use and versatile applications, these sensors are an integral part of modern measuring equipment.
1 - 16 of 19

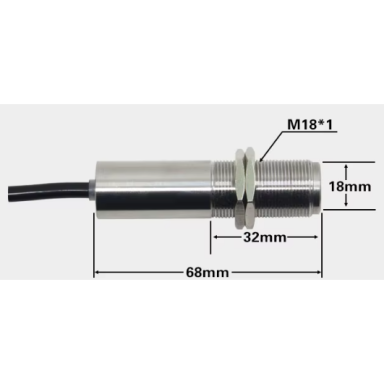

Contactless infrared (IR) temperature sensor | 0–1000 °C | M18 | 68mm | 10–30 VDC | RS485 | stainless steelCode: ES-01000RSPrice 448.76 € VAT incl.( 370.88 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–900 °C | M18 | 68mm | 10–30 VDC | RS485 | stainless steelCode: ES-0900RSPrice 441.41 € VAT incl.( 364.80 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–800 °C | M18 | 68mm | 10–30 VDC | RS485 | stainless steelCode: ES-0800RSPrice 386.76 € VAT incl.( 319.64 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–700 °C | M18 | 68mm | 10–30 VDC | RS485 | stainless steelCode: ES-0700RSPrice 380.42 € VAT incl.( 314.40 € VAT excl. )

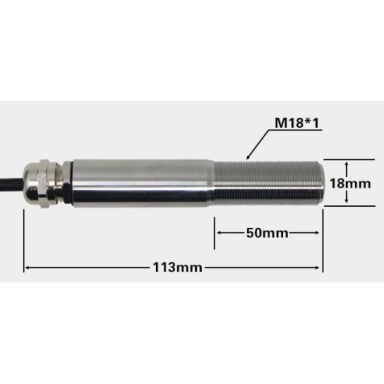

Contactless infrared (IR) temperature sensor | 0–500 °C | M18 | 113mm | 10–30 VDC | RS485 | stainless steelCode: ES-0500RSPrice 183.87 € VAT incl.( 151.96 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–400 °C | M18 | 113mm | 10–30 VDC | RS485 | stainless steelCode: ES-0400RSPrice 180.70 € VAT incl.( 149.34 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–300 °C | M18 | 113mm | 10–30 VDC | RS485 | stainless steelCode: ES-0300RSPrice 177.53 € VAT incl.( 146.72 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–1200 °C | M18 | 68mm | 10–24 VDC | 4-20mA | stainless steelCode: ES-01200MAPrice 608.75 € VAT incl.( 503.10 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–1000 °C | M18 | 68mm | 10–24 VDC | 4-20mA | stainless steelCode: ES-01000MAPrice 441.41 € VAT incl.( 364.80 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–800 °C | M18 | 68mm | 10–24 VDC | 4-20mA | stainless steelCode: ES-0800MAPrice 380.42 € VAT incl.( 314.40 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–600 °C | M18 | 113mm | 10–24 VDC | 4-20mA | stainless steelCode: ES-0600MAPrice 187.04 € VAT incl.( 154.58 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–300 °C | M18 | 113mm | 10–24 VDC | 4-20mA | stainless steelCode: ES-0300MAPrice 177.53 € VAT incl.( 146.72 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–100 °C | M18 | 113mm | 10–24 VDC | 4-20mA | stainless steelCode: ES-0100MAPrice 171.19 € VAT incl.( 141.48 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–500 °C | M18 | 113mm | 10–24 VDC | 4-20mA | stainless steelCode: ES-0500MAPrice 183.87 € VAT incl.( 151.96 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–600 °C | M18 | 113mm | 10–30 VDC | RS485 | stainless steelCode: ES-0600RSPrice 187.04 € VAT incl.( 154.58 € VAT excl. )
Contactless infrared (IR) temperature sensor | 0–1200 °C | M18 | 68mm | 10–30 VDC | RS485 | stainless steelCode: ES-01200RSPrice 608.75 € VAT incl.( 503.10 € VAT excl. )
