Painted steel deflectors | for ventilation systems
-
Painted steel deflectors and bases
Painted steel deflectors have an additional paint coating that gives them colour and provides extra protection for the metal. The brown colour matches brown tiles and metal roofs, so the deflector does not stand out against the roof. They work the same way as galvanised ones: the head with ball bearings turns in the wind and extracts air from the duct.
■ information and selection ■ benefits and suitability ■ check before buying ■ mistakes and safety
In this category

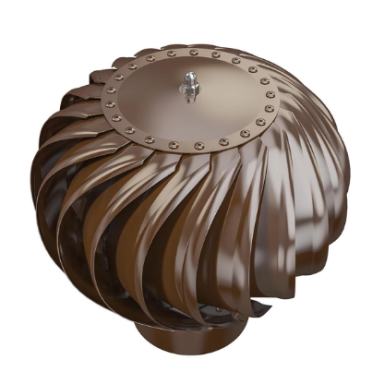

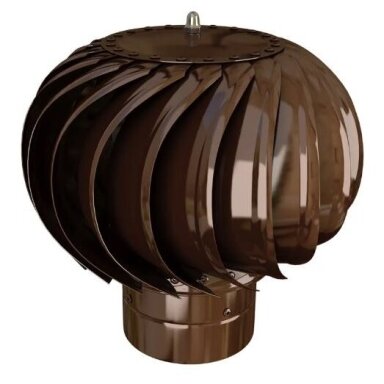

Rotary deflectors
D100–D680, brown, head with ball bearings.
Bases
D100–D680, brown – for tight installation on the roof.
✓ When to choose
- Brown or dark roof covering where appearance matters
- Houses, cottages and country homes
- Extra protection on top of galvanised steel
→ When another material is better
- Coastal areas, livestock farms, aggressive environments – choose stainless steel
- Colour does not matter – galvanised steel is more economical
Diameters and product links
Click a size to open the product page. D – connection diameter, mm. Exact dimensions and drawings are on the product page.
Diameter D Rotary deflector Base D100 300×100 mm 295×295×90 mm D110 300×100 mm – D115 300×100 mm – D120 300×100 mm – D125 300×100 mm – D130 300×100 mm – D135 300×100 mm – D140 300×100 mm – D145 300×100 mm – D150 300×100 mm 295×295×90 mm D155 300×100 mm – D160 300×100 mm – D165 300×100 mm – D170 300×100 mm – D175 300×100 mm – D180 300×100 mm – D185 300×100 mm – D190 300×100 mm – D195 300×100 mm – D200 300×100 mm 295×295×90 mm D250 340×100 mm 350×350×110 mm D300 370×100 mm 390×390×130 mm D315 370×100 mm – D355 450×100 mm – D400 530×100 mm 490×490×160 mm D500 530×200 mm 615×615 mm D600 600×200 mm View → D680 600×250 mm View → How to put the set together
- The deflector D must match the duct diameter.
- If the duct ends at roof level, add a painted base of the same D.
- Protect the paint coating during installation: touch up scratches with repair paint.
⚠ Ventilation only
The deflectors in this category are designed for ventilation ducts – to extract humid and warm air. Do not install them on stove, fireplace or boiler flues: hot flue gases and acidic condensate will damage them, creating a risk of fire and carbon monoxide.
⚠ Check before buying
What to check Why it matters Duct diameter Compare with D and the dimensions on the product page. Colour Compare the shade with your roof covering using the photo on the product page. Is a base needed A duct that ends at roof level requires a base. ⚠ Safe installation
- Roof work is work at height: use fall protection equipment and do not install in strong wind, rain or when the roof is icy.
- Fix mechanically (with screws, rivets or a clamp), not with sealant alone.
- Seal the joint with the roof covering using a sealant resistant to UV and temperature changes.
Frequently asked questions
Are painted deflectors more corrosion-resistant than galvanised ones?
The paint coating is an additional protective layer on the metal, so protection is better as long as the coating is undamaged. It is important not to scratch the coating during installation.
What if the coating gets scratched during installation?
Clean the scratch and apply repair paint designed for metal – this will prevent rust.
Are other colours available?
This category offers brown. In the plastic deflectors category you will find more colours for the D160 system.
Which bearings are used in these deflectors?
Ball bearings – the same as in the galvanised models. Low friction lets the head rotate smoothly even in lighter wind.
In short
A painted deflector is the choice when the cowl needs to match a brown roof covering. Choose by duct diameter and add a base of the same D if needed. Can't find the right size or not sure? Send us the duct diameter and roof covering type – we will help you choose.
