  • Stabilising and fixing parts for overhead line poles: guy wires and their thimbles Ø12–24 mm, anchor logs with clamps, strut brackets and stork nest platforms.

  • Guy wires, anchor logs and stork nest platforms for overhead line poles

    An overhead line pole must stay stable throughout its service life, despite conductor tension, wind and icing. This group contains the parts that take up these forces and protect the line.

    What each part does

    Part Purpose
    Guy wire (A20-1,1, A20-2,7) Compensates the one-sided conductor tension – at angle, terminal and branch poles
    Guy wire thimble with fixing plate, Ø12–24 mm Attaches the guy wire rope to the pole; size is selected by rope diameter
    Guy wire anchor plate A-20P Anchors the guy wire in the ground
    Anchor log and RT-1 / RT-2 clamps Stabilises the pole in the ground so it does not lean
    Strut bracket PTM Connects the strut (brace) to the pole
    Stork nest platform GL-2 Platform for a stork nest above the conductors – protects birds and the line from short circuits
    ⚠ Part size and quantity are selected according to the design: pole type, conductor cross-section, tension and ground conditions. Thimbles are hot-dip galvanised – corrosion-resistant outdoors.
    ℹ Other overhead line parts: clamps, cable holders, the full overhead lines group.
    ⚡ Work on overhead lines may only be carried out by authorised persons, following safety rules, with the line disconnected and earthed.

    Send us the number and type of poles – we will put together the fixing parts. Contact us.

    Read more
    Stork nest platform | artificial nesting platform for storks | mounted on a power pole, pole or roof | kit | GL-2
    Code: Gandralizdis GL-2

    The GL-2 stork nest platform is a ready-to-install artificial nesting kit for white storks: a metal frame with a nest base, a bracket and fixing hardware. It is designed for mounting on an overhead power line pole, a standalone pole, a building roof or a tree, so that storks have a safe, stable nesting spot set apart from the electricity network.

    Price 225.00 € VAT incl.
    ( 185.95 € VAT excl. )
    Stay rod bow type with mounting plate | hot-dip galvanized steel | 400x143mm | Ø12mm
    Code: ES-30802A01

    Guy wire bow with mounting plate – a hot-dip galvanized steel mechanical component for overhead line fittings, intended for guying and fastening systems of utility poles. The product is made from a Ø12mm steel rod, with an overall length of 400mm, width of 143mm and internal width of 103mm. The bow-shaped construction with a mounting plate is designed to transfer mechanical loads, while the hot-dip galvanized surface helps protect against corrosion in outdoor conditions.

    Price 73.58 € VAT incl.
    ( 60.81 € VAT excl. )
    Stay rod bow type with mounting plate | hot-dip galvanized steel | 400x165mm | Ø24mm
    Code: ES-30801A03

    Guy wire bow with mounting plate – a hot-dip galvanized steel mechanical component for overhead line fittings, intended for guying and fastening systems of utility poles. The product is made from a Ø24mm steel rod, with an overall length of 400mm, width of 165mm and internal width of 110mm. The bow-shaped construction with a mounting plate is designed to transfer mechanical loads, while the hot-dip galvanized surface helps protect against corrosion in outdoor conditions.

    Price 70.38 € VAT incl.
    ( 58.17 € VAT excl. )

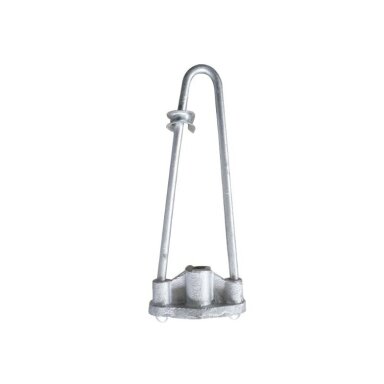

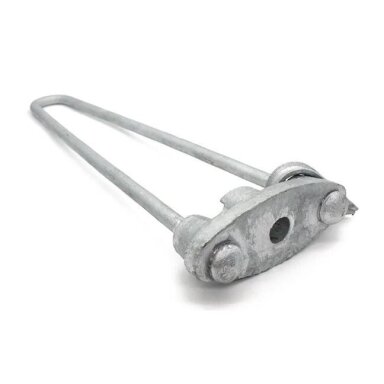

    Stay rod bow type with mounting plate | hot-dip galvanized steel | 400x165mm | Ø14mm
    Code: ES-30801A02

    Guy wire bow with mounting plate – a hot-dip galvanized steel mechanical component for overhead line fittings, intended for guying and fastening systems of utility poles. The product is made from a Ø14mm steel rod, with an overall length of 400mm, width of 165mm and internal width of 110mm. The bow-shaped construction with a mounting plate is designed to transfer mechanical loads, while the hot-dip galvanized surface helps protect against corrosion in outdoor conditions.

    Price 67.18 € VAT incl.
    ( 55.52 € VAT excl. )
    Stay rod bow type with mounting plate | hot-dip galvanized steel | 400x165mm | Ø16mm
    Code: ES-30801A01

    Guy wire bow with mounting plate – a hot-dip galvanized steel mechanical component for overhead line fittings, intended for guying and fastening systems of utility poles. The product is made from a Ø16mm steel rod, with an overall length of 400mm, width of 165mm and internal width of 110mm. The bow-shaped construction with a mounting plate is designed to transfer mechanical loads, while the hot-dip galvanized surface helps protect against corrosion in outdoor conditions.

    Price 63.98 € VAT incl.
    ( 52.88 € VAT excl. )
