  •   24-Port PoE Switch | Wired Network Expansion | 24×PoE + 4×SFP+ | Managed | 400 W | Metal Enclosure

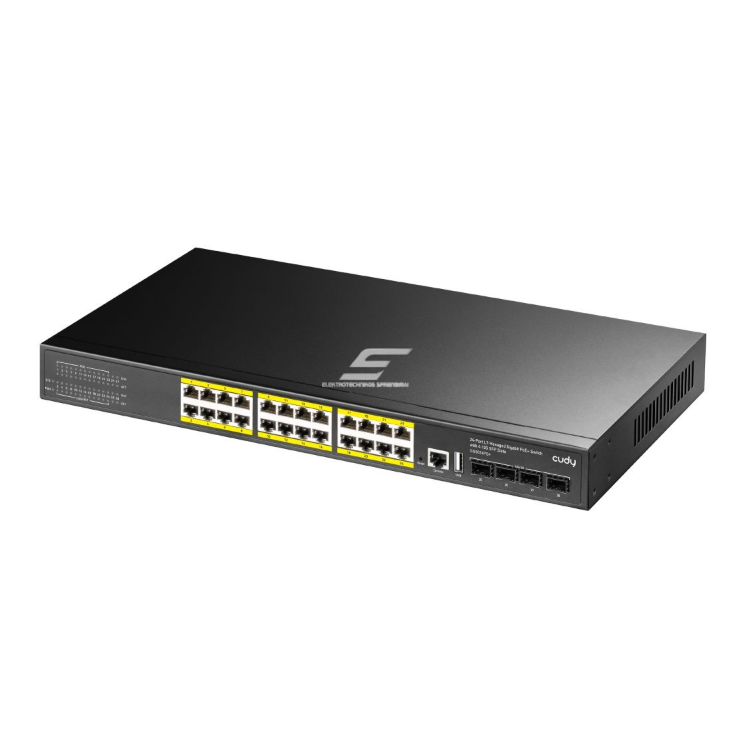

      24-Port PoE Switch | Wired Network Expansion | 24×PoE + 4×SFP+ | Managed | 400 W | Metal Enclosure 1

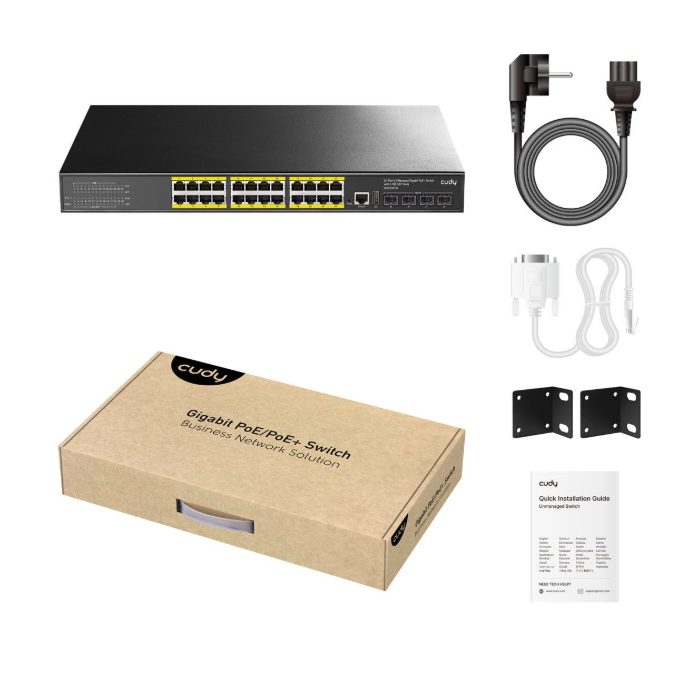

      24-Port PoE Switch | Wired Network Expansion | 24×PoE + 4×SFP+ | Managed | 400 W | Metal Enclosure 2

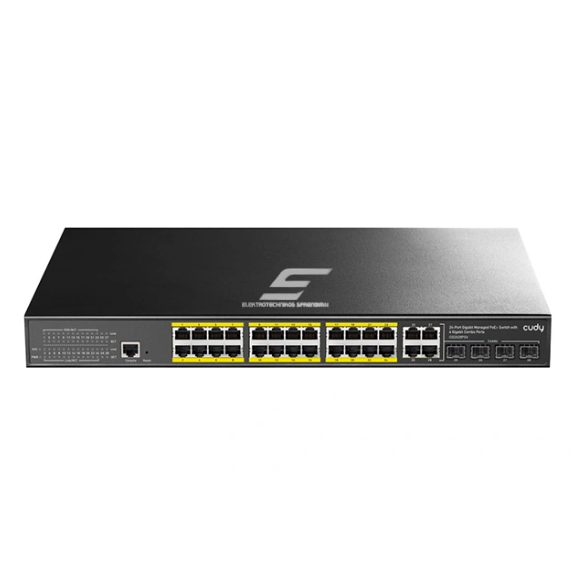

    24-Port PoE Switch | Wired Network Expansion | 24×PoE + 4×SFP+ | Managed | 400 W | Metal Enclosure

    Code: GS5024PS4
    Inquire about this item
    Price 660.66 € VAT incl.
    ( 546.00 € VAT excl. )
    Want another price? Suggest yours!

    PoE switch designed for reliable, high-performance networks. The device is engineered to perform equally well in business environments, home server rooms, video surveillance systems, Wi-Fi networks, and industrial facilities.
    24 PoE ports and 4 ultra-fast 10 Gbps SFP+ uplinks allow simultaneous device powering and high-speed data transmission without the need for additional power supplies.

  • Product description

    Technical Specifications

    Type: Configurable network switch
    Model: CUDY GS5024PS4-400W 1.0
    Enclosure: Metal, designed for 19″ rack mounting
    RJ45 PoE ports: 24 × 1 Gbps (802.3af/at)
    SFP+ ports: 4 × 10 Gbps
    Management ports: 1 × Console RJ45; 1 × Console USB
    Operating modes: Default / VLAN / Extend
    PoE power per port: up to 30 W
    Maximum total PoE power: 400 W
    Switching capacity: 128 Gbps
    Forwarding rate: 95.232 Mpps
    MAC address table: up to 16,384 entries
    Power supply: 100–240 V AC
    Power consumption: up to 400 W
    Dimensions (W×D×H): 440 × 205 × 44 mm
    Operating temperature: –10 °C to +50 °C

    Functions

    Power over Ethernet (PoE): data and power transmitted via a single cable
    VLAN support: network segmentation for security and traffic management
    Extend mode: increased PoE transmission distance (e.g. for outdoor cameras)
    10G SFP+ uplinks: ultra-fast connectivity to servers, NVRs, or core network devices
    Console management (RJ45 / USB): convenient configuration and administration
    High PoE power budget: suitable for a large number of IP devices

    Applications

    For home users: Home IP video surveillance systems (NVR + cameras), Wi-Fi access points without separate power adapters, home servers or NAS with 10G uplink, Smart Home solutions requiring stability and future scalability
    For electricians / installers: Installation of IP cameras, intercoms, access control systems, faster deployment with fewer power cables, industrial and commercial facilities, reliable operation in demanding environments
    For engineers / system integrators: Medium and large office networks, server rooms and data center access, VLAN segmentation, traffic optimization, high-bandwidth connections via 10G SFP+

    Pros

    24 PoE ports + 4 × 10G SFP+
    High 400 W PoE power budget
    Configurable – VLAN, Extend and other features
    Metal, professional-grade enclosure
    Suitable for both IT professionals and installers

    Cons

    Basic networking knowledge required to fully utilize functionality
    Not intended for completely unmanaged “plug & play” use without configuration

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
