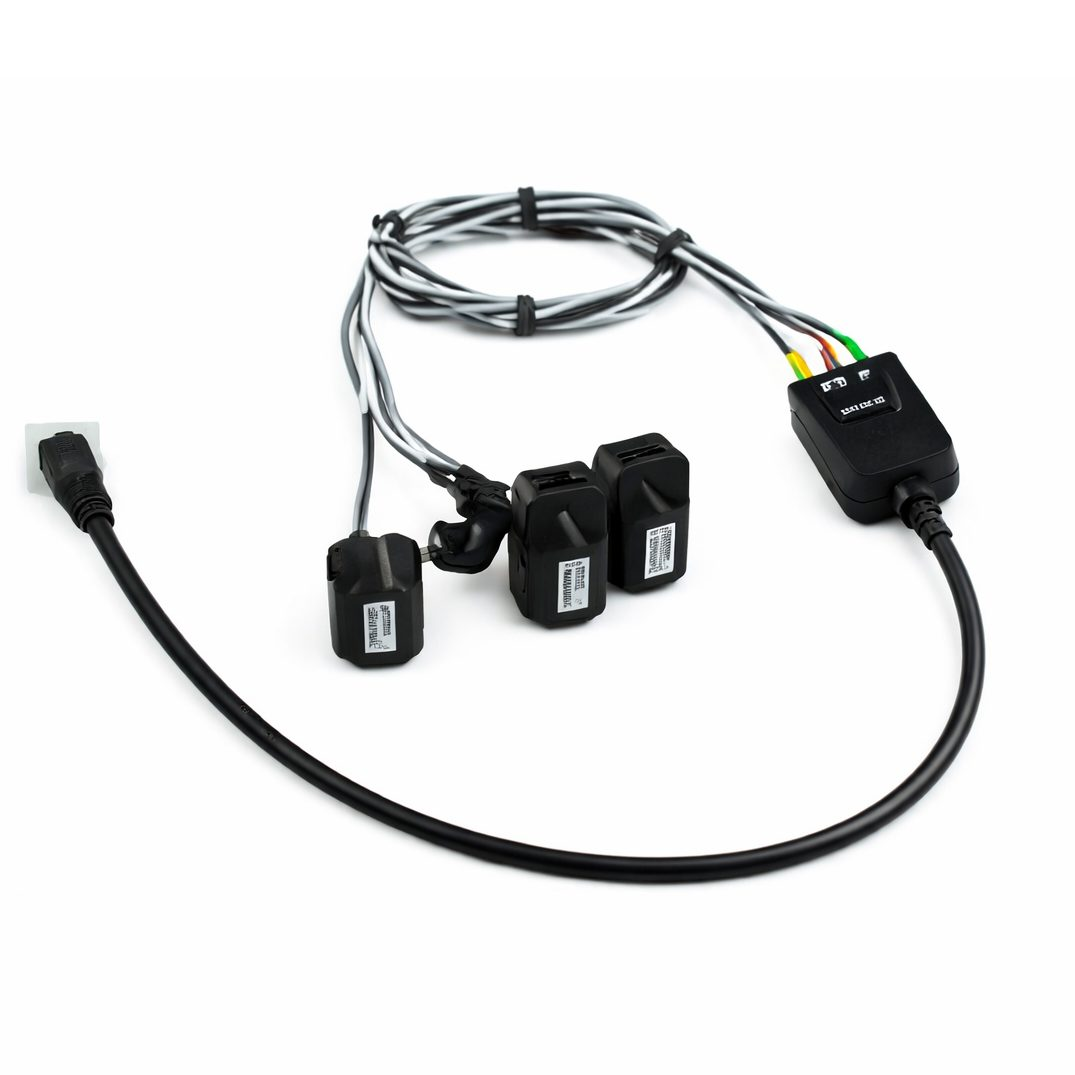

3-in-1 split-core current transformer | 5 A | 3-phase | 333 mV | RJ45 / RJ12 | 1 m cable | SCT-010 model | STP-5
Code: ESSTP-53-in-1 split-core current transformer designed for current measurement in three-phase electrical circuits. Three split-core current sensors are integrated into a single cable set, allowing fast and safe connection of all three phases without disconnecting the conductors. Thanks to the 333 mV output signal, RJ45 / RJ12 connectors, and compact design, the device is suitable for use with panel-mounted and DIN-rail power analyzers, especially where fast installation, neat panel layout, and measurement accuracy are essential.
-
Technical Data
Type: Split-core current transformer
Model: STP-5
CT model: SCT-010
Phases: 3 (3-in-1)
Inner diameter: 10 mm
Rated input current: 5 A
Output signal: 333 mV
Accuracy: ±0.5% (from 1% to 100% of rated current)
Signal cable length: 1 m
RJ45 / RJ12 cable length: 0.15 m
Compatibility:
– RJ45 connector – for ME337NR series analyzers
– RJ12 connector – for ME131, ME231H analyzersFunctions
Three-phase current measurement with a single connection – all sensors integrated into one cable
Split-core design – installation without disconnecting power
333 mV output – compatible with modern power analyzers
RJ45 / RJ12 connectors – fast and tidy wiring
Compact size – suitable for tight electrical cabinetsApplications
For electricians: Fast three-phase measurement connection without power interruption, fewer cables and reduced installation errors
For engineers / designers: Clean solution for serial projects, stable and accurate current signal, easy integration with analyzers
For industrial and commercial facilities: Continuous current monitoring in panels, suitable for energy metering and monitoring, reliable long-term operationAdvantages
3-in-1 solution for three-phase systems
Split-core design – safe installation
333 mV output – wide compatibility
RJ45 / RJ12 – quick connection
Compact and lightweightLimitations
Limited conductor diameter (up to 10 mm)
Designed for 5 A nominal input (via CT)Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
