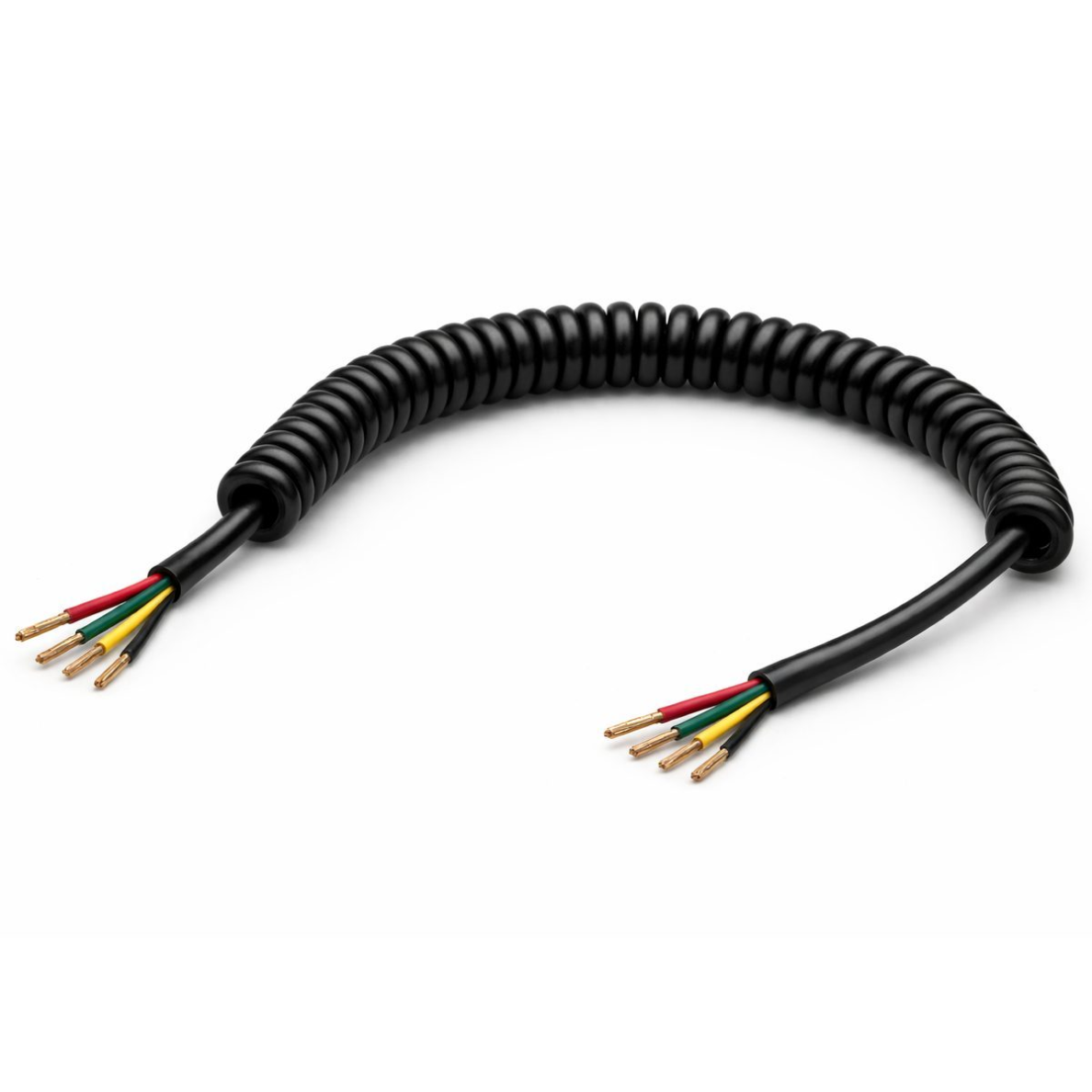

4-core spiral cable | 20AWG (0,5 mm²) | TPU + PVC | stretchable 2,5–3 m | IP67 | black | copper conductor

Technical Specifications

Type: 4-core spiral (spring) cable
Conductor type: Stranded
Conductor material: 99.995% copper
Cross-section: 20AWG (0,5 mm²)
Diameter: 20AWG
Insulation: PVC + TPU
Shape: Round
Color: Black
Length (compressed): ~40–45 cm
Length (extended): ~2,5–3 m
Operating temperature: −40 °C to +105 °C
Protection class: IP67
Certificates: CE, RoHS, SAA, TUV, ICE

Functions

Elastic spiral design – the cable extends only as much as needed and does not tangle.
High tensile resistance – suitable for moving mechanisms.
Resistance to environmental impact – IP67 protection against dust and moisture.
Wide temperature range – suitable for both outdoor and industrial conditions.
Flexible and durable TPU jacket – long service life.

Applications

For household users: Connection of heating systems, connection of moving household appliances or mechanisms, garage or workshop installations

For electricians: Building heating and control systems, automated constructions with moving parts, installations requiring IP67 protection

For engineers / industrial specialists: Robotic or mechanized systems, connection of sensors, controllers or mobile equipment, vibration- and tension-resistant connections

Advantages

Compact but extendable up to 3 m
High-quality copper conductor
IP67 – resistant to dust and moisture
Wide temperature range
CE and RoHS certificates

Disadvantages

Not intended for very high currents
Requires proper mechanical fastening if used in high-movement areas
