Access hatch with window | Ø147mm | plastic | black

Name: Access hatch with window | Ø147mm | plastic | black
SKU: ES-ALSPP1-02
Price: 106.29 EUR
Availability: InStock

Code: ES-ALSPP1-02

Inquire about this item

Add to compareRemove from comparison Compare goods (0)

Price 106.29 € VAT incl.

( 87.84 € VAT excl. )

Buy more, pay less

10+ pcs. – 90.75 € for pcs. -14%

Want another price? Suggest yours!

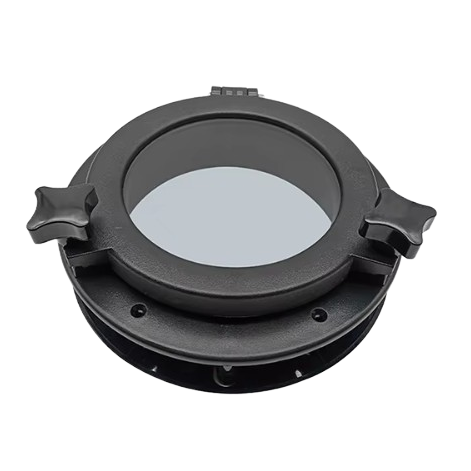

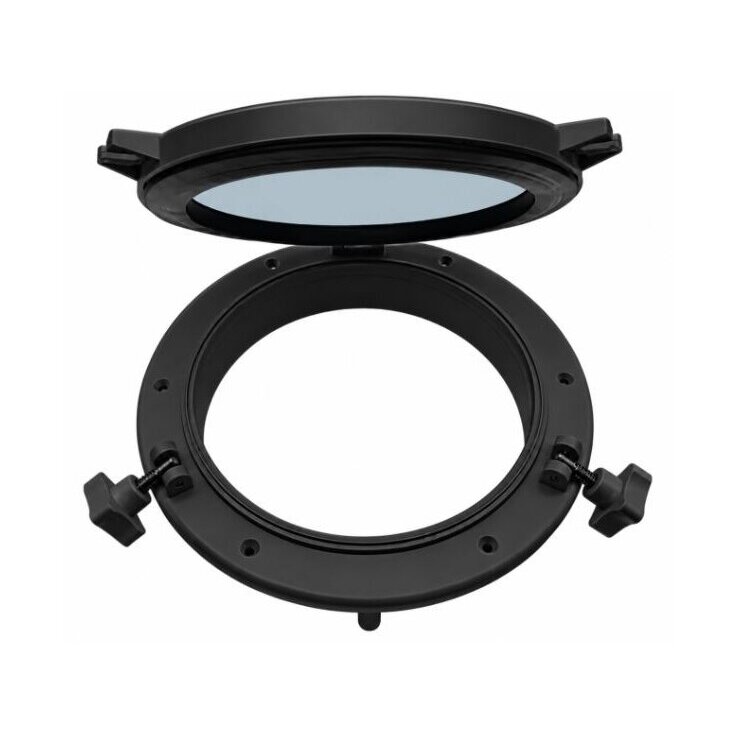

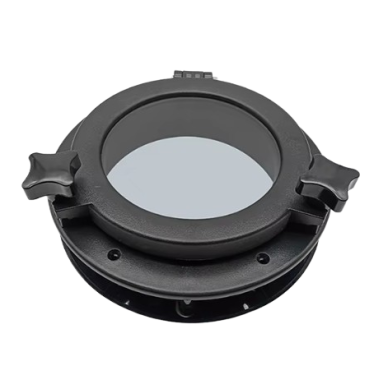

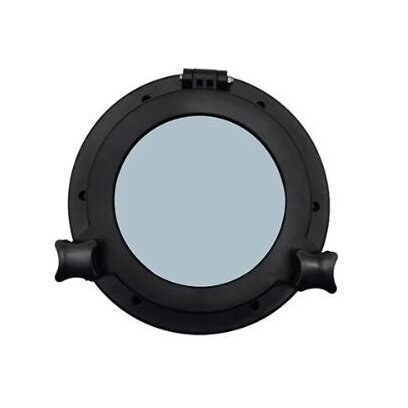

An openable black plastic access hatch with a clear window is a practical and compact solution for convenient access to technical cavities, storage compartments, or hidden equipment. The hatch is made of a sturdy and lightweight black ABS plastic frame and a clear acrylic part. The hinged lid is secured with mechanical latches. The clear window allows you to visually inspect the internal space and lets in natural light without opening the lid.

Product description

Openable plastic hatch with window | Ø197mm | Ø265mm | ABS + Acrylic | White

Openable plastic access hatch with clear window | Ø147mm inner opening | Black

Compact plastic access hatch with a clear window – a practical openable access cover designed for convenient access to technical cavities, storage compartments, or hidden equipment. The product features a sturdy and lightweight black ABS plastic frame and a clear acrylic section that not only provides access but also lets in natural light and allows visibility into the interior space.

Functionality and Light Transmission

Thanks to the Ø147mm inner opening and the hinged lid with mechanical latches, easy maintenance and convenient item retrieval are ensured. The clear window provides the ability to see inside without opening the hatch.

Ø215mm

External Dimensions

Ø147mm

Inner Opening Dimensions

ABS + Acrylic

Materials

Black

Color

Functional Blocks and Technical Solutions

Element	Construction	Purpose / System Benefit
Frame	ABS Plastic	Forms the main sturdy hatch structure and mounting base.
Clear Window	Acrylic	Transmits natural light and allows visual monitoring of the internal space.
Lid	Hinged	Provides quick and convenient access to the storage compartment or technical cavity.
Fixing	Mechanical Latches	Helps securely keep the lid in the closed position during operation.

How is installation performed?

A suitable location is selected on a wall, furniture piece, floor, or other flat structure.
The actual dimensions of the hatch and the shape of the mounting frame are checked (it is recommended to measure the product before cutting the opening).
A mounting opening of the required size is prepared according to the actual parameters.
The hatch frame is inserted into the prepared opening and mechanically secured to the structure.
If exposure to moisture or water is possible at the installation site, a suitable sealing material is used around the frame.

Important Installation Note

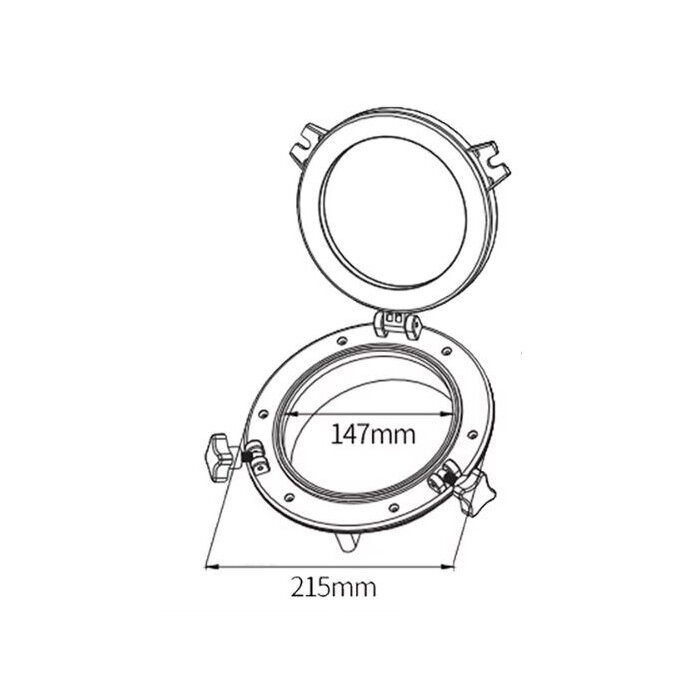

External dimensions are Ø215mm, and the inner open section dimensions are Ø147mm. These figures do not automatically mean the exact size of the mounting cutout, therefore it is always recommended to measure the actual product before cutting into the structure.

Technical Specification

Product Type	Openable plastic access hatch with clear window
Shape	Round
External Dimensions	Ø215mm
Inner Opening Dimensions	Ø147mm
Frame Material	ABS Plastic
Window Material	Clear Acrylic
Color	Black
Lid and Closure	Hinged with mechanical latches

Pros / Advantages

Compact size: Ø215 mm external dimensions are ideal for smaller access openings.
Convenient access: Ø147 mm inner opening provides sufficient space to insert a hand or small tools.
Clear acrylic window: allows visual checking of the interior without opening the lid and lets in light.
High material quality: ABS plastic frame ensures durability and lightness of the structure.

Cons / Limitations

Precise measurement required: before cutting the mounting opening, it is essential to evaluate the product dimensions.
Acrylic sensitivity: the clear window is easily scratched, so cleaning it with abrasive cleaners is not recommended.
Sealing dependency: water protection depends on the correct use of additional sealing materials during installation.

Who is it suitable for? (Application Areas)

Technical cavities and access openings in furniture, walls, or partitions
Accessing compartments in painting or technological cabinets
Locations requiring openable access and additional light flow through the window

Who is it NOT suitable for?

Large mechanical loads where people walk on it or heavy objects are placed
Structures requiring non-standard or larger opening dimensions

Practical Application Example

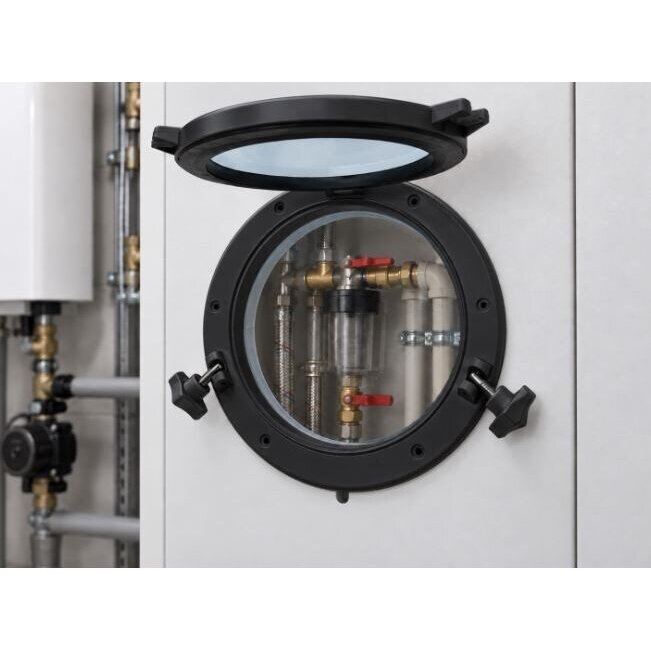

When installing a technical cabinet or a closed wall niche housing hidden equipment, this plastic hatch is used. Installing it into the prepared opening provides a neat Ø147 mm access point. The clear acrylic window allows indicators or items inside to be viewed immediately without opening the lid, while the hinged mechanism ensures quick servicing.

Frequently Asked Questions (FAQ)

What are the overall external dimensions of the hatch?

The external dimensions of the hatch are Ø215 mm.

What are the dimensions of the inner opening?

The dimensions of the inner open section are Ø147 mm.

What materials is the hatch made of?

The main frame is made of sturdy ABS plastic, and the clear window section is made of acrylic.

Is the hatch openable?

Yes, the hatch features a hinged lid and mechanical closing latches.

Important Note for the Installer

It is advisable to physically check the product frame before cutting the mounting opening. If the structure is installed in a humid environment, ensure high-quality additional frame sealing.

Plastic hatch with clear window (Ø147, Ø215) – a reliable and aesthetic choice for creating light-transmitting access openings.
