  •   Automatic gate drive system | for swing yard gates | 24V DC | up to 3.5m / 200kg | with remote control | IP55 | PKM-C01
      Automatic gate drive system | for swing yard gates | 24V DC | up to 3.5m / 200kg | with remote control | IP55 | PKM-C01 1
      Automatic gate drive system | for swing yard gates | 24V DC | up to 3.5m / 200kg | with remote control | IP55 | PKM-C01 2
      Automatic gate drive system | for swing yard gates | 24V DC | up to 3.5m / 200kg | with remote control | IP55 | PKM-C01 3

    Automatic gate drive system | for swing yard gates | 24V DC | up to 3.5m / 200kg | with remote control | IP55 | PKM-C01

    Code: PKM-C01
    Inquire about this item
    Price 344.85 € VAT incl.
    ( 285.00 € VAT excl. )
    Want another price? Suggest yours!

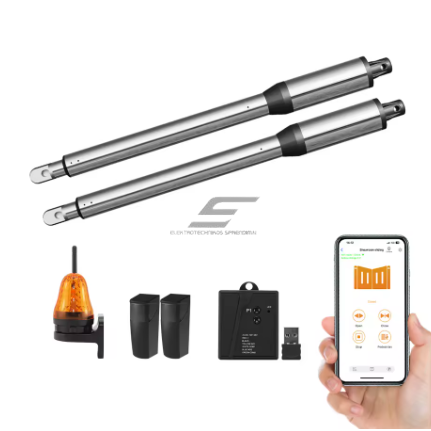

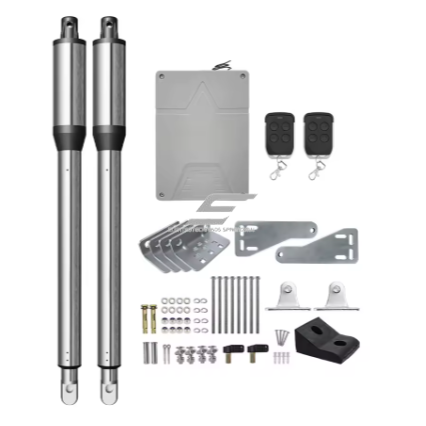

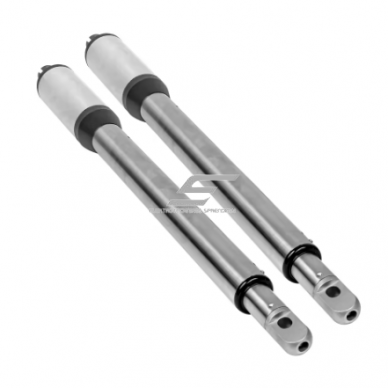

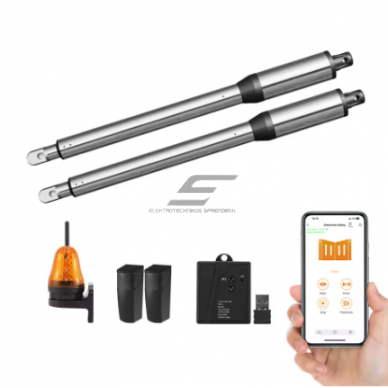

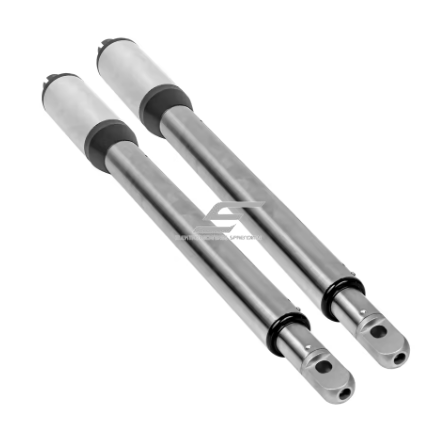

    An automatic gate system designed for a modern driveway entrance. This system is intended for swing gates (single or double leaf) and offers universal application – from private homes to commercial areas or industrial entrances.

    The system is equipped with a 24V DC motor that ensures quiet, smooth, and safe gate movement. Its IP55 protection rating guarantees reliable operation in all weather conditions, while the intelligent microprocessor control unit allows full customization – force adjustment, timing, automatic closing, and integration of additional safety accessories.

  • Product description

    Technical Specifications

    Model: PKM-C01
    Type: Automatic swing gate system
    Power supply: 110V AC / 220V AC
    Motor power supply: 24V DC
    Motor power: 2 × 40W
    Max. gate leaf length: 3.5 m
    Max. gate leaf weight: 200 kg

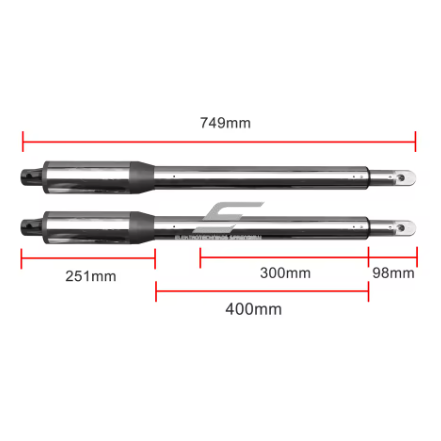

    Stroke: 300 mm
    Motor speed: 250 RPM
    Protection rating: IP55 (rain and dust resistant)
    Control: Remote control, up to 120 transmitters
    Compatibility: Photocells, backup battery, solar system
    Operating cycles: ≥48,000 open/close cycles
    Certificates: CE, RoHS, EN60335
    Origin: China

    Functions

    • Adjustable opening/closing force
    • Adjustable time-delay
    • Built-in overload protection
    • Smooth start-stop for longer service life
    • Automatic closing function
    • Operation with backup power (12–24V battery)
    • Solar-powered capability
    • Compatible with safety photocells
    • Includes modern remote control transmitter

    Usage

    For home users: Convenient gate opening without leaving the car, remote control, high reliability, easy maintenance, IP55 design ensures long-term durability in any weather.
    For engineers/installers: Easy installation and clear wiring logic, microprocessor controller allows force/time/auto-close configuration, compatible with photocells, access control, backup batteries and solar modules.
    For commercial/industrial areas: Stable operation in high-traffic zones (≥48,000 cycles). Up to 120 remote controls – suitable for business environments.

    Applications

    • Residential yard gates
    • Summer houses and cottage properties
    • Warehouse or factory entrances
    • Parking areas
    • Company premises
    • Semi-industrial swing gates

    Pros

    • 24V DC – safe, efficient, durable motor operation
    • Quiet and smooth movement
    • Suitable for various types of swing gates
    • Extensive functionality and compatibility
    • Easy maintenance and clear control logic
    • IP55 – resistant to rain, snow and dust
    • Can operate with solar modules – perfect for areas without grid access

    Cons

    • Backup battery and photocells usually sold separately
    • Installation may require professional skills for non-standard gates
    • Not suitable for gates over 3.5 m or 200 kg (a stronger system is needed)

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
