  • Auxiliary contact (right) for industrial automatic circuit breakers FMC5/3U (FMD) | 1NO+1NC | 10A | 230/400V | Promfactor Baltic F/AX5R

    Code: F/AX5R
    Barcode: 4779040156317

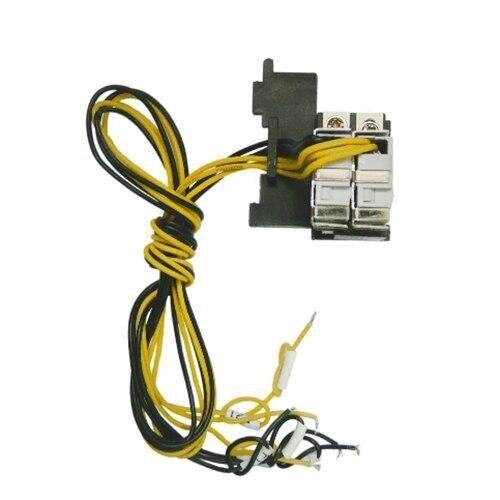

    The auxiliary contact is designed for use with FMC5 and FMD type circuit breakers. It is an accessory that expands the breaker’s functionality by providing additional switching capabilities. It includes two contact groups: 1NO (normally open) and 1NC (normally closed), allowing for more flexible electrical circuit control.

    This contact is mounted on the right side and features an integrated 200 mm long wire, making connection and integration with the existing electrical installation easier.

  • Technical Data:
    Contact configuration: 1NO + 1NC
    Switching current: 10 A
    Rated current (Ie): 1A at 400V; 0.4A at 230V
    Rated voltage (Ue): ~230/400 V
    Frequency: 50/60 Hz
    Number of contact groups: 1
    Wire length: 200 mm
    Mounting side: Right
    Compatibility: FMC5, FMD circuit breakers
    Applications:
    The auxiliary contact is used in:

    Industrial electrical panels – enables integration of signaling and control circuits
    Automation systems – allows device control based on the switch state
    Security systems – can be used as a status indicator in monitoring systems
    Other electrotechnical equipment – where additional switching functionality is required
    Advantages:
    Easy installation – mounted on the right side, comes with a pre-wired connection
    Compatibility – suitable for use with FMC5, FMD circuit breakers
    Reliability – resistant to frequent switching cycles
    Extended functionality – allows circuit monitoring and control
    Disadvantages:
    Specific compatibility – designed only for FMC5, FMD circuit breakers
    The auxiliary contact is an essential accessory for electrical installations where additional status indication or signaling is required. It ensures reliable operation and easy integration with FMC5/FMD breakers, making it indispensable in various automation and electrotechnical systems.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
