Band heater | heating sleeve with temperature controller | 1800W | 230V | +30...+150°C | 1200x300x1.5mm

Technical Specifications

Construction: wrap-around, for cylindrical surfaces
Dimensions: 1200 × 300 × 1.5 mm
Adaptation to tank: Ø ~435 × 730 mm
Supply voltage: 230 V AC
Power: 1800 W
Suitable capacity: ~100 L
Temperature range: 30–150 °C (do not exceed 200 °C max.)
Temperature control: integrated mechanical thermostat
Power density: 0.10–2.0 W/cm²
Power tolerance: ±5%
Operating temperature (insulation): −60 °C … +200 °C
Heating element: Ni-Cr alloy
Outer insulation: silicone fiberglass coating
Insulation resistance: >5 MΩ
Dielectric strength: 1500 V / 5 s

Cable lengths:
• Power cable – 1.3 m
• Temperature control cable – 0.4 m
• Lead length – 120–200 mm

Main Functions

Fast and uniform heating – Ni-Cr alloy heating element ensures even temperature without hot spots
Viscosity reduction – facilitates discharge of solidified or thick materials
Flexible and soft – easily adapts to drum or container shape

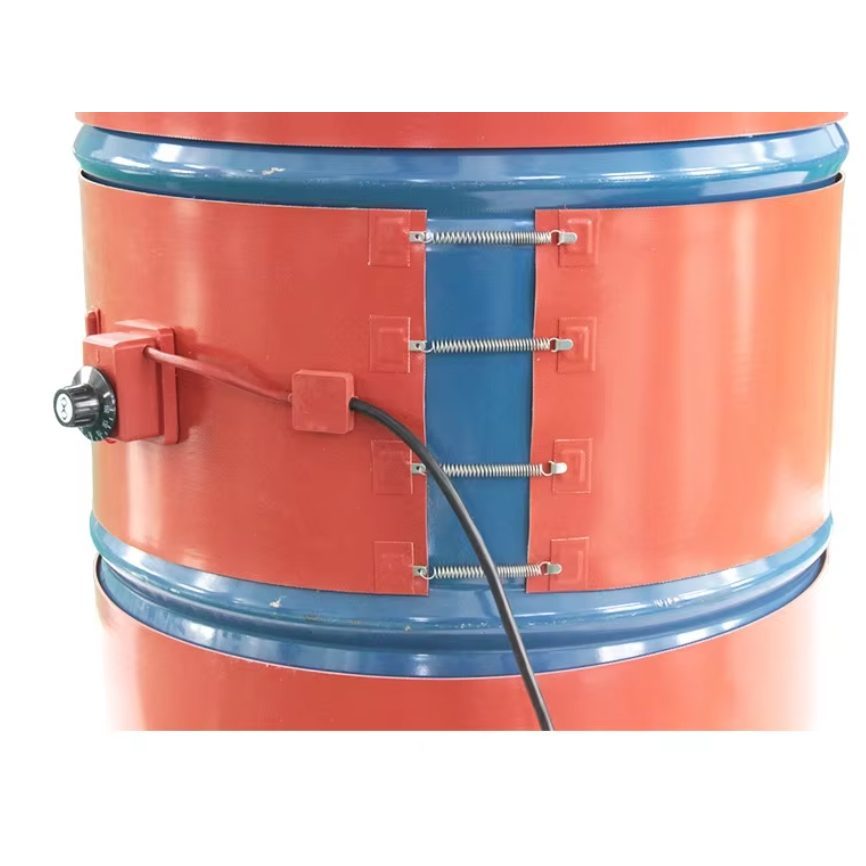

Quick installation – spring tension system automatically adapts to the surface
Environment resistant – resistant to water, acids, alkalis, oxidation
Wide application – suitable for drums, pipes, tanks, reservoirs, compressors, motors, pumps

Applications

For industrial and manufacturing companies: Storage and preparation of resins, oils, chemicals. Temperature maintenance before dosing or transfer.
For engineers and technologists: Ensures process stability. Heating viscous materials without open flame or complex systems.
For electricians and maintenance technicians: Simple connection to 230 V supply. Fast installation and removal, minimal maintenance.
For warehouses and logistics: Protection against material solidification at low temperatures. Reliable solution for temporary or seasonal heating needs.

Pros

Fast and uniform heating without overheating zones
Accurate temperature control
Resistant to moisture, chemicals, high and low temperatures
Flexible and easy to install on various surfaces
Universal application – from drums to pipelines

Cons

Not recommended to exceed 200 °C operating temperature
Tank size and required power must be properly selected
