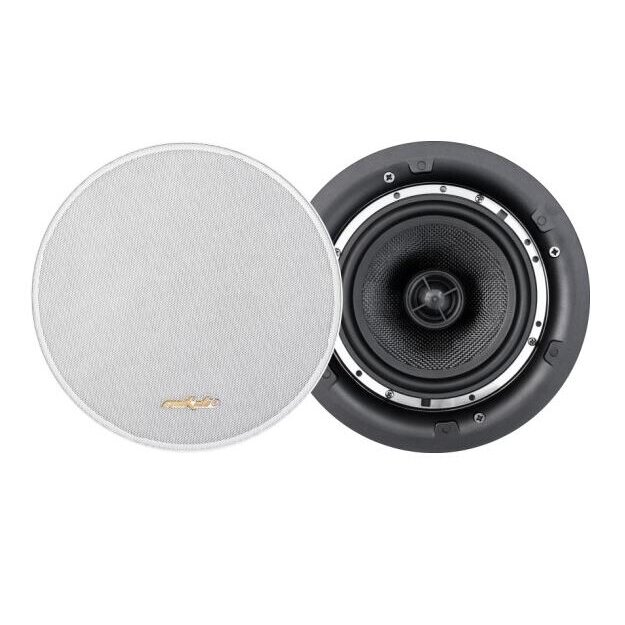

Ceiling speaker | 20W | 8 Ohm | Ø233x97mm | white

The speaker is designed for integration into the ceiling, allowing it to blend discreetly into the room interior. Wide sound dispersion, a separate tweeter and a 6.5" low / mid-frequency driver make it suitable for background music in homes, offices, hotels, shops, showrooms, waiting areas and other indoor spaces.

The speaker uses a separate 1" high-frequency driver and a 6.5" main driver. This construction allows high frequencies and mid / low frequencies to be reproduced by separate drivers, reducing the need for a single driver to reproduce the entire frequency range.

The speaker provides wide sound dispersion. Installing several speakers across a ceiling can help distribute background music more evenly throughout a larger room and reduce the need for a single sound source operating at a high volume.

This model is an 8Ω low-impedance speaker. It is not a 70V / 100V transformer-based PA speaker and must therefore be connected to an amplifier designed for an 8Ω load. When connecting multiple speakers, the total impedance must be calculated and the amplifier's permitted load must not be exceeded.

The recessed ceiling speaker is suitable for installations where clean interior aesthetics and even music distribution are important. Only the front of the speaker remains visible in the ceiling, while the main housing is concealed above the ceiling surface.

• 6.5" main driver designed for mid and lower-frequency reproduction.
• 1" Mylar tweeter provides separate high-frequency reproduction.
• Ferrofluid cooling helps the high-frequency driver manage thermal load more effectively.
• 60Hz–20kHz frequency range covers a wide spectrum for music reproduction.
• Wide sound dispersion is suitable for background audio applications.
• Two bass reflex ports help improve lower-frequency reproduction.
• 89±2dB sensitivity allows efficient use of amplifier power.
• 102±2dB maximum SPL provides sufficient sound level for many indoor spaces.
• Recessed installation allows the speaker to be integrated neatly into the ceiling.
• Engineering plastic housing helps keep the overall construction weight relatively low.

• 20W rated power: large or very noisy spaces may require multiple speakers.
• 8Ω impedance: the speaker cannot be connected directly to a 70V / 100V PA line without suitable additional equipment.
• A ceiling opening is required: installation must take into account the ceiling structure, 97mm installation depth and additional space for wiring.

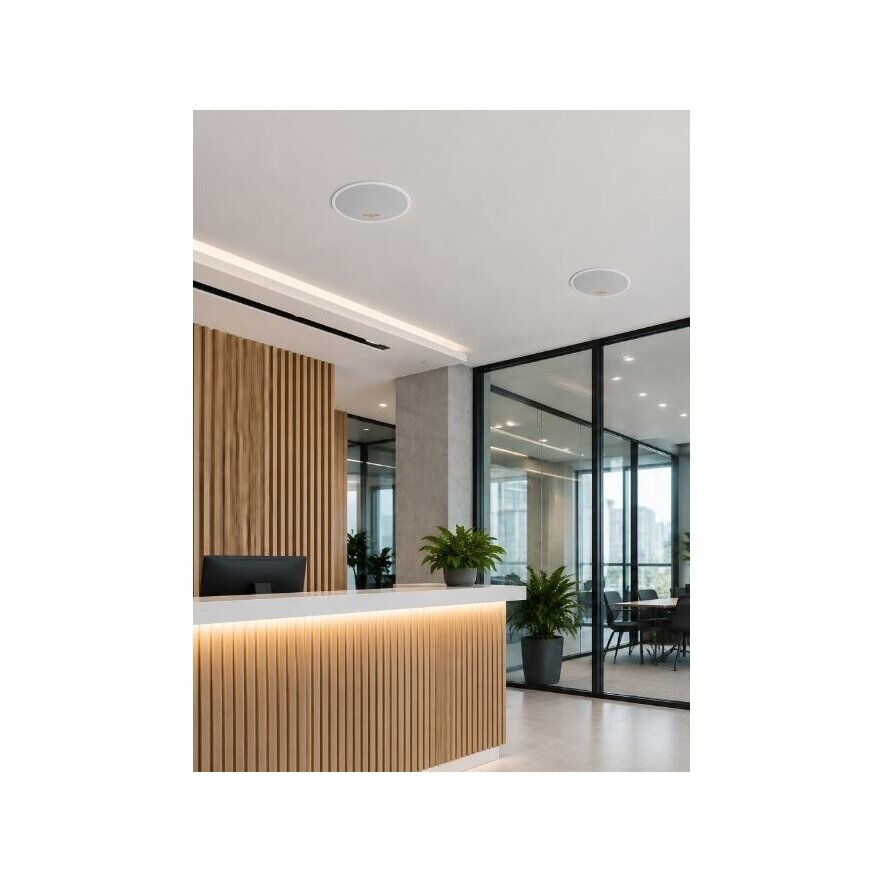

In an office or residential room, several ceiling speakers can be distributed evenly across the ceiling and connected to an audio amplifier designed for an 8Ω load. The 6.5" main driver reproduces mid and lower frequencies, while the 1" Mylar tweeter reproduces high frequencies. This configuration allows music to be distributed more evenly throughout the room than when using a single standalone speaker located at one point.

The rated power is 20W.

The speaker impedance is 8Ω.

Not directly. This is an 8Ω speaker, so it must be used with a low-impedance audio amplifier or with appropriately selected additional transformer equipment.

The main driver size is 6.5".

Yes. It uses a 1" Mylar dome tweeter with ferrofluid cooling technology.

The frequency range is 60Hz–20,000Hz.

The sensitivity is 89±2dB.

The specified maximum sound pressure level is 102±2dB.

The overall dimensions are Φ233x97mm.

The speaker weighs approximately 1.6kg.

The exact mounting cut-out is not specified in the provided technical data. Before cutting the ceiling, it is recommended to measure the actual speaker or use the manufacturer's installation template.

It is primarily designed for background music playback in residential and commercial indoor spaces.

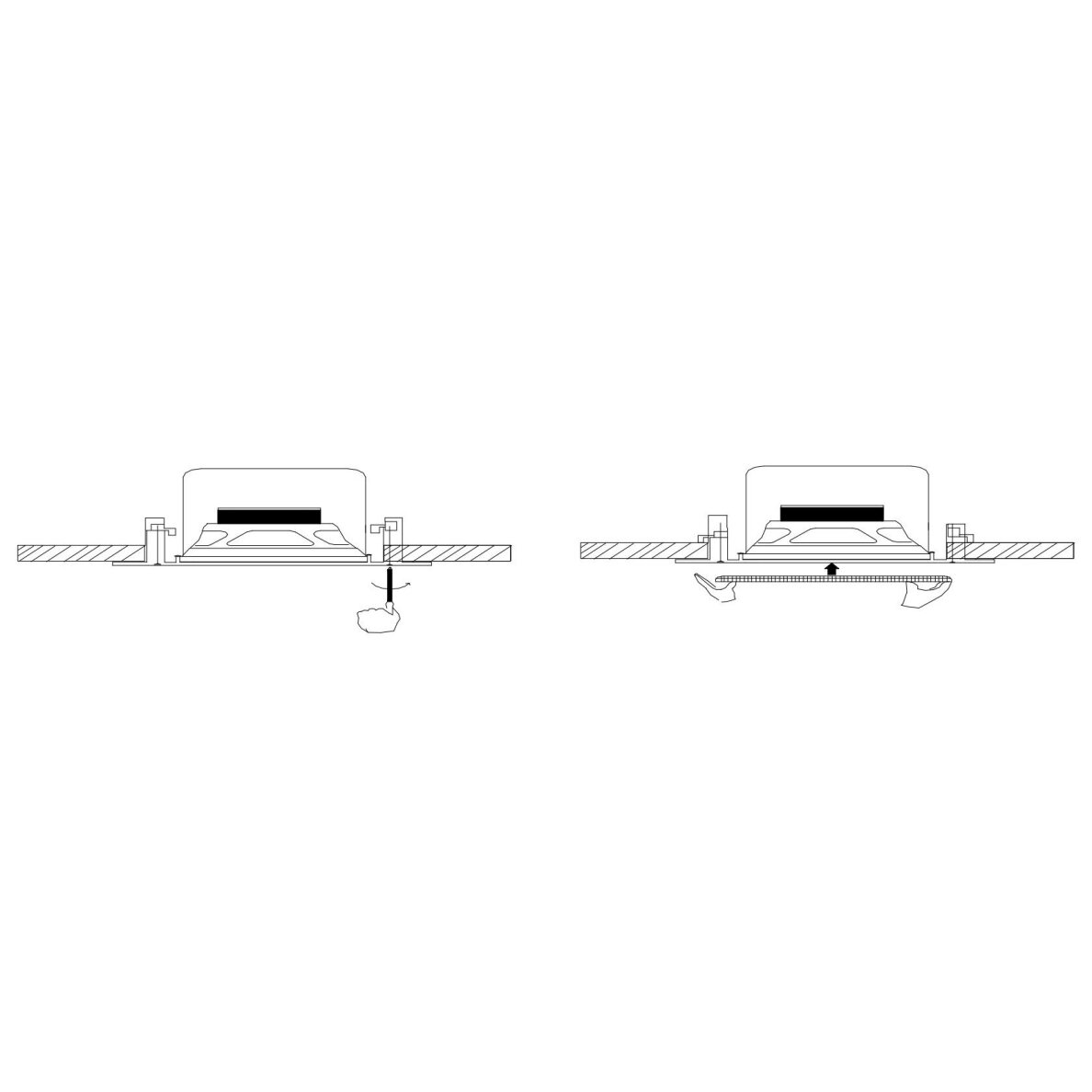

Before installation, check the ceiling construction, available installation depth and actual cut-out dimensions. The speaker must be securely mounted to prevent vibration or mechanical resonance during operation. Speaker wires must be connected with the correct polarity. As this is an 8Ω speaker, the amplifier must be suitable for this load. When connecting multiple speakers, the total system impedance must be calculated to ensure that it remains within the amplifier's permitted operating range.
