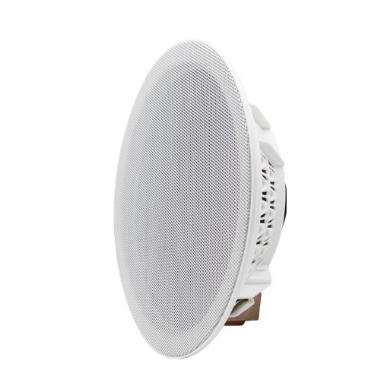

Ceiling Speaker | 70V/100V | 10W | 95dB | Anti-UV Engineering Plastic | 8" Speaker Driver

Technical Specifications

Manufacturer: DSPPA
Model: DSP8011
Type: Frameless ceiling speaker
Power: 6–10 W
Power supply: 70V / 100V line
Frequency range: 70 Hz – 20 kHz
Sensitivity: 95 ± 2 dB
Maximum SPL: 103 ± 2 dB
Material: Anti-UV engineering plastic
Distortion: <1.5%
Weight: 0.9 kg
Installation: In-ceiling, magnetic grille mounting system
Speaker size: 8" (203 mm)

Features

Frameless design – modern, minimalist look with no visible edges.

8" speaker – deeper and richer sound than standard 6.5" models.

Anti-UV engineering plastic – resistant to sunlight, does not yellow, maintains durability.

Integrated 70V/100V system – easy connection to professional audio lines.

High sensitivity: 95 ± 2 dB – clear sound even at low power levels.

High maximum SPL – 103 ± 2 dB – suitable for announcements in noisy areas.

Wide frequency range: 70 Hz – 20 kHz – clear vocals and crisp highs.

Low distortion <1.5% – improved audio quality.

Applications

For home users: Perfect for houses, apartments, lofts. Ideal for living rooms, kitchens, terraces, corridors – wherever background music is needed.
For engineers / designers: Aesthetic solution for public spaces, malls, offices, hotels, clinics, schools. Compatible with 70V/100V lines for long cable runs and multi-speaker installations.
For electricians: Fast installation with spring clamps, magnetic grille simplifies service and mounting. Lightweight housing reduces ceiling load.

Pros

Frameless, modern design

Large 8" speaker – better low-frequency reproduction

Anti-UV plastic – resistant to discoloration

Clear, bright sound (95 dB sensitivity)

Low distortion <1.5%

Magnetic grille – easy installation

Cons

No EN54 certification (not recommended for fire alarm systems)

Not designed for very strong bass reproduction
