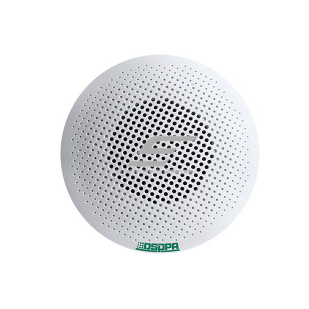

  •   Ceiling speaker | 70V/100V | 10W | 95dB | with protective cover | Full-range 3" driver
      Ceiling speaker | 70V/100V | 10W | 95dB | with protective cover | Full-range 3" driver 1

    Ceiling speaker | 70V/100V | 10W | 95dB | with protective cover | Full-range 3" driver

    Code: DSP5311IB
    Inquire about this item
    Price 12.10 € VAT incl.
    ( 10.00 € VAT excl. )
    Want another price? Suggest yours!

    Ceiling speaker with a protective cover, designed for announcements and background music in public address (PA) systems. Thanks to the built-in 70V/100V audio transformer, it is suitable for large-building audio networks where multiple zones or many speakers need to be connected on the same line.

    The speaker features high sensitivity, a wide frequency range, and a maximum sound pressure level of 95 dB, ensuring clear voice reproduction and stable background sound in rooms of various sizes. The set includes a protective cover that shields the unit from dust and contamination, while the housing is designed for easy ceiling installation.

  • Product description

    Technical Specifications

    Manufacturer: DSPPA

    Model: DSP3011IB

    Type: Frameless in-ceiling loudspeaker

    RMS Power: 10W

    70V Line Power: 1.5W / 3W

    100V Line Power: 3W / 6W

    Speaker Size: 3" full-range

    Maximum SPL: 95 ± 2 dB

    Sensitivity: 85 ± 2 dB

    Frequency Range: 130 Hz – 20 kHz

    Material: Aluminum grille

    Cutout Diameter: Ø105–110 mm

    Construction: Casing structure with front grille

    Main Features

    Integrated 70V/100V transformer allows connecting many speakers on a single line.

    10W nominal power – strong sound for medium and larger zones.

    3" full-range driver provides clear and clean voice reproduction.

    95 dB SPL – suitable for all types of public spaces.

    Protective cover shields the internal structure from dust and contaminants.

    Easy installation thanks to a 105–110 mm cutout – fits most ceiling systems.

    Usage

    For home users: Suitable for corridors, garages, utility and technical rooms. Provides clean background music and smooth playback of announcements. Easy to install even in renovated ceilings.

    For engineers / designers: Excellent choice for commercial PA systems requiring 10W speakers. Stable frequency response from 130 Hz ensures good voice clarity. Suitable for multi-speaker systems, evacuation and information networks.

    For electricians / installers: Integrated 70V/100V transformer ensures simple and universal wiring. Wide cutout tolerance (Ø105–110 mm) simplifies installation. Protective cover allows confident use in dusty or high-traffic environments.

    Pros

    10W power – extra sound reserve

    Clear voice and strong SPL

    Built-in 70V/100V transformer

    Suitable for multi-zone PA networks

    Easy installation even in non-standard ceilings

    Protective cover for dust protection

    Cons

    Not resistant to moisture (for dry indoor use only)

    Limited low-frequency response (from 130 Hz)

    Requires a PA amplifier – not suitable for direct Hi-Fi connection

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
