Ceiling Speaker for Home | with Bluetooth | 50W | 12VDC | Ø205mm | White

Recessed Bluetooth ceiling speaker set – active and passive, 2×50 W, 12 V DC, white

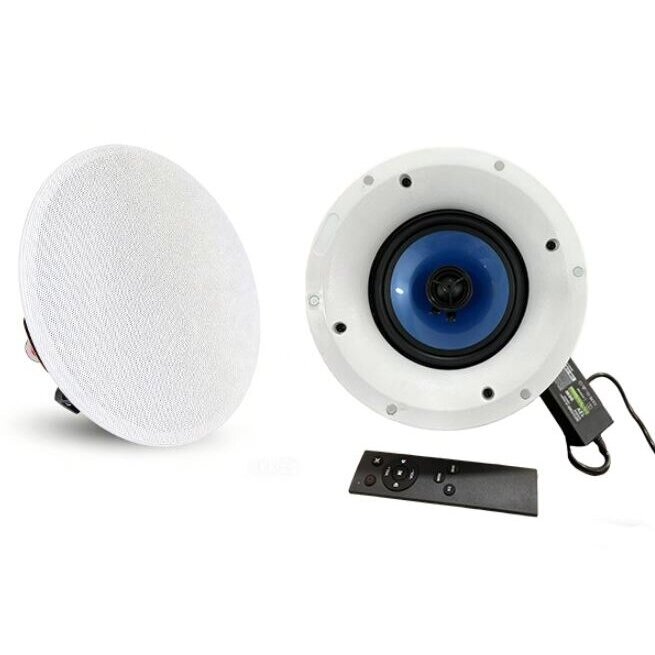

Recessed ceiling speaker set consists of one main active speaker with an integrated amplifier and one passive speaker. The active speaker is powered by 12 V DC, receives audio via Bluetooth, USB connection or a wired audio input, and sends the amplified signal to the passive speaker.

The set is designed for background music, speech and other audio content in residential, commercial and public spaces. The recessed design allows the speakers to be installed in the ceiling so that only the white round decorative grilles remain visible in the room.

• 12 V DC power supply – for the active speaker amplifier and control electronics.
• Bluetooth connectivity – for wireless audio transmission from a phone, tablet or other compatible device.
• USB connection – for playing audio content from compatible storage media.
• Audio input – for connecting an external wired audio source.
• App control – according to the supplied technical information.
• Integrated amplifier – no additional external amplifier is required.
• Passive speaker output – for connecting the second speaker in the set.

• Active and passive speaker set – for more even sound distribution.
• 12 V DC power supply – for the active speaker electronics and amplifier.
• Integrated amplifier – built into the main active speaker.
• Bluetooth connectivity – for wireless audio transmission.
• USB playback – for audio content from compatible storage media.
• Audio input – for connecting a wired source.
• App control – according to the supplied specification.
• 50–20,000 Hz frequency range.
• Recessed installation – for a neat ceiling finish.
• Suitable for background music and speech reproduction.

• In living rooms – for music and everyday audio content.
• In kitchens and dining rooms – for background music.
• In offices – for background music and audio content.

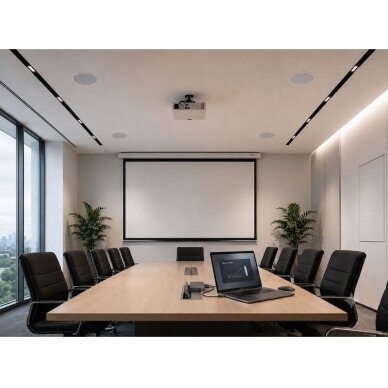

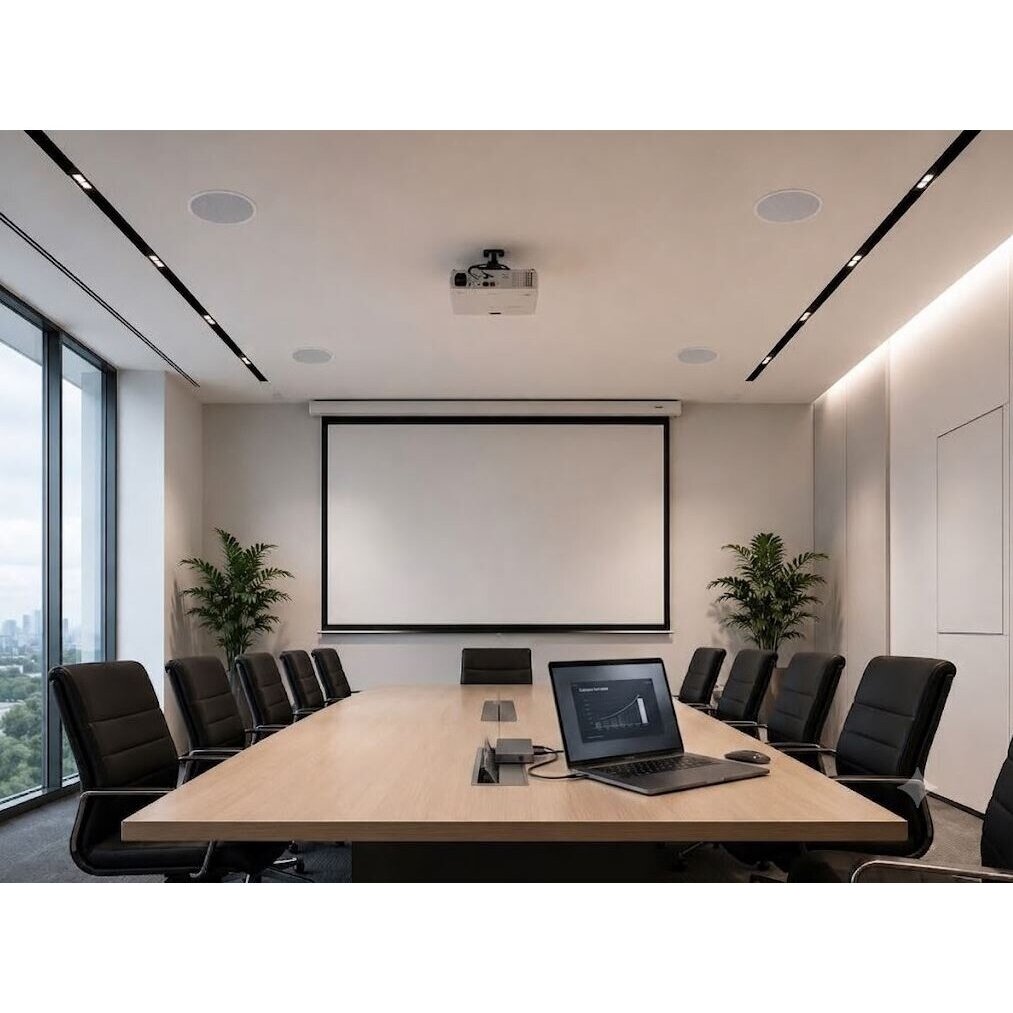

• In meeting rooms – for speech and multimedia audio.
• In shops – for background soundtracks.
• In cafés and restaurants – for music in customer areas.
• In hotels – in shared and relaxation areas.
• In beauty salons – for background music.
• In teaching and waiting areas – for speech and audio playback.

1. Select the installation locations. Position the speakers so that sound is distributed evenly throughout the room.
2. Check the ceiling cavity. It must accommodate the approximately 110 mm deep speaker housing and its connections.
3. Mark the Ø205 mm openings. Check the dimensions again before cutting.
4. Route the 12 V DC power cable. It is connected to the active speaker.
5. Route the speaker interconnection cable. This cable connects the active speaker to the passive speaker.
6. Check the power-supply polarity. Connect the positive and negative wires according to the speaker markings.
7. Connect the passive speaker. Observe the polarity of the speaker terminals.

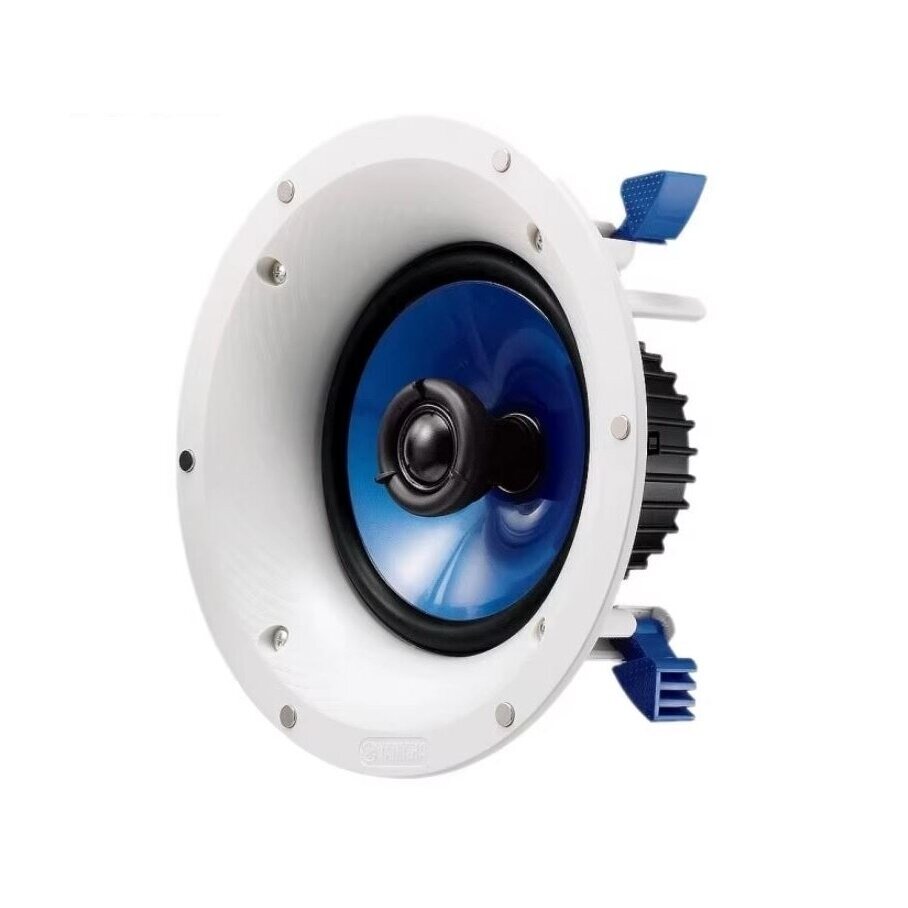

8. Insert the speakers into the openings. Secure them using the mounting mechanism built into the housing.
9. Check operation. Test Bluetooth, USB, the audio input and playback from both speakers.

• Power the active speaker only with 12 V DC.
• Do not connect the speaker directly to a 230 V AC mains supply.
• Check the power-supply polarity before connection.
• Use a regulated power supply with sufficient capacity.
• Do not confuse the active and passive speaker connections.
• Do not connect additional speakers with unsuitable impedance.
• Do not use outdoors or in locations exposed directly to waterunless an appropriate IP protection rating is specified.
• Do not cover the active speaker electronics or cooling areas.
• Do not use damaged cables or connectors.
• Do not listen at high volume for extended periods.

12 V DC recessed Bluetooth ceiling speaker set

The set includes one main active speaker with an integrated amplifier and one passive speaker. The active speaker is powered by 12 V DC, while the passive speaker is connected to it with speaker cable.

The audio signal can be transmitted via Bluetooth, USB or a wired audio input. No additional external audio amplifier is required.

Both speakers are designed for recessed ceiling installation. The white round grilles provide a neat and neutral appearance, while the concealed housing does not occupy additional space in the room.

The speakers have a stated rated power of 50 W and a frequency range of 50–20,000 Hz, making them suitable for background music, speech and everyday audio content in homes, offices, shops, cafés and other indoor spaces.

Before installation, select a regulated 12 V DC power supply with sufficient capacity and check the polarity, ceiling-cavity depth and wiring arrangement between the active and passive speakers.
