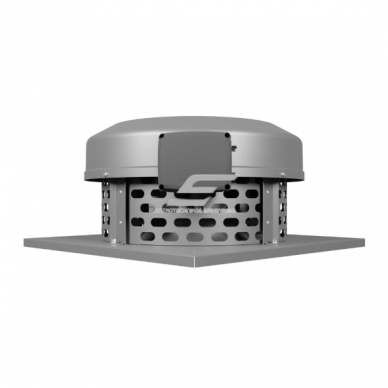

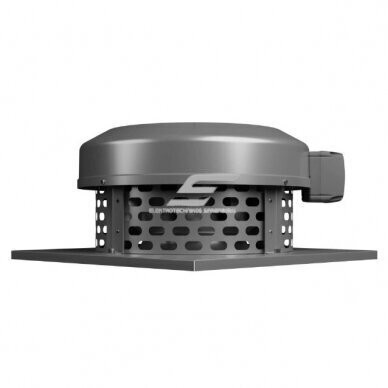

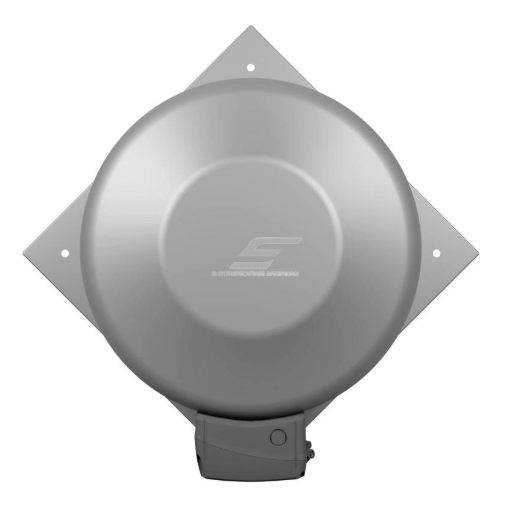

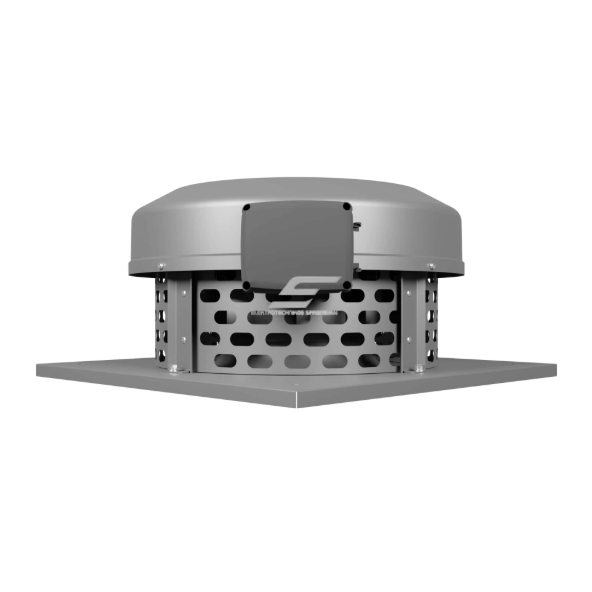

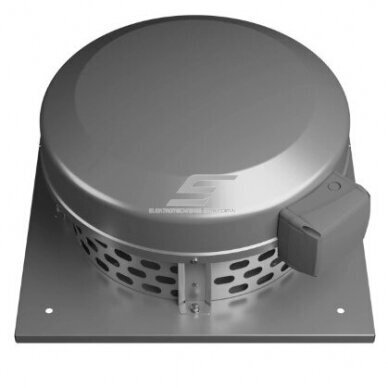

  • Centrifugal roof fan | for ventilation systems | 220x450x450mm | IP54 | grey | galvanized steel | ISV280

    Code: 46324

    High-quality centrifugal roof fan – designed for efficient air extraction and removal of non-explosive gases from residential, commercial, or industrial premises. Mounted on a horizontal roof surface, this device ensures stable operation even under demanding environmental conditions.

    Made of galvanized steel with a polymer coating, the fan is resistant to corrosion, temperature fluctuations, and mechanical impact. The integrated single-phase induction motor with overheating protection ensures long-lasting and safe performance. The IP54 protection rating allows its use both in domestic and professional engineering environments.

  • Technical specifications:

    Purpose: Extraction of air and non-explosive gases from rooms
    Installation: Horizontal (roof); motor shaft – vertical
    Material: Galvanized steel
    Color: Grey
    Protection rating: IP54
    Ambient temperature: -30 to +60 °C

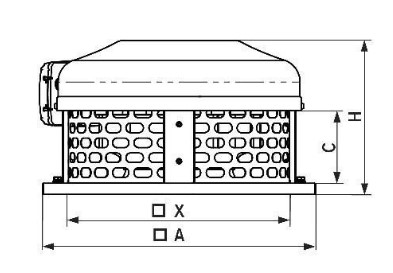

    Height: 220 mm
    Width: 450 mm
    Total depth: 450 mm
    Mounting height: 370 mm
    Mounting width: 370 mm
    Airflow capacity: 1550 m³/h
    Noise level: 74 dB(A)
    Pressure: 780 Pa

    Functions:

    Efficient air extraction through the roof

    Suitable for continuous or periodic operation

    Can be integrated into a central ventilation system

    Compact housing saves space

    Mounted to roof ventilation outlet

    Protection against dust, rain, and overheating

    Reliable performance in high or low temperatures

    Applications:

    Industrial and technical premises

    Workshops, warehouses, boiler rooms

    Attics and roofs of private houses or cottages

    Commercial buildings: restaurants, workshops, stores

    Farm buildings and ventilation shafts

    Pros:

    High air performance

    Reliable motor protection against overheating

    Galvanized steel construction with coating – durability and resistance

    Operates in high humidity or dusty environments

    Compact and easy-to-install design

    Cons:

    Suitable only for horizontal installation – motor shaft direction cannot be changed

    Requires precise installation base or duct outlet





    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
  • Alternative products

    Rotary deflector D120 | ball bearings | stainless steel | silver
    Code: 19474

    Stainless steel rotary deflector (wind turbine) D120 with ball bearings. Fits onto a D120 ventilation duct, extracts air without electricity and protects the duct from rain and snow.

    Price 98.86 € VAT incl.
    ( 81.70 € VAT excl. )
    Duct centrifugal fan with EBM motor El-Turbo Action 125 | D125 | 350 m³/h | 46 W | 230 V | 327 Pa | galvanized steel | silver | 009773
    Code: 009773

    Duct centrifugal fan El-Turbo Action 125 (009773): D125, up to 350 m³/h, 327 Pa, 46 W, 230 V.

    Price 89.15 € VAT incl.
    ( 73.68 € VAT excl. )

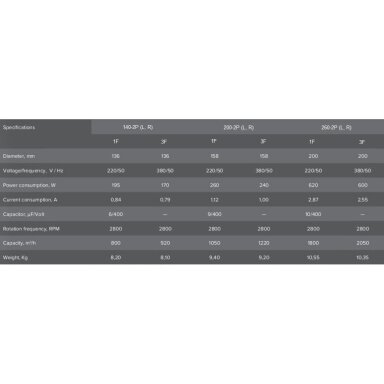

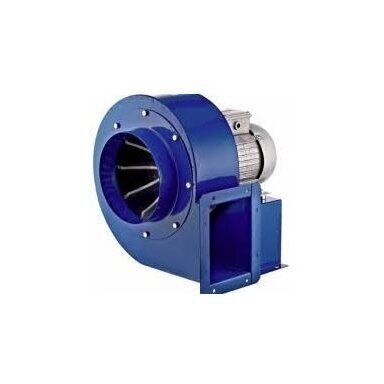

    Radial scroll-housing fan | right-hand | 2-pole motor | 230V | D158 | 345×325×290mm | steel | blue | Turbo Balance Plus 200 2P 230 D | 4772318505315
