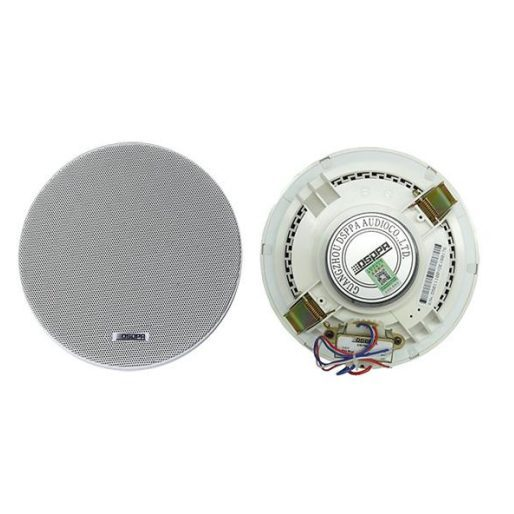

  •   Coaxial ceiling speaker | 70V/100V | 10W RMS | 103dB | 6.5" speaker
      Coaxial ceiling speaker | 70V/100V | 10W RMS | 103dB | 6.5" speaker 1
      Coaxial ceiling speaker | 70V/100V | 10W RMS | 103dB | 6.5" speaker 2

    Coaxial ceiling speaker | 70V/100V | 10W RMS | 103dB | 6.5" speaker

    Code: DSP6510
    Inquire about this item
    Price 40.66 € VAT incl.
    ( 33.60 € VAT excl. )
    Want another price? Suggest yours!

    A 6.5-inch coaxial ceiling speaker designed for professional public address (PA), background music, and commercial audio systems. The coaxial construction (6.5" woofer + 0.75" tweeter on the same axis) provides significantly better sound quality, a wider frequency range, and richer audio compared to standard single-driver models.

    With 10W RMS power, 93 dB sensitivity, and 103 dB maximum sound pressure level, the DSP6510 is an excellent choice for spaces where clear, dynamic, and high-quality audio is required—both for background music and voice announcements.

  • Product description

    Technical Specifications

    Manufacturer: DSPPA

    Model: DSP6510 (new version of DSP5211)

    Type: Coaxial ceiling-mounted speaker

    Driver system: 6.5" woofer; 0.75" coaxial aluminum tweeter

    Rated power (RMS): 10W

    Power supply: 100V line

    Sensitivity (1W/1m): 93 ± 2 dB

    Max. SPL (1m): 103 ± 2 dB

    Frequency range: 90 Hz – 18 kHz

    Dimensions: Ø190 × 80 mm

    Installation: In-ceiling (spring clip / standard mounting brackets)

    Application: Background music, announcements, commercial installations

    Main Features

    Coaxial design – significantly improved sound detail, clearer vocals and more accurate high frequencies.

    10W RMS power – excellent balance between sound output and energy efficiency.

    High 103 dB maximum SPL – sufficient sound level even in larger rooms.

    93 dB sensitivity – clear sound even at lower power.

    Wide 90–18,000 Hz frequency range – more natural and fuller sound.

    Aluminum tweeter – clearer, brighter reproduction of high frequencies.

    Easy in-ceiling installation – quick mounting with spring clips.

    Usage

    Home user: Ideal for higher-quality background music at home — living rooms, kitchens, workspaces. Coaxial system ensures balanced audio.

    Engineer / system designer: Optimal for commercial projects requiring higher sound quality than standard 100V speakers. Excellent clarity/range ratio for announcement systems. Suitable for hotels, SPA areas, restaurants.

    Electrician: Reliable and fast installation with standard spring clips. Clear 100V line wiring. Compact Ø190 mm size fits most ceilings.

    Commercial & public spaces: Hotels, restaurants, cafés, SPA centers, massage rooms, offices, public zones, stores, shopping centers, clinics, medical facilities.

    Pros

    Coaxial design – higher audio quality

    103 dB maximum SPL

    Wide frequency range

    Aluminum tweeter – cleaner high frequencies

    10W RMS – sufficient for high-quality background music

    Compact and easy to install

    Cons

    Not resistant to direct moisture (indoor dry areas only)

    Requires 100V amplifier – not compatible with domestic 8Ω amplifiers

    Bass starts at 90 Hz – not suitable for Hi-Fi low-frequency reproduction

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
