  • Control cable | 3x0.75 YSLY-JZ (OPVC-JZ) | 300/500 V | flexible | grey

    Code: OPVC-JZ 3X0,75

    Round flexible multi-core control cable with numbered cores and a green-yellow PE core. Installed openly in dry and damp rooms; outdoors only when protected from direct sunlight.

    Price is per 1 m.

  • Control cable | 3x0.75 YSLY-JZ (OPVC-JZ) | 300/500 V | flexible | grey

    YSLY-JZ (OPVC-JZ) 3x0.75 is a flexible PVC control cable for control, signalling and measuring circuits. The black cores are numbered, so each core is easy to identify in a panel or machine without extra marking.

    Key idea:
    When many control circuits must run from a panel to a machine in one cable, numbered cores save time during installation and fault finding. The green-yellow core (JZ) allows protective earth to be connected.
    Voltage
    300/500 V
    Cores
    3x0.75 mm², numbered + PE
    Temperature
    −40…+80 °C fixed
    CPR
    Eca

    Technical specifications

    Product typeControl cable, flexible, multi-core
    DesignationYSLY-JZ (OPVC-JZ)
    Cores × cross-section3x0.75 mm²
    ConductorStranded copper
    InsulationPVC, black numbered cores + green-yellow PE core
    SheathPVC, grey
    Rated voltage300/500 V
    Test voltage4000 V
    Operating temperature (fixed)−40…+80 °C
    Operating temperature (flexing)−5…+70 °C
    CPR classEca
    EnvironmentDry and damp rooms; outdoors only with UV protection
    Sales unit1 m

    Where is it used?

    • Control circuits between panel and machine
    • Wiring of push buttons, switches, pilot lights
    • Control of contactor and relay coils
    • Production lines, conveyors, machine tools
    • Ventilation and heating automation
    • Measuring and signalling circuits without strong interference

    Pros

    • Numbered cores – fast wiring and fault finding
    • Green-yellow PE core
    • Flexible, easy to lay in trunking and trays
    • Wide operating temperature range for fixed installation
    • Sold by the metre

    Cons / limitations

    • Unshielded – not for sensitive signals near frequency drives
    • Not UV resistant
    • Not for direct burial
    • PVC flexibility decreases at low temperatures

    Safety and installation notes

    • Bend and lay the cable at temperatures not lower than −5 °C.
    • Crimp ferrules on stranded core ends.
    • Lay control and power cables separately or with spacing.
    • Outdoors lay only in a conduit or trunking protected from the sun.

    FAQ

    Is the cable shielded?
    No, for sensitive signals near interference sources choose a shielded cable, e.g. LIYCY.
    What does JZ mean?
    The cable has a green-yellow protective earth core.
    Can it be laid outdoors?
    Only when protected from direct sunlight – in a conduit or trunking.

    How to choose the right cable – see the special purpose cable guide.

    Control cable | 3x0.75 YSLY-JZ (OPVC-JZ) | 300/500 V | flexible | grey

    Flexible control cable YSLY-JZ 3x0.75 with numbered cores and PE core – for control circuits in panels, machines and automation systems.

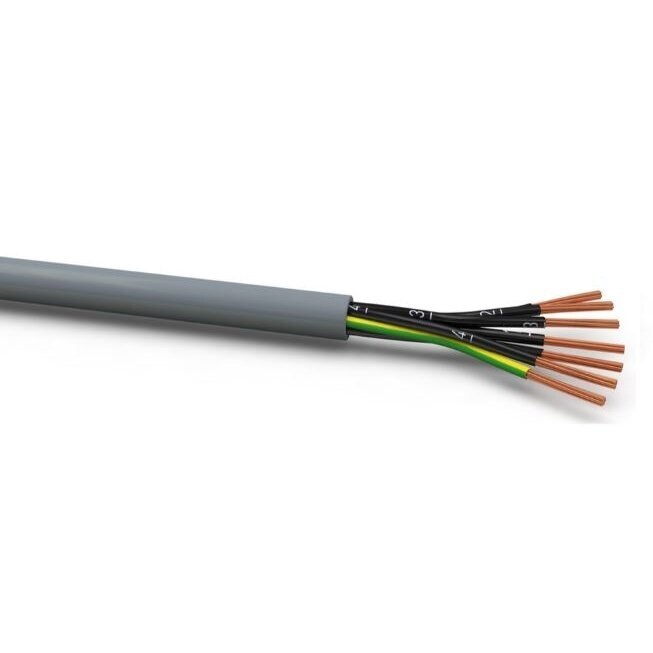

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
  • Alternative products

    Price 48.40 € VAT incl.
    ( 40.00 € VAT excl. )
