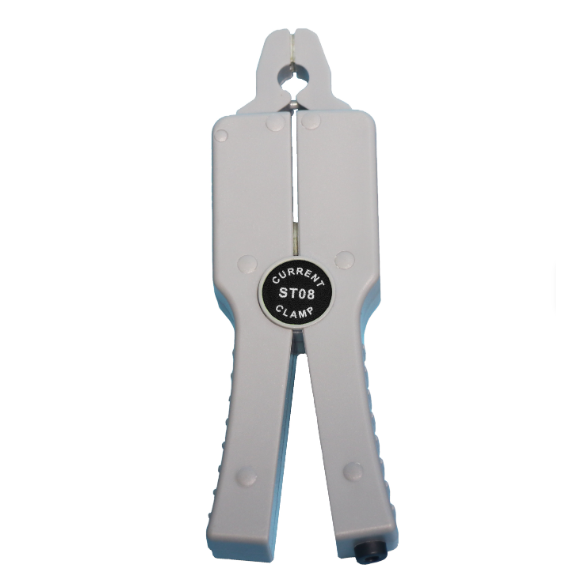

Current measuring clamp | 20A | 320 mV | BNC connector | non-invasive AC current measurement | ST08
Code: ESST082Current clamps are a compact and accurate solution for non-contact alternating current (AC) measurement, suitable for both professional and advanced home use. These clamps allow fast and safe current measurement without disconnecting wires or interrupting equipment operation, making them ideal for diagnostics, testing, and measurements in live electrical systems. Thanks to the standard 320 mV output signal and BNC connector, the clamps can be easily integrated with oscilloscopes, data loggers, energy analyzers, and other measuring instruments.
-
Technical Specifications
Type: Current clamp
Model: ST08
Measured current (rated):20A
Output signal: 320 mV
Accuracy: ±1% (from 1% to 100% of rated current)
Signal cable: 2 meters
Connector: BNC
Measurement principle: Non-invasive (clamp-on conductor)
Application: AC current measurementFunctions
Non-invasive current measurement – no need to disconnect wires
Quick attachment and removal from the conductor
Stable and accurate 320 mV output signal
Compatibility with a wide range of measuring equipment
Suitable for laboratory and field measurements
Applications
Home / advanced user:
Checking electrical installation loads, measuring current of household appliances, basic diagnostics without electrical work risksElectrician:
Quick current checks in panels and distribution boxes, fault diagnostics and maintenance, work on live circuitsEngineer / technician:
Oscilloscope measurements and signal analysis, laboratory testing, prototype validation, integration with data acquisition and measurement systemsAdvantages
Non-invasive and safe measurement method
±1% accuracy
BNC connector – professional interface
Compact and easy to use
Suitable for both laboratory and field use
Limitations
Designed for alternating current (AC) only
Limited rated current (up to 20 A, depending on version)
IP protection class not specified – recommended for indoor use
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
