  • Differential pressure gauge | manometer 0-10kPa | IP67

    Code: ESLFB10000

    Differential pressure gauge 0–10 kPa for air and non-aggressive gases: no power needed, magnetic movement, IP67. For filter and fan pressure control.

  • Differential pressure gauge | manometer 0-10kPa | IP67

    Dial differential pressure gauge with a measuring range of 0–10 kPa. Designed for air and non-aggressive gases: it shows fan pressure, filter resistance and the pressure difference between rooms or in a duct. It needs no power – a magnetic link transfers the diaphragm movement to the pointer.

    Key idea:
    In a ventilation system the key is to see whether the filter is already clogged and whether the fan delivers the required pressure. This gauge shows it immediately – no electricity, no programming, no display, just a glance at the dial. It is a lower-cost alternative to Magnehelic-type gauges for the same tasks.
    Range
    0–10 kPa
    Accuracy
    ±2 % FS (21 °C)
    Protection
    IP67
    Power supply
    not required

    Operating principle

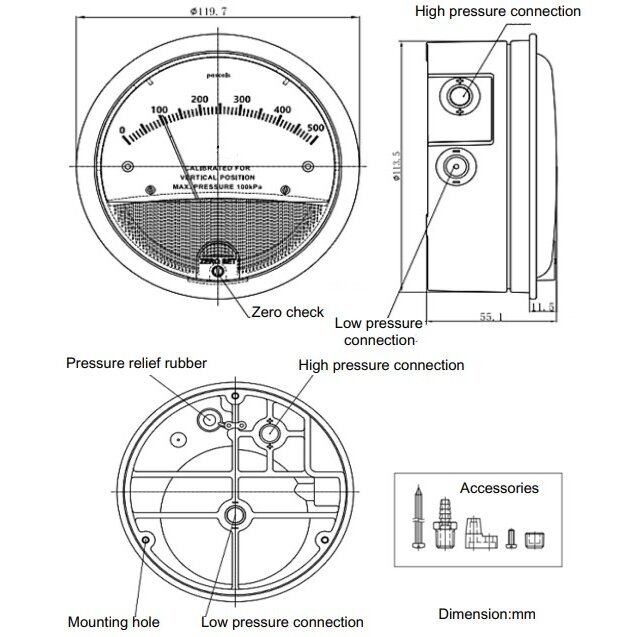

    The gauge is connected with two tubes: the “+” port to the higher-pressure point (e.g. before the filter), the “−” port to the lower one (after the filter). Side or back ports can be used, and the housing can be surface- or flush-mounted.

    The pressure difference deflects a rubber diaphragm, and a gearless magnetic link turns the pointer. With no friction and no liquid, the pointer moves without inertia or hysteresis.

    The result is a constantly visible pressure difference in Pa or kPa: service staff immediately see when to replace a filter or whether the fan runs normally.

    Why choose the LFB gauge?
    It has no electronics, so there is nothing to be damaged by surges, no power supply and no software calibration. Two sets of ports and three mounting options let you place it where it is easy to read.

    Technical specifications

    Product typeDifferential pressure gauge (magnetic movement, no liquid)
    Manufacturer / seriesLEFOO / LFB
    Measuring range0–10 kPa
    Measured pressurepositive, negative (vacuum) or differential
    Accuracy±2 % FS (21 °C); ±3–4 % FS for ranges of 60 Pa and below
    Mediumair and non-aggressive gases
    Movementmagnetic link, diaphragm, no liquid fill
    Overpressure protection~110–150 kPa – rubber safety plug is released
    Operating temperature−7…+60 °C
    Protection ratingIP67

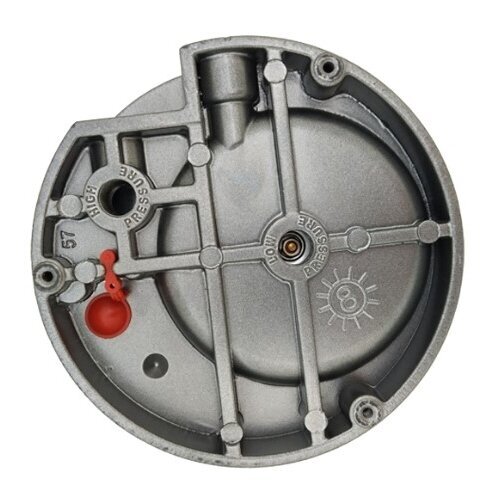

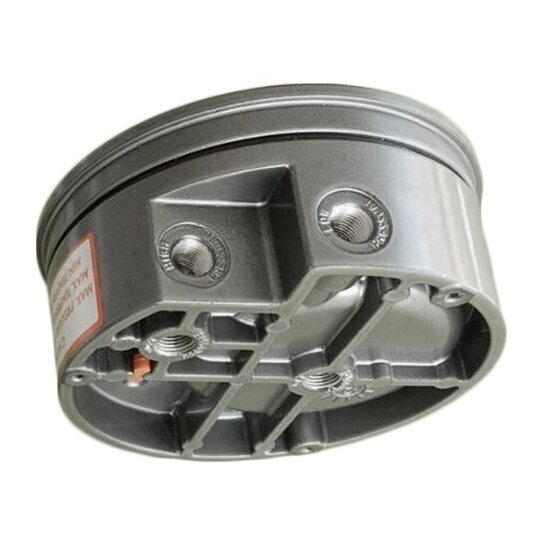

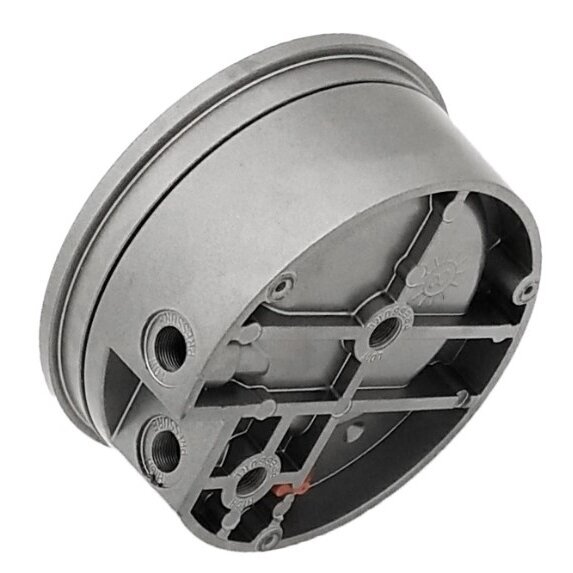

    Ports2 sets (side and back)
    Mounting3 options: surface, flush, with bracket

    Main functions

    • Dial reading without power – works even during a power cut.
    • Frictionless magnetic movement – stable reading without hysteresis.
    • No liquid – no evaporation, freezing or leakage risk.
    • Positive, negative and differential pressure – one device for different points.
    • Two port locations – tubes can enter from the side or the back.
    • IP67 housing – suitable for air handling units and plant rooms.

    Where is it used?

    • Air filter clogging control in ventilation units
    • Fan and blower pressure monitoring
    • Cleanrooms – pressure difference between zones
    • Heat recovery units and air handling sections
    • Flue / burner pressure control
    • Air velocity measurement with a Pitot tube
    • Dust extraction and gas cleaning equipment
    • Laboratory fume cupboards

    Use by need

    For ventilation installers.
    Quickly check and commission a system by seeing the real pressure difference without extra instruments.
    For facility managers.
    See when to replace a filter – neither too early nor too late.
    For cleanroom / pharma sites.
    Continuously shows the pressure difference between zones – easy for daily visual checks.

    Practical application

    If a heat recovery unit filter has ~150 Pa resistance before replacement and ~50 Pa when new, choose a range where the working value is mid-scale (e.g. 0–250 Pa or 0–300 Pa). Connect “+” before the filter and “−” after it, mark the limit on the dial – replace the filter when the pointer reaches it.

    Pros

    • No power supply or wiring needed
    • IP67 housing
    • No liquid, no hysteresis
    • Wide choice of ranges: 0–30 Pa … 0–10 kPa
    • Flexible mounting: 2 port sets, 3 options
    • Lower-cost alternative to Magnehelic-type gauges

    Cons / limitations

    • Does not send a signal to a controller – choose a pressure transmitter (0–10 V / 4–20 mA / Modbus) for that
    • No relay contact for alarms – a differential pressure switch is needed
    • Not for liquids or aggressive gases
    • Lower accuracy on the smallest ranges (±3–4 % FS)

    Safety and installation notes

    • Before connecting the tubes, make sure the system pressure does not exceed the gauge range.
    • Connect “+” to the higher and “−” to the lower pressure point.
    • Do not leave unused ports open – it distorts the reading.
    • Mount vertically as intended – other positions may need zero adjustment.
    • Do not exceed the overload – the protection releases the rubber plug.

    Quick selection guide

    Range 0–10 kPa
    Air / non-aggressive gases
    IP67
    No power
    Suitable when you need:
    • visual filter clogging monitoring
    • fan pressure indication without electronics
    • room pressure difference control
    Check before use:
    • the working value falls mid-scale
    • the medium is air or a non-aggressive gas
    • you have tubes and fittings for installation
    Important reminder: the gauge only indicates pressure – it does not switch off the fan or send a signal to automation.

    FAQ

    Does the gauge need electricity?
    No, it works mechanically and needs no power.
    Which range should I choose for a filter?
    One where the maximum allowed filter resistance is roughly mid-scale.
    Can it measure vacuum?
    Yes, connecting only the “−” port measures negative pressure.
    Is it suitable for water?
    No, it is designed for air and non-aggressive gases.
    What is a bidirectional range?
    It shows both positive and negative pressure with zero in the middle of the dial.
    Can it be flush-mounted in a panel door?
    Yes, flush mounting is one of the three options.

    Differential pressure gauge | manometer 0-10kPa | IP67

    LEFOO LFB differential pressure gauge 0–10 kPa – dial type, no power and no liquid, IP67. Suitable for filter, fan and room pressure difference control in ventilation systems.
