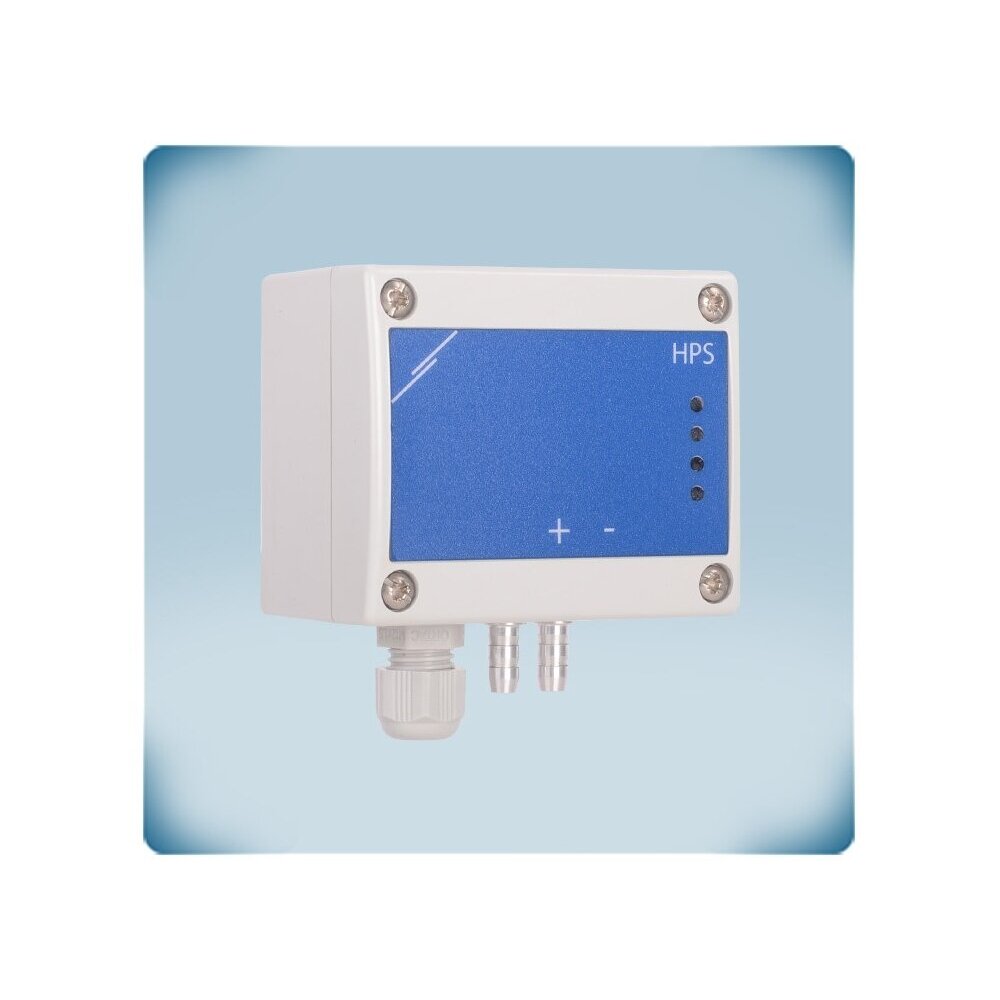

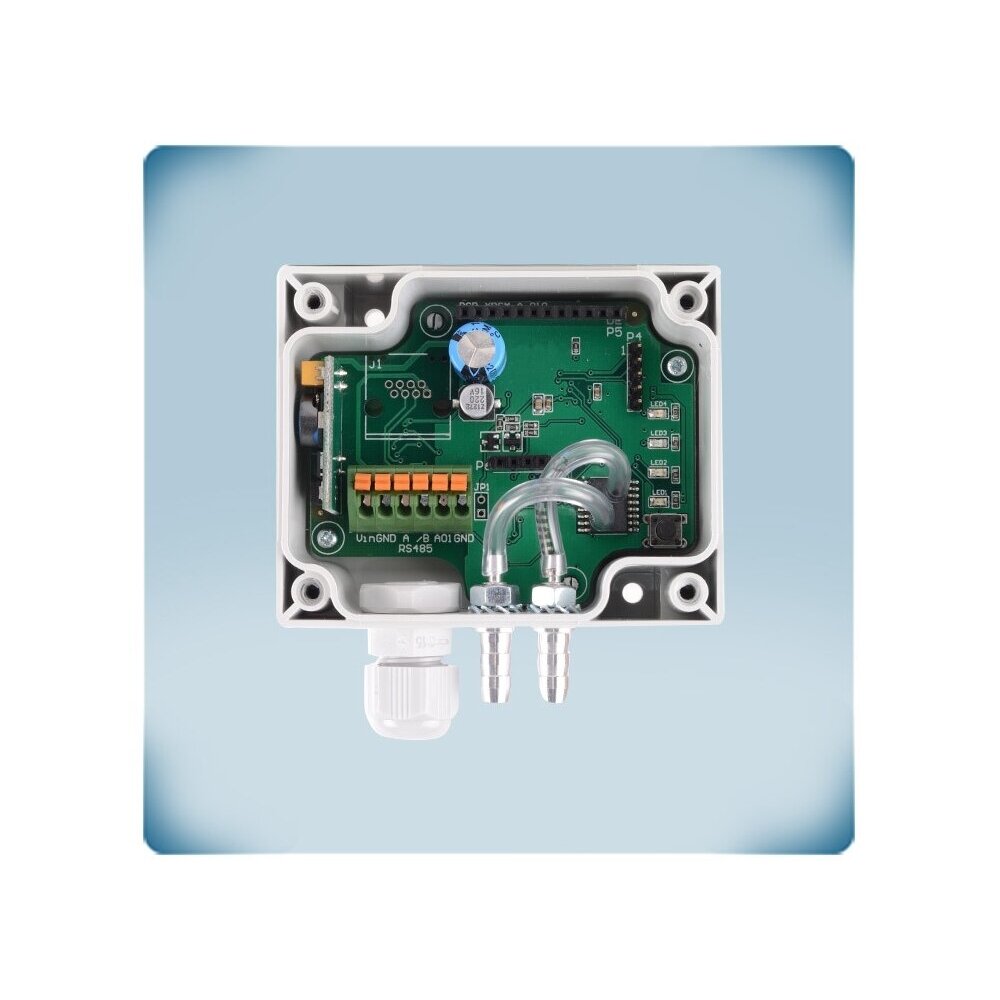

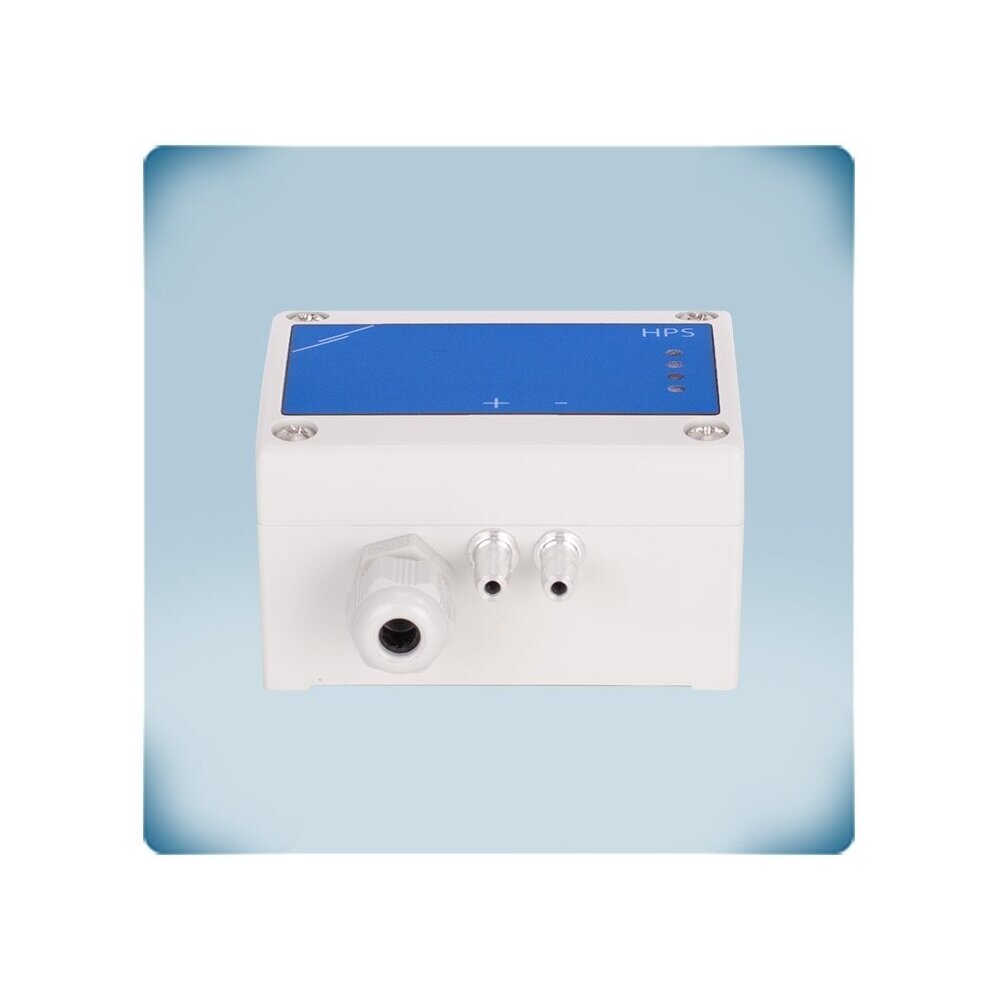

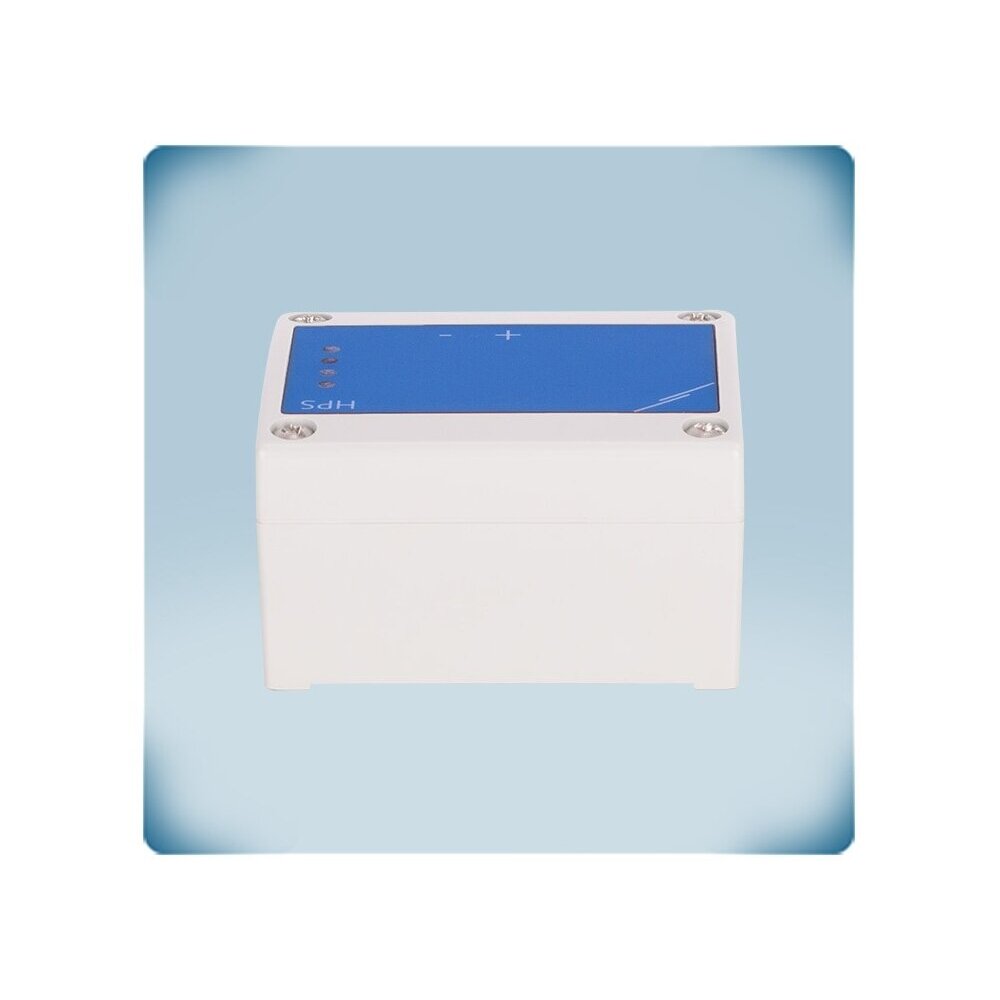

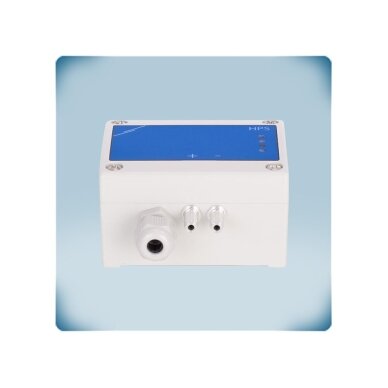

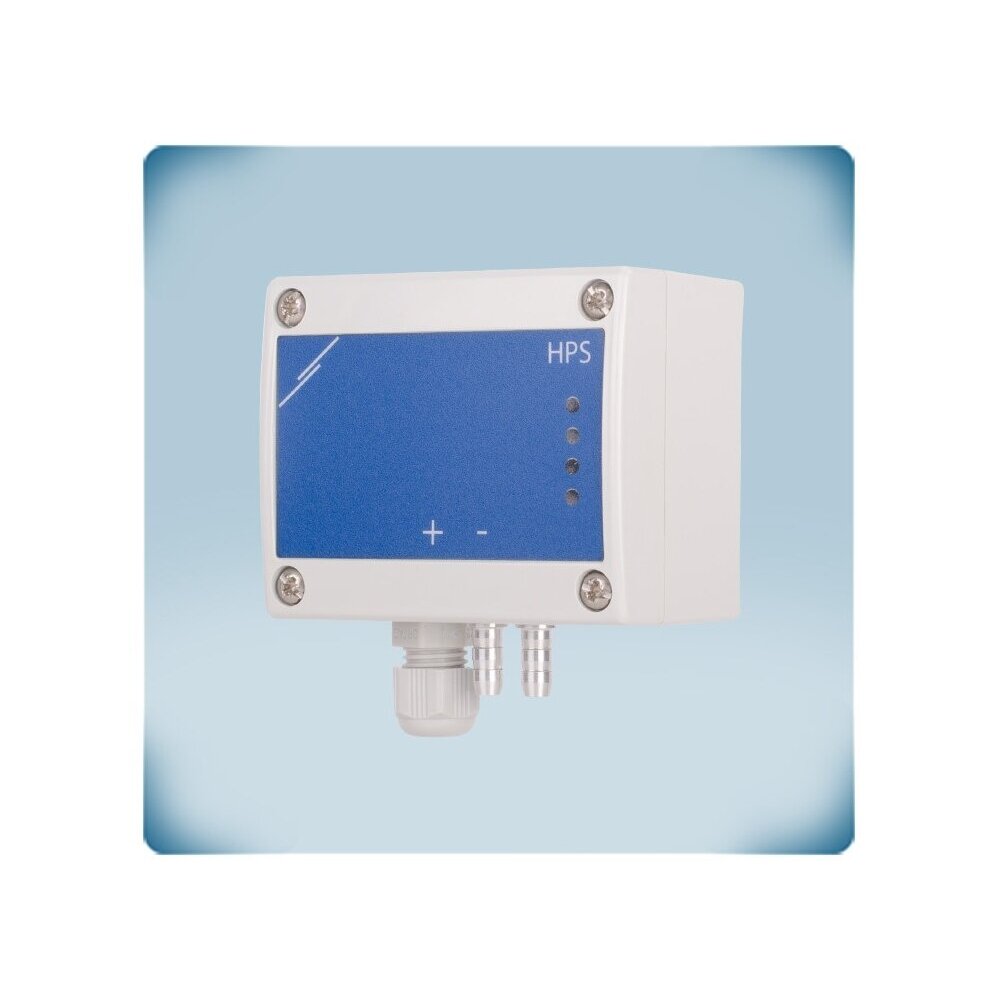

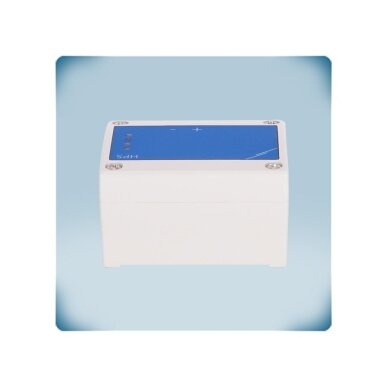

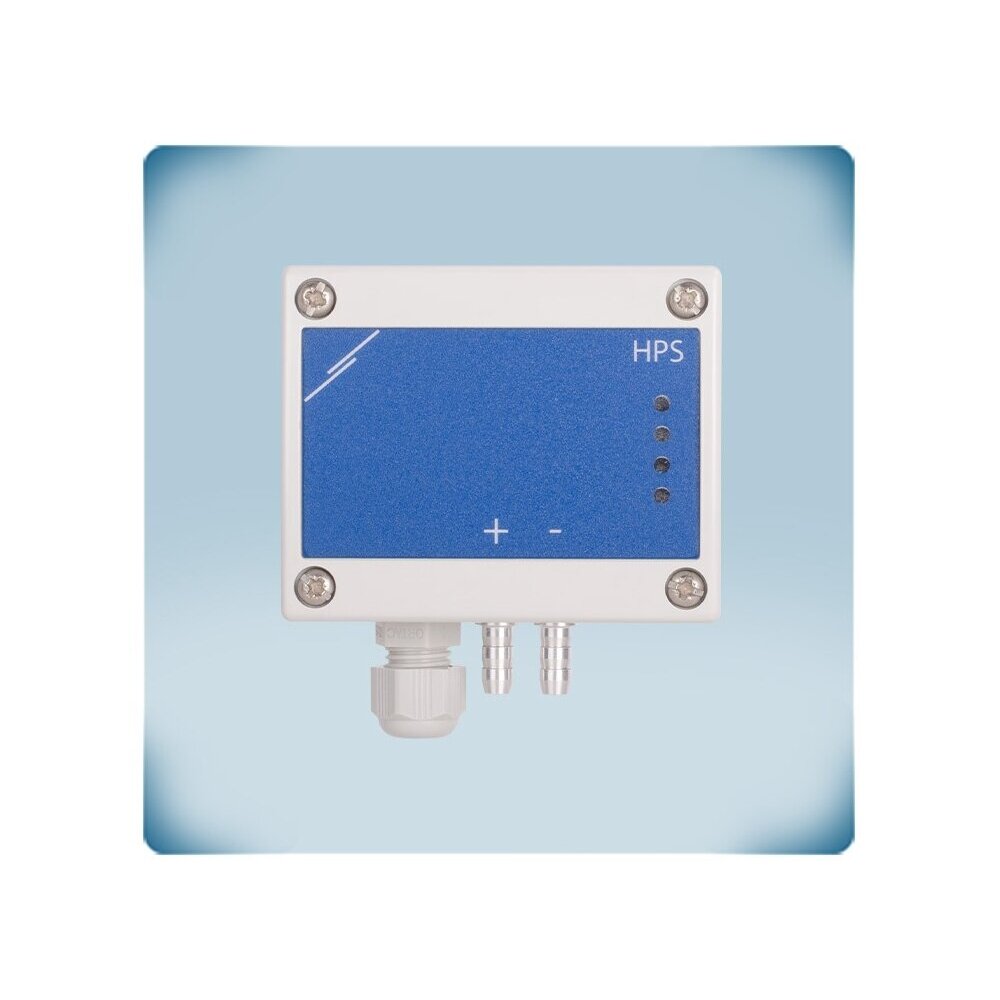

HPS-F-2K0 – a Sentera Controls differential pressure transmitter with a factory measuring range of 0–2000 Pa. It integrates a digital high-resolution differential pressure sensor and one analog / modulating output: 0-10 VDC, 0-20 mA or 0–100 % PWM signal, and Modbus RTU communication. The -F version – for 4-wire connection with separate supply and analog output GND, powered by 18–34 VDC only; IP65 enclosure, wall-mounted.
Key idea:
The transmitter converts the pressure difference between two points into a standard control signal: a controller, frequency converter or EC fan receives 0-10 VDC / 0-20 mA / PWM, while the BMS sees the actual pressure, airflow or velocity via Modbus RTU and can change all settings without a screwdriver.Measuring range
0–2000 Pa (factory default)Output
0-10 VDC / 0-20 mA / PWM + Modbus RTUPower supply
18–34 VDCProtection class
IP65, ASA enclosureOperating principle
The transmitter is mounted on a wall or other solid surface near the measuring points, and the measuring points are connected with tubes to the aluminium “+” and “–” nozzles (for a 6 mm tube). For connection, the Sentera PSET-PVC-200 or PSET-QF-200 kits are convenient; for air velocity – the Pitot tube kits PSET-PTS-200 / PSET-PTL-200.
An integrated digital sensor measures the pressure difference; three modes are available: differential pressure (Pa), air volume flow (m³/h – by the fan K-factor or Q = A × V) and air velocity (m/s – with the external PSET-PTX-200 Pitot tube kit). The output is factory-calibrated: 0 V at 0 Pa, 10 V at 2000 Pa. Over Modbus RTU (the 3SModbus application or the Sensistant configurator) the working window (min. interval 50 Pa for pressure, 10 m³/h for flow, 1 m/s for velocity), output type, response time of 0.1–10 s and alarm limits are set. The LED indicators show whether the value is normal, in the warning zone or out of limits, as well as a sensor fault.
The analog signal directly controls a Sentera speed controller, frequency converter or EC fan – maintaining constant pressure in the duct or room, while the BMS receives the exact value via Modbus. The 0–2000 Pa range is a universal option for air handling units and fans with a higher operating pressure; via Modbus RTU the working window can be narrowed to the required interval.
Benefits HPS-F-2K0?
One device – pressure, flow and velocity measurement, analog and Modbus RTU output, programmable range and alarm thresholds, and an IP65 housing. A single model in stock is enough for many sites.Technical specifications
Product type Differential pressure transmitter Manufacturer / code Sentera Controls / HPS-F-2K0 Series HPS (-F / -G; -125…+125 Pa, 0–1000 Pa, 0–2000 Pa, 0–4000 Pa, 0–10 000 Pa) Number of sensors 1 (digital, high resolution) Measuring range 0–2000 Pa (factory default) Operating modes Differential pressure, airflow (K-factor or Q = A × V), air velocity (with PSET-PTX-200) Min. operating interval 50 Pa (pressure), 10 m³/h (flow), 1 m/s (velocity) Accuracy ±2 % of the operating range Response time 0.1–10 s (selectable) Outputs AO1 – single: 0-10 VDC (RL ≥ 50 kΩ), 0-20 mA (RL ≤ 500 Ω) or 0–100 % PWM 1 kHz (RL ≥ 50 kΩ) Factory-set output 0 V at 0 Pa, 10 V at 2000 Pa PWM power supply Internal 3.3 or 12 VDC (jumper JP1) or external via a pull-up resistor Communication Modbus RTU (RS485, A, /B); configuration with 3SModbus or Sensistant Supply voltage 18–34 VDC (DC only) Consumption max. 1.3 W, Imax 70 mA (18–34 VDC) Connection At least 4 wires, separate power supply and output GND (-F) Terminals Vin, GND, A, /B, AO1, GND Button / indication SW1 – zero calibration or Modbus register reset; LED1 green – power and Modbus communication, LED2 green – value normal, LED3 yellow – warning zone, LED4 red – out of limits (blinking – sensor fault) Pressure nozzles Aluminium, for Ø6 mm tube Wire cross-section 1.5 mm²; cable gland 3–6 mm Housing ASA plastic, grey (RAL 9002), wall-mounted Protection class IP65 (EN 60529) Operating environment -5…+65 °C, < 95 % rH non-condensing Medium Clean air, non-aggressive and non-flammable gases Weight 0.13 kg (net) Packaging dimensions 95 × 85 × 70 mm Manufacturer documentation
✔ Recommended by Elektrotechnikos sprendimaiOriginal manufacturer documentation – technical data, wiring diagrams and installation instructions.
Main functions
- Three measuring modes – differential pressure, airflow in m³/h by K-factor or cross-section, and air velocity in m/s with a Pitot tube.
- Selectable output – 0-10 VDC, 0-20 mA or PWM – suitable for controllers, frequency converters, EC fans and regulators.
- Modbus RTU – all measured values and settings are accessible from a BMS / SCADA; configurable with 3SModbus or Sensistant.
- Programmable working window – the min. and max. limits can be narrowed (down to a 50 Pa interval) – the output signal is used only for the required pressure.
- Response time 0.1–10 s – damps pulsations and turbulence, so the signal to the controller is stable.
- Zero calibration with a button – SW1 – quick zero check on site, and also resetting the Modbus registers to factory defaults.
- Status LEDs – a green / yellow / red indicator shows whether the value is normal, in the warning zone or out of range.
- PWM with internal or external power supply – a jumper selects the 3.3 or 12 VDC internal PWM supply, or an external one via a pull-up resistor.
- Separate supply and output GND – 4-wire connection – the signal GND is separated from the supply, so the transmitter suits a common 24 VDC network with other devices.
Where is it used?
- Filter fouling monitoring in ventilation units
- Maintaining constant pressure in a duct (VAV systems)
- Airflow measurement via the fan K factor
- Air velocity measurement in a duct with a Pitot tube
- Ensuring minimum ventilation rates in buildings
- Clean rooms, kitchens, laboratories – pressure monitoring
On-demand operation
For heat recovery unit and AHU manufacturers.
The 0–2000 Pa range covers both filter and fan pressure, so a single model equips the whole product line.For the BMS integrator.
without a display – the pressure, flow or velocity value, alarm limits and all settings are accessible via Modbus RTU.For the electrical panel installer with a 24 VDC bus.
The separate supply and output GND of the -F version allow the transmitter to be connected to a common DC network with other devices.Practical application
If you need to monitor or maintain constant pressure in a duct, then the HPS-F-2K0 with the factory scale 0–2000 Pa (every 200 Pa = 1 V) is connected to the measuring points, and the 0-10 VDC signal is passed to a Sentera controller, a frequency converter or, over Modbus RTU, to the BMS.Application guide: how it is used in practice
The HPS-F-2K0 adapts to different sites – only where the tubes are connected and where the signal is routed changes:
Site What is connected Result Installer's note Air handling unit filter Tubes upstream and downstream of the filter; AO1 or Modbus → BMS When the filter becomes clogged – an alarm and timely planned replacement Narrow the working window to the filter pressure limits Constant pressure in the duct Duct point and environment; AO1 → Sentera speed controller / frequency converter / EC fan Fan speed is varied so that the pressure stays constant Increase the response time if the signal pulsates Airflow measurement Measuring points at the fan inlet nozzle (PSET-PVC-200) The transmitter displays and transmits m³/h according to the K-factor You will find the K factor in the fan documentation Air velocity in the duct Pitot tube PSET-PTS-200 / PSET-PTL-200 Measured in m/s, flow is calculated as Q = A × V Install the Pitot tube in a straight section of the duct Building with BMS Modbus RTU (A, /B) Values and settings are managed centrally Do not mix -F and -G versions in the same network How to choose the range of a pressure transmitter
Measuring range / connection Recommended model -125…+125 Pa, 3-wire, 24 VAC/VDC HPS-G--LP (low ± pressure difference between rooms) -125…+125 Pa, 4-wire, 18–34 VDC HPS-F--LP (low ± pressure difference between rooms) 0–1000 Pa, 3-wire, 24 VAC/VDC HPS-G-1K0 (filters, duct pressure, VAV) 0–1000 Pa, 4-wire, 18–34 VDC HPS-F-1K0 (filters, duct pressure, VAV) 0–2000 Pa, 3-wire, 24 VAC/VDC HPS-G-2K0 (universal AHU / fans) 0–2000 Pa, 4-wire, 18–34 VDC HPS-F-2K0 (universal AHU / fans) ← this model 0–4000 Pa, 3-wire, 24 VAC/VDC HPS-G-4K0 (higher-pressure fans) 0–4000 Pa, 4-wire, 18–34 VDC HPS-F-4K0 (higher-pressure fans) 0–10 000 Pa, 3-wire, 24 VAC/VDC HPS-G-10K (high-pressure industry) 0–10 000 Pa, 4-wire, 18–34 VDC HPS-F-10K (high-pressure industry) Rule: choose the range so that the maximum operating pressure is about 50–80 % of the upper limit – the working window can be narrowed via Modbus RTU, but not widened. The -G (3-wire) version suits 24 VAC or DC supply with a common GND; -F (4-wire) – DC only with separate GNDs, when the output GND must be separated from the supply GND (e.g. in DC-powered networks with other devices). Do not mix -F and -G on the same network.When to choose another solution: with a display – DPS series; for two points – HPD (without display) or DPD (with display); connection kits PSET-PVC-200, PSET-QF-200, Pitot tubes PSET-PTS-200 / PSET-PTL-200; for Modbus configuration – CNVT-USB-RS485-SET converter; for 24 VDC power – SEPS8-24-40.Pros
- Pressure, airflow and velocity in a single transmitter
- 0-10 VDC / 0-20 mA / PWM output and Modbus RTU
- Programmable working window, response time and alarm limits
- Accuracy ±2 % of the operating range
- IP65 ASA enclosure, aluminium nozzles
Cons / limitations
- No display – the value is visible only via Modbus or in the controller; with a display – DPS-F-2K0
- Only for clean air and non-aggressive, non-flammable gases; operating environment -5…+65 °C
- Full configuration requires Modbus RTU (3SModbus / Sensistant) and a CNVT-USB-RS485 converter
- DC powered only and connected with at least 4 wires; for 24 VAC power supply – HPS-G-2K0
- Single measuring channel – for two points choose HPD-F-2K0
Safety and installation notes
- Installation and connection are to be carried out by a qualified electrician / automation technician with the power disconnected.
- Power supply 18–34 VDC only.
- The -F version is not suitable for 3-wire connection: use at least 4 wires and do not connect the supply and output GND together – otherwise the measurement will be incorrect.
- Do not use -F and -G type transmitters in the same network.
- The transmitter is intended for clean air and non-aggressive, non-flammable gases only; operating environment -5…+65 °C, < 95 % rH non-condensing.
Quick selection guide
0–2000 Pa0-10 VDC / 0-20 mA / PWMModbus RTU18–34 VDCIP65Suitable when you need:- to measure the pressure difference within 0–2000 Pa and pass it to a controller or BMS;
- to maintain a constant pressure or flow by controlling a fan;
- to integrate the measurement into a BMS via Modbus RTU.
Check before use:- the maximum operating pressure – whether it fits within the 0–2000 Pa range;
- the controller power supply and connection: 3 wires with a common GND (-G) or 4 wires with separate GNDs (-F);
- whether airflow (fan K-factor) or velocity (Pitot kit) measurement will be needed.
Important reminder: The HPS-F-2K0 measures only the pressure difference of clean air and non-aggressive, non-flammable gases; connection tubes and Pitot tubes are ordered separately.FAQ
Can the HPS-F-2K0 be powered at 24 VAC?
No – the -F version is powered only with 18–34 VDC; for 24 VAC power supply choose HPS-G-2K0.Can the measuring range be changed?
Via Modbus RTU the working window can be narrowed to a 50 Pa interval within the factory 0–2000 Pa range, but it cannot be widened.Does the transmitter measure airflow and velocity?
Yes – airflow in m³/h from the fan K-factor or Q = A × V, and air velocity in m/s with the Pitot tube kit PSET-PTS-200 or PSET-PTL-200.Which signals will I get?
A single output AO1 with a selectable 0-10 VDC, 0-20 mA or PWM signal and Modbus RTU communication.Does it have a display?
No, there is no display – the same range with a display is the DPS-F-2K0.How do I configure the transmitter?
Via RS485 with the CNVT-USB-RS485 converter and the Sentera 3SModbus software or the Sensistant configurator.Differential pressure transmitter | 0-2000Pa | 0-10VDC/0-20mA/PWM | Modbus RTU | 24VDC | 4-wire | IP65 | Sentera Controls | HPS-F-2K0
Sentera HPS-F-2K0 – differential pressure transmitter 0–2000 Pa, 0-10 VDC / 0-20 mA / PWM and Modbus RTU, 18–34 VDC, 4-wire, IP65 – for pressure, K-factor airflow and filter monitoring of fans and air handling units, where pressure can exceed 1000 Pa.
