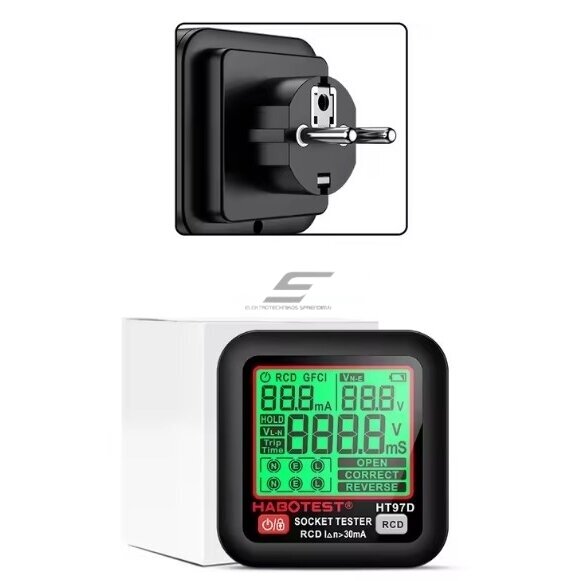

Digital Electrical Socket Tester | 30-260VAC

Measurement Voltage: AC 30-260V / 45-65Hz (±2.0% +2)
Leakage Voltage Range: 0-99V / 45-65Hz (±2.0% +2)
RCD Test: >30mA
Trip Time Measurement: 10-1000ms (±2.0% +4)
Voltage Measurement: 48V-250V / 45-65Hz

Socket Wiring Detection:
• Open ground
• Open neutral wire
• Open live wire
• Live and ground wire swap
• Live and neutral wire swap
• Live and ground wire swap + missing ground

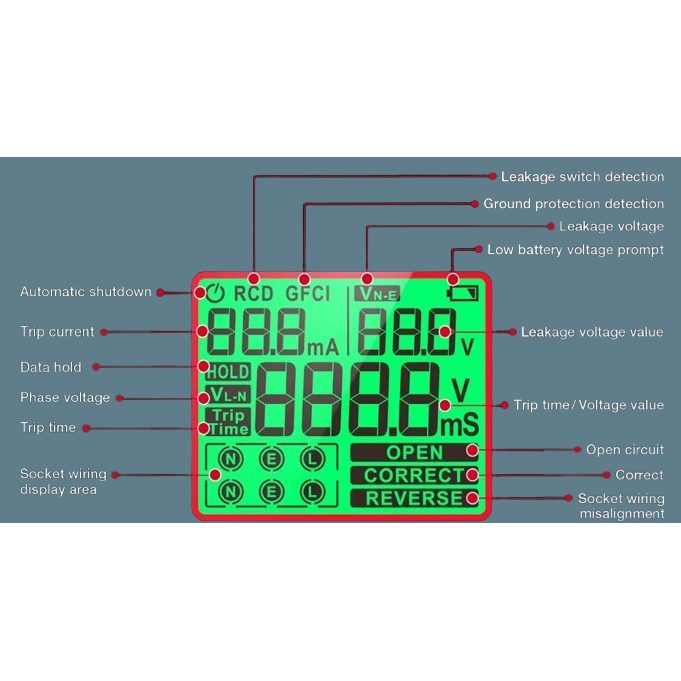

Display: LCD with backlight
Data Locking: Automatic after 3 seconds
Auto Power Off: After 5 minutes of inactivity
Power Supply: 2x 1.5V AAA batteries (not included)

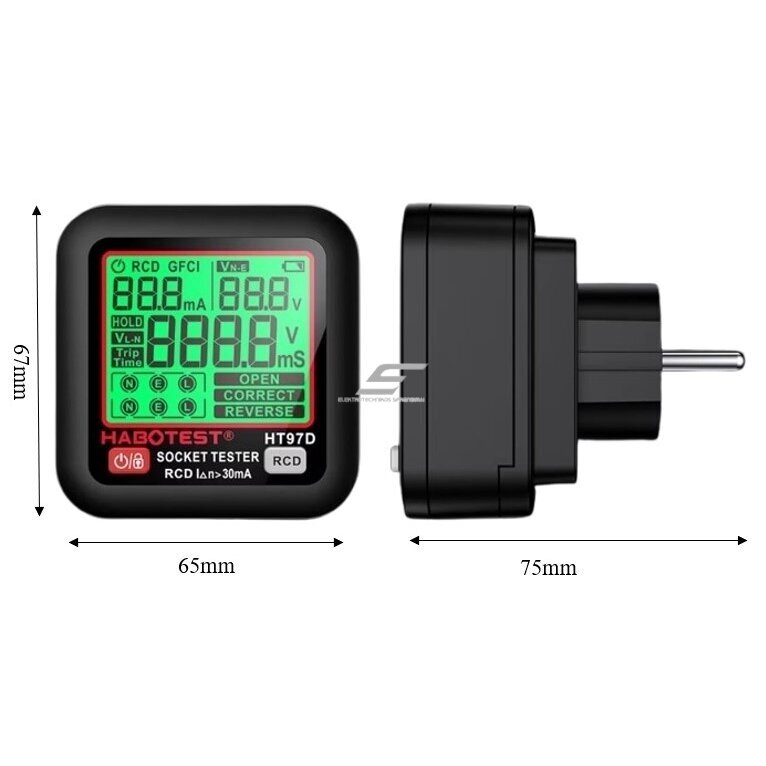

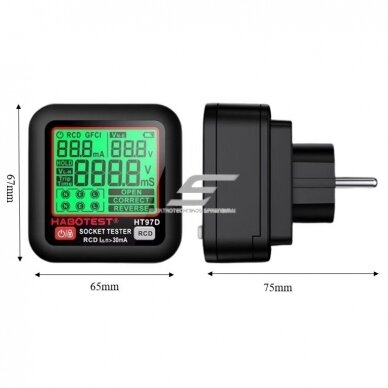

Dimensions: 67mm x 65mm x 63mm
Weight: Approx. 103g
Safety Standards: EN61010-1, -2-030; EN61326-1, CAT II 300V

Features and Functions:
Easy to use – simply plug the tester into a standard three-phase socket to instantly see voltage readings and wiring conditions on the LCD screen.
Socket wiring fault detection – automatically detects incorrect wiring and highlights the issue with an orange backlight.
RCD testing – checks the functionality of a residual current device (RCD) by pressing the button for more than 2 seconds; a working RCD should trip, and the trip time will be displayed on the screen.
Automatic data locking – measurement data is locked after 3 seconds and can be unlocked by pressing a button.
Large LCD screen with backlight – ensures clear visibility of readings even in low-light conditions.
Auto shut-off – saves battery power by turning off after 5 minutes of inactivity.
Portable and compact – small size and lightweight design make it easy to carry and use in various locations.
Wide application – suitable for use in homes, offices, shopping centers, and other places requiring electrical socket safety checks.
Usage:
Ideal for:

Home electrical installations – ensures sockets are properly grounded and wired correctly.
Construction and renovation projects – verifies the correctness of new electrical installations.
Industrial use – quickly identifies electrical socket issues in manufacturing or business environments.
Electrical maintenance professionals – provides a fast way to detect installation errors and perform voltage measurements.
Pros:
Fast and easy to use – instant results on the LCD screen.
Detects incorrect wiring – helps prevent dangerous electrical faults.
RCD testing – verifies the operation of protective devices.
Clear data display – LCD with backlight for easy reading in any lighting conditions.
Auto shut-off – conserves battery life when not in use.
Compact and lightweight – fits easily in a toolbox or pocket.

Cons:
Works only with 3-prong sockets – cannot test 2-prong sockets.
Batteries not included – requires 2x AAA batteries to be purchased separately.
No WiFi or Bluetooth – does not transmit data to smart devices.

A reliable, compact, and easy-to-use tool for ensuring electrical socket safety!
