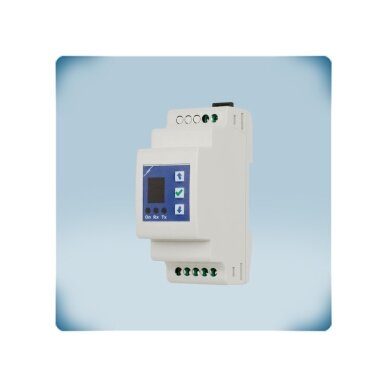

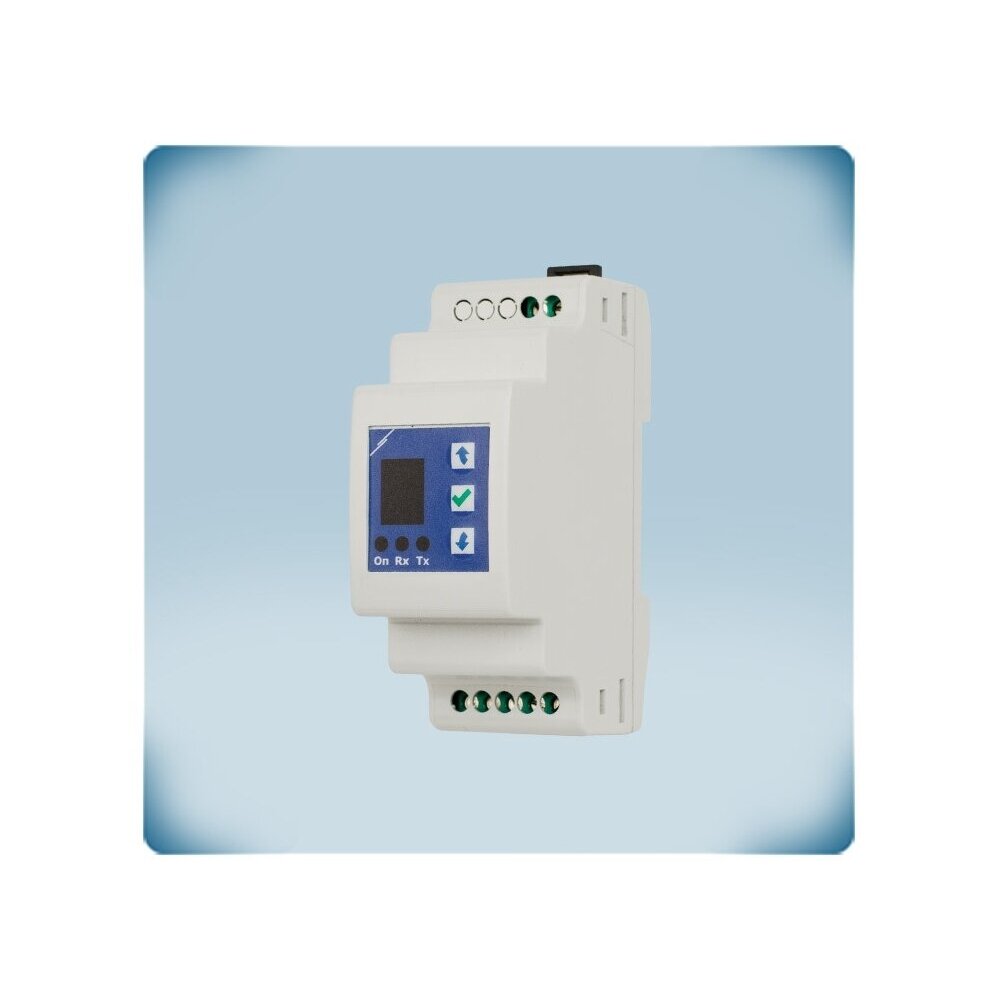

  • New item   -56.63€Digital modular fan speed controller | Modbus RTU | 2.5A | 230VAC | DIN rail | Sentera Controls | DRE-1-25-DT

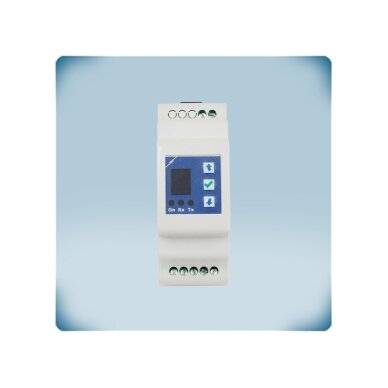

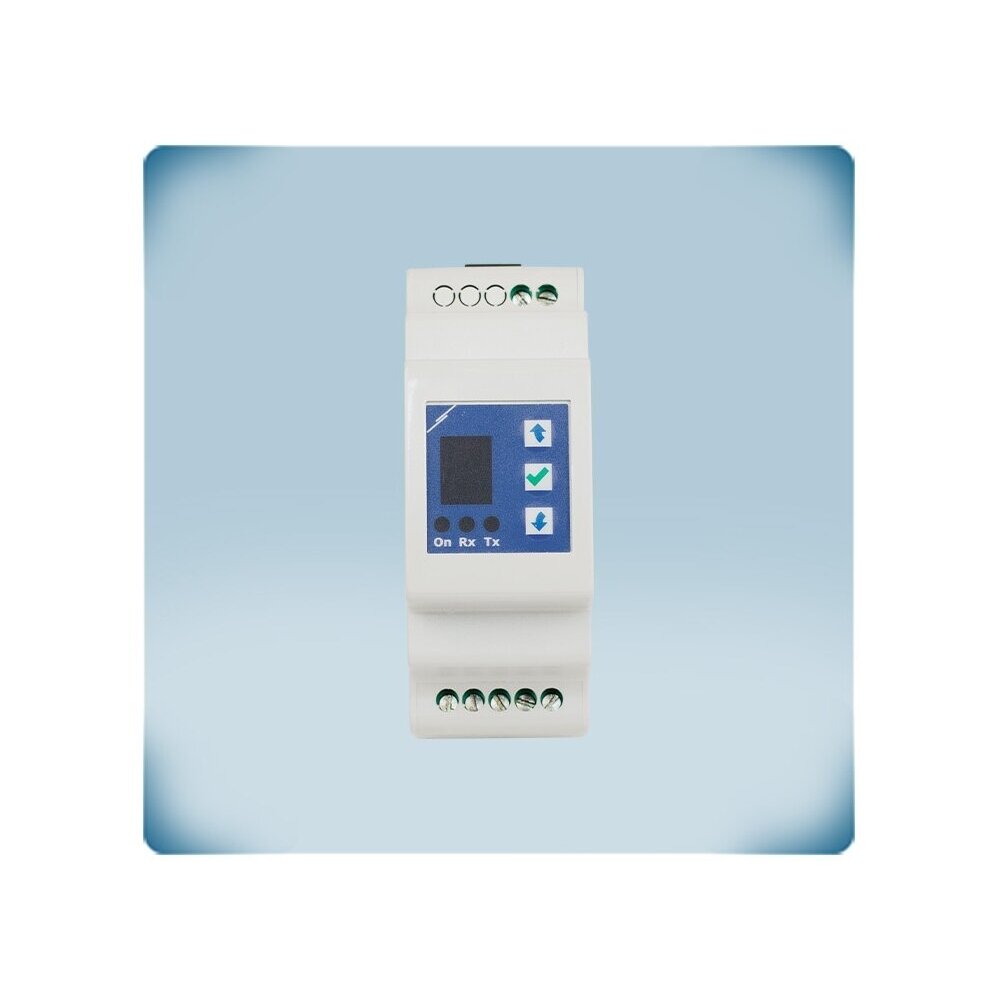

    New item   -56.63€Digital modular fan speed controller | Modbus RTU | 2.5A | 230VAC | DIN rail | Sentera Controls | DRE-1-25-DT 1

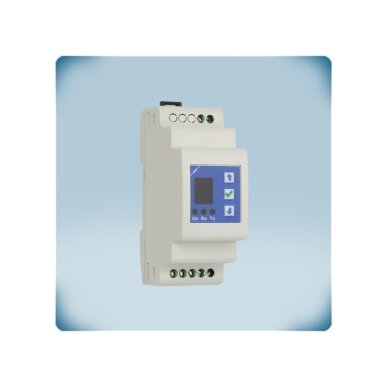

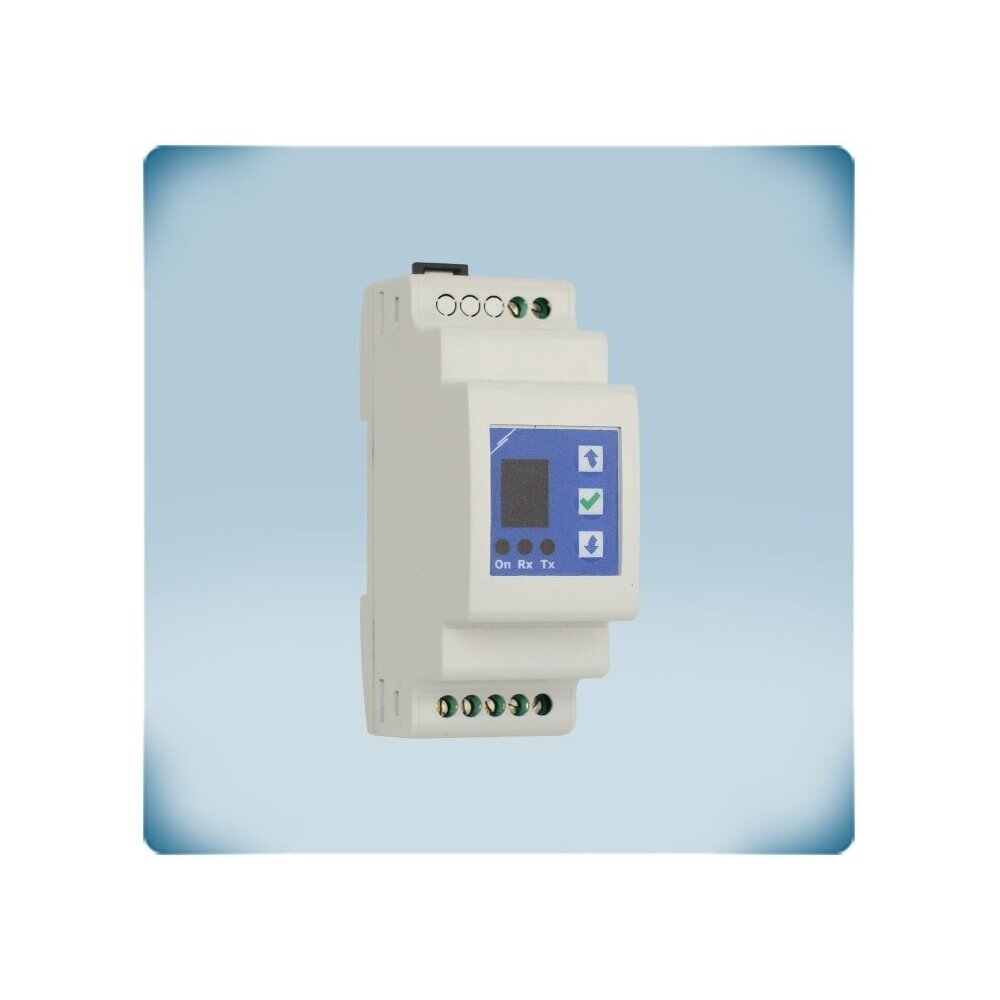

    New item   -56.63€Digital modular fan speed controller | Modbus RTU | 2.5A | 230VAC | DIN rail | Sentera Controls | DRE-1-25-DT 2

    Digital modular fan speed controller | Modbus RTU | 2.5A | 230VAC | DIN rail | Sentera Controls | DRE-1-25-DT

    Code: DRE-1-25-DT
    Inquire about this item
    Price 101.13 € VAT incl.
    ( 83.58 € VAT excl. )
    157.76 € You save 56.63 €
    Offer is valid until 2026-12-31
    Want another price? Suggest yours!
  • Product description

    Digital modular fan speed controller | Modbus RTU | 2.5A | 230VAC | DIN rail | Sentera Controls | DRE-1-25-DT

    DRE-1-25-DT – Sentera Controls digital modular DIN rail fan speed controller: 9 speed steps, LED display, three buttons and Modbus RTU. Controls single-phase voltage-controllable AC motors up to 2.5 A.

    Key idea:
    Stepped speed control in the control panel with clear indication: the display shows the selected step (0–9), and the same can be controlled from the BMS via Modbus RTU.
    What it is for DRE-1-25-DT:
    This model is designed for medium-power fans (up to 2.5 A) – duct fans in offices, classrooms, retail premises or 2–3 smaller fans together.
    Max. motor current
    2.5 A
    Control
    3 buttons / Modbus RTU
    Power supply
    230 VAC ±10 %, 50–60 Hz
    Installation
    DIN rail, IP30

    Operating principle

    The controller is mounted on a DIN rail. Connect the power supply (L, N), the motor (U1, U2), the unregulated output (L1) and, if required, the Modbus RTU line (A, /B).

    Speed is changed by varying the motor supply voltage in 9 steps between the set min. (30–65 % Us) and max. (75–100 % Us) limits. The step is selected with the ▲/▼ buttons and shown on the 7-segment display.

    Normal or inverse mode and fast or slow start-up are selectable. Settings can also be changed via Modbus RTU with the 3SModbus software.

    Engineer's note: with an AC induction motor, reducing the voltage increases rotor losses, so the savings are lower than with an EC fan or a frequency inverter; when completely silent operation at low speed is essential, choose a transformer controller with a sinusoidal output voltage.

    Benefits DRE-1-25-DT?
    Digital, precisely repeatable speed setting in the control panel (steps 0–9) and Modbus integration in one small DIN module.

    Technical specifications

    Product type Digital modular fan speed controller
    Manufacturer / code Sentera Controls / DRE-1-25-DT
    Supply voltage 230 VAC ±10 %, 50/60 Hz
    Max. motor current 2.5 A
    Regulated output 30–100 % Us, 9 steps
    Min. / max. limit 30–65 % Us (~70–150 VAC) / 75–100 % Us (~170–230 VAC)
    Unregulated output (L1) 230 VAC, max. 0.5 A
    Control 3 buttons (▲, OK, ▼), 1-digit 7-segment LED display
    Modes Normal / inverse; fast / slow start
    Communication Modbus RTU (RS485), 3SModbus software
    Indication Operation LED, Modbus LED, display
    Protection class IP30 (EN 60529)
    Operating environment 0…+35 °C, 0–80 % rH non-condensing
    Installation DIN rail (EN 60715), indoor use only
    Cables Up to 2.5 mm²
    Dimensions 96 × 94 × 40 mm
    Weight 0.13 kg (net)
    Compliance LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU, WEEE 2012/19/EU

    Manufacturer documentation

    ✔ Recommended by Elektrotechnikos sprendimai

    Original manufacturer documentation – technical data, wiring diagrams and installation instructions.

    Main functions

    • 9 speed steps – precisely repeatable setting – the step number is visible on the display.
    • Buttons and display – settings are changed directly in the control panel.
    • Modbus RTU – the step and status are controlled from the BMS.
    • Min. / max. limits – the motor does not run at too low a voltage, and the speed does not exceed the permissible level.
    • Inverse mode and start-up – adapted to the specific system.
    • Unregulated L1 output – for a lamp or a small load up to 0.5 A.
    • SenteraWeb – via the Sentera internet module, the controller can be connected to the SenteraWeb cloud – remote control, monitoring and alerts via the internet.

    Where is it used?

    • Ventilation and automation control panels
    • Office and retail ventilation with stepped control
    • Buildings with BMS (Modbus RTU)
    • Plant rooms

    On-demand operation

    For the panel builder.
    Compact DIN module with display.
    For the BMS integrator.
    Modbus RTU – step control from a central system.
    For maintenance staff.
    Clear step number on the display.

    Application guide: how it is used in practice

    Typical DRE-1-25-DT applications:

    Site What is connected Result Installer's note
    Ventilation control panel Fan → U1, U2 Speed is set with buttons in 9 steps Set the min. limit to suit the motor
    Building with BMS Modbus RTU → A, /B BMS changes the step and monitors the status In a Modbus network with AC power supply, do not connect the GND terminal to other devices or to the CNVT-USB-RS485 converter – this may damage the communication electronics.
    Indication Lamp → L1 You can see that the fan is running L1 load – up to 0.5 A

    How to select the controller current

    Rated current of the motor(s) Recommended model
    up to 2.5 A DRE-1-25-DT (2.5 A) ← this model
    Rule: controller max. current ≥ motor rated current (see the motor nameplate). The starting current is already accounted for by the manufacturer; no additional margin is needed. When connecting several fans – motors of the same type – add up their rated currents. For higher currents in a control panel – MVS-1 series (up to 10 A).
    When to choose another solution: for smooth control with a 0-10 VDC signal – MVS-1 series; for simple manual control in a control panel – DRX-1 series; for an EC fan – an EC controller.

    Pros

    • 9 steps and display
    • Modbus RTU
    • Adjustable limits
    • Inverse mode
    • Compact DIN module

    Cons / limitations

    • Current up to 2.5 A
    • No 0-10 VDC input
    • IP30 – in control panel only
    • Operating temperature up to +35 °C
    • The output voltage is non-sinusoidal – some motors may hum audibly at low speed

    Safety and installation notes

    • Installation and connection must be carried out by a qualified electrician with the power disconnected.
    • Check that the motor is suitable for voltage control and that its current does not exceed 2.5 A.
    • In a Modbus network with AC power supply, do not connect the GND terminal to other devices or to the CNVT-USB-RS485 converter – this may damage the communication electronics.

    Quick selection guide

    2.5 A
    230 VAC
    9 steps
    Modbus RTU
    DIN rail
    Suitable when you need:
    • stepped speed control in a control panel;
    • Modbus integration;
    • clear indication.
    Check before use:
    • the motor current;
    • whether the motor is voltage-controllable;
    • the control panel temperature (up to +35 °C).
    Important reminder: DRE-1-25-DT does not control EC fans or three-phase motors.

    FAQ

    How many speed steps?
    9 steps (0–9), shown on the display.
    Can it be controlled via Modbus?
    Yes, Modbus RTU (RS485), configuration with 3SModbus software.
    Is there a 0-10 V input?
    No, for that choose the MVS-1 series.

    Digital modular fan speed controller | Modbus RTU | 2.5A | 230VAC | DIN rail | Sentera Controls | DRE-1-25-DT

    Sentera DRE-1-25-DT – digital DIN rail fan speed controller, 9 steps, display, Modbus RTU, up to 2.5 A, 230 VAC.
