Digital output module | 8 outputs | 24VDC | PNP | Siemens | SIMATIC ET 200SP | 6ES7132-6BF00-0CA0
Code: 6ES7132-6BF00-0CA0Siemens SIMATIC ET 200SP DQ 8×24 V DC/0.5 A HF (6ES7132-6BF00-0CA0) – a compact 8-channel digital output module designed for PLC automation systems and control of 24 V DC actuator circuits. The module has 8 PNP transistor outputs rated at 0.5 A each, with a maximum total output current of 4 A, while the High Feature version supports extended diagnostics for individual channels, short circuits, wire breaks and power supply faults. The 15 mm wide module is installed in an ET 200SP BaseUnit A0 and can be integrated into STEP 7 / TIA Portal automation projects.
-
Digital output module | for PLC automation | 8 × 24 V DC / 0.5 A | PNP | High Feature | ET 200SP | Siemens SIMATIC | 6ES7132-6BF00-0CA0
Siemens SIMATIC ET 200SP DQ 8×24 V DC/0.5 A HF – a compact eight-channel digital output module designed for industrial programmable logic controller (PLC) systems, process automation and electrical equipment control circuits. The module has eight 24 V DC PNP transistor outputs, each rated for a nominal load current of 0.5 A, with a maximum total output current of 4 A. The High Feature version offers extended diagnostic capabilities, individual channel status monitoring, short-circuit and wire-break detection, supply voltage monitoring and support for isochronous operation. The 15 mm wide design allows efficient use of space in automation cabinets. The module is designed for installation in the SIMATIC ET 200SP system using an A0-type BaseUnit and can be configured in STEP 7, TIA Portal and PCS 7 environments.
Key point:
In an industrial automation system, the PLC processes signals and makes control decisions, but output modules are required to switch physical loads. This eight-channel digital output module allows control of 24 V DC actuator circuits such as interface relays, contactor coils, solenoid valves, signalling indicators and other compatible devices. High Feature functionality not only allows ON/OFF commands to be transmitted, but also enables diagnostics of individual channel faults, power supply monitoring and faster troubleshooting of automation-system faults.⚡ Spark: Phase, how does this eight-output module differ from a conventional relay module? Can I use it to control eight electrical devices directly?
⚙ Phase: This module uses PNP transistor outputs rather than mechanical relays. When a channel is switched on, it supplies 24 V DC to a load whose current does not exceed 0.5 A. This is very convenient for controlling interface relays, contactor coils, solenoid valves and signalling circuits. The High Feature version additionally monitors output states and detects short circuits and wire breaks. If 230 V equipment or higher-power loads need to be controlled, suitable intermediate switching devices are used.
Digital outputs
8 channels | PNPOutput load
0.5 A/channel | 4 ASupply voltage
24 V DC | 19.2–28.8 VModule width
15 mm | BU A0Operating principle
The SIMATIC ET 200SP digital output module acts as an interface between the programmable logic controller and the actuators. Logic commands generated by the PLC program are transmitted to the module through the internal ET 200SP system bus. The corresponding transistor outputs are switched on or off according to the received commands.
The module has eight PNP outputs (current-sourcing). When switched on, a channel supplies a positive supply potential to the load, with current flowing through the connected device to the common 0 V circuit. This type of output is widely used in 24 V DC industrial automation systems.
The nominal current of each output is 0.5 A. The maximum total current of all eight channels is 4 A. This allows the system to control several independent low-power loads simultaneously while remaining within the specified electrical limits.
The module is powered by a nominal 24 V DC supply, with an allowable supply range of 19.2 to 28.8 V DC. Integrated reverse-polarity protection helps protect the electronics if the supply polarity is connected incorrectly.
Each digital output has short-circuit protection. The typical protection response threshold is 0.7–1.3 A. This helps limit the effect of a fault on the controlled circuit and allows the diagnostic system to report information about the affected channel.
The High Feature version supports individual output diagnostics. Short-circuit and wire-break conditions can be detected, the supply voltage can be monitored and module group-fault information can be obtained. Diagnostic messages are transmitted to the control system and can be displayed on an operator screen or used by maintenance software.
The front of the module features LED indication. Green channel LEDs indicate output states, red LEDs provide channel diagnostic information, while the DIAG indicator displays the general diagnostic status of the module. The green PWR indicator is used to monitor the power supply status.
The transistor outputs provide fast switching: the typical turn-on delay with a resistive load is 50 µs, while the turn-off delay is 100 µs. These characteristics are useful in systems where rapid transmission of actuator signals is required.
The maximum switching frequency for a resistive load is 100 Hz. For inductive loads, the permitted frequency is up to 2 Hz, while for lamp loads it is up to 10 Hz. These differences are important when selecting suitable actuators and their operating cycles.
The module supports isochronous operating mode, which is used in control systems where precisely synchronised data exchange is important. Multi Shared Output (MSO) operation and configurable substitute output values are also supported.
Electrical isolation is provided between the output channel group and the internal ET 200SP bus. Individual outputs are not galvanically isolated from each other – they belong to the same supply-potential system.
The module is installed in an A0-type BaseUnit. The BaseUnit provides the conductor connection and mechanical mounting interface, while the electronic module is integrated into the ET 200SP station structure. Mechanical type-A coding helps ensure correct module installation.
Using STEP 7 or TIA Portal, each channel can be integrated into the PLC program and assigned to a specific technological function. This allows control sequences, equipment interlocks, diagnostic messages and operator-control interfaces to be organised.
What are the benefits of this digital output module?
One 15 mm wide module can control eight independent 24 V DC actuator circuits. PNP transistor outputs provide fast and precise signal switching, while High Feature diagnostics help identify the causes of short circuits, wire breaks and power-supply faults. Integration with SIMATIC ET 200SP and STEP 7 / TIA Portal allows the module to be used in distributed I/O control architectures, reducing wiring and saving space in automation cabinets.Technical data
General data Product type PLC digital output module Manufacturer / system Siemens SIMATIC ET 200SP Product code 6ES7132-6BF00-0CA0 Module type DQ 8×24 V DC/0.5 A HF Functional version High Feature (HF) Hardware functional status From FS07 BaseUnit BaseUnit A0 Colour identification code CC02 I&M data I&M0–I&M3 Firmware update Supported Power supply and electrical parameters Rated supply voltage 24 V DC Permissible supply range 19.2–28.8 V DC Reverse-polarity protection Yes Module current consumption 28 mA Typical power loss 1 W Digital outputs Number of outputs 8 Output type PNP, current-sourcing Output configuration Parameterisable channels Rated output voltage 24 V DC Rated channel current 0.5 A Maximum total output current 4 A Maximum resistive load 0.5 A per channel Maximum lamp load 5 W per channel Load resistance range 48 Ω – 12 kΩ Residual output current, signal “0” Up to 0.1 mA Typical turn-on delay (0 → 1) 50 µs Typical turn-off delay (1 → 0) 100 µs Resistive-load switching frequency Up to 100 Hz Inductive-load switching frequency Up to 2 Hz Lamp-load switching frequency Up to 10 Hz Short-circuit protection Yes Typical protection response threshold 0.7–1.3 A Inductive turn-off voltage limitation Typically L+ − 50 V Parallel connection of outputs to increase current Not permitted Redundant load control Supported according to the intended output wiring scheme Diagnostics and signalling Diagnostic function Yes Short-circuit diagnostics Individual for each channel Wire-break diagnostics Individual for each channel Supply-voltage monitoring Yes Group-fault diagnostics Yes Diagnostic alarms Yes Substitute output values Configurable PWR indicator Green LED Channel status indicator Green LED Channel fault indicator Red LED DIAG indicator Green / red LED Communication and engineering STEP 7 TIA Portal From V13 SP1 STEP 7 From V5.5 PCS 7 From V8.1 SP1 PROFINET GSDML V2.3 PROFIBUS GSD Revision 3 and 5 or later Isochronous mode Yes Minimum TCO 48 µs Minimum TDP bus cycle 500 µs MSO mode Supported Module address range Up to 8 bytes with QI information Installation and conductor connection BaseUnit type A0 Mechanical coding Type A, automatic coding 1-wire connection BU A0 2-wire connection BU A0 3-wire connection BU A0 with AUX terminals or potential distribution module 4-wire connection BU A0 with potential distribution module Shielded cable length Up to 1000 m Unshielded cable length Up to 600 m Insulation and electrical isolation Galvanic isolation between channels No Isolation from internal bus Yes Isolation from electronics power supply No Insulation test voltage 707 V DC (typical type test) Functional-safety output module No, standard DQ module Operating environmental conditions Horizontal installation temperature −30...+60 °C, negative temperatures from FS07 Vertical installation temperature −30...+50 °C, negative temperatures from FS07 Installation altitude above sea level Up to 5000 m, additional requirements apply above 2000 m Minimum dew point −60 °C Dimensions and weight Width 15 mm Height 73 mm Depth 58 mm Dimensions 15 × 73 × 58 mm Weight Approx. 30 g Environmental data and classification Environmental Product Declaration EPD Total life-cycle GWP 20.4 kg CO₂ eq. Manufacturing-stage GWP 3.16 kg CO₂ eq. Use-stage GWP 17.5 kg CO₂ eq. End-of-life-stage GWP −0.221 kg CO₂ eq. ETIM classification EC001599 eClass classification 27-24-26-04 Main functions
- Eight independent outputs – control of eight separate 24 V DC circuits.
- PNP transistor technology – supplies positive power potential to the load.
- 0.5 A per channel – control of low-power actuators.
- 4 A total current – total load of all channels.
- Short-circuit protection – protects individual outputs against improper load conditions.
- Wire-break diagnostics – detection of faults on individual channels.
- Supply-voltage monitoring – additional electrical-circuit diagnostics.
- LED status indication – visual monitoring of power, channels and faults.
- Substitute output values – programmable output behaviour during relevant communication or system states.
- Isochronous mode support – for synchronised automation-system control.
- MSO function – extended system data-exchange capabilities.
- STEP 7 / TIA Portal configuration – integration into SIMATIC automation projects.
- Compact 15 mm design – saves space in electrical automation cabinets.
- BaseUnit A0 interface – modular conductor-connection solution.
- Wide temperature range – suitable for use in various industrial environments.
Where is it used?
- In digital output circuits of industrial PLC control cabinets.
- In production-line automation systems.
- In control of conveyors, transport systems and sorting equipment.
- In solenoid-valve control circuits.
- In control of interface relays and contactor coils.
- In pneumatic and hydraulic automation systems.
- In warning-light and signalling-indicator circuits.
- In packaging, dosing and assembly equipment.
- In water-supply and wastewater-treatment automation.
- In heating, ventilation and industrial climate-control systems.
- In auxiliary automation circuits for power and electrical distribution systems.
- In SIMATIC ET 200SP distributed I/O architecture projects.
- In process monitoring and diagnostic systems.
Use by requirement
For the automation programmer.
The eight digital outputs are assigned to PLC program addresses and used to control technological equipment. Individual channel diagnostics make it possible to log faults, display them on the HMI and apply automatic-control interlocks.For the electrical installer.
The module is installed in an A0-type BaseUnit. Its compact design allows dense arrangement of I/O components in the automation cabinet, while LED indication helps speed up signal-circuit checks and diagnostics.For the engineer / designer.
When designing a PLC system, eight 24 V DC PNP outputs, a 0.5 A current limit per channel, power-circuit grouping, individual diagnostics and the required ET 200SP station components can be planned.Practical application
A SIMATIC ET 200SP distributed I/O system is used on a production line. Four 24 V DC solenoid valves, two interface relays and two signalling indicators need to be controlled. An eight-channel digital output module is installed in the ET 200SP station. The first four outputs are assigned to the solenoid valves, the fifth and sixth to the interface relays, and the seventh and eighth to the signalling circuits. The PLC program sends separate ON and OFF commands to each channel. If a short circuit or wire break occurs in one circuit, the diagnostic system can register the fault on the corresponding channel and provide information to the operator. In this way, one compact module can organise the control of several actuators and maintenance diagnostics.Advantages
- 8 independent digital outputs.
- 24 V DC PNP transistor channels.
- 0.5 A per output.
- Up to 4 A total module output current.
- 15 mm wide design.
- High Feature diagnostic functions.
- Short-circuit protection.
- Individual wire-break detection.
- Power-supply monitoring.
- LED indication.
- Fast output switching.
- Isochronous mode support.
- Integration with TIA Portal and STEP 7.
- Modular ET 200SP design.
Limitations
- Load per channel is limited to 0.5 A.
- Not intended for direct switching of 230 V AC circuits.
- Requires an ET 200SP A0-type BaseUnit.
- No galvanic isolation between individual outputs.
- Two outputs must not be connected in parallel to obtain a higher current.
- No PWM control function.
- Not a functional-safety F-DQ module.
- Lower switching frequencies apply to inductive loads.
- Requires a compatible ET 200SP station and configuration.
Installation and safety notes
- Professional installation. Connection and commissioning of the module should be performed by qualified electrical and automation specialists.
- Power supply. A 24 V DC supply is used, with an allowable range of 19.2–28.8 V DC.
- BaseUnit. The module is installed in a compatible A0-type BaseUnit.
- Output type. PNP outputs supply a positive potential, therefore load wiring must be selected for source-type outputs.
- Channel load. The load current of each output must not exceed 0.5 A.
- Total load. The sum of all output currents must not exceed 4 A.
- Inductive loads. The specified switching-frequency and overvoltage-limiting requirements apply when controlling electromagnetic coils.
- Power-circuit protection. Properly selected power supplies and protective devices must be used.
- Cable connection. 1-wire and 2-wire circuits are connected through BU A0; AUX terminals or potential-distribution components are used to distribute additional potentials.
- Diagnostics. Channel diagnostic parameters are configured in the PLC according to the equipment-control requirements.
- Cable routing. Signal and power circuits should be routed to minimise the effects of electromagnetic interference.
- Temperature. An FS07 module installed horizontally can be used from −30 to +60 °C, and vertically up to +50 °C.
- Galvanic isolation. The outputs are not galvanically isolated from each other.
- Functional safety. The standard DQ module is not used as a certified safety output for emergency stopping or other functions requiring an F-DQ module.
- Fault check. After installation, the switching signals, load operation and diagnostic indicator states of each channel should be checked.
- Maintenance. Electrical contacts, supply voltage, cable condition and PLC diagnostic records should be checked periodically.
⚡ Phase tip:
When selecting a digital output module, it is essential to distinguish the current of one channel from the total module load. This module has eight 0.5 A outputs, but this does not mean that all 4 A can be supplied through a single output. Each channel has its own 0.5 A limit. It is also important to note that these are PNP outputs – they supply a positive 24 V DC potential to the load. When controlling 230 V devices, suitable interface relays or contactors are used. The High Feature module is particularly useful where it is important to see not only the output command but also diagnostic information about a fault in the connected circuit.Quick selection guide
8 × 24 V DCPNP | 0.5 AHF diagnostics15 mm | BU A0Suitable when you need:- 8 channels of 24 V DC digital outputs
- PNP transistor control
- 0.5 A rated load per channel
- individual output diagnostics
- short-circuit and wire-break detection
- expansion of a SIMATIC ET 200SP system
- a narrow 15 mm PLC I/O module
- integration with STEP 7 / TIA Portal
- control of solenoid valves, relays and signalling circuits
Key selection parameters:- number of outputs – 8
- output type – PNP
- rated voltage – 24 V DC
- channel current – 0.5 A
- total current – 4 A
- module type – High Feature
- BaseUnit type – BU A0
- engineering environment – STEP 7 / TIA Portal
- installation position and ambient temperature
- diagnostic and system-integration requirements
FAQ – Spark asks, Phase answers
⚡ Spark: What does DQ 8×24 V DC/0.5 A HF mean?
⚙ Phase: DQ means digital outputs, 8 is the number of channels, 24 V DC is the rated output voltage, 0.5 A is the current per channel, and HF identifies the High Feature version with extended diagnostics and additional control functions.⚡ Spark: Is this an input or output module?
⚙ Phase: It is an eight-channel digital output module. It transfers PLC control commands to external loads rather than measuring sensor signals like a digital input module.⚡ Spark: What does PNP output mean?
⚙ Phase: When switched on, a PNP current-sourcing output supplies a positive supply potential to the load. The load is connected between the controlled output and the common 0 V potential according to the intended wiring scheme.⚡ Spark: Can each channel control a 4 A load?
⚙ Phase: No. The nominal current of one channel is 0.5 A. 4 A is the maximum total current of all eight outputs.⚡ Spark: Can the module control a 230 V electric motor?
⚙ Phase: Not directly. The module has 24 V DC transistor outputs. Compatible intermediate switching devices are used to control higher-power or 230 V electrical equipment.⚡ Spark: Can solenoid valves be controlled?
⚙ Phase: Yes. Compatible 24 V DC solenoid valves can be controlled provided the coil current complies with the 0.5 A per-channel limit and the specified inductive-load conditions.⚡ Spark: Does the module have short-circuit protection?
⚙ Phase: Yes. The outputs are protected against short circuits. The typical protection-response current threshold is 0.7–1.3 A, and individual channel diagnostics are also supported.⚡ Spark: Can the system detect a broken wire?
⚙ Phase: Yes. The High Feature module supports wire-break diagnostics for each channel. With correct parameterisation, a diagnostic fault message can be generated.⚡ Spark: What do the LED indicators show?
⚙ Phase: Green channel indicators show output states, red indicators are used for channel diagnostics, the PWR indicator shows the power-supply status, and the DIAG indicator shows the overall diagnostic status of the module.⚡ Spark: Does the module work with TIA Portal?
⚙ Phase: Yes. The module can be configured in STEP 7 TIA Portal from V13 SP1. It can also be integrated into the relevant STEP 7 and PCS 7 systems.⚡ Spark: Does the module have a PROFINET connection?
⚙ Phase: It is an ET 200SP I/O module connected to the station's internal bus. PROFINET or PROFIBUS communication with the PLC is implemented through the corresponding ET 200SP interface module.⚡ Spark: Which BaseUnit is required?
⚙ Phase: An A0-type SIMATIC ET 200SP BaseUnit is used. AUX or potential-distribution components can also be used for 3-wire or 4-wire connection schemes.⚡ Spark: Can two outputs be connected in parallel for a higher load current?
⚙ Phase: No. Parallel connection of two outputs to increase current is not provided. The 0.5 A load limit applies to each channel.⚡ Spark: Is PWM control supported?
⚙ Phase: No. The module is intended for conventional digital ON/OFF control, not for PWM signal generation.⚡ Spark: What is isochronous mode?
⚙ Phase: It is a synchronised control mode in which signal processing is linked to a defined system cycle. It is useful for processes where precise and repeatable output timing is important.⚡ Spark: Is the module suitable for safety circuits, for example emergency stopping?
⚙ Phase: This is a standard digital output module, not a functional-safety F-DQ module. Certified safety components selected for the required SIL or PL level are used for safety functions.⚡ Spark: At what temperature can the module operate?
⚙ Phase: From hardware version FS07, operation down to −30 °C is permitted. The maximum temperature is +60 °C for horizontal installation and +50 °C for vertical installation.⚡ Spark: How much space does the module occupy in the automation cabinet?
⚙ Phase: The module is only 15 mm wide, 73 mm high and 58 mm deep. This allows a large number of output channels to be installed in a compact ET 200SP system.Notes and technical information
- The module is intended for 24 V DC digital outputs in the SIMATIC ET 200SP system.
- An A0-type BaseUnit is used.
- PNP output load – up to 0.5 A per channel.
- Extended diagnostics enable monitoring of channel and power-supply faults.
- The module is a standard DQ, not a functional-safety F-DQ device.
- Application of special environmental and certification categories depends on the design and operating conditions of the complete installed system.
- Product environmental data include EPD and life-cycle CO₂-equivalent indicators.

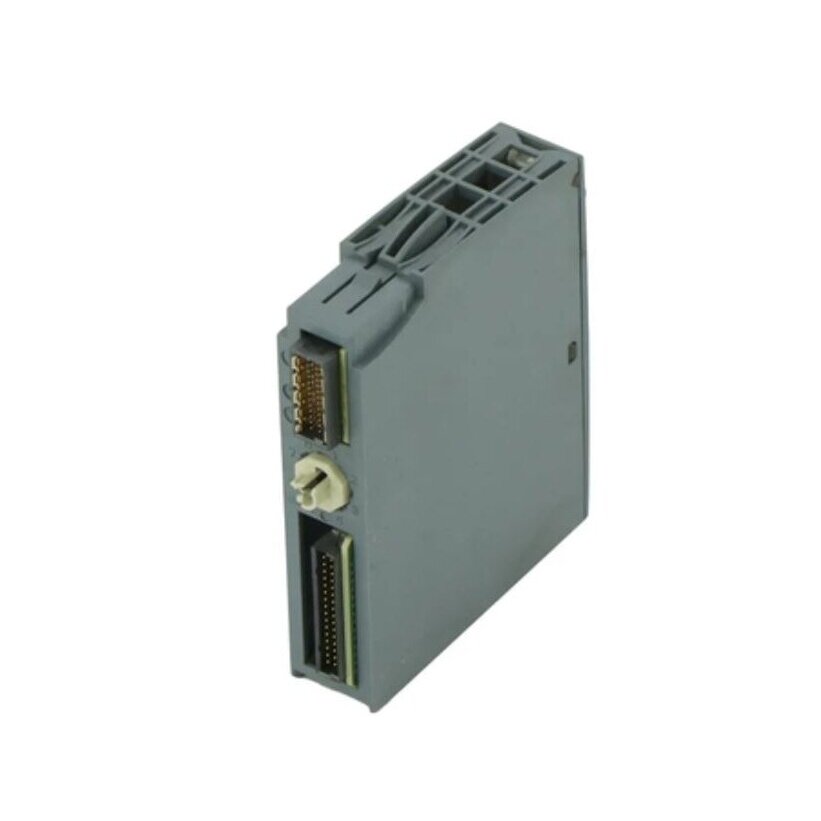

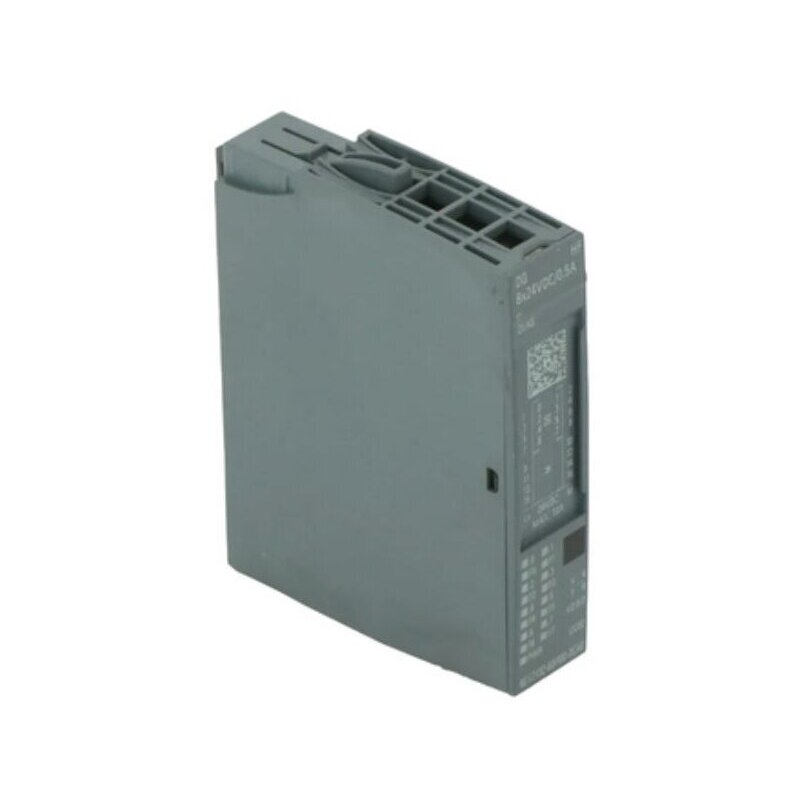

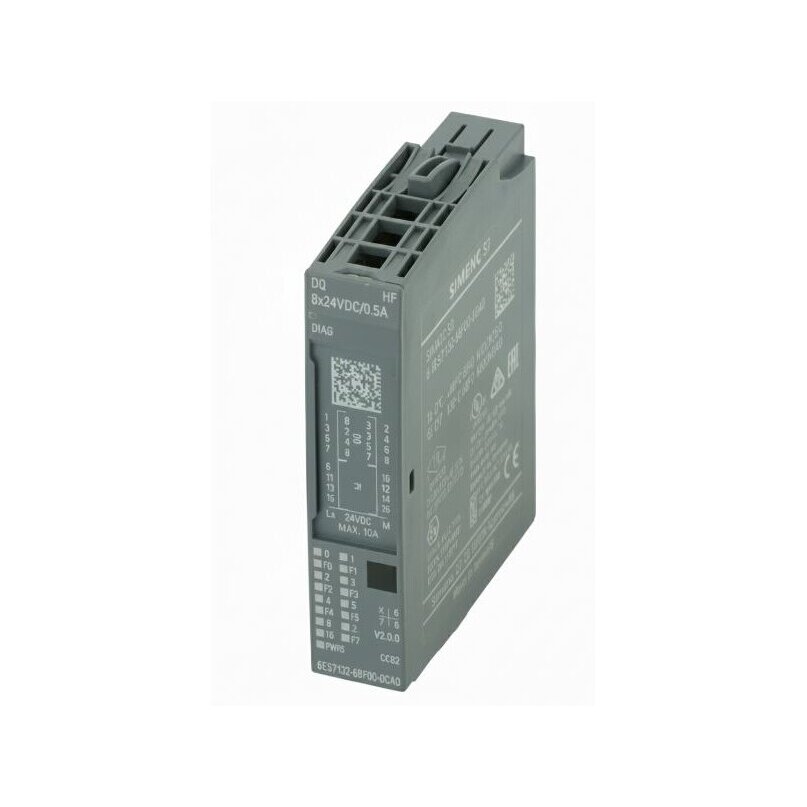

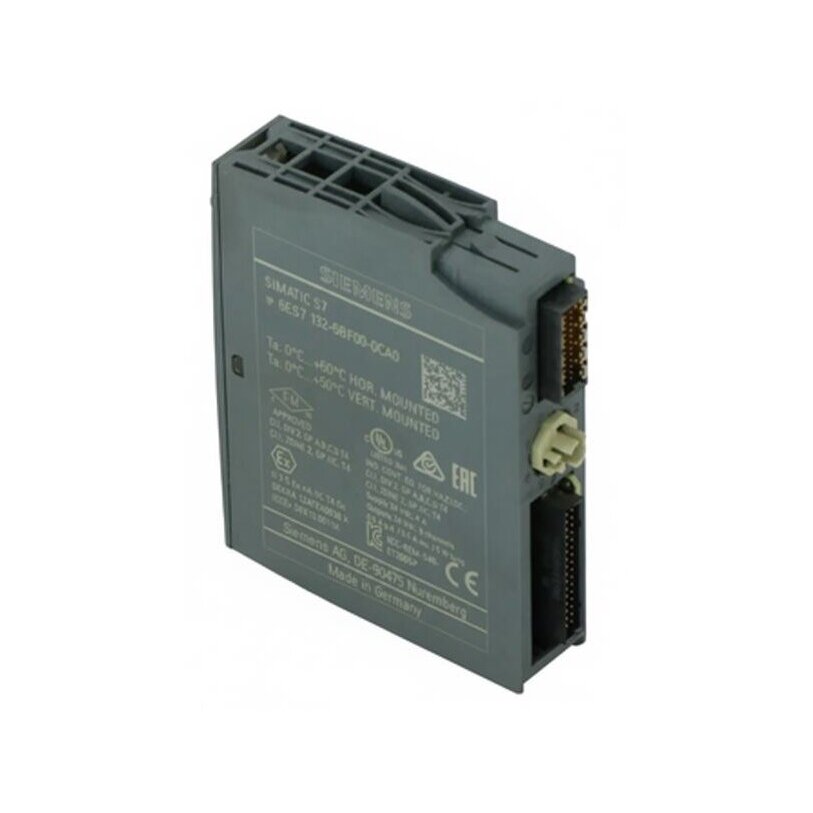

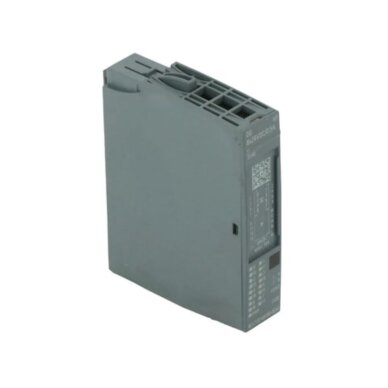

Siemens SIMATIC ET 200SP – 8-channel digital output module 24 V DC / 0.5 A HF, PNP
Siemens SIMATIC ET 200SP DQ 8×24 V DC/0.5 A High Feature, 6ES7132-6BF00-0CA0 – a professional PLC automation digital output module for controlling eight independent 24 V DC PNP actuator circuits. The nominal current of each channel is 0.5 A, while the total permissible module output current is 4 A. High Feature diagnostics include monitoring of short circuits, wire breaks, power-supply status and individual channel faults. The module features LED indication, supports isochronous operation and integrates into STEP 7, TIA Portal and PCS 7 automation projects. Compact dimensions of 15 × 73 × 58 mm, compatibility with BaseUnit A0 and the modular ET 200SP architecture allow efficient design of industrial control systems. It is used in control circuits for production lines, solenoid valves, relays, contactor coils, signalling equipment and various technological devices.
