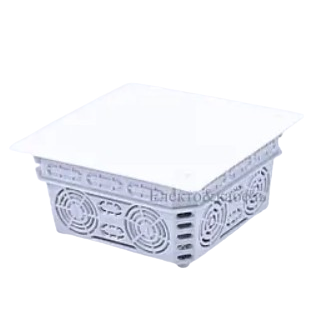

  • Distribution mounting box | grey | flush-mounted in wall | 153x153x77mm

    Code: KO125E

    Reliable and versatile distribution box designed for connecting and distributing wires and cables in electrical installation systems with up to 400 V voltage and 16 A current. The box is suitable for both industrial and household environments and is especially ideal for installation in brick walls. It is made of high-quality self-extinguishing PVC plastic, resistant to flame, UV radiation, and temperature changes.

  • Technical specifications:

    Maximum voltage: 400 V

    Maximum current: 16 A

    Material: PVC

    Color: Grey

    Temperature resistance: from -5 °C to +60 °C

    Flame resistance: 850 °C

    Fire resistance class: A1–D

    Weight: 240 g

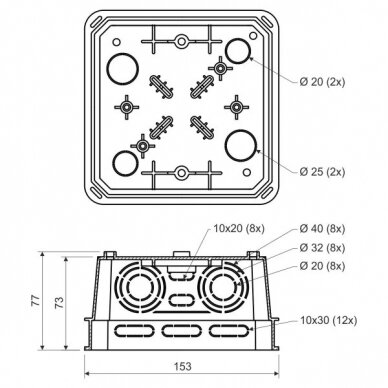

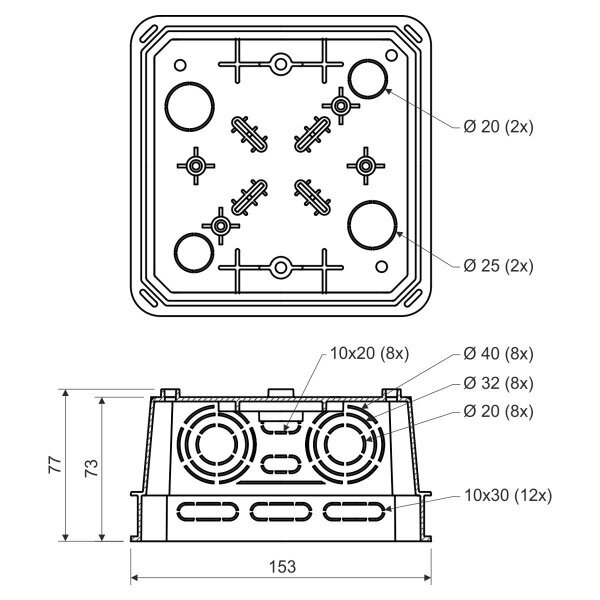

    Dimensions: 153x153x77(73)mm

    Functions and features:

    Multiple pre-formed entries – easier cable and pipe insertion

    TS35 rail integration – allows installation of standard automation or distribution components

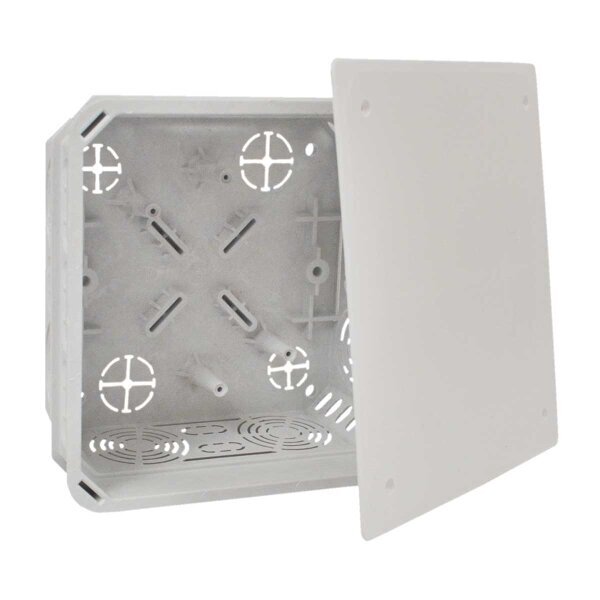

    Removable cover – improves cable entry ergonomics

    Horizontal cover position – provides easier access during installation

    Fire protection properties – self-extinguishing material within 30 s

    Resistant to temperature fluctuations – suitable for both cold and warm environments

    Applications:

    For connecting and distributing electrical installation cables

    For indoor installations in residential, commercial, and industrial buildings

    Suitable for both new installations and renovations

    Can be used with TS35 rail

    Advantages:

    Resistant to high temperatures and short-term flame exposure

    Convenient and universal mounting – can be installed in brick walls

    Ergonomic design with multiple entries and removable sides

    Complies with EU safety standards

    Additional TS35 rail can be mounted for device installation

    Disadvantages:

    Not suitable for outdoor use without additional moisture protection

    PVC may be less impact-resistant than metal enclosures

    May require additional sealing in dusty or humid environments

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
