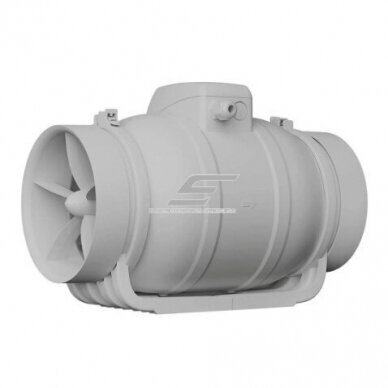

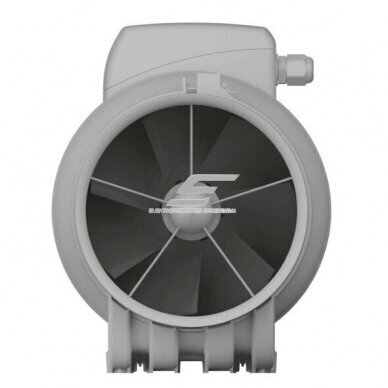

    Mixed-flow duct fan Turbo Join Compact 150/160 | D160 | 570 m³/h | 50 W | 230 V | 2 speeds | 340×190×238 mm | grey | 34607

    Code: 34607
    Barcode: 4772318239367
    Inquire about this item
    Price 90.63 € VAT incl.
    ( 74.90 € VAT excl. )
    Want another price? Suggest yours!

    Mixed-flow duct fan Turbo Join Compact 150/160 (34607): D160, 2 speeds, up to 570 m³/h, 305 Pa, 50 W, 230 V.

  • Product description

    Mixed-flow duct fan Turbo Join Compact 150/160 | D160 | 570 m³/h | 50 W | 230 V | 2 speeds | 340×190×238 mm | grey | 34607

    Two-speed mixed-flow fan for D160 ducts: the 50 W, 230 V motor delivers up to 570 m³/h airflow and up to 305 Pa pressure, and runs at only 40 dB(A) on low speed.

    Key point:

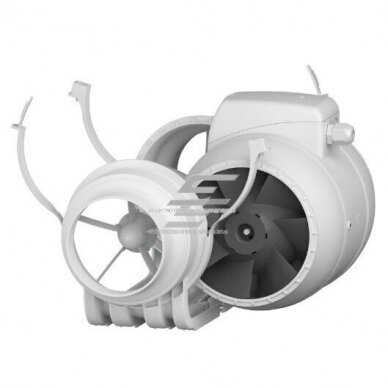

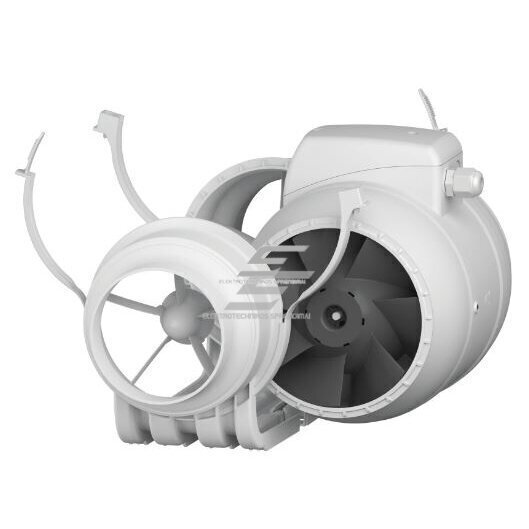

    The mixed-flow impeller combines the capacity of an axial fan with the pressure of a centrifugal one, while the removable motor unit allows servicing without taking the housing out of the duct.
    Airflow
    570 / 415 m³/h
    Power / voltage
    50 W / 230 V
    Pressure
    305 / 225 Pa
    Noise
    49 / 40 dB(A)

    We will help you set up speed and automatic control

    We will advise how to adjust this fan's speed and how to switch or control it automatically according to room conditions – humidity, temperature or CO₂ concentration. We will select a suitable speed controller, thermostat, humidity or CO₂ sensor and explain how to connect them.

    Contact us: tel. +370 658 01033 or e-mail info@elsprendimai.eu

    In your e-mail, briefly describe the situation: room purpose and size, fan model and what you want to control – speed, humidity, temperature or CO₂.

    Wholesale quantities: special prices for larger orders. State the required quantity in your e-mail and we will send you an individual offer.

    Operating principle

    The inclined blade geometry accelerates air both axially and radially, so the fan holds more pressure than an axial unit while staying compact and quiet. Air moves in a straight line, so the fan simply fits into the duct run.

    At its two speeds the motor runs at approx. 2600 and 2000 rpm. Speeds are selected with a switch, and operation can be automated with a timer, humidity or CO₂ sensor.

    Why choose this fan?
    Quiet and efficient: 415 m³/h for everyday ventilation and 570 m³/h for boost mode, easy servicing.

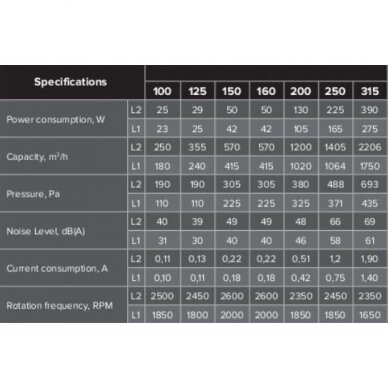

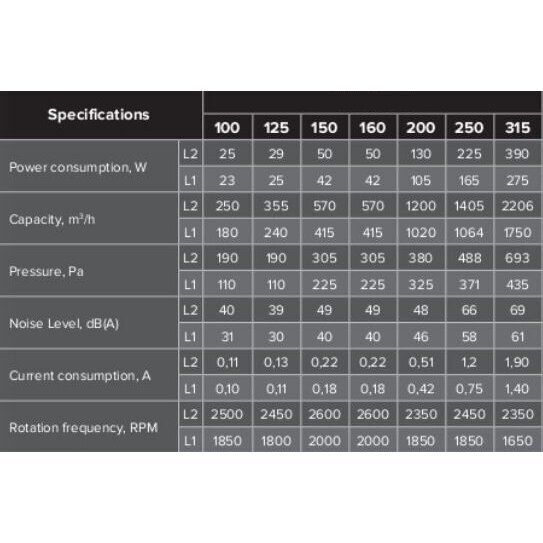

    Technical specifications

    Product type Mixed-flow duct fan
    Series Turbo Join Compact 150/160
    Code 34607
    Power supply 230 V AC, 50 Hz
    Speeds 2 (high / low)
    Power 50 / 42 W
    Current 0.22 / 0.18 A
    Speed 2600 / 2000 rpm
    Airflow 570 / 415 m³/h
    Pressure 305 / 225 Pa
    Noise 49 / 40 dB(A)
    Duct diameter Ø160 mm

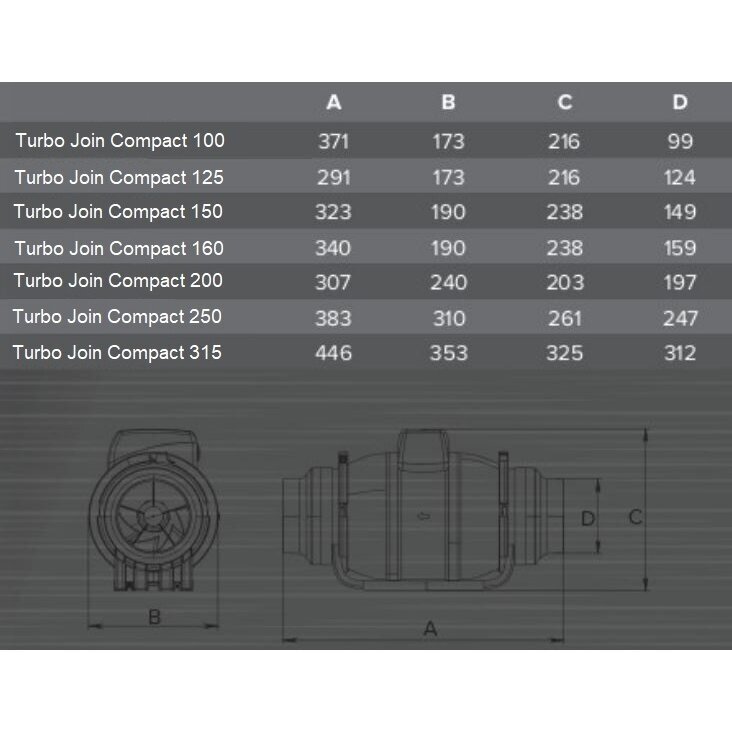

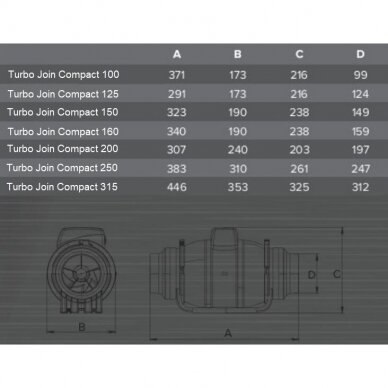

    Dimensions 340×190×238 mm (length × width × height)
    Motor single-phase, ball bearings, overheating protection with automatic restart
    Housing impact-resistant plastic, grey, removable motor unit
    Protection IP44
    Mounting any position, bracket
    EAN –
    Country of origin Turkey

    Main functions

    • Two speeds – Quiet everyday mode and boost ventilation mode.
    • Mixed-flow impeller – Higher pressure than an axial fan, up to 305 Pa.

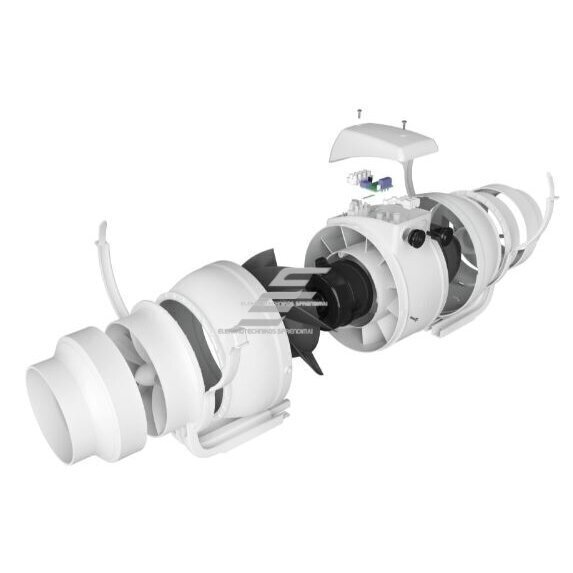

    • Easy servicing – Motor unit removable without dismantling the housing.
    • Motor protection – Ball bearings and overheating protection.

    Where is it used?

    • Apartment and house ventilation
    • Bathrooms, kitchens, WCs
    • Offices and small commercial premises
    • Supply and extract systems
    • Quiet zones: bedrooms, lounges

    Use by need

    For designers.
    Two-speed data and clear dimensions.
    For installers.
    Fits straight into the duct, serviced without removing the housing.
    For homeowners.
    Quiet everyday operation and boost mode when needed.

    Practical application

    The stated 570 m³/h is achieved at zero resistance. Low speed is enough for everyday ventilation – switch to high speed when showering, cooking or when more people are present.

    Pros

    • Up to 570 m³/h, 2 speeds
    • Only 40 dB(A) on low speed
    • Removable motor unit
    • Ball bearings, thermal protection

    Cons / limitations

    • Airflow decreases as system resistance rises
    • Plastic housing not suitable for hot air
    • Not certified for fire smoke extraction

    Safety and installation notes

    • Connection must be made by a qualified specialist
    • Fit overload protection in the supply circuit
    • Mount the fan on a solid base
    • Disconnect power before maintenance
    • Keep inlet and outlet unobstructed

    Quick selection guide

    570 / 415 m³/h
    50 W / 230 V
    305 / 225 Pa
    49 / 40 dB(A)
    Suitable when you need:
    • ventilate living spaces quietly
    • build a supply or extract system with Ø160 mm ducts
    • have two operating modes without an extra controller
    Check before use:
    • whether 230 V supply is available
    • whether the duct diameter is Ø160 mm
    • whether the airflow suits your system
    Important reminder: A fan works best when its airflow and pressure match the system resistance.

    FAQ

    How are the speeds switched?
    With a two-position switch or relay contact; control by timer, humidity or CO₂ sensor is possible.
    Can it be installed vertically?
    Yes, the fan can operate in any position.
    Is it suitable for fire smoke extraction?
    No, the fan is not certified for this purpose.

    34607 mixed-flow duct fan D160 570 m³/h

    Mixed-flow duct fan Turbo Join Compact 150/160 (34607): D160, 2 speeds, up to 570 m³/h, 305 Pa, 50 W, 230 V.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
