Electrical installation distribution box | hermetic | 70x70x40mm

Technical specifications

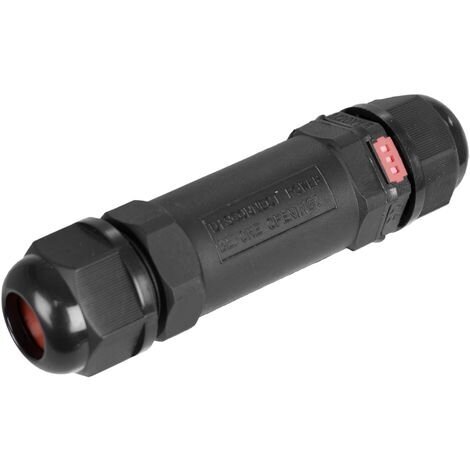

Product type: underground connection joint for wires / cables
Manufacturer: Solera
Application: hermetic connection of wires and cables
Suitable for: 3-core wires / cables
Wire cross-section: 0.5–2.5 mm²
Number of wires / cables to be connected: 2
Dimensions: 100 x 26 mm
Colour: black
Protection class: IP68
Installation location: outdoor, wet, underground and technical installations
Purpose: wire connection where exceptional sealing is required
Installation type: cable connection inside the connector
Suitable for: electrical installations, lighting systems, automation, outdoor equipment

Functions

Hermetic wire connection – protects the connection point from moisture, dust and environmental impact
IP68 protection – suitable for outdoor use, wet areas and underground installations
Connection of 3-core cables – designed for connecting 3-core wires or cables
Connection of 2 cables together – allows reliable connection of two cable ends in one connector
Wire cross-section 0.5–2.5 mm² – suitable for the most commonly used low and medium power installation wires
Protection against oxidation – reduces the risk of contact damage caused by moisture ingress

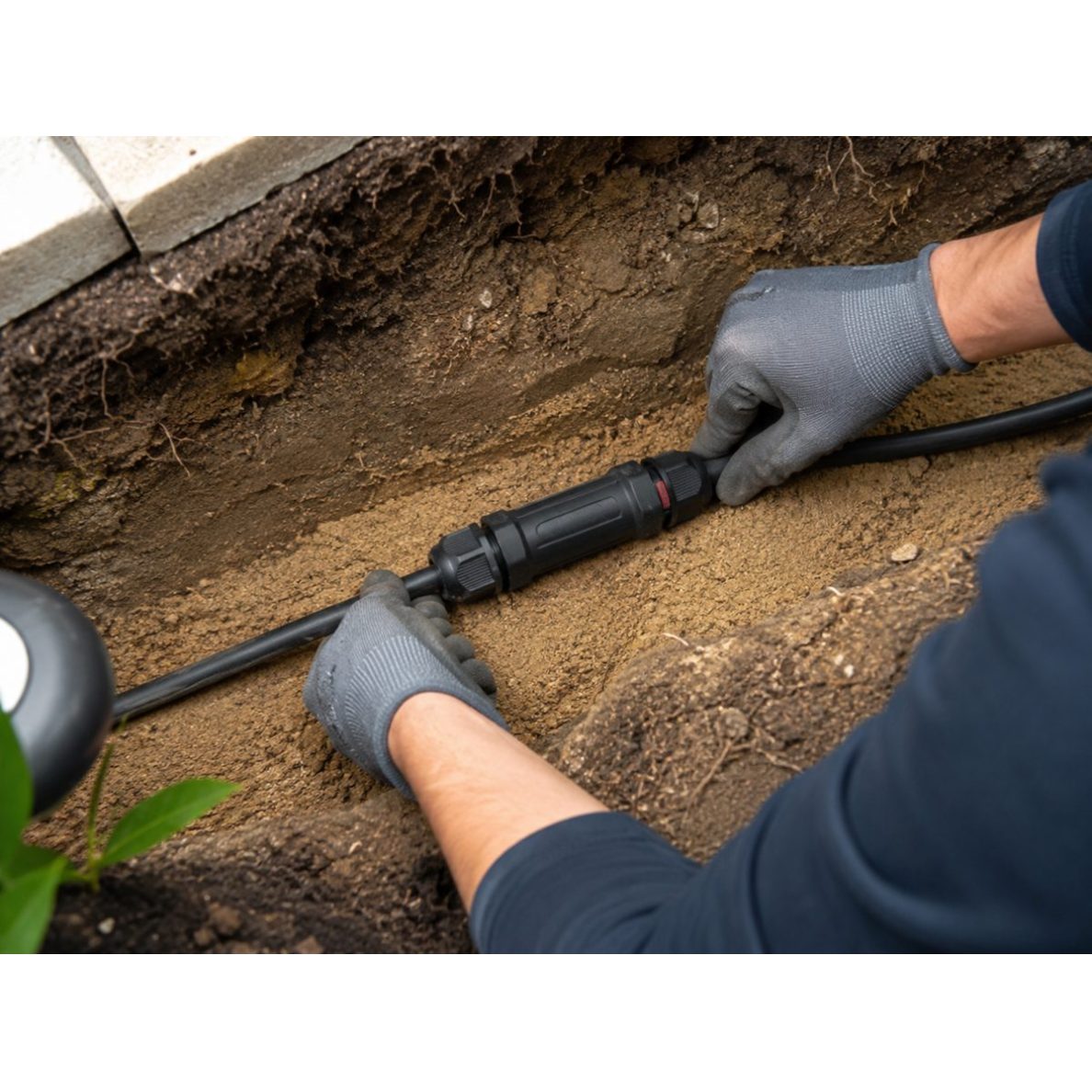

Suitable for underground installation – can be used for cable connections in the ground when additional sealing is required
Cable extension or repair – suitable when an existing cable needs to be extended or a damaged connection point needs to be restored

Usage

For household users: Suitable for connecting yard, garden, terrace or outdoor lighting wires when the connection needs to be protected from moisture, rain and soil impact.

For electricians: Used for fast and sealed connection of 3-core cables in outdoor, underground or wet electrical installations.

For engineers / designers: Relevant when designing outdoor lighting, gate automation, site electrical systems or low-power system cable connections with IP68 protection.

For farm / homestead owners: Suitable for area lighting, electrical lines to auxiliary buildings, gate automation or connection of other outdoor equipment.

For commercial facility maintenance: Used for repairing electrical installations and extending cables in parking areas, warehouses, technical zones or building territories.

Advantages

IP68 protection class – high sealing level against dust and water
Suitable for underground and outdoor use – practical solution for wet environments
Designed for 3-core wires – suitable for many standard electrical cables
Wide wire cross-section range – 0.5–2.5 mm²

Disadvantages

Designed only for connecting 2 cables – not suitable if more branches need to be connected in one place
Suitable only for wires up to 2.5 mm² – larger cable cross-sections require another type of connector

Where is this hermetic connector most commonly used?

It is most commonly used in outdoor lighting, garden electrical installations, underground cable connections, gate automation connections, wet technical zones, yard, terrace or utility building electrical lines.

Is this connector suitable for underground use?

Yes, the connector is designed for use where exceptional sealing is required, including underground and outdoor installations. It has an IP68 protection class, making it suitable for wet areas and locations exposed to environmental impact. However, when installing underground, it is recommended to ensure that the connector is not exposed to mechanical damage.

What wire cross-section can be connected?

This connector is suitable for wires with a cross-section from 0.5 to 2.5 mm². It is designed for 3-core wires / cables.

How many cables can be connected with this connector?

The connector is designed to connect 2 cables. This can be, for example, cable extension or connection of two wire ends in one hermetic connector.
