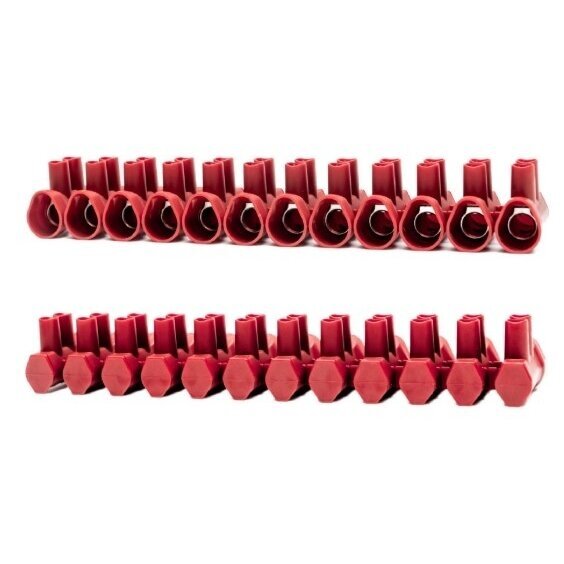

  • Electrical wire connector | 16–35mm² | 125A | red | Tekox

    Code: PRO35

    This is a high-quality insulated terminal/connection strip designed for electrical wire connection and distribution. Developed with a modern connection system, this strip allows quick and safe connection of both solid and flexible wires without additional tools.

  • Technical specifications:

    Number of poles: 12

    Solid wire: 35 mm² / 16 mm²

    Flexible wire: 25 mm² / 16 mm²

    Rated voltage: 450 V

    Rated current: 125 A

    Temperature resistance: up to +110 °C

    Screw size: M5

    Torque: 2 Nm

    Width: 3.4 cm

    Height: 3 cm

    Length: 16.8 cm

    Housing: Insulated plastic, heat resistant

    Features:

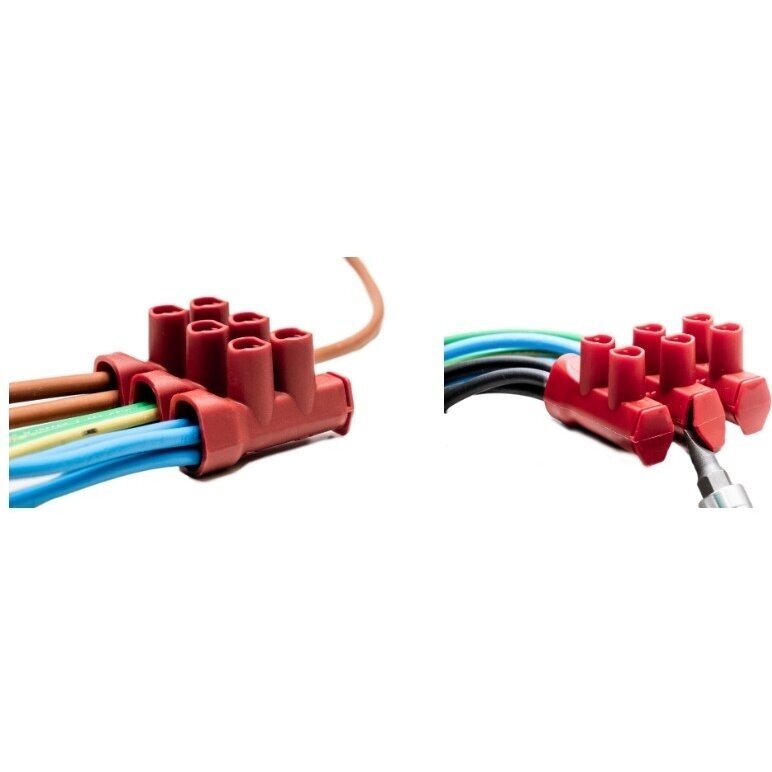

    Modern connection system for quick and convenient installation

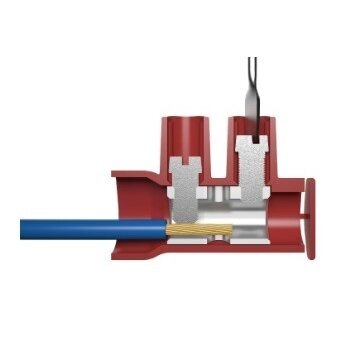

    Two screws per pole ensure firm contact

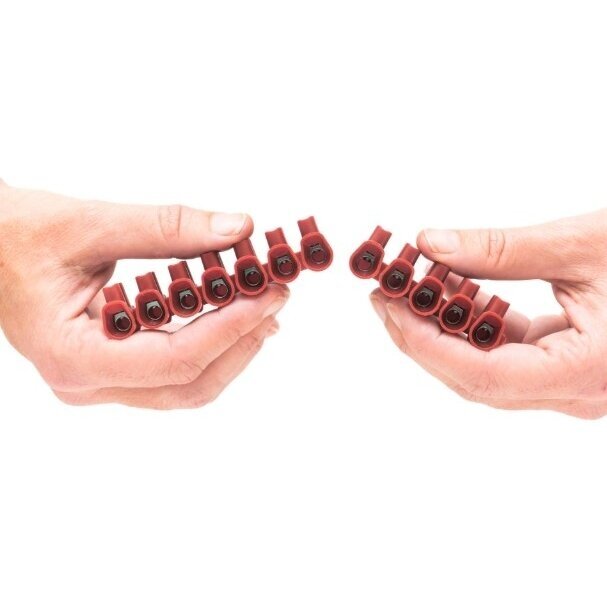

    Breakable by hand without tools – easy shortening

    Removable end cover for flexible use

    Can be used on both right and left installation sides

    Enhanced contact protection – reduced electric shock risk

    Application:

    In electrical distribution boxes

    In residential and industrial installations

    In electrical distribution cabinets

    In automation systems

    In workshops, household appliances, and construction sites

    Pros:

    Secure contact with two screws per pole

    Suitable for both solid and flexible wires

    Can be broken by hand – faster installation

    Removable cover – added safety and versatility

    Heat-resistant up to 110 °C

    Compact but supports high current (125 A)

    Cons:

    Not recommended for very damp or explosive environments without additional insulation

    M5 screws require specific torque – precise installation needed

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
