Electromagnetic flowmeter designed for measuring and controlling the flow of conductive liquids. Using the principle of electromagnetic induction, this meter ensures highly stable and accurate measurement even under demanding conditions – from water supply systems to dosing of aggressive chemicals (e.g., hypochlorous acid). The remote type design allows convenient separation of the sensor from the control unit, making the solution ideal for both industrial lines and complex installation environments.

Product description

Technical Specifications

Type: electromagnetic flow meter
Measured medium: conductive liquids (water, wastewater, chemicals, etc.)
Nominal diameter: DN3 – DN3000; DN3–DN4: flanged with clamp
Accuracy: ±0.5%
Pressure: 0.6 – 42 MPa
Temperature: -25°C ~ +80°C

Power supply:
85–250 VAC, 45–63 Hz
20–36 VDC

Display: OLED / LCD digital
Protection class:
Sensor: IP68
Converter: IP65

Lining: Polychloroprene rubber; PTFE / F46 / PFA
Electrodes: 316L stainless steel; titanium; tungsten carbide
Housing: carbon steel / SS304 / SS316

Functions

High-precision flow measurement even under changing conditions
Suitable for various conductive liquids – water, wastewater, chemicals
Smart control with OLED/LCD display and clear visualization
Remote installation – flexible mounting
Resistance to environmental conditions – up to IP68
Wide configuration options – different linings, electrodes, accuracy
System integration – suitable for automation and SCADA

Usage

For home / farmer: water consumption monitoring, irrigation system control, liquid flow measurement on farms
For industry / engineer: water treatment plants, chemical industry (e.g., hypochlorite dosing), food and beverage industry, energy and heating networks, process automation and control
For electrician / automation specialist: integration into PLC / SCADA systems, installation in complex locations (remote version), implementation of flow control solutions, modernization of industrial networks

Advantages

No need to cut the pipe – fast installation
High accuracy (up to ±0.5%)
Resistant to water and harsh conditions (IP68)
Suitable for hot liquids
Universal power supply
Durable materials

Disadvantages

Works only with conductive liquids (not suitable for oil or gases)
Requires professional installation
For large diameters – more complex installation

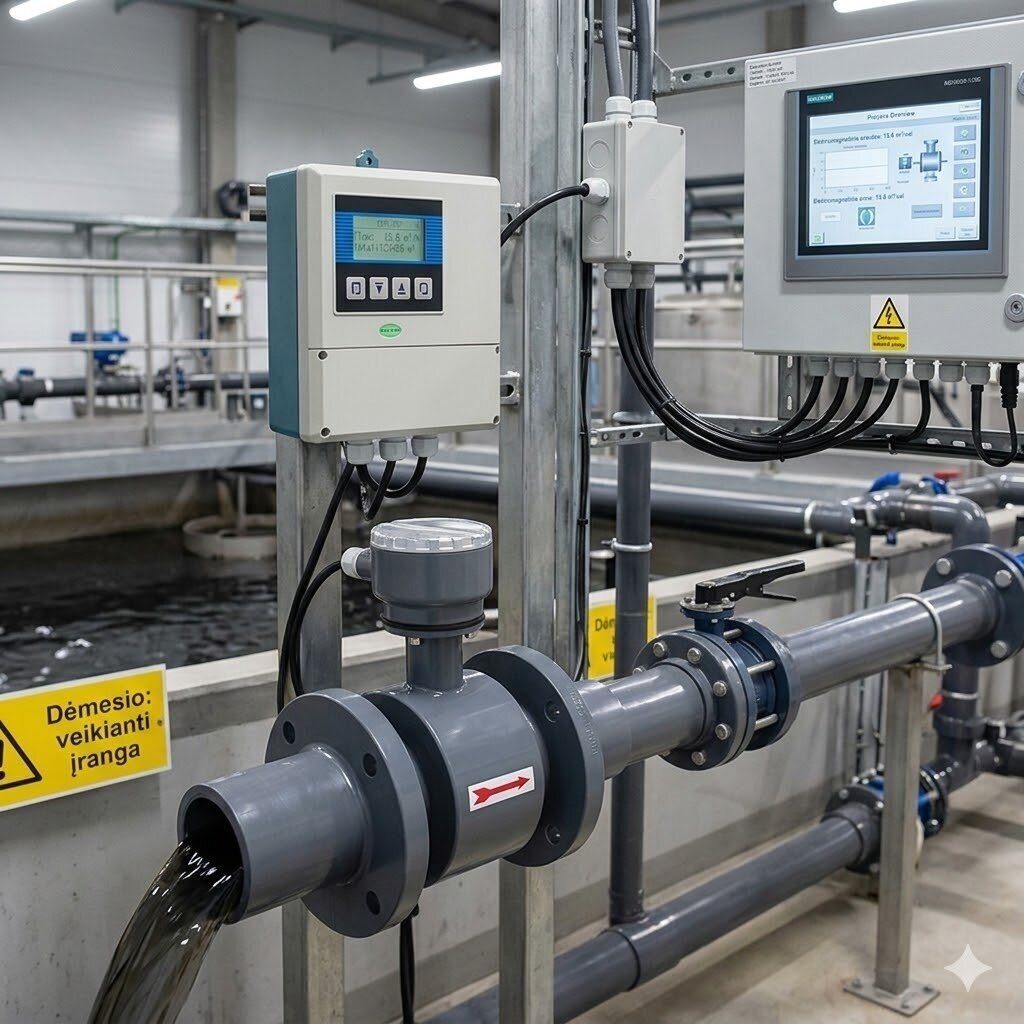

Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
