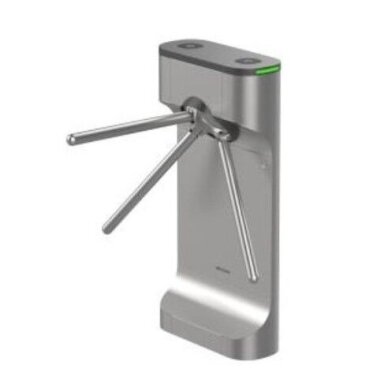

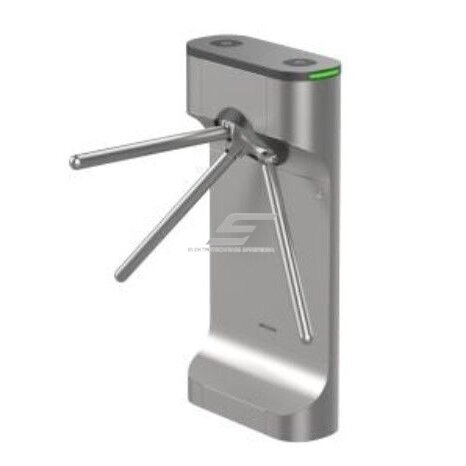

Electronic access control turnstile | bidirectional | tripod type | for people flow management | Hikvision DS-K3G411X-R/MF-Dm55

Technical Data
Movement Mechanism: No motor
MCBF (Mean Cycles Between Failure): ≥ 3 million cycles
Network Protocol: ISAPI
Network Interface: 10/100 Mbps Ethernet
Network Ports: 1
Lock Control: 2
Exit Button: 2
Alarm Output: 2
RS-485 Interface: 4
RS-232 Interface: 4
Fire Alarm Input: 1
Casing Input: 2
Integrated Access Control System: Yes
Power Supply for Face Recognition Module: Only in "Pg" type models
Card Capacity: 500,000
Event Capacity: 500,000
Supported Card Types: EM/M1/Desfire/Felica
Configuration via Web Browser: Yes
Configuration via Mobile Device: Yes
QR Code Scanning: Optional
Audio Announcements: Optional
Keypad Configuration: Yes
Maximum Throughput: Over 35 people per minute (depending on traffic flow)
Passage Width: 550 mm
Barrier Material: SUS304 stainless steel
Power Supply: 100–240 VAC, 50–60 Hz
Standby Power Consumption: 45 W
Operating Temperature: -20°C to 65°C
Operating Humidity: 0% – 95% (non-condensing)
Protection Level: None (for indoor use)

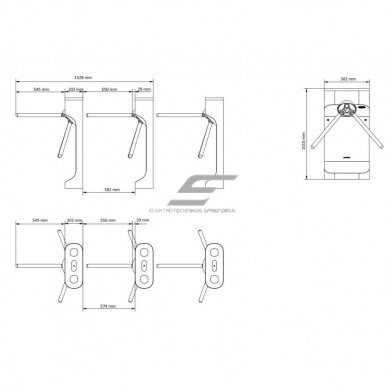

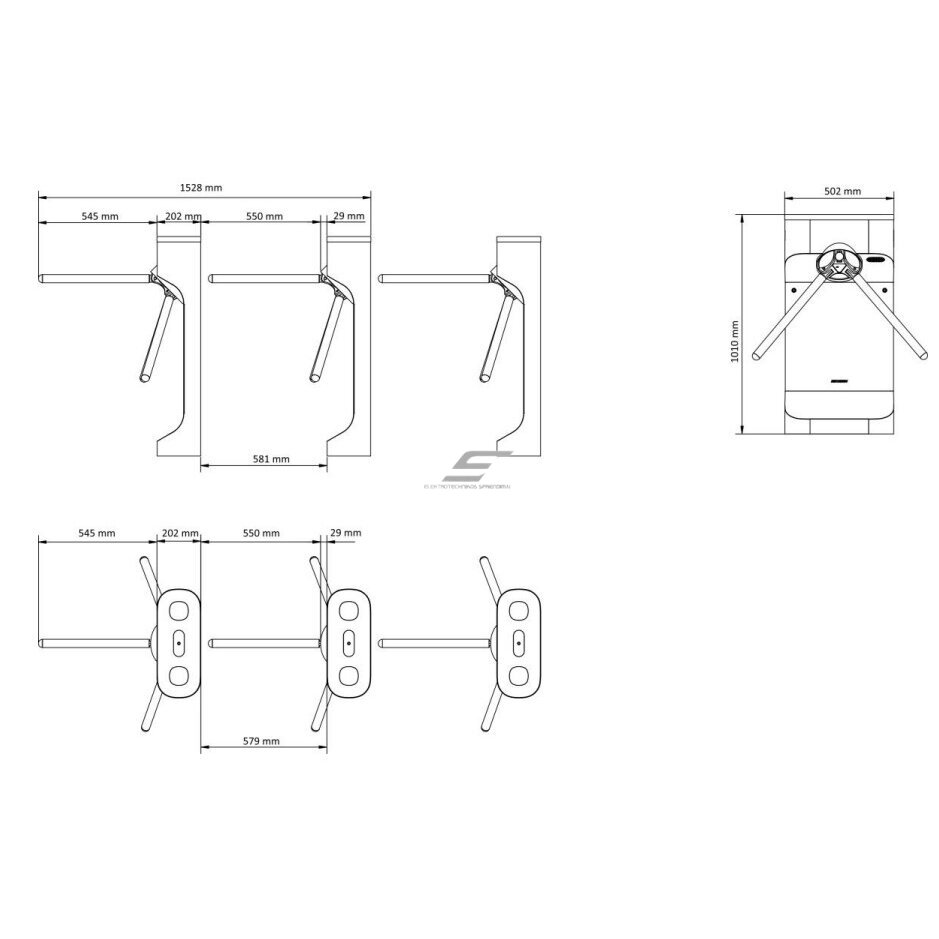

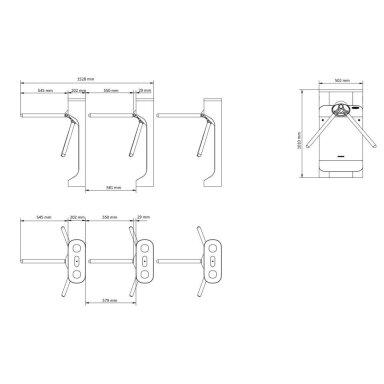

Dimensions Without Packaging: 502 mm × 202 mm × 1010 mm
Dimensions With Packaging: 745 mm × 365 mm × 1120 mm
Weight Without Packaging: 26 kg
Weight With Packaging: 31 kg
Certifications: CE, CE-LVD, CB, RoHS, REACH, WEEE
Application Areas
Commercial buildings – Offices, administrative centers
Public spaces – Stadiums, concert halls, museums
Industrial areas – Factories, warehouses
Residential complexes – Apartment buildings, dormitories
Construction sites – Restricted access zones
Features and Advantages
Bidirectional Traffic Control: The turnstile regulates people’s flow for both entry and exit.
LED Indicators: Clearly visible LED indicators show the passage status and entry/exit direction.
Emergency Opening Function: In case of a fire or emergency, the turnstile barriers automatically lower for quick evacuation.
Integrated Access Control: Compatible with card, facial recognition, and QR code systems, with integration options for third-party software.
High-Quality Construction: Made of durable SUS304 stainless steel for long-lasting use and resistance to mechanical wear.
Large Capacity: Stores up to 500,000 cards and records, ideal for high-traffic locations such as stadiums or industrial sites.
Possible Drawbacks
Dependence on Electricity: If the power supply fails, the turnstile may not function unless a backup power system is integrated.
Complex Installation: Large facilities may require professional installation and integration with existing access control systems.
Initial Investment: Compared to simpler mechanical solutions, smart turnstiles are more expensive but offer enhanced security and functionality.
The DS-K3G411X series turnstile is a high-quality solution for managing pedestrian traffic and access control in various environments. With bidirectional operation, emergency opening, and integration capabilities for cards, facial recognition, and QR codes, this model ensures both security and convenience.

It is a reliable choice for organizations looking to optimize entry and exit control while ensuring an efficient flow of employees and visitors.
