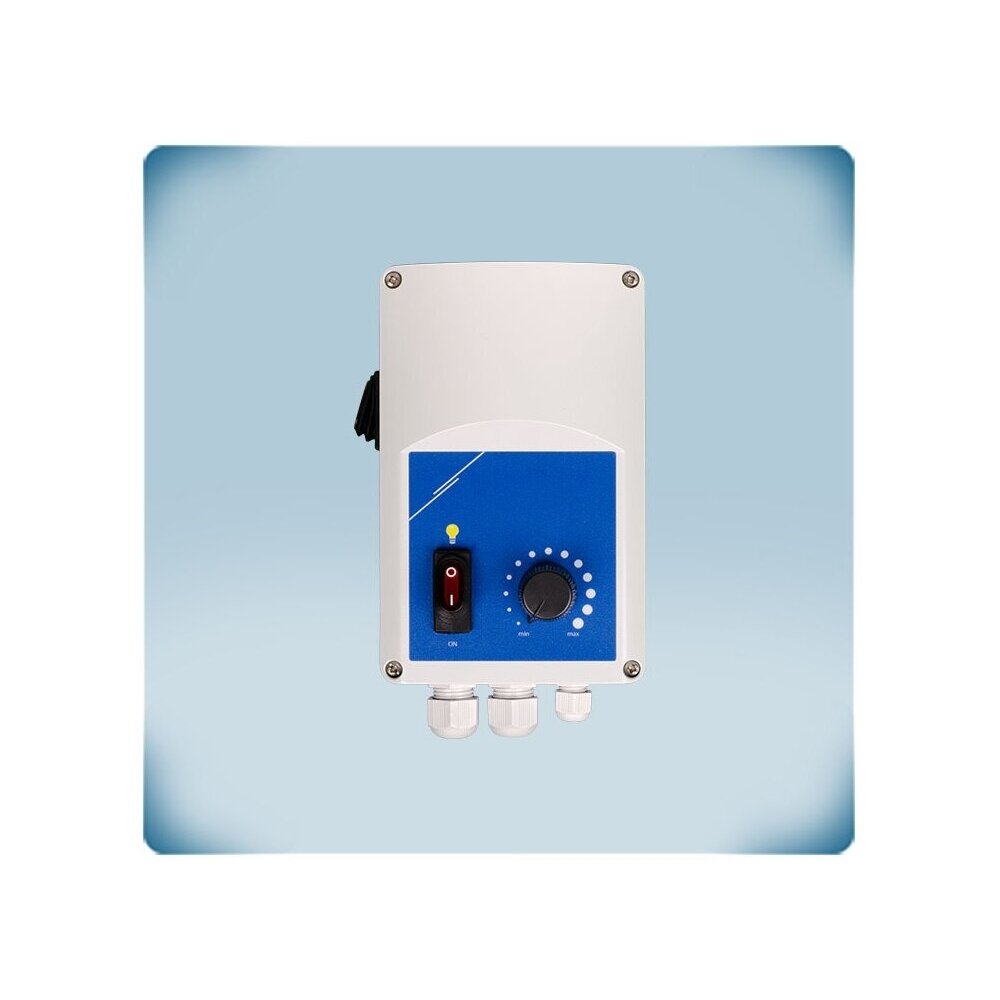

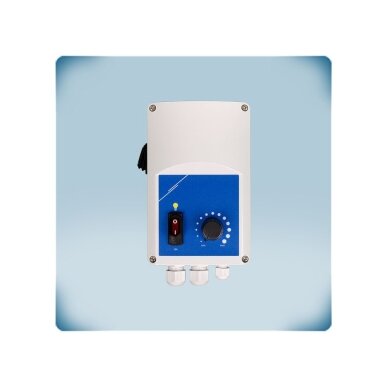

  • New item   -57.98€Electronic fan speed controller with lighting switch | 10A | 230VAC | surface-mounted | Sentera Controls | SLM-0100-AT

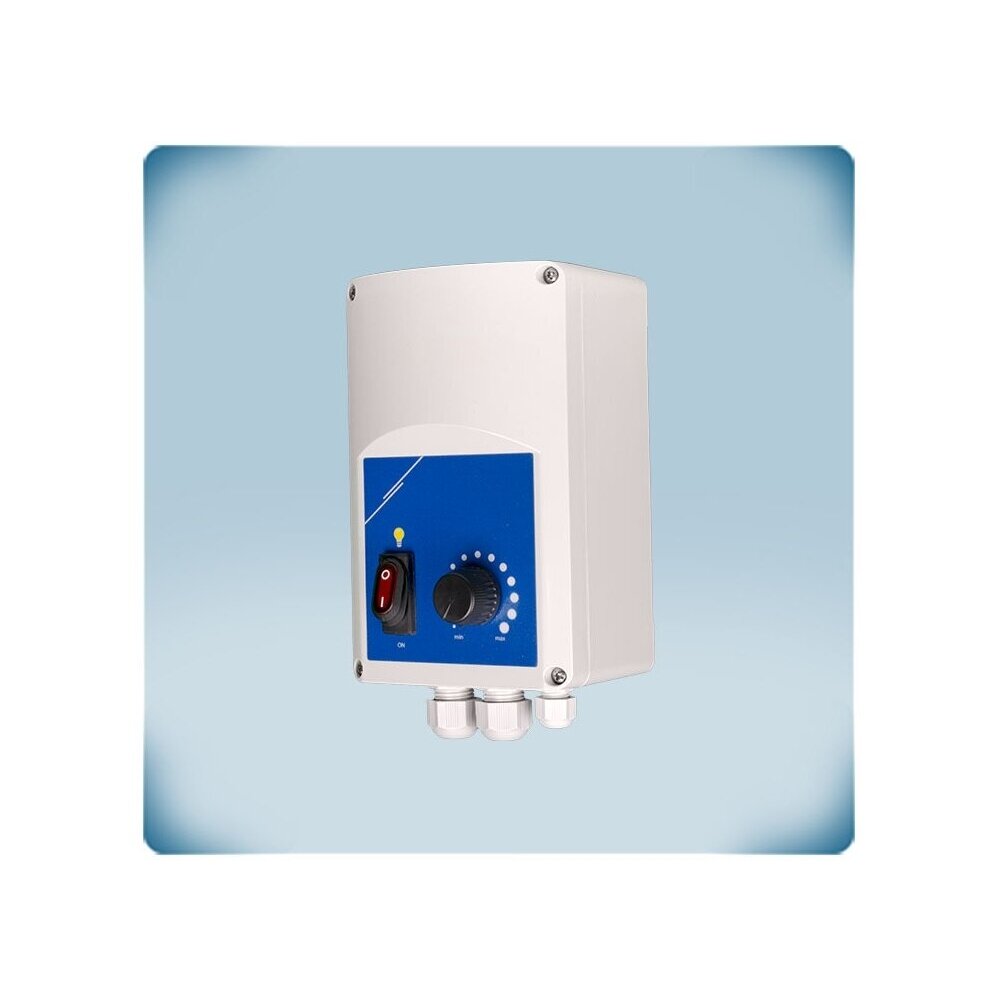

    New item   -57.98€Electronic fan speed controller with lighting switch | 10A | 230VAC | surface-mounted | Sentera Controls | SLM-0100-AT 1

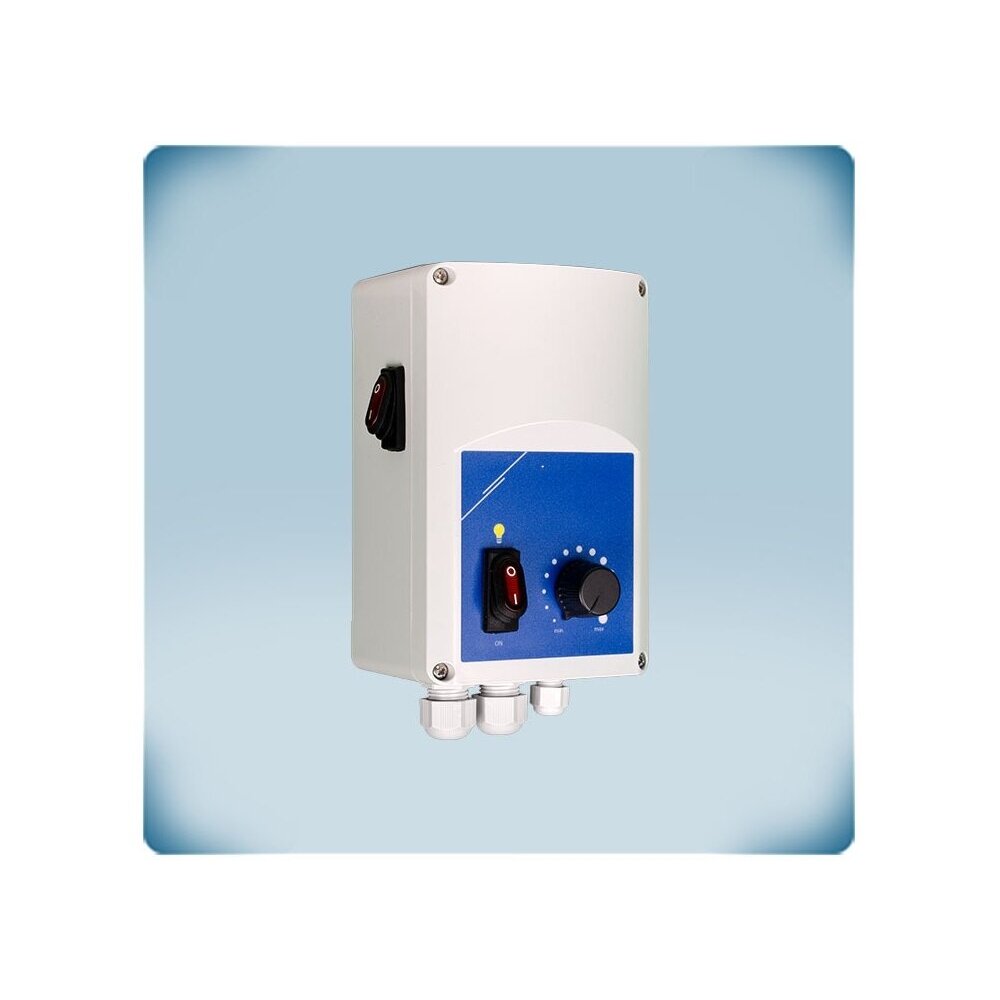

    New item   -57.98€Electronic fan speed controller with lighting switch | 10A | 230VAC | surface-mounted | Sentera Controls | SLM-0100-AT 2

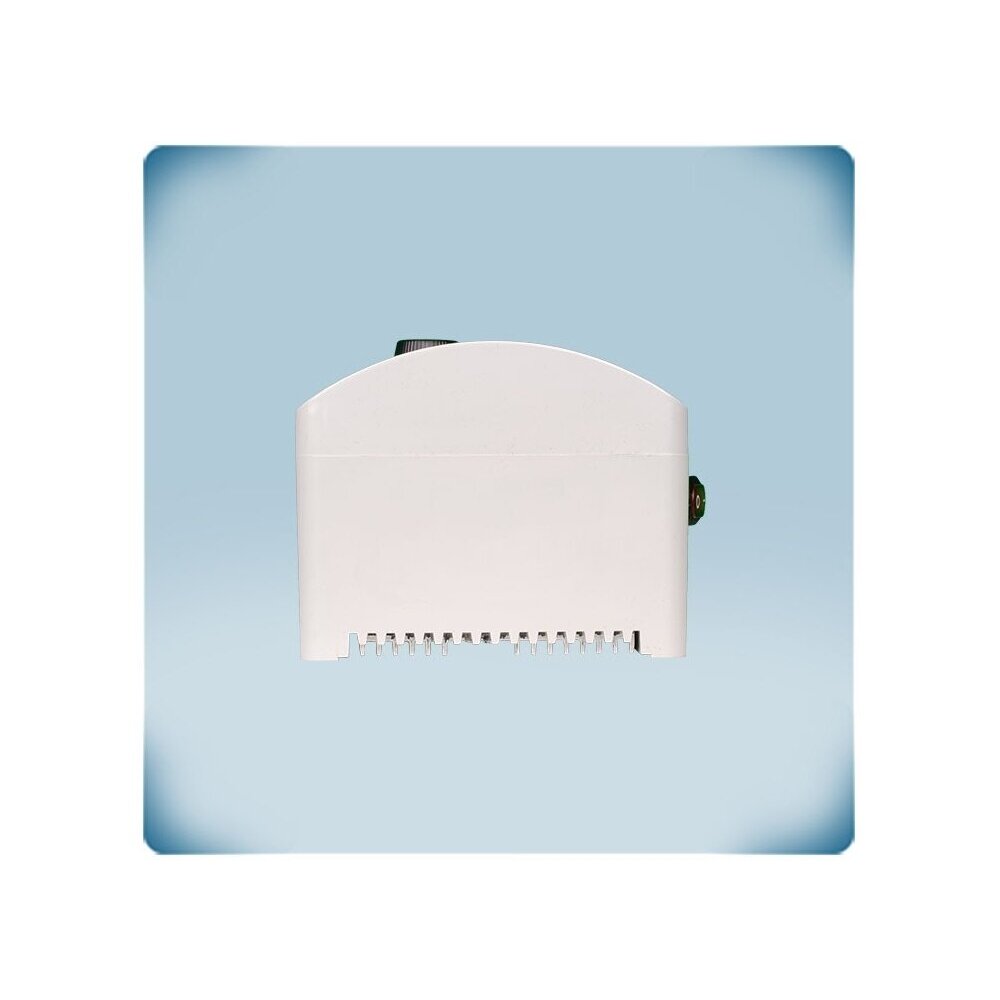

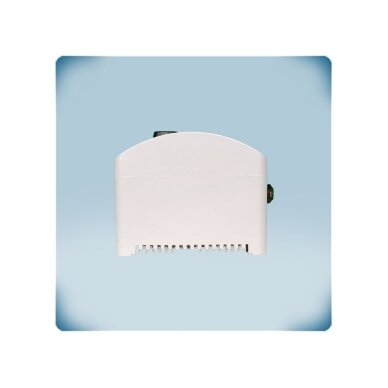

    New item   -57.98€Electronic fan speed controller with lighting switch | 10A | 230VAC | surface-mounted | Sentera Controls | SLM-0100-AT 3

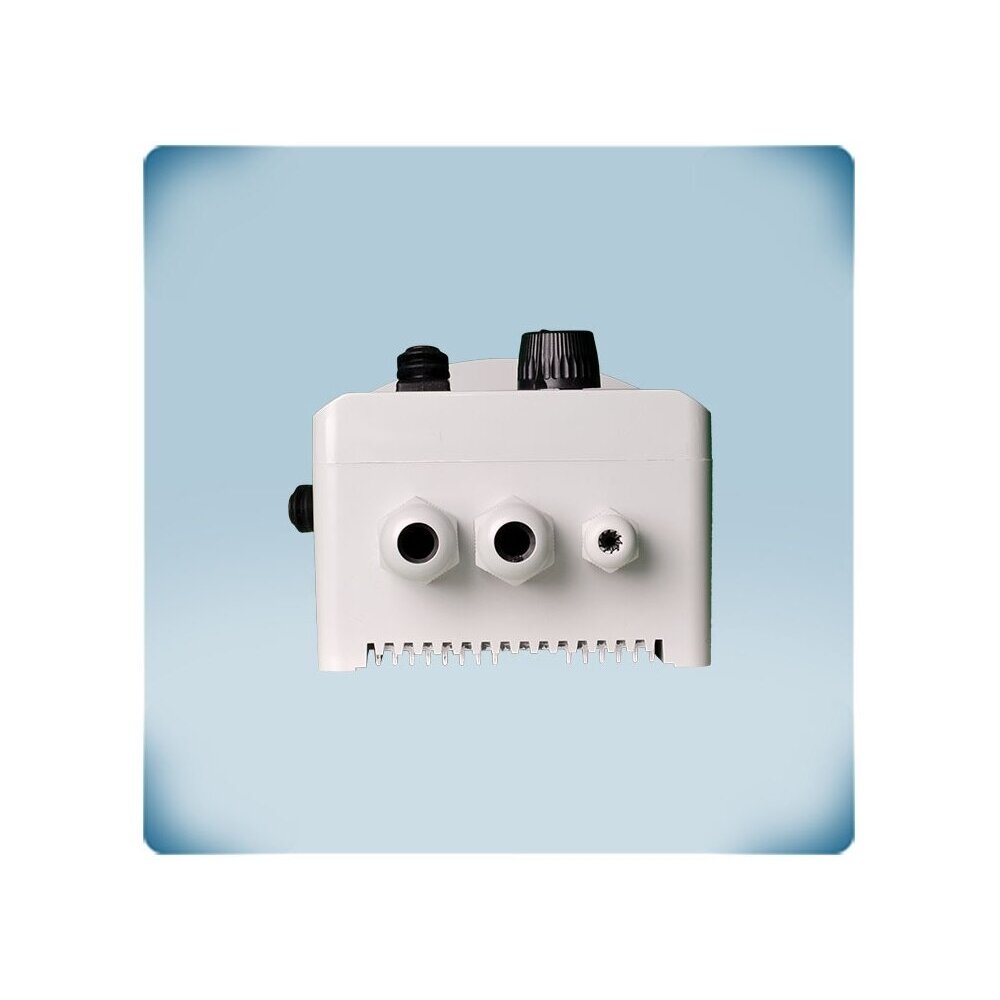

    New item   -57.98€Electronic fan speed controller with lighting switch | 10A | 230VAC | surface-mounted | Sentera Controls | SLM-0100-AT 4

    Electronic fan speed controller with lighting switch | 10A | 230VAC | surface-mounted | Sentera Controls | SLM-0100-AT

    Code: SLM-0100-AT
    Inquire about this item
    Price 103.53 € VAT incl.
    ( 85.56 € VAT excl. )
    161.51 € You save 57.98 €
    Offer is valid until 2026-12-31
    Want another price? Suggest yours!
  • Product description

    Electronic fan speed controller with lighting switch | 10A | 230VAC | surface-mounted | Sentera Controls | SLM-0100-AT

    SLM-0100-AT – Sentera Controls electronic fan speed controller with an integrated lighting switch. Controls single-phase voltage-controllable AC motors (0.5–10 A), and the same housing also switches the room lighting.

    Key idea:
    Two controllers in one housing: fan speed and lighting. Especially convenient in workshops, garages, warehouses and kitchens.
    What it is for SLM-0100-AT:
    This model is designed for high-power fans (up to 10 A) – industrial fans in production halls, warehouses, farm buildings or a larger group of fans.
    Motor current
    0.5–10 A
    Control
    Knob + light switch
    Power supply
    230 VAC ±10 %, 50 Hz
    Protection
    IP54, surface-mounted

    Operating principle

    The controller is wall-mounted. Connect the power supply, the motor (U1, U2), the lighting circuit and, if required, additional 230 V loads to the unregulated outputs.

    Speed is changed smoothly by varying the motor voltage within 70–230 VAC. Min. speed is set with a trimmer at 70–150 VAC, max. at 170–230 VAC.

    With quick start enabled (jumper JP1), the motor runs at full speed for 8–10 s, then switches to the set speed.

    Engineer's note: with an AC induction motor, reducing the voltage increases rotor losses, so the savings are lower than with an EC fan or a frequency inverter; when completely silent operation at low speed is essential, choose a transformer controller with a sinusoidal output voltage.

    Benefits SLM-0100-AT?
    One housing instead of two – a tidy installation and convenient control.

    Technical specifications

    Product type Electronic fan speed controller with lighting switch
    Manufacturer / code Sentera Controls / SLM-0100-AT
    Series SLM (6 / 10 A)
    Supply voltage 230 VAC ±10 %, 50 Hz
    Motor current 0.5–10 A
    Regulated output 70–230 VAC
    Min. / max. limit 70–150 VAC / 170–230 VAC (trimmers)
    Unregulated outputs 230 VAC, max. 2 A and max. 3 A (lamp terminal) – see manufacturer's diagram
    Control Knob, lighting switch with indication
    Start-up Normal or fast (8–10 s), jumper JP1
    Protection Fuses F 16 A 500 VAC (6×32 mm) and F 5 A 250 VAC (5×20 mm)
    Protection class IP54 (EN 60529)
    Operating environment 0…+35 °C, <95 % rH non-condensing
    Cables Up to 2.5 mm²; cable glands 5–10 mm
    Weight 0.90 kg (net)
    Compliance LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU, WEEE 2012/19/EU

    Manufacturer documentation

    ✔ Recommended by Elektrotechnikos sprendimai

    Original manufacturer documentation – technical data, wiring diagrams and installation instructions.

    Main functions

    • Lighting switch – the room light is switched in the same housing.
    • Smooth speed adjustment – with the knob.
    • Min. / max. limits – adapted to the specific fan.
    • Quick start – reliable motor start-up.
    • Unregulated outputs – for additional 230 V loads.

    Where is it used?

    • Workshops, garages
    • Warehouses
    • Professional kitchens
    • Plant rooms

    On-demand operation

    For the electrician.
    One housing instead of two.
    For the user.
    Light and ventilation – in one place.
    For the installer.
    Limits and start-up are set on site.

    Application guide: how it is used in practice

    Typical SLM-0100-AT applications:

    Site What is connected Result Installer's note
    Workshops Extract fan + lighting On entering, the light is switched on and the ventilation is adjusted Lighting load – according to manufacturer's diagram
    Garage Roof or duct fan Ventilation and lighting from one place Set the min. limit with the trimmer
    Kitchen Kitchen hood fan Smooth speed control Enable quick start if the motor has difficulty starting

    How to select the controller current

    Rated current of the motor(s) Recommended model
    0.5–6 A SLM-0-60-AT (6 A)
    6–10 A SLM-0100-AT (10 A) ← this model
    Rule: controller max. current ≥ motor rated current (see the motor nameplate). The starting current is already accounted for by the manufacturer; no additional margin is needed. When connecting several fans – motors of the same type – add up their rated currents.
    When to choose another solution: no lighting switch needed – ITR-9 series; automation needed – EVS-1 series; for an EC fan – an EC potentiometer.

    Pros

    • Integrated lighting switch
    • High current (up to 10 A)
    • Adjustable min. / max. limits
    • Quick start
    • IP54

    Cons / limitations

    • No 0-10 VDC input and no Modbus
    • Operating temperature up to +35 °C
    • Only for single-phase voltage-controllable motors
    • The output voltage is non-sinusoidal – some motors may hum audibly at low speed

    Safety and installation notes

    • Installation and connection must be carried out by a qualified electrician with the power disconnected.
    • Connect unregulated output loads strictly according to the manufacturer's diagram.
    • The motor current must be within 0.5–10 A.
    • Intended for indoor use only.

    Quick selection guide

    10 A
    230 VAC
    Light switch
    IP54
    Suitable when you need:
    • to control the fan and lighting from one place;
    • motor current 0.5–10 A;
    • a robust IP54 enclosure.
    Check before use:
    • the motor current;
    • the lighting load;
    • whether the motor is voltage-controllable.
    Important reminder: SLM-0100-AT does not control EC fans or three-phase motors.

    FAQ

    Does the lighting depend on the fan?
    No, the lighting is switched on with a separate switch.
    Can a min. speed be set?
    Yes, with the trimmer, 70–150 VAC.
    What is quick start for?
    To ensure the motor starts reliably.

    Electronic fan speed controller with lighting switch | 10A | 230VAC | surface-mounted | Sentera Controls | SLM-0100-AT

    Sentera SLM-0100-AT – fan speed controller with lighting switch, 0.5–10 A, 230 VAC, IP54, with adjustable limits and quick start mode.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
