    Electronic fan speed controller with ON/OFF switch | 6A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITR-9-60-DT

    Code: ITR-9-60-DT
    Inquire about this item
    Price 86.87 € VAT incl.
    ( 71.79 € VAT excl. )
    135.51 € You save 48.64 €
    Offer is valid until 2026-12-31
    Want another price? Suggest yours!
  • Product description

    Electronic fan speed controller with ON/OFF switch | 6A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITR-9-60-DT

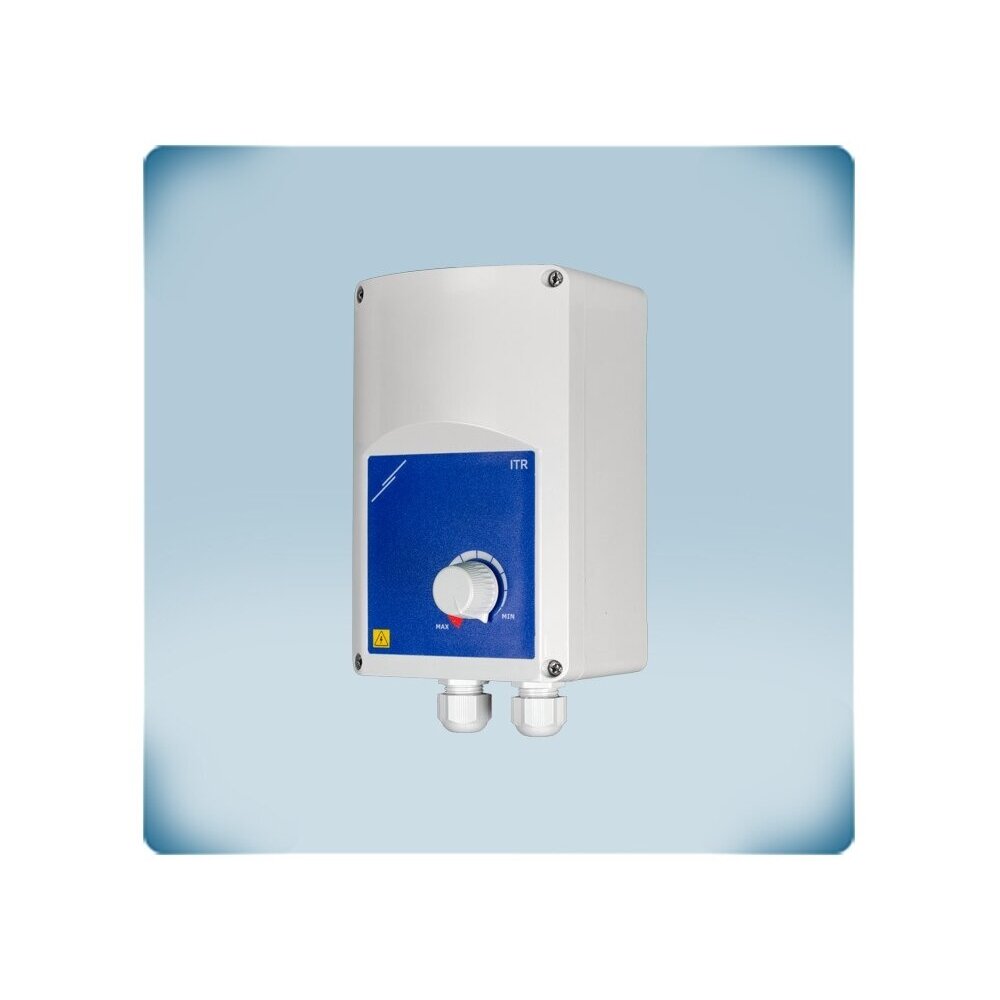

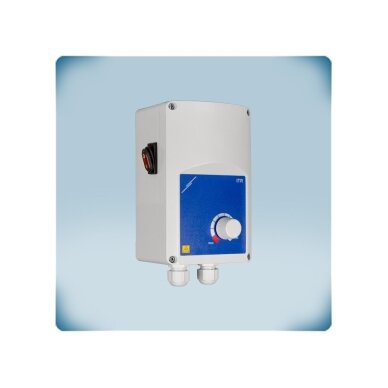

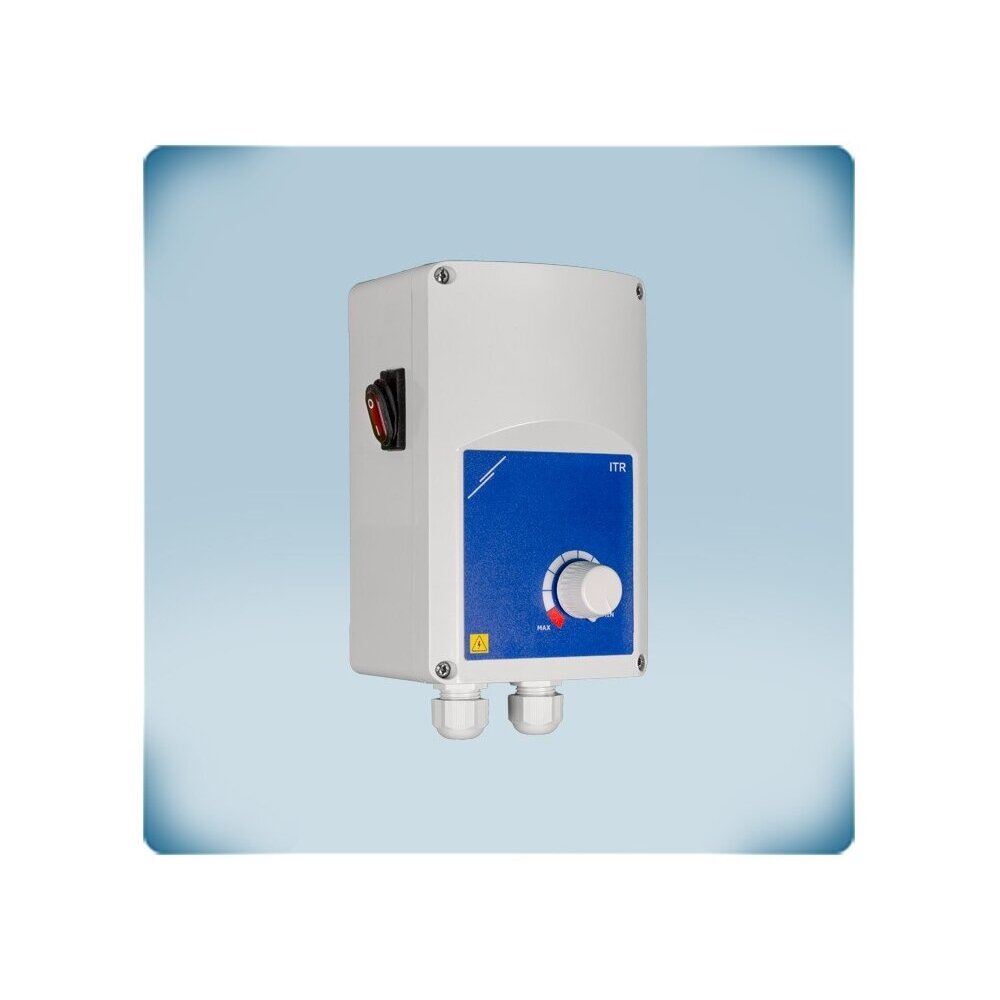

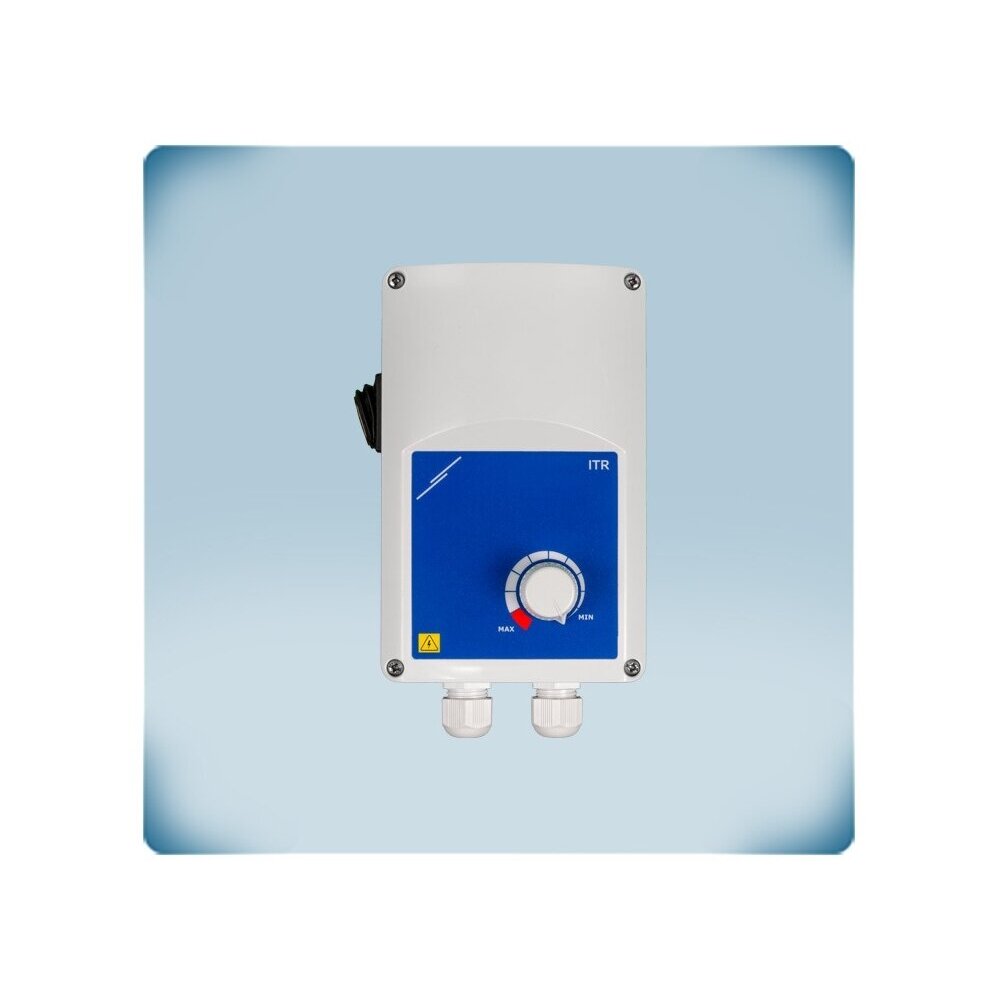

    ITR-9-60-DT – Sentera Controls electronic fan speed controller with a knob and an illuminated ON/OFF switch. Controls single-phase voltage-controllable AC motors up to 6 A, powered from a 110–240 VAC network with automatic voltage detection.

    Key idea:
    Industrial-style manual controller: robust IP54 enclosure, clear knob and an illuminated switch that is visible even in the dark. Speed is set manually, without any programming.
    What it is for ITR-9-60-DT:
    This model is designed for more powerful fans (up to 6 A) – roof or duct fans in warehouses, workshops, halls or a group of fans.
    Max. motor current
    6 A
    Control
    Knob + ON/OFF switch
    Power supply
    110–240 VAC, 50–60 Hz
    Protection
    IP54, surface mounting

    Operating principle

    The controller is wall-mounted. Connect the power supply (L, N, PE) and the motor (U1, U2); the unregulated L1 output can power a three-wire motor, a damper actuator or a pump.

    Speed is changed smoothly by varying the motor supply voltage (electronic control). Us – supply voltage; the controller automatically detects a 110–240 VAC network.

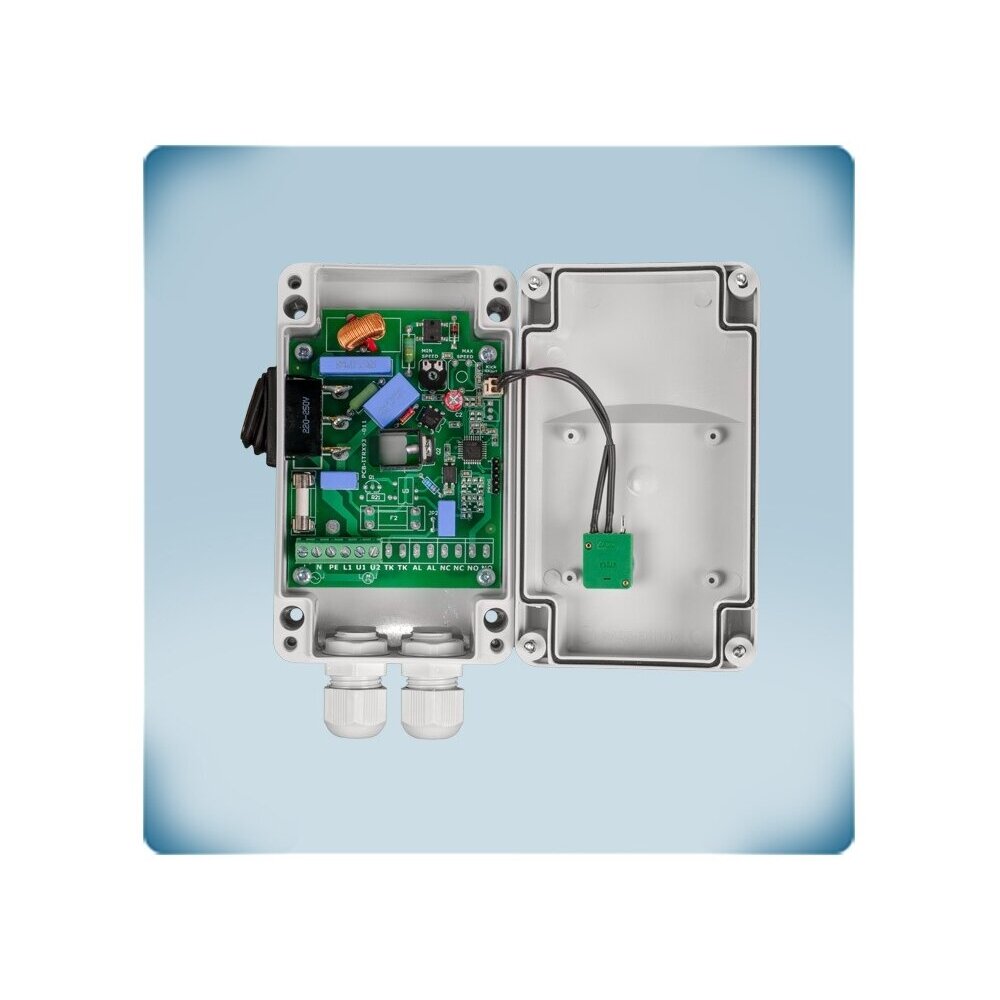

    The knob sets the voltage from the minimum limit up to Us. Min. limit – 30–60 % Us (factory setting 45 %), set with an internal trimmer. A jumper on the board selects normal or fast start-up (8–10 s at full speed so that the motor starts reliably).

    Engineer's note: with an AC induction motor, reducing the voltage increases rotor losses, so the savings are lower than with an EC fan or a frequency inverter; when completely silent operation at low speed is essential, choose a transformer controller with a sinusoidal output voltage.

    Benefits ITR-9-60-DT?
    Reliable manual control with a wider than usual supply range (110–240 VAC) and an unregulated output – suitable for both workshops and warehouses.

    Technical specifications

    Product type Electronic fan speed controller with ON/OFF switch
    Manufacturer / code Sentera Controls / ITR-9-60-DT
    Series ITR-9 (1.5 / 3 / 5 / 6 / 10 A)
    Supply voltage 110–240 VAC, 50–60 Hz, automatic voltage detection
    Max. motor current 6 A
    Regulated output (U1, U2) From Umin to Us
    Min. output limit 30–60 % Us, internal trimmer (factory setting 45 %)
    Unregulated output (L1) 230 VAC, max. 2 A
    Control Knob, illuminated ON/OFF switch
    Start-up mode Normal or fast (8–10 s), selected by jumper
    OFF position Only on 1.5 A and 3 A models – the supply is connected to L1
    Protection Fuse F 10 A H 250 VAC, 6.3×32 mm
    Protection class IP54 (EN 60529), for indoor use only
    Operating environment -20…+35 °C, 5–95 % rH non-condensing

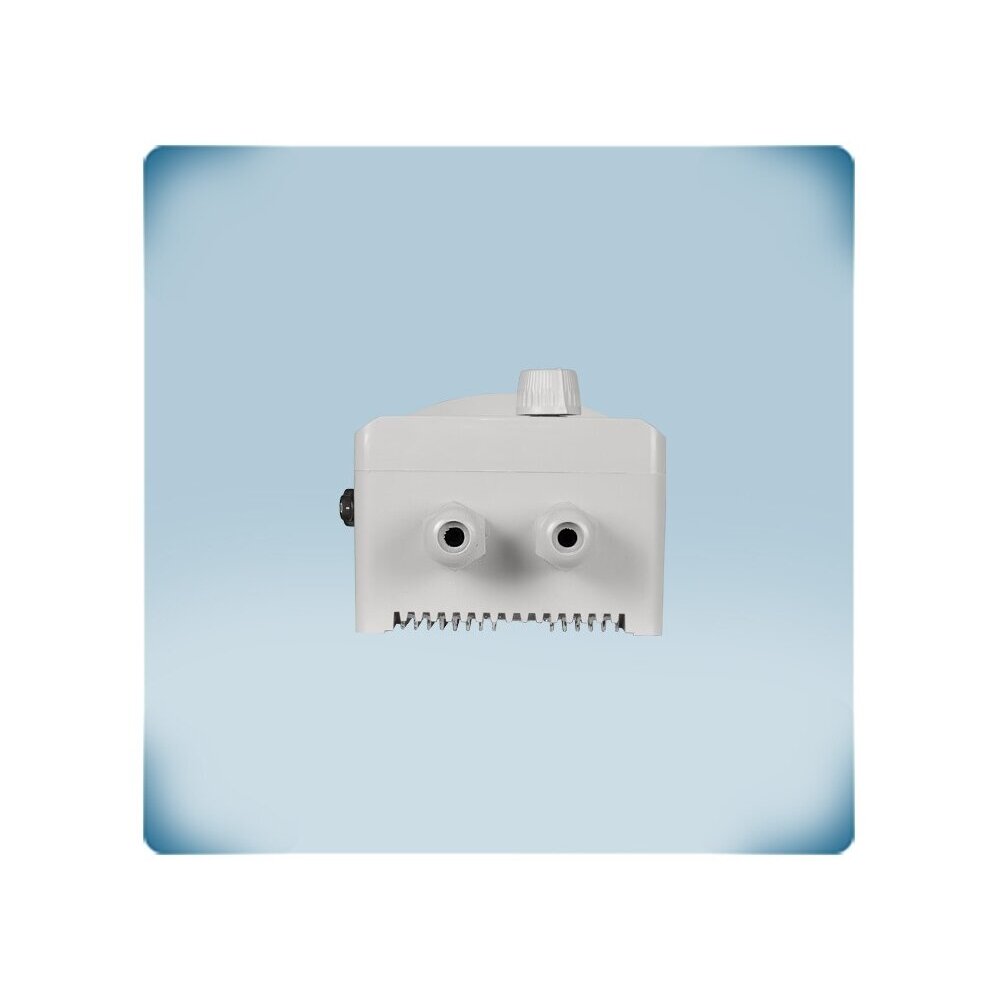

    Cables Up to 2.5 mm²; cable gland 5–10 mm
    Weight 0.57 kg (net)
    Compliance LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU, WEEE 2012/19/EU

    Manufacturer documentation

    ✔ Recommended by Elektrotechnikos sprendimai

    Original manufacturer documentation – technical data, wiring diagrams and installation instructions.

    Main functions

    • Knob and illuminated switch – speed is set manually, and the on status is visible even in the dark.
    • Wide supply range 110–240 VAC – the controller detects the mains voltage automatically.
    • Adjustable min. limit – prevents the motor from stalling or overheating when running at too low a voltage.
    • Quick start – 8–10 s at full speed – reliable start-up even when a low speed is set.
    • Unregulated output L1 (2 A) – for a three-wire motor, damper actuator or pump.

    Where is it used?

    • Workshops, garages, warehouses
    • Ventilation of retail and production premises
    • Farm buildings
    • Duct, roof and axial fans with AC motors
    • 110–120 V networks (export projects)

    On-demand operation

    For the electrician.
    Simple connection, wide supply range, PE terminal.
    For the ventilation installer.
    The min. limit and start-up mode are set on site to suit the specific fan.
    For the user.
    Clear knob and illuminated switch – no settings required.

    Application guide: how it is used in practice

    Typical ITR-9-60-DT applications:

    Site What is connected Result Installer's note
    Workshop, garage Fan → U1, U2 Speed is adjusted manually as required Set the min. limit with the trimmer so that the motor always starts
    Fan with damper Damper actuator → L1 The damper is powered together with the fan L1 load – up to 2 A
    Motor with difficult start-up Quick start (jumper) For 8–10 s the motor runs at full speed, then switches to the set speed Useful when a low speed is set
    Continuously running ventilation Supply to L (without OFF) The fan always runs; only the speed is changed The OFF position is available only on 1.5 A and 3 A models

    How to select the controller current

    Rated current of the motor(s) Recommended model
    up to 1.5 A ITR-9-15-DT (1.5 A)
    1.5–3 A ITR-9-30-DT (3 A)
    3–5 A ITR-9-50-DT (5 A)
    5–6 A ITR-9-60-DT (6 A) ← this model
    6–10 A ITR-9100-DT (10 A)
    Rule: controller max. current ≥ motor rated current (see the motor nameplate). The starting current is already accounted for by the manufacturer; no additional margin is needed. When connecting several fans – motors of the same type – add up their rated currents.
    When to choose another solution: sensor (0-10 VDC) or Modbus control needed – EVS-1 / EVSS1 series; for an EC fan – an EC potentiometer; for a three-phase motor – a three-phase transformer controller; for a motor with TK contacts – the ITRS9 series.

    Pros

    • Power supply 110–240 VAC with automatic detection
    • Knob and illuminated ON/OFF switch
    • Adjustable min. limit
    • Quick start mode
    • Unregulated L1 output (2 A)
    • IP54 enclosure

    Cons / limitations

    • No 0-10 VDC input and no Modbus
    • Only for single-phase voltage-controllable motors; not suitable for EC fans
    • Operating temperature up to +35 °C
    • OFF position only on 1.5 A and 3 A models
    • No TK protection – for that choose ITRS9-60-DT
    • The output voltage is non-sinusoidal – some motors may hum audibly at low speed

    Safety and installation notes

    • Installation and connection must be carried out by a qualified electrician with the power disconnected.
    • Always connect the protective earth (PE).
    • Check that the motor is suitable for voltage control and that its rated current does not exceed 6 A.
    • Terminal layout differs depending on the model – wire according to the diagram of the specific model.
    • Intended for indoor use only (up to +35 °C).

    Quick selection guide

    6 A
    110–240 VAC
    Knob + ON/OFF
    IP54
    Suitable when you need:
    • manual speed control for a fan up to 6 A;
    • a robust IP54 enclosure in plant rooms;
    • a 110–240 VAC supply.
    Check before use:
    • the motor rated current and whether it is voltage-controllable;
    • whether an OFF position is required (only on 1.5 A and 3 A ITR-9 models);
    • the ambient temperature (up to +35 °C).
    Important reminder: ITR-9-60-DT does not control EC fans or three-phase motors.

    FAQ

    Is it suitable for 110–120 V networks?
    Yes, supply 110–240 VAC, voltage detected automatically.
    What is quick start for?
    To ensure the motor starts reliably: for 8–10 s it runs at full speed, then switches to the set speed.
    Can several fans be connected?
    Yes, provided their total current does not exceed 6 A.
    How does it differ from ITRS9-60-DT?
    ITRS9-60-DT has TK protection, NO/NC remote control inputs and a 230 V alarm output.
    Can it be controlled by a 0-10 V signal?
    No, the EVS-1 or EVSS1 series is intended for that.

    Electronic fan speed controller with ON/OFF switch | 6A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITR-9-60-DT

    Sentera ITR-9-60-DT – manual fan speed controller with an illuminated ON/OFF switch, up to 6 A, 110–240 VAC, IP54, with unregulated L1 output and quick start mode.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
