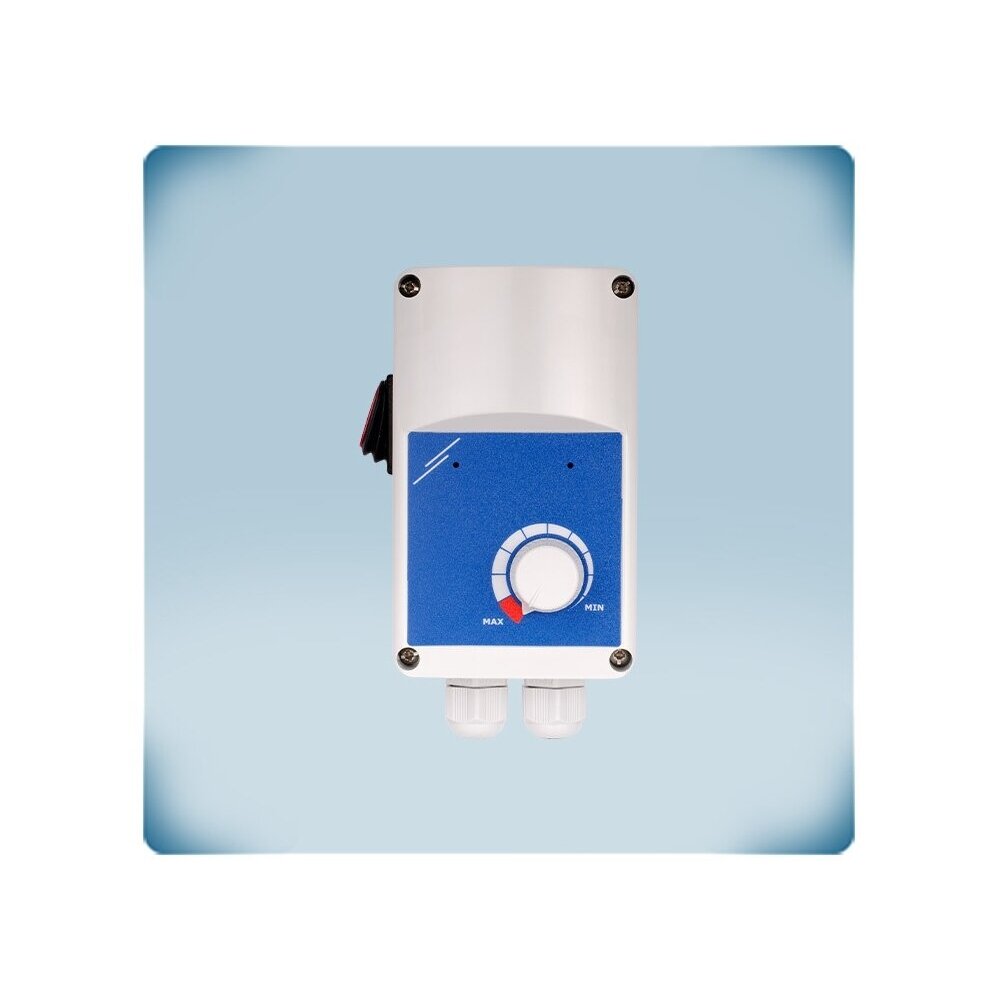

  • New item   -49.85€Electronic fan speed controller with TK | 5A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITRS9-50-DT

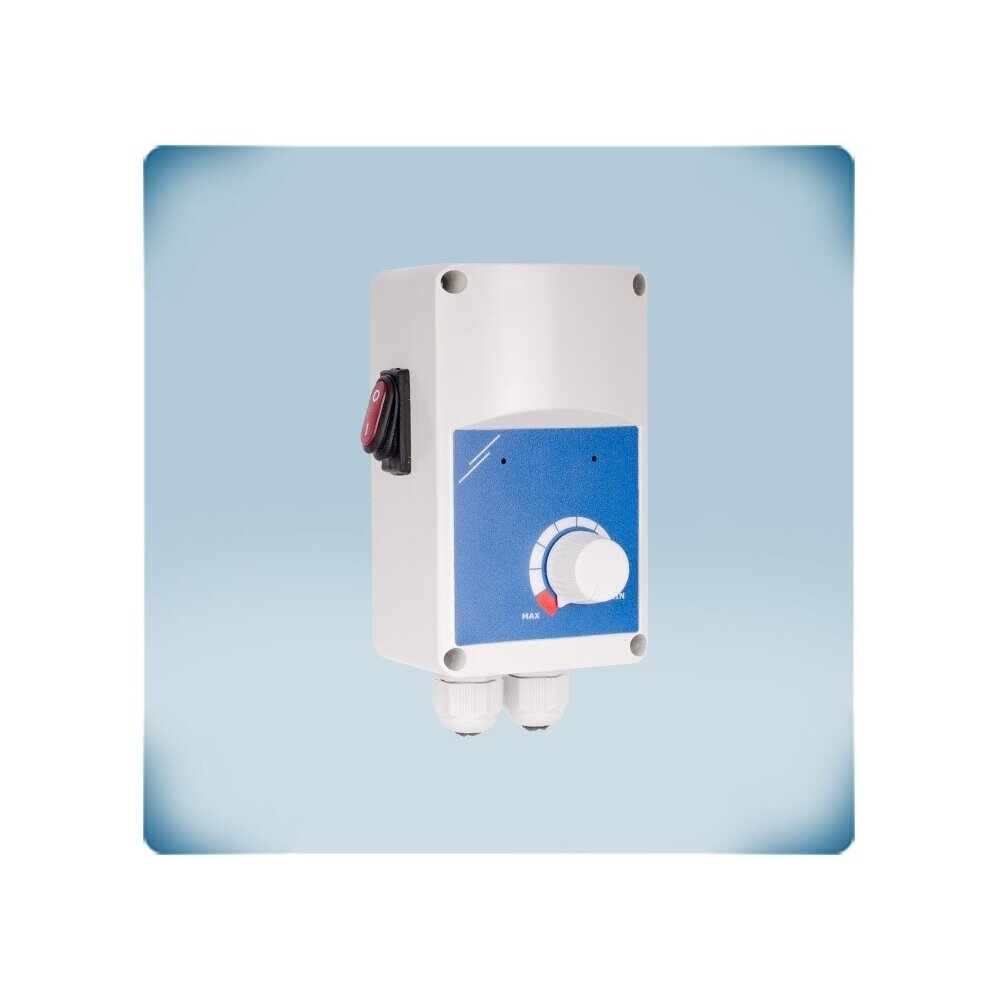

    New item   -49.85€Electronic fan speed controller with TK | 5A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITRS9-50-DT 1

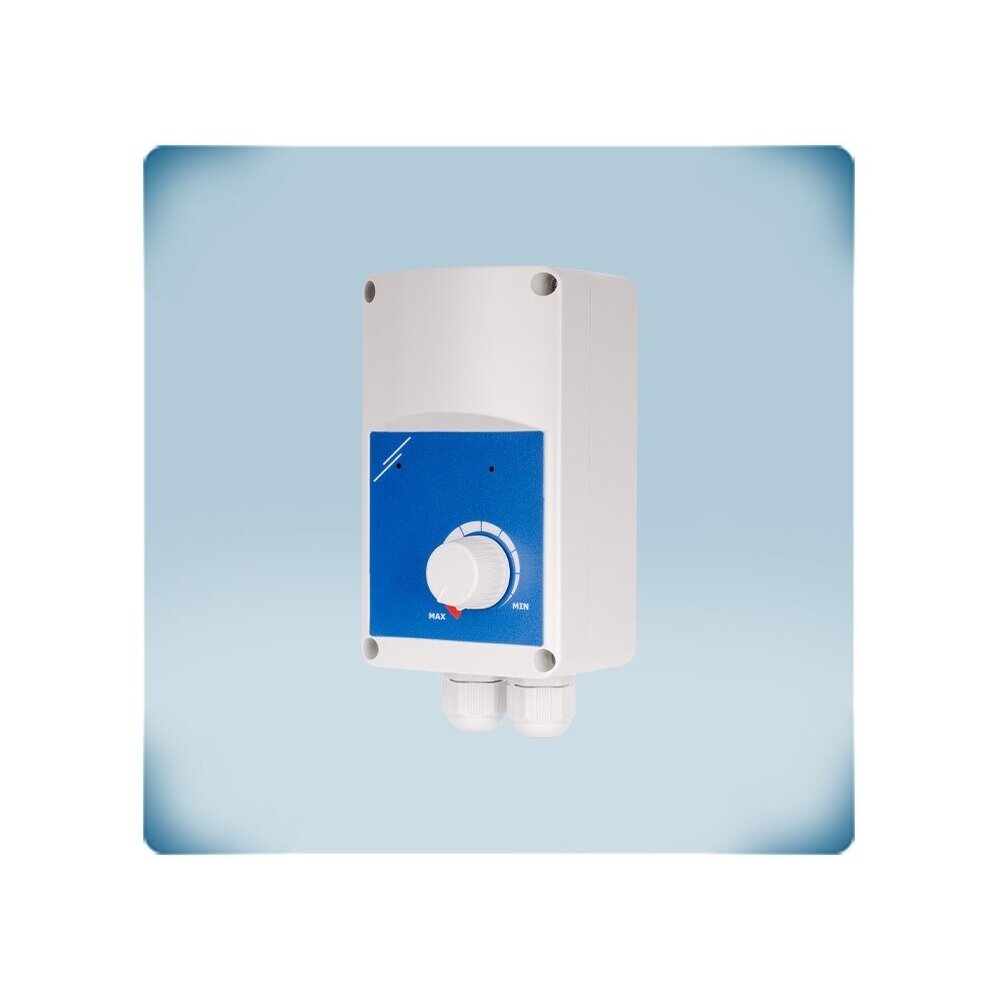

    New item   -49.85€Electronic fan speed controller with TK | 5A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITRS9-50-DT 2

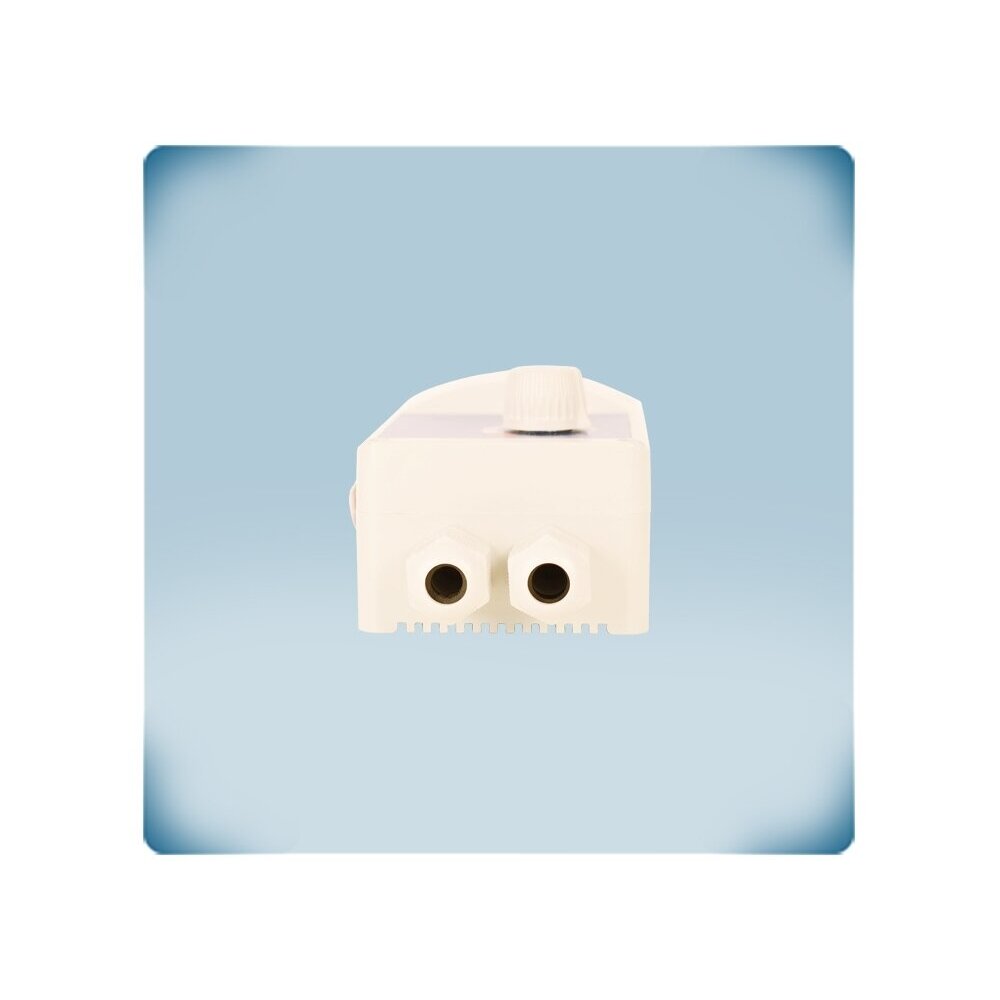

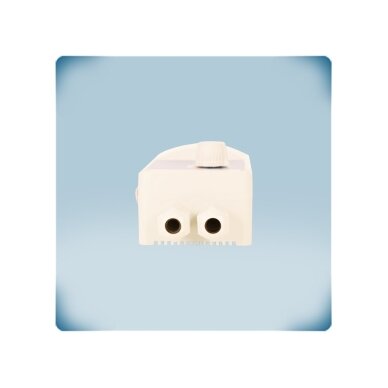

    New item   -49.85€Electronic fan speed controller with TK | 5A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITRS9-50-DT 3

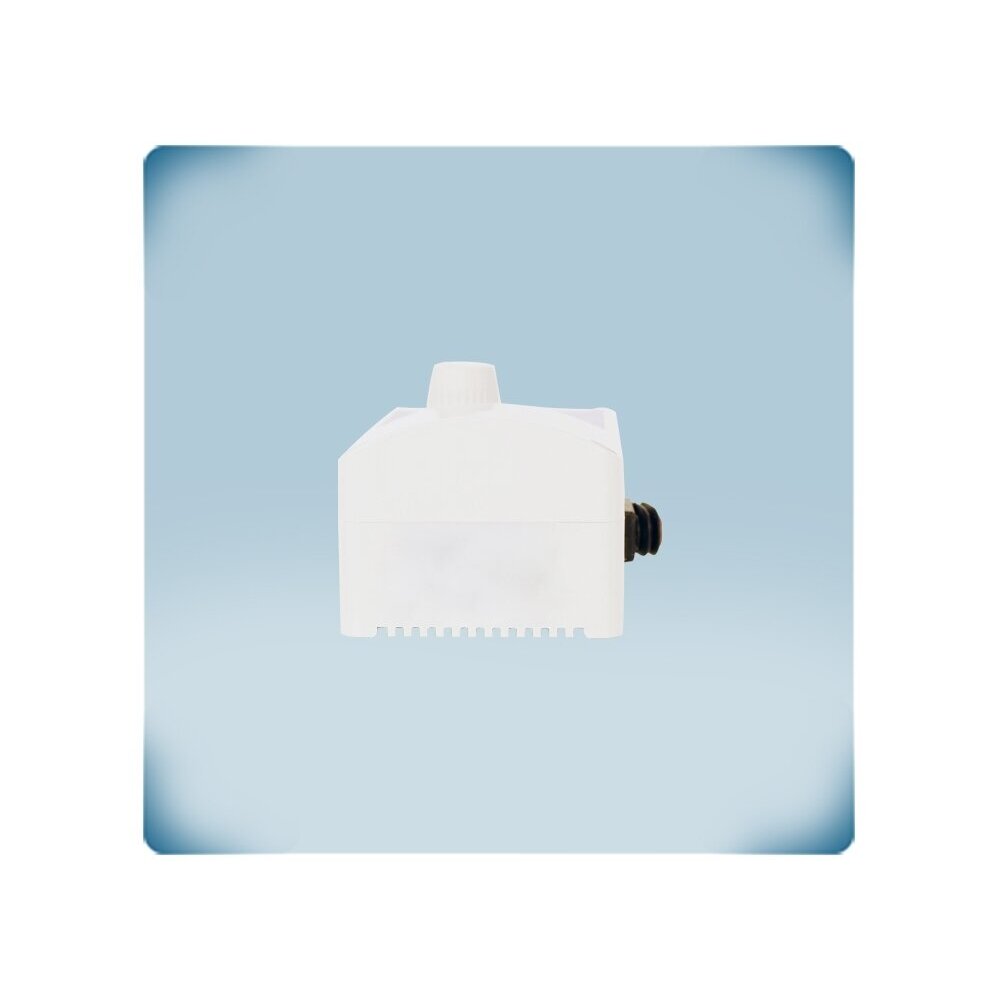

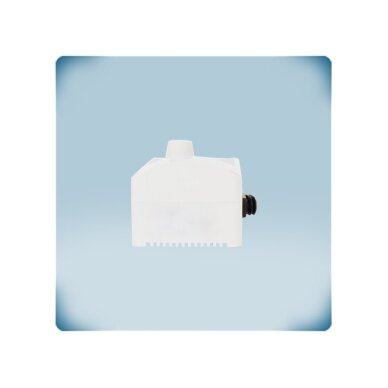

    New item   -49.85€Electronic fan speed controller with TK | 5A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITRS9-50-DT 4

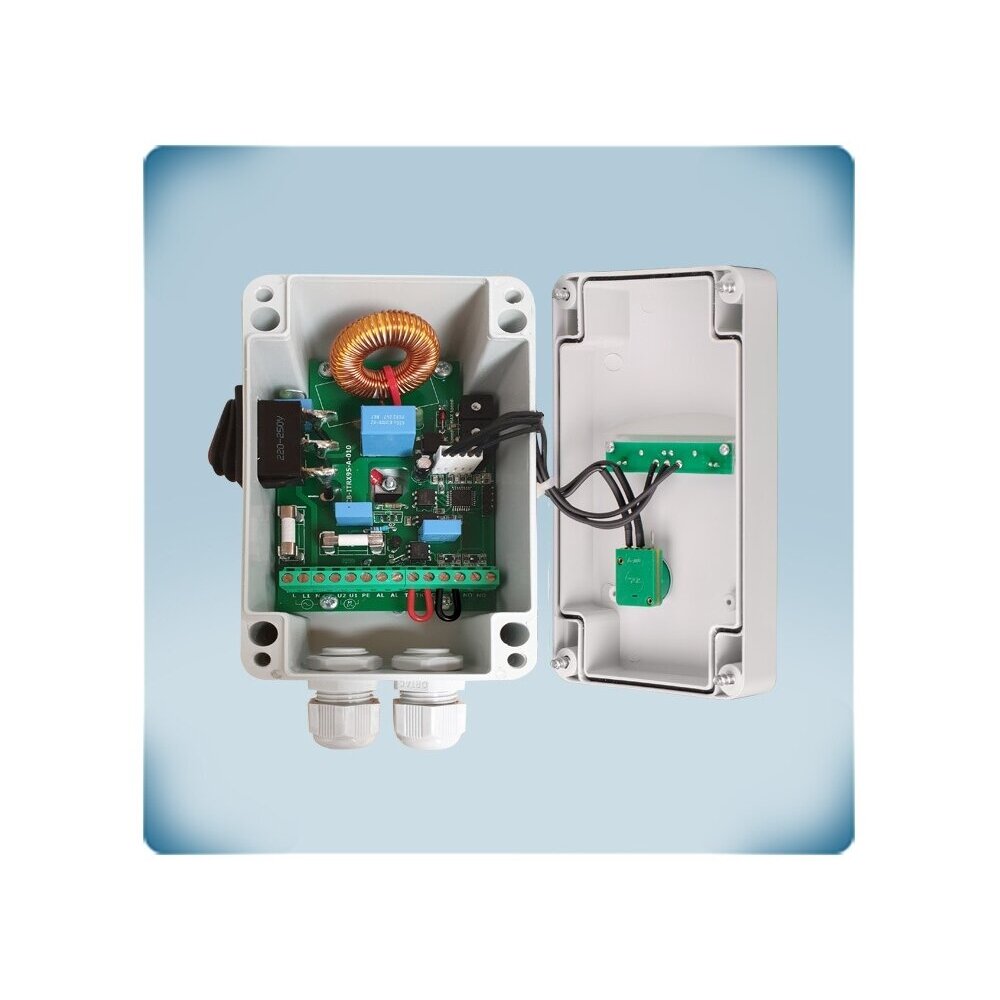

    New item   -49.85€Electronic fan speed controller with TK | 5A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITRS9-50-DT 5

    Electronic fan speed controller with TK | 5A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITRS9-50-DT

    Code: ITRS9-50-DT
    Inquire about this item
    Price 89.03 € VAT incl.
    ( 73.58 € VAT excl. )
    138.88 € You save 49.85 €
    Offer is valid until 2026-12-31
    Want another price? Suggest yours!
  • Product description

    Electronic fan speed controller with TK | 5A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITRS9-50-DT

    ITRS9-50-DT – Sentera Controls electronic fan speed controller with a knob and an illuminated ON/OFF switch, motor TK protection, remote control inputs and an alarm output. Controls single-phase voltage-controllable AC motors up to 5 A, powered from a 110–240 VAC network with automatic voltage detection.

    Key idea:
    Industrial-style manual controller: robust IP54 enclosure, clear knob and an illuminated switch that is visible even in the dark. The TK input protects the motor – on overheating the controller stops the fan and activates the alarm output.
    What it is for ITRS9-50-DT:
    This model is designed for more powerful fans (up to 5 A) – roof or duct fans in warehouses, workshops, halls or a group of fans.
    Max. motor current
    5 A
    Control
    Knob + ON/OFF switch + NO/NC inputs
    Power supply
    110–240 VAC, 50–60 Hz
    Protection
    IP54, surface mounting

    Operating principle

    The controller is wall-mounted. Connect the power supply (L, N, PE) and the motor (U1, U2); the unregulated L1 output can power a three-wire motor, a damper actuator or a pump; the motor thermal contacts are connected to the TK terminals.

    Speed is changed smoothly by varying the motor supply voltage (electronic control). Us – supply voltage; the controller automatically detects a 110–240 VAC network.

    The knob sets the voltage from the minimum limit up to the maximum limit. Min. limit – 30–60 % Us (factory setting 45 %), max. – 70–100 % Us (factory setting 100 %); both are set with internal trimmers. A jumper on the board selects normal or fast start-up (8–10 s at full speed so that the motor starts reliably).

    Engineer's note: with an AC induction motor, reducing the voltage increases rotor losses, so the savings are lower than with an EC fan or a frequency inverter; when completely silent operation at low speed is essential, choose a transformer controller with a sinusoidal output voltage.

    Benefits ITRS9-50-DT?
    Reliable manual control with a wider than usual supply range (110–240 VAC) and an unregulated output, while TK protection, NO/NC remote control inputs and a 230 V alarm output allow it to be integrated into building automation.

    Technical specifications

    Product type Electronic fan speed controller with TK
    Manufacturer / code Sentera Controls / ITRS9-50-DT
    Series ITRS9 (1.5 / 3 / 5 / 6 / 10 A)
    Supply voltage 110–240 VAC, 50–60 Hz, automatic voltage detection
    Max. motor current 5 A
    Regulated output (U1, U2) From Umin to Umax
    Min. output limit 30–60 % Us, internal trimmer (factory setting 45 %)
    Max. output limit 70–100 % Us, internal trimmer (factory setting 100 %)
    Unregulated output (L1) 230 VAC, max. 2 A
    Control Knob, illuminated ON/OFF switch
    Start-up mode Normal or fast (8–10 s), selected by jumper
    Motor thermal protection (TK) TK terminals; on overheating the motor is stopped and the alarm output is activated
    Remote control Separate NO and NC contact inputs for switching on / off
    Alarm output 230 VAC, max. 0.5 A
    Indication Green LED – operation, flashing green – stopped by remote contact, red – fault / overheating
    Protection Fuse F 8 A H 250 VAC, 5×20 mm; motor overheating protection via TK
    Protection class IP54 (EN 60529), for indoor use only
    Operating environment -20…+35 °C, 5–95 % rH non-condensing
    Cables Up to 2.5 mm²
    Weight 0.64 kg (net)
    Compliance LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU, WEEE 2012/19/EU

    Manufacturer documentation

    ✔ Recommended by Elektrotechnikos sprendimai

    Original manufacturer documentation – technical data, wiring diagrams and installation instructions.

    Main functions

    • Knob and illuminated switch – speed is set manually, and the on status is visible even in the dark.
    • Wide supply range 110–240 VAC – the controller detects the mains voltage automatically.
    • Adjustable min. limit – prevents the motor from stalling or overheating when running at too low a voltage.
    • Quick start – 8–10 s at full speed – reliable start-up even when a low speed is set.
    • Unregulated output L1 (2 A) – for a three-wire motor, damper actuator or pump.
    • TK protection – if the motor overheats, the controller stops the fan and activates the alarm output.
    • NO / NC remote control – the fan can be stopped by an external contact, e.g. from the fire alarm.
    • Alarm output 230 V – a fault signal for a lamp, siren or BMS.

    Where is it used?

    • Workshops, garages, warehouses
    • Ventilation of retail and production premises
    • Farm buildings
    • Duct, roof and axial fans with AC motors
    • 110–120 V networks (export projects)
    • Fans with thermal contacts (TK)

    On-demand operation

    For the electrician.
    Simple connection, wide supply range, PE terminal.
    For the ventilation installer.
    The min. limit and start-up mode are set on site to suit the specific fan.
    For the user.
    Clear knob and illuminated switch – no settings required.

    Application guide: how it is used in practice

    Typical ITRS9-50-DT applications:

    Site What is connected Result Installer's note
    Workshop, garage Fan → U1, U2 Speed is adjusted manually as required Set the min. limit with the trimmer so that the motor always starts
    Fan with damper Damper actuator → L1 The damper is powered together with the fan L1 load – up to 2 A
    Motor with difficult start-up Quick start (jumper) For 8–10 s the motor runs at full speed, then switches to the set speed Useful when a low speed is set
    Fan with thermal contact Motor TK → TK terminals On overheating the fan is stopped and the red LED lights up Alarm output – up to 0.5 A
    Fire shutdown Fire alarm contact → NO or NC input The fan is stopped by a remote signal Select NO or NC according to the alarm contact

    How to select the controller current

    Rated current of the motor(s) Recommended model
    up to 1.5 A ITRS9-15-DT (1.5 A)
    1.5–3 A ITRS9-30-DT (3 A)
    3–5 A ITRS9-50-DT (5 A) ← this model
    5–6 A ITRS9-60-DT (6 A)
    6–10 A ITRS9100-DT (10 A)
    Rule: controller max. current ≥ motor rated current (see the motor nameplate). The starting current is already accounted for by the manufacturer; no additional margin is needed. When connecting several fans – motors of the same type – add up their rated currents.
    When to choose another solution: sensor (0-10 VDC) or Modbus control needed – EVS-1 / EVSS1 series; for an EC fan – an EC potentiometer; for a three-phase motor – a three-phase transformer controller; for a motor without TK – the simpler ITR-9 series.

    Pros

    • Power supply 110–240 VAC with automatic detection
    • Knob and illuminated ON/OFF switch
    • Adjustable min. limit
    • Quick start mode
    • Unregulated L1 output (2 A)
    • IP54 enclosure
    • TK protection, NO/NC inputs, alarm output

    Cons / limitations

    • No 0-10 VDC input and no Modbus
    • Only for single-phase voltage-controllable motors; not suitable for EC fans
    • Operating temperature up to +35 °C
    • More expensive than ITR-9 – if the motor has no TK, ITR-9-50-DT is sufficient
    • The output voltage is non-sinusoidal – some motors may hum audibly at low speed

    Safety and installation notes

    • Installation and connection must be carried out by a qualified electrician with the power disconnected.
    • Always connect the protective earth (PE).
    • Check that the motor is suitable for voltage control and that its rated current does not exceed 5 A.
    • Terminal layout differs depending on the model – wire according to the diagram of the specific model.
    • Intended for indoor use only (up to +35 °C).

    Quick selection guide

    5 A
    110–240 VAC
    Knob + ON/OFF
    IP54
    TK + alarm
    Suitable when you need:
    • manual speed control for a fan up to 5 A;
    • a robust IP54 enclosure in plant rooms;
    • a 110–240 VAC supply;
    • motor TK protection and alarm.
    Check before use:
    • the motor rated current and whether it is voltage-controllable;
    • whether an OFF position is required (only on 1.5 A and 3 A ITR-9 models);
    • the ambient temperature (up to +35 °C).
    Important reminder: ITRS9-50-DT does not control EC fans or three-phase motors.

    FAQ

    Is it suitable for 110–120 V networks?
    Yes, supply 110–240 VAC, voltage detected automatically.
    What is quick start for?
    To ensure the motor starts reliably: for 8–10 s it runs at full speed, then switches to the set speed.
    Can several fans be connected?
    Yes, provided their total current does not exceed 5 A.
    How does it differ from ITR-9-50-DT?
    ITR-9-50-DT has no TK protection, NO/NC inputs or alarm output.
    Can it be controlled by a 0-10 V signal?
    No, the EVS-1 or EVSS1 series is intended for that.

    Electronic fan speed controller with TK | 5A | 110-240VAC | surface-mounted | IP54 | Sentera Controls | ITRS9-50-DT

    Sentera ITRS9-50-DT – manual fan speed controller with an illuminated ON/OFF switch, up to 5 A, 110–240 VAC, IP54, with TK protection, NO/NC inputs and alarm output.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
