Electronic lock with reader | for lockers | unlockable with an IC wristband | RFID | 107x57x14mm | black

Electronic cabinet lock with IC wristband – RFID unlocking, administrator card, emergency USB Type-C power supply

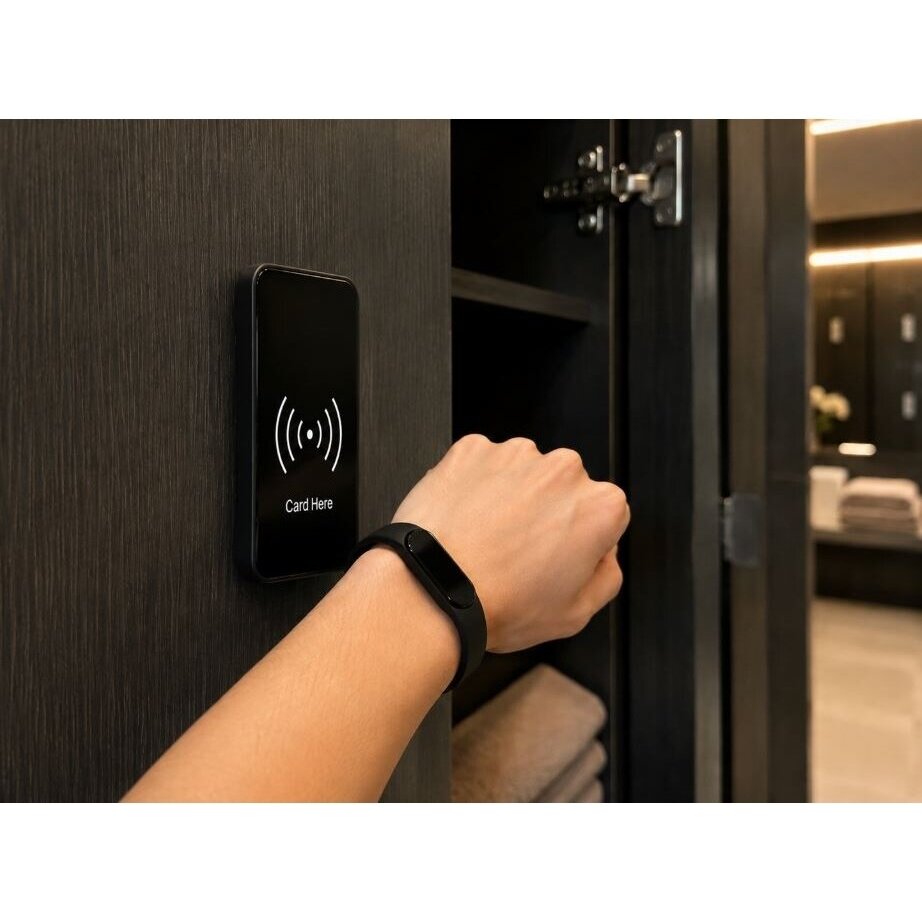

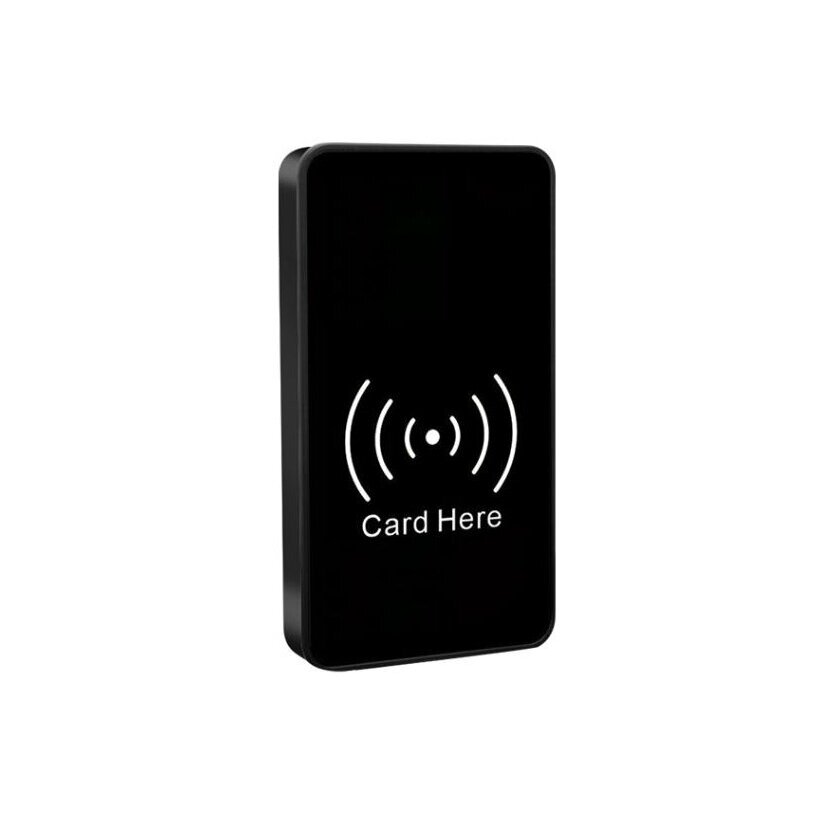

Electronic cabinet lock with IC wristband is designed for wooden and metal cabinets, changing-room furniture, lockers in gyms, spas, saunas, offices and other storage facilities. The lock is opened by placing a compatible electronic wristband against the card reader integrated into the front panel.

A mechanical key is not required for everyday use, allowing visitors to wear the silicone wristband conveniently on the wrist. This operating method is particularly suitable for gyms, swimming-pool changing areas, saunas and other locations where a conventional card can easily be lost or is inconvenient to carry.

The lock is powered by four 1.5 V AA alkaline batteries. If the internal batteries are completely discharged, a portable power source can be connected to the external USB Type-C emergency power connector to temporarily activate the lock electronics.

• Registering user wristbands.
• Administering multiple locks.
• Opening cabinets when a user's wristband has been lost.
• Maintaining and servicing the cabinet system.

1. Connect a suitable external power source to the USB Type-C connector.
2. Wait until the light indicator or reader activates.
3. Place the registered wristband or administrator card against the reader.
4. Open the cabinet.
5. Replace the four AA batteries.

• Unlocking with an IC electronic wristband.
• No mechanical key required for everyday use.
• Configurable administrator card.
• Ability to administer multiple cabinets.
• Light indication.
• Powered by four AA batteries.
• 6 V DC rated supply voltage.
• USB Type-C emergency power connector.
• Zinc alloy and ABS construction.

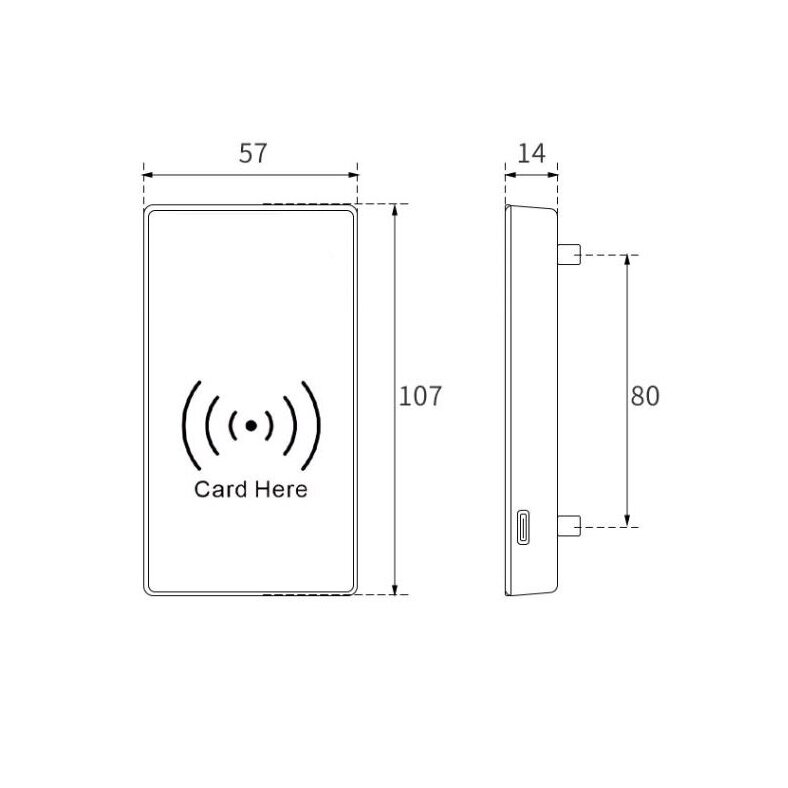

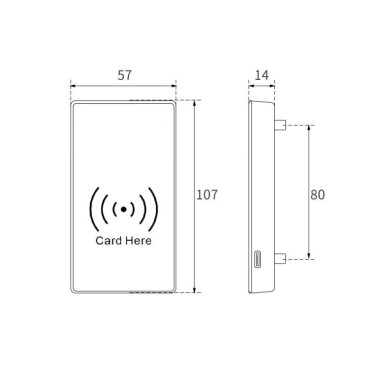

• Compact dimensions of 107 × 57 × 14 mm.
• Suitable for wooden and metal cabinets.

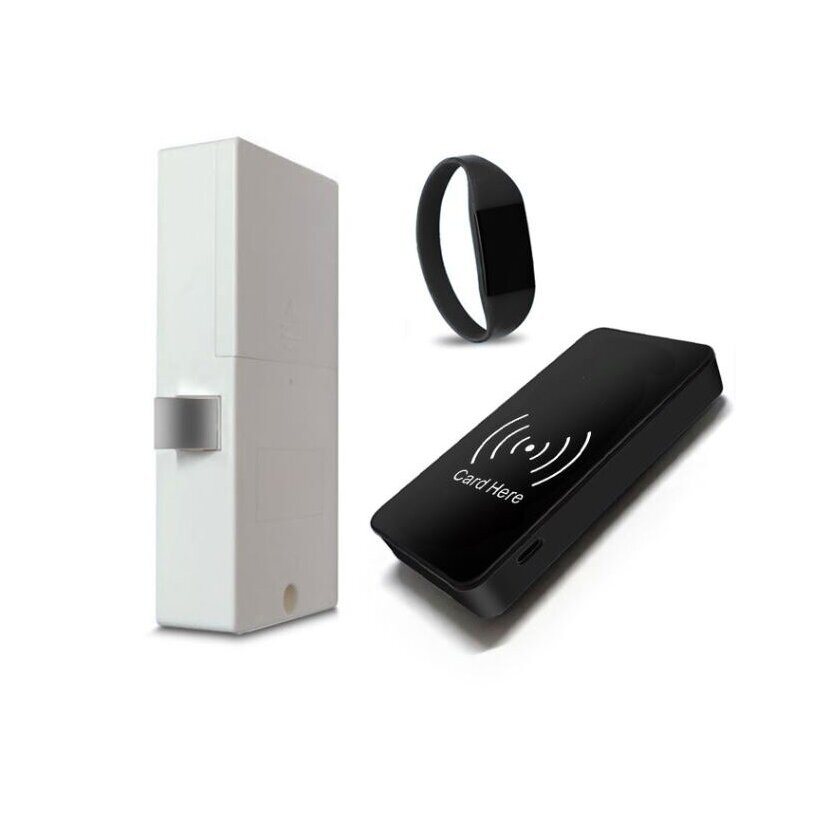

• Silicone IC wristband included.

1. Assess the cabinet construction. Check the door material, thickness and opening direction.
2. Check the internal space. There must be sufficient room for the locking mechanism and battery compartment.
3. Use the specific installation template. Accurately mark the front panel and mounting holes.
4. Prepare the openings. Select the drilling or milling method according to whether the door is wooden or metal.
5. Install the front reader. It must be easily accessible from the outside of the cabinet.
6. Secure the internal locking mechanism. Do not overtighten the mounting elements.
7. Install the strike plate. It must align precisely with the locking mechanism.
8. Insert four AA batteries. Observe the marked polarity.
9. Configure the administrator card. Follow the lock programming instructions.
10. Register the user's wristband.
11. Test the lock with the door open. Perform several unlocking and locking tests.
12. Check the final alignment. The door must close freely and the mechanism must not jam.

• Before closing the cabinet, test the registered wristband.
• Keep the administrator card in a secure location.
• Do not use incompatible cards or wristbands.
• Use four identical AA alkaline batteries.
• Do not mix new and used batteries.
• Do not use the USB Type-C connector to charge the AA batteries.
• Protect the reader from strong impacts and scratches.
• Do not allow water or condensation to enter the lock.
• Do not use the mechanism to pull in or straighten the door.
• Carry out installation and programming according to the specific product instructions.

• Clean the reader surface with a soft, dry or slightly damp cloth.
• Do not use abrasive cleaners or aggressive solvents.
• Periodically check the alignment of the lock and strike plate.
• Check whether any mounting elements have become loose.
• Monitor the light indication and battery condition.
• If the lock will not be used for a long period, removing the batteries is recommended.
• Periodically test the administrator card.

Electronic cabinet lock with IC wristband and centralised administration

The electronic lock is designed for wooden and metal cabinets in gyms, spas, saunas, schools, offices and other storage areas. The cabinet is unlocked by placing a registered electronic wristband against the reader.

The silicone wristband can be worn conveniently on the wrist, so the user does not need to carry a mechanical key or a separate card. One IC wristband is included in the standard package.

A configurable administrator card allows several locks within the same system to be controlled centrally. This simplifies cabinet administration, user registration and emergency servicing.

The lock is powered by four 1.5 V AA alkaline batteries. If they are completely depleted, the electronics can be powered temporarily through the USB Type-C connector and the cabinet can be unlocked using a valid wristband or administrator card.
