  • New item   Elektroninis balastas | 3x18-20W / 4x18-20W | 230V | T8/T9/T10/T12 lempoms valdyti | paleisti | WodMeng Electric | TJB-E418SP

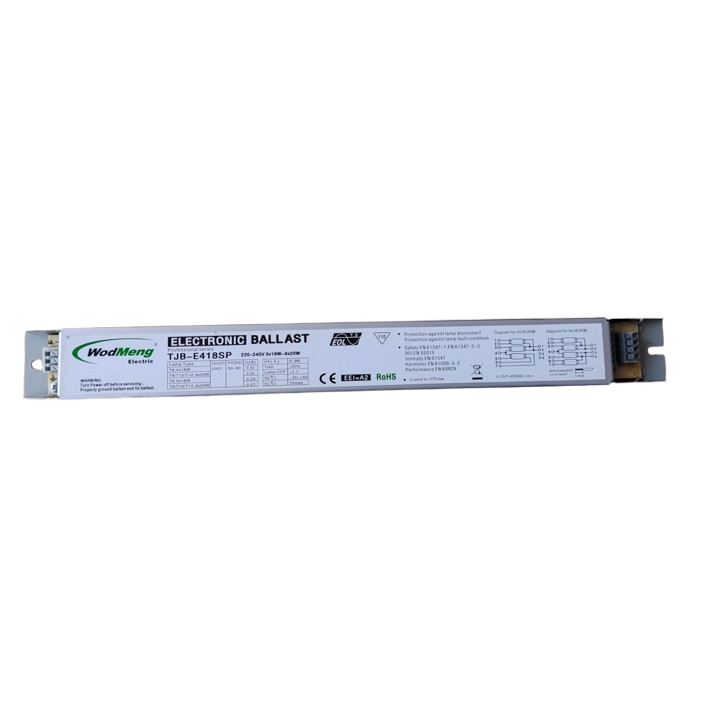

    Elektroninis balastas | 3x18-20W / 4x18-20W | 230V | T8/T9/T10/T12 lempoms valdyti | paleisti | WodMeng Electric | TJB-E418SP

    Code: TJB-E418SP
    Inquire about this item
    Price 8.71 € VAT incl.
    ( 7.20 € VAT excl. )
    Want another price? Suggest yours!

    WodMeng Electric TJB-E418SP – an electronic ballast designed for T8, T9, T10 and T12 fluorescent lamps, supporting 3- or 4-lamp configurations from 18 to 20 W. It operates on 220–240 V AC, 50–60 Hz, with a power factor of PF 0.98, THD <20%, and Lamp CCF <1.7. The ballast includes protection against lamp disconnection and lamp failure, with an operating temperature range of −25...+50 °C.

  • Product description

    Electronic ballast | T8 / T9 / T10 / T12 | 3×18–20 W / 4×18–20 W | 220–240 V | PF 0.98 | WodMeng Electric TJB-E418SP

    WodMeng Electric TJB-E418SP – an electronic ballast designed for T8, T9, T10 and T12 fluorescent lamps. The ballast can be used with 3- or 4-lamp systems: 3×18 W, 4×18 W, 3×20 W or 4×20 W, depending on the lamp type used.

    The unit operates from a 220–240 V AC, 50–60 Hz mains supply. Power factor – PF 0.98, total harmonic distortion – THD <20 %, and lamp current crest factor Lamp CCF <1.7.

    The ballast has lamp disconnection protection and protection under lamp fault conditions. Permissible ambient temperature – −25...+50 °C, while the maximum case control point temperature tc – 70 °C.

    TJB-E418SP complies with electrical safety, radio interference, immunity, harmonic current and electronic ballast performance standards: EN 61347-1, EN 61347-2-3, EN 55015, EN 61547, EN 61000-3-2 and EN 60929.

    Key point

    WodMeng Electric TJB-E418SP is a multi-lamp electronic ballast designed for 3 or 4 T8 / T9 / T10 / T12 fluorescent lamps. It supports 18 W and 20 W lamp configurations, operates from a 220–240 V, 50–60 Hz supply, has PF 0.98 and integrated lamp disconnection and lamp fault protection.

    Number of lamps
    3 or 4 lamps
    Lamp power
    18 W / 20 W
    Supply
    220–240 V AC, 50–60 Hz
    Power factor
    PF 0.98

    Operating principle

    The electronic ballast is used in the power circuit of fluorescent lamps. It is designed to control and supply the connected lamps using a 220–240 V AC, 50–60 Hz mains voltage.

    TJB-E418SP can operate with several different lamp configurations. It is important to select the correct lamp type, power and quantity because a different input current is specified for each configuration.

    Compatible configurations: T8 4×18 W, T9/T10/T12 4×20 W, T8 3×18 W and T9/T10/T12 3×20 W.

    Compatibility with lamp types

    The ballast is intended for T8, T9, T10 and T12 fluorescent lamps. 3 or 4 lamps can be connected, but their rated power depends on the lamp type.

    T8 lamps
    3 × 18 W or 4 × 18 W
    T9 / T10 / T12 lamps
    3 × 20 W or 4 × 20 W

    Input current by lamp configuration

    The ballast input current depends on the type, power and number of connected lamps. All specified configurations are intended for 230 V, 50–60 Hz supply.

    Lamp type Configuration Voltage Frequency Input current
    T8 4 × 18 W 230 V 50–60 Hz 0.32 A
    T9 / T10 / T12 4 × 20 W 230 V 50–60 Hz 0.35 A
    T8 3 × 18 W 230 V 50–60 Hz 0.24 A
    T9 / T10 / T12 3 × 20 W 230 V 50–60 Hz 0.27 A

    High power factor – PF 0.98

    TJB-E418SP has a power factor of 0.98. A high PF value is important in electrical installations with larger quantities of lighting equipment where more efficient loading of the electrical network is desired.

    PF 0.98 – one of the most important electrical characteristics of this electronic ballast.

    Harmonic distortion and lamp current crest factor

    Total harmonic distortion THD is less than 20 %, while the lamp current crest factor Lamp CCF is less than 1.7.

    THD
    <20 %
    Lamp CCF
    <1.7

    Operating and maximum case temperature

    The electronic ballast is designed to operate at ambient temperatures from −25 to +50 °C.

    Maximum permitted case control point temperature – tc 70 °C.

    Temperature limits: ta −25...+50 °C, tc max. 70 °C. During installation, it is important to ensure that the ballast temperature limits are not exceeded.

    Integrated protections

    TJB-E418SP includes protection functions intended for ballast operation under abnormal lamp conditions.

    Lamp disconnection protection
    The ballast has protection that operates when a lamp is disconnected.
    Lamp fault protection
    Protection is provided for lamp fault conditions.

    Technical specifications

    Product type Electronic ballast
    Manufacturer / brand WodMeng Electric
    Model TJB-E418SP
    Supply voltage 220–240 V AC
    Rated frequency 50–60 Hz
    Lamp types T8, T9, T10, T12
    T8 – 4-lamp configuration 4 × 18 W
    T9 / T10 / T12 – 4-lamp configuration 4 × 20 W
    T8 – 3-lamp configuration 3 × 18 W
    T9 / T10 / T12 – 3-lamp configuration 3 × 20 W
    Input current, T8 4×18 W 0.32 A
    Input current, T9/T10/T12 4×20 W 0.35 A
    Input current, T8 3×18 W 0.24 A
    Input current, T9/T10/T12 3×20 W 0.27 A
    Power factor PF 0.98
    THD <20 %
    Lamp CCF <1.7
    Ambient temperature ta −25...+50 °C
    Maximum tc temperature 70 °C
    Lamp disconnection protection Yes
    Lamp fault protection Yes

    Compliance standards

    Safety EN 61347-1, EN 61347-2-3
    Radio frequency interference / RFI EN 55015
    Immunity EN 61547
    Harmonic currents EN 61000-3-2
    Performance requirements EN 60929

    Use according to need

    When T8 lamps are used
    Suitable for 3×18 W or 4×18 W T8 lamp systems.
    When T9 / T10 / T12 lamps are used
    Suitable for 3×20 W or 4×20 W configurations.
    When 3 lamps are required
    3×18 W T8 or 3×20 W T9/T10/T12 configurations are available.
    When 4 lamps are required
    4×18 W T8 or 4×20 W T9/T10/T12 configurations are available.
    When a high PF is important
    Power factor – 0.98.
    When protection functions are required
    Lamp disconnection and lamp fault protection are provided.

    Installation and electrical connection

    • Before installation or maintenance, switch off the electrical supply.
    • The ballast must be properly grounded.
    • The ballast must be securely fixed.
    • Use only a compatible lamp type, power and number of lamps.
    • Supply voltage – 220–240 V AC, 50–60 Hz.
    • Permissible ta and tc temperature limits must be maintained during installation.

    Important before choosing

    • Check the fluorescent lamp type used – T8, T9, T10 or T12.
    • Check the number of lamps – the ballast is intended for 3 or 4 lamps.
    • T8 lamps must be 18 W, while T9 / T10 / T12 lamps must be 20 W.
    • The mains supply must be 220–240 V AC, 50–60 Hz.
    • Input current depends on the selected lamp configuration.
    • Operating ambient temperature – from −25 to +50 °C.
    • The tc control point temperature must not exceed 70 °C.

    Advantages and limitations

    Advantages

    • Suitable for T8, T9, T10 and T12 fluorescent lamps.
    • Can be used with 3 or 4 lamps.
    • Supports 18 W and 20 W lamp configurations.
    • 220–240 V AC, 50–60 Hz supply.
    • High PF – 0.98.
    • THD <20 %.
    • Lamp CCF <1.7.
    • Operating temperature −25...+50 °C.
    • Lamp disconnection protection.
    • Protection under lamp fault conditions.
    • Complies with several EN safety and EMC standards.

    Limitations

    • The lamp type, power and number of lamps must be matched precisely.
    • T8 uses 18 W configurations, while T9/T10/T12 use 20 W configurations.
    • tc temperature must not exceed 70 °C.
    • The electrical supply must be disconnected before maintenance.
    • The ballast must be properly grounded and securely fixed.

    Quick selection guide

    T8 / T9 / T10 / T12 | 3 or 4 lamps | 18–20 W | 220–240 V | 50–60 Hz | PF 0.98 | THD <20 %
    Suitable when you need: an electronic ballast for 3 or 4 T8 / T9 / T10 / T12 fluorescent lamps.
    Select according to the lamps: T8 – 3×18 W or 4×18 W; T9/T10/T12 – 3×20 W or 4×20 W.
    Before connection: check the lamp type, power, number of lamps, 220–240 V mains voltage and properly ground the ballast.

    FAQ

    What type of device is this?
    It is an electronic ballast for fluorescent lamps.
    What is the model?
    WodMeng Electric TJB-E418SP.
    What voltage is the ballast designed for?
    220–240 V AC.
    What is the mains frequency?
    50–60 Hz.
    What lamp types are compatible?
    T8, T9, T10 and T12 fluorescent lamps.
    Is it suitable for 4×18 W T8 lamps?
    Yes. Input current in this configuration is 0.32 A.
    Is it suitable for 3×18 W T8 lamps?
    Yes. Input current is 0.24 A.
    Is it suitable for 4×20 W T9, T10 or T12 lamps?
    Yes. Input current is 0.35 A.
    Is it suitable for 3×20 W T9, T10 or T12 lamps?
    Yes. Input current is 0.27 A.
    What is the power factor?
    PF 0.98.
    What is the THD?
    Less than 20 %.
    What is the Lamp CCF?
    Less than 1.7.
    What is the permissible ambient temperature?
    From −25 to +50 °C.
    What is the maximum tc temperature?
    70 °C.
    Does the ballast have protection against lamp failure or disconnection?
    Yes. It has lamp disconnection protection and protection under lamp fault conditions.

    WodMeng Electric TJB-E418SP | electronic ballast | T8 / T9 / T10 / T12 | 3-4 lamps

    WodMeng Electric TJB-E418SP – an electronic ballast for T8, T9, T10 and T12 fluorescent lamps. Supported configurations are 3×18 W, 4×18 W, 3×20 W and 4×20 W, supply – 220–240 V AC, 50–60 Hz, power factor – PF 0.98, THD <20 %, Lamp CCF <1.7. Operating temperature – −25...+50 °C, tc max. 70 °C. The ballast has lamp disconnection and lamp fault protection.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
