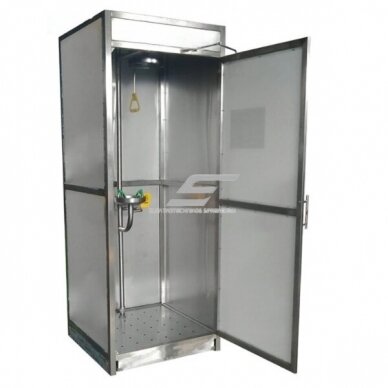

Stationary enclosed combined emergency | safety shower | body | face | eye wash system | 75.7l/min | 11.4l/min | 2200×x1200x900mm | stainless steel

Technical Specifications

Standard: ANSI Z358.1-2014
Certificates: CE, ISO

Construction

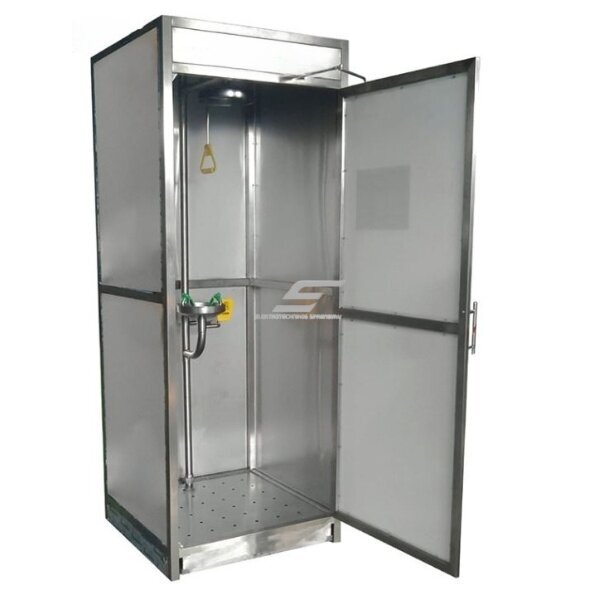

Type: Enclosed eye wash and safety shower cabin

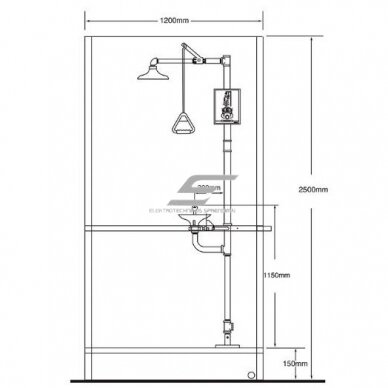

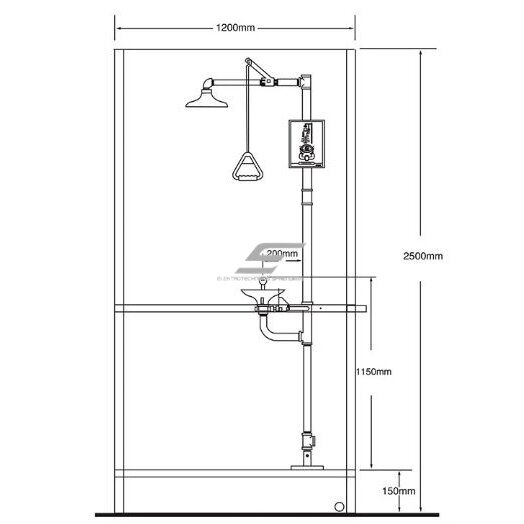

External dimensions: 1200 × 900 × 2200 mm
Structure material: Stainless steel SS304

Safety Shower

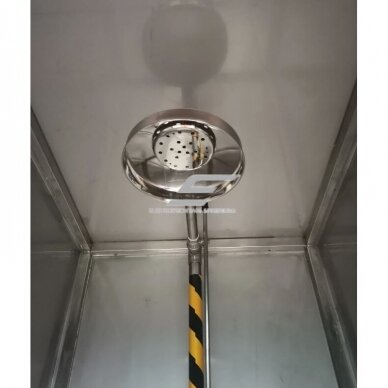

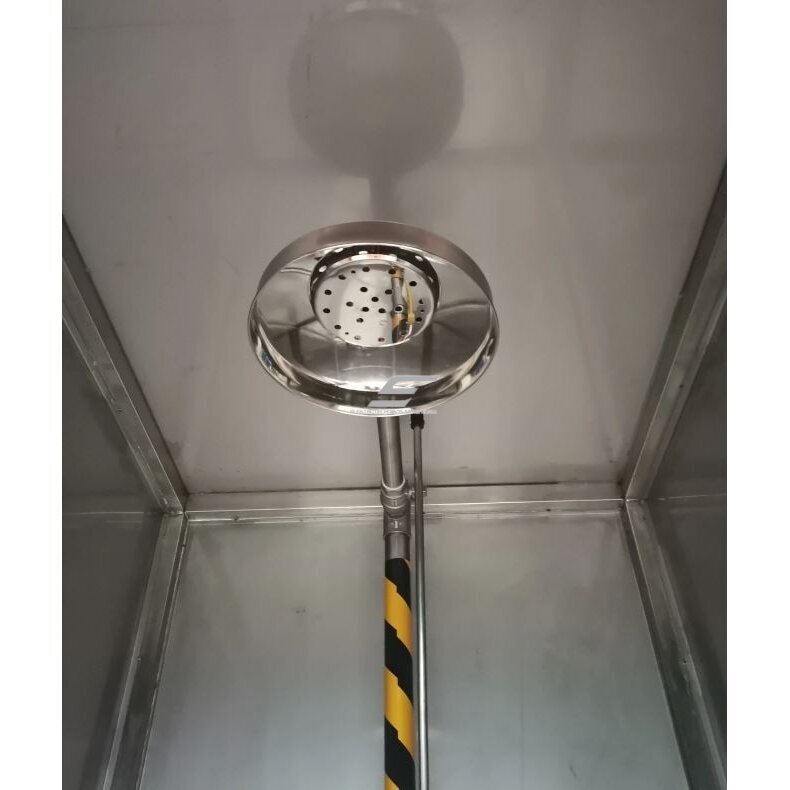

Shower head: 10" SS304
Valve: 1" stainless steel ball valve
Shower flow rate: ≥75.7 l/min

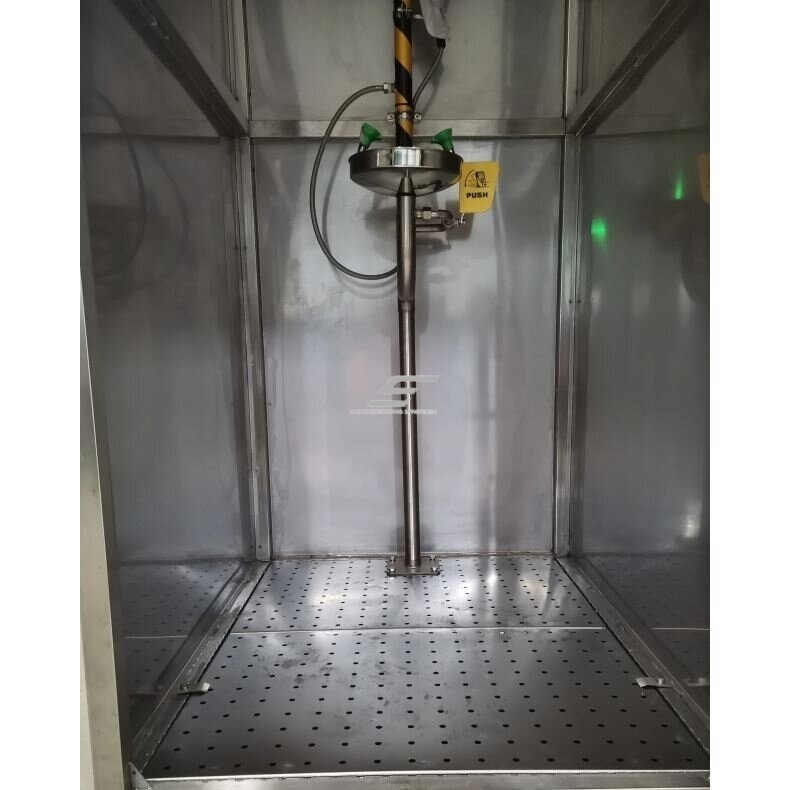

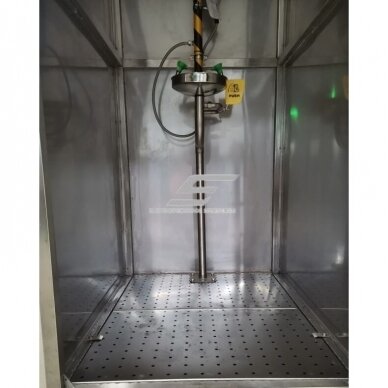

Eye Wash System

Nozzles: ABS spray nozzles
Bowl: 10" stainless steel water collection bowl
Valve: 1/2" SS304 ball valve
Eye wash flow rate: ≥11.4 l/min

Water System

Water inlet: 1 1/4" MNPT
Drain outlet: 1 1/4" FNPT
Working pressure: 0.2 – 0.8 MPa
Water source: clean drinking or filtered water

Main Functions

Rapid emergency response: The unit allows eye, face, or full body washing within seconds, reducing the exposure time to hazardous chemicals.

Combined safety system: Eye wash station + full body safety shower.

High water flow rate:
Eye wash ≥11.4 l/min
Safety shower ≥75.7 l/min

Resistance to aggressive environments: SS304 stainless steel and ABS components are resistant to chemicals, corrosion, moisture, and intensive use.

Enclosed construction: protects the user from environmental impact, helps control water flow, and provides greater privacy during use.

Application

Industry: chemical plants, oil and gas industry, pharmaceutical production, metal processing facilities.

Laboratories: universities, research centers, medical laboratories.

Warehouses and logistics centers: hazardous material warehouses, chemical storage areas.

Energy sector: power plants, industrial energy facilities.

Public and industrial premises: production lines, maintenance areas, construction industry.

For electricians and technicians: Used in industrial facilities or power plants where workers may encounter hazardous substances or electrolytes.

For engineers and safety specialists: An important element of workplace safety infrastructure required for compliance with international safety standards.

For production workers: Provides the possibility to immediately neutralize the effects of hazardous substances in case of an accident.

Advantages

Complies with ANSI Z358.1-2014 safety standard
Combined shower + eye wash system
High water flow rate for rapid washing
High-quality SS304 stainless steel
Resistant to corrosion and chemicals
Enclosed cabin for better protection
Suitable for aggressive industrial environments

Disadvantages

Requires continuous water supply
Sufficient water pressure must be ensured (0.2–0.8 MPa)
Occupies more space than standard eye wash stations
Requires periodic technical inspection according to safety requirements
