Emergency shower | body | face | eye wash system | 75.7 l/min | 11.4 l/min | stainless steel

Technical Specifications

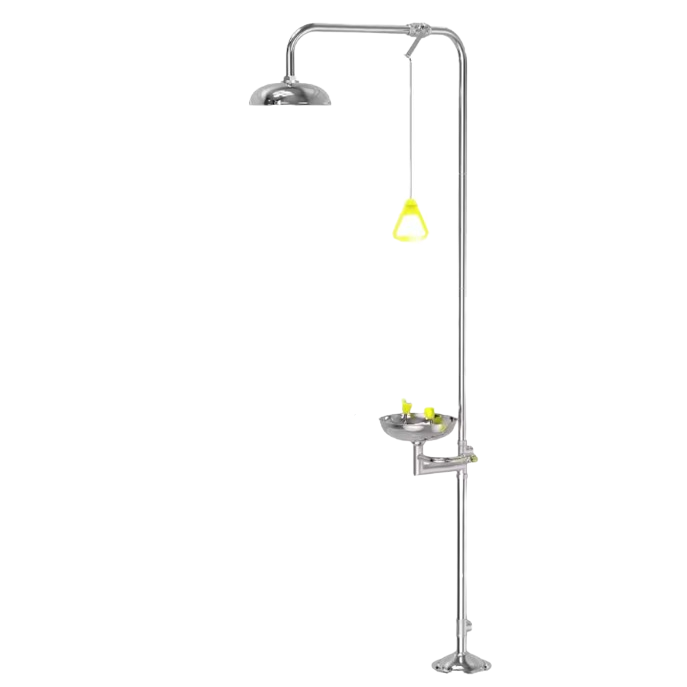

Type: Combined emergency eye wash and safety shower station
Standards: ANSI Z358.1-2014, OSHA compliant

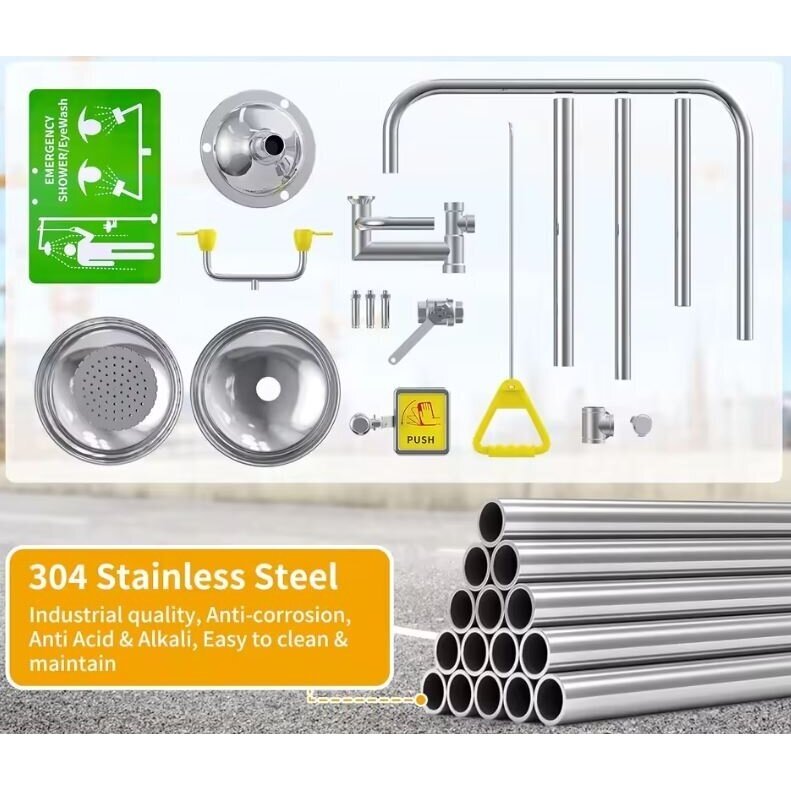

Material: 304 stainless steel (SS304)
Connection: 1-1/4" NPT thread (direct connection to water supply)
Working water pressure: 0.2-0.4 MPa
Eye wash flow rate: ≥11.4 L/min
Shower flow rate: ≥75.7 L/min
Spray intensity (shower): 120-180 L/min (depending on pressure)

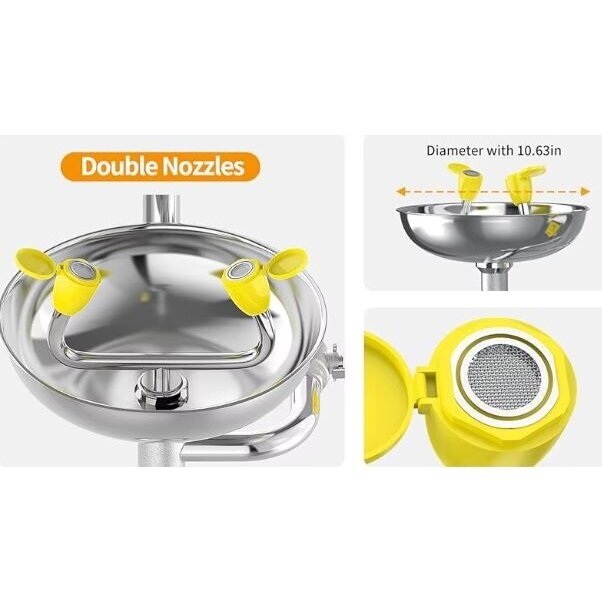

Eye wash system: dual spray nozzles with dust covers
Filtration: integrated multi-stage filtration system
Control: single action activation
Eye wash bowl diameter: ~270 mm (enlarged)
Activation: pull shower lever - water released within 1 sec
Construction: reinforced and thickened base for stability

Functions

Dual protection system: High performance eye wash and full body safety shower integrated in one unit, allowing simultaneous neutralization of chemical contamination from face, eyes and clothing.

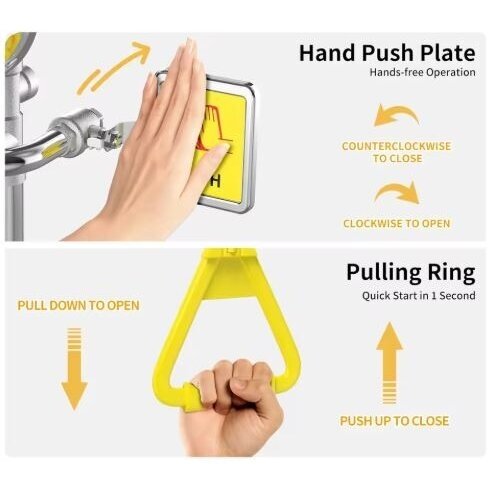

Fast activation: 90° rotating eye wash lever - no need to hold pressed; Pull shower handle - water released instantly (<1 sec).
Advanced filtration system: Dual nozzles with integrated filtration; Soft, even water flow; Protective dust covers.
Maximum efficiency: Extended spray coverage; Effective rinsing of clothing and skin.
Resistance to aggressive environments: SS304 corrosion resistant piping; Suitable for acidic and alkaline environments; Electrostatic surface treatment - easy to clean.

Application

Industry: Oil refining and petrochemical plants; Automotive repair workshops; Fuel stations; Metal processing facilities.
Laboratories: Pharmaceutical and biotechnology centers; Microelectronics manufacturing; Research and R&D centers; Universities and schools.
Healthcare sector: Hospitals; Chemotherapy or laboratory testing areas.
For electricians and engineers: Mandatory equipment in hazardous area projects; Complies with international safety standards; Easy integration into existing water systems.

Advantages

ANSI Z358.1-2014 and OSHA compliance
SS304 durable corrosion resistant construction
Dual system - eye wash + shower
Activation within 1 sec
Integrated filter and soft flow
Enlarged bowl and wide spray coverage
Suitable for aggressive chemical environments
Easy maintenance and cleaning
Stable reinforced base

Disadvantages

Requires permanent water connection (direct NPT connection)
Requires sufficient water pressure (0.2-0.4 MPa)
Not intended for mobile or temporary use
