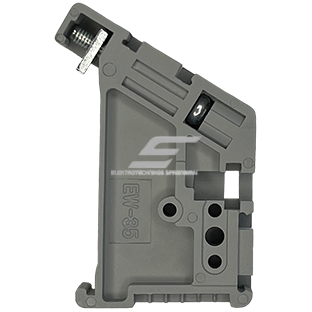

End terminal | clamp | DIN rail mounted | Promfactor Baltic EW-35

Technical Specifications:
Color: Gray
Electrical Insulation Resistance: 2500 V
Rated Insulation Voltage (Ui): 400 V
Housing Material: Polyamide
Terminal Material: Galvanized steel
Screw Tightening Torque: 0.6 Nm

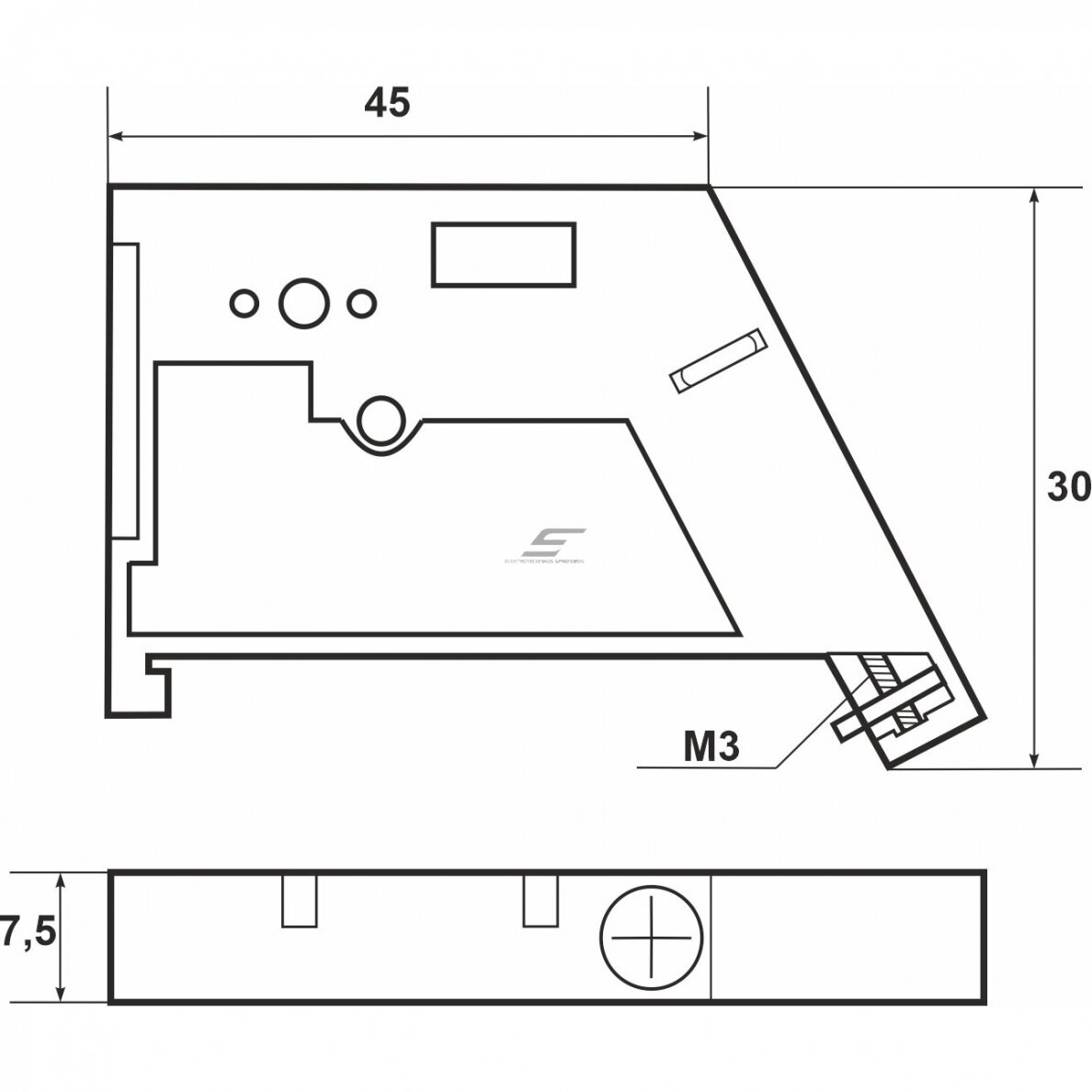

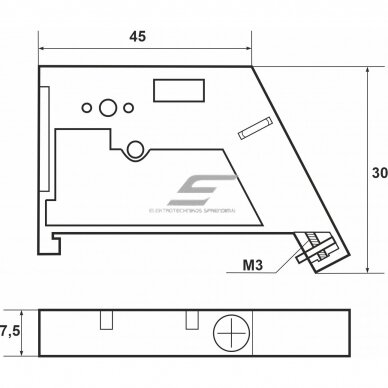

Mounting: 35x7.5 mm DIN rail
Operating Temperature: -40°C to +60°C
Storage Temperature: -45°C to +70°C
Weight: 5.4 g
Features and Usage:
Secure Fixation – Ensures that electrical components on the DIN rail remain stable and do not move.
Electrical Insulation – High insulation resistance (2500 V) provides additional safety in electrical panels.
Temperature Resistance – Suitable for use in extreme cold (-40°C) and high temperatures (+60°C).
Compact Design – Takes up minimal space in the panel, allowing for efficient cable management.
Easy Installation – Simple mounting on a 35x7.5 mm DIN rail, screw tightening torque of 0.6 Nm.
Applications:
Electrical distribution panels
Control and automation panels
Industrial electrical installations
Telecommunications equipment
Electrical equipment in transport systems
Pros:
High electrical insulation resistance (2500 V) – Ensures reliable protection against voltage breakdown.
Extreme temperature resistance – Suitable for both outdoor and indoor use.
High-quality construction – Made of durable polyamide, resistant to moisture and mechanical stress.
Easy installation and fixation – Quick snap-on mounting onto the DIN rail, no complex tools required.
Compact and lightweight – Weighs only 5.4 g, minimizing additional weight on the electrical panel.
Cons:
Protection class not specified – No clear information on resistance to dust or moisture (IP rating).
Compatible only with 35x7.5 mm DIN rails – Not suitable for other mounting systems.
No additional locking mechanisms – In high-vibration environments, additional fixation may be required.
The Promfactor Baltic EW-35 is a reliable, easy-to-install, and durable end terminal block designed for DIN rails. Its high insulation resistance, thermal stability, and robust materials make it an excellent choice for electrical distribution panels, automation systems, and other industrial electrical installations.
