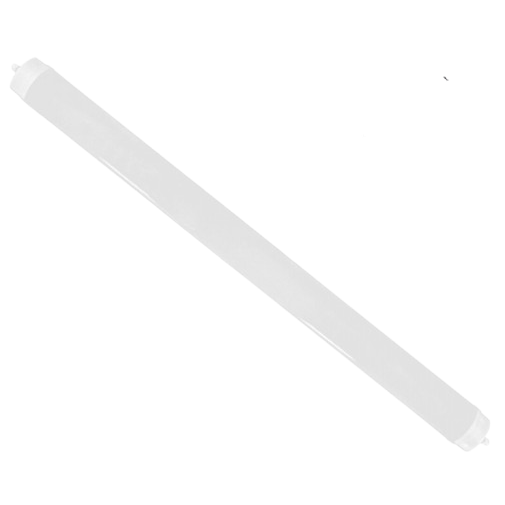

English: Industrial weatherproof LED luminaire | garage type | 70W | 170–250V | 4000K | 140lm/W | 1500mm | dual-end wiring | surface-mounted | IP65 | TRI-PROOF

Sealed LED Luminaire | 70 W | 140 lm/W | 4000 K | 1580 mm | IP65 | IK08 | dual-end connection

High-efficiency 70 W linear LED luminaire designed for warehouses, production areas, workshops, garages, technical corridors, commercial premises and other indoor spaces. The luminous efficacy reaches 140 lm/W, 4000 K neutral white light is suitable for working environments, and the wide 180° beam angle helps illuminate a larger area evenly. IP65 protection provides resistance against dust and water jets, IK08 offers additional mechanical resistance, while the dual-end connection simplifies electrical installation planning and mounting.

This 70 W linear LED luminaire is designed for lighting larger technical and commercial indoor areas. An efficacy of 140 lm/W provides a calculated luminous flux of approximately 9800 lm from 70 W of power, while the dual-end electrical connection offers greater flexibility when planning the installation. IP65 and IK08 ratings make the luminaire suitable for more demanding operating environments.

The possibility of connecting the power supply from either end of the luminaire provides greater flexibility when installing and planning cable routes. This is particularly convenient in long rooms, corridors, technical areas or when arranging several luminaires in continuous rows.

An efficacy of 140 lm/W means that the luminaire generates a high luminous output for every watt of electrical power consumed. At 70 W, the theoretical luminous flux based on the specified efficacy is approximately 9800 lm. This is particularly relevant in facilities where lighting operates for long periods and where both energy consumption and adequate workplace illumination are important.

The 4000 K colour temperature produces neutral white light suitable for workspaces, warehouses, production areas, technical rooms and general-purpose spaces. A CRI ≥80 provides suitable colour rendering for everyday working and technical environments.

The wide 180° beam angle helps distribute light over a larger area and reduces the formation of narrow, overly bright zones. This is practical when installing linear luminaires in warehouses, workshops, garages, corridors and other elongated or larger spaces.

The IP65 rating means that the luminaire housing is protected against dust ingress and water jets. This protection is useful in warehouses, workshops, production areas and technical rooms where dust or increased humidity may be present. IP65 does not mean that the luminaire may be submerged in water.

IK08 indicates increased resistance of the luminaire housing to mechanical impacts. This is useful in technical, warehouse and production areas where luminaires may be exposed to greater mechanical loads than in ordinary residential spaces.

The dual-end connection allows the power supply to be connected from the more convenient end of the luminaire. This simplifies cable route planning and can be particularly useful when installing several luminaires in one line or in a long room. The exact connection method must always follow the luminaire terminal diagram and the electrical installation design.

• 70 W nominal LED power.
• 140 lm/W luminous efficacy.
• Approx. 9800 lm calculated nominal luminous flux.
• 4000 K neutral white light.
• Wide 180° beam angle.
• CRI ≥80 colour rendering index.
• PF ≥0.90 power factor.
• IP65 protection against dust and water jets.
• IK08 mechanical resistance.
• Dual-end electrical connection.
• Operating temperature from −20 to +45 °C.
• Rated operating life of 40,000 hours.
• 3-year warranty.

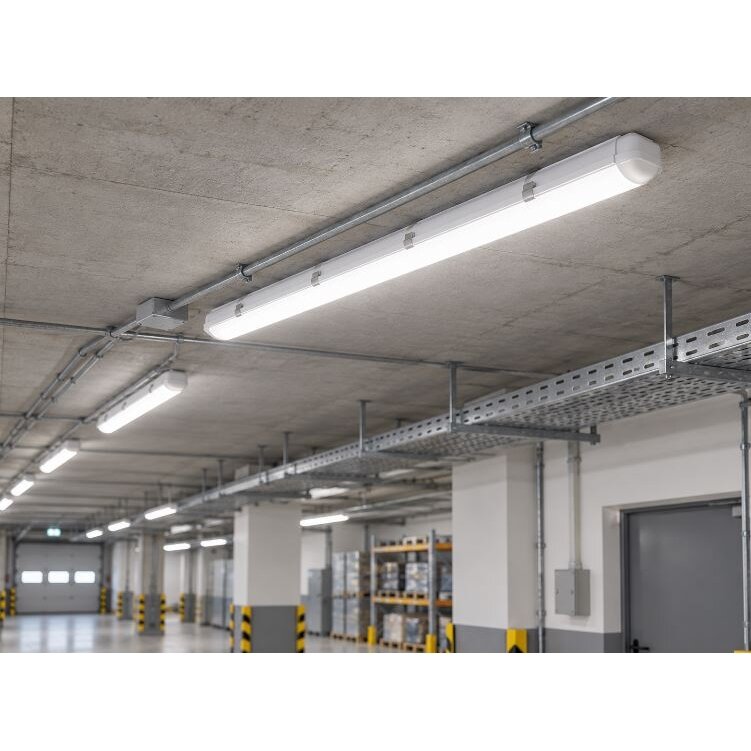

The elongated 1580 mm design distributes light over a larger linear area than compact point-type luminaires. This is practical in longer rooms, corridors, warehouse aisles and work areas where more continuous general lighting is required.

The 70 W power or calculated luminous flux of approximately 9800 lm alone does not determine the actual illuminance in lux at a specific workplace. Lighting design should take into account room area, mounting height, luminaire layout, 180° light distribution, surface reflectance and the lighting requirements applicable to the specific space.

• Electrical connection work must be performed by a qualified specialist.
• Disconnect the power supply before installation or maintenance.
• The luminaire must be securely fixed to a suitable surface.
• The connection diagram must correspond to the specific luminaire terminal arrangement.
• Use the dual-end connection only according to the electrical connection diagram provided for the product.
• Do not cover the luminaire with materials that may restrict heat dissipation.
• IP65 does not mean that the luminaire can be submerged in water.
• Operate within the specified −20...+45 °C temperature range.
• Before installation, check that the supply voltage is within the 170–250 V AC range.

Sealed LED Luminaire | 70 W | 140 lm/W | 4000 K | IP65 | IK08 | dual-end connection

Efficient 70 W linear LED luminaire for warehouses, production, technical, commercial and other indoor areas. 140 lm/W efficacy, approximately 9800 lm calculated luminous flux, 4000 K neutral white light, 180° beam angle, IP65 and IK08 protection and dual-end electrical connection make the luminaire suitable for a wide range of technical lighting projects.
