Extended insulated wire ferrule | 1mm² | 12mm | crimp type | yellow | 100 pcs. | APF/L-1,00 W | 261120

Extended insulated wire-end ferrule | 1 mm² | 12 mm | crimp type | yellow | 100 pcs | APF-1,00W/12 | 261120

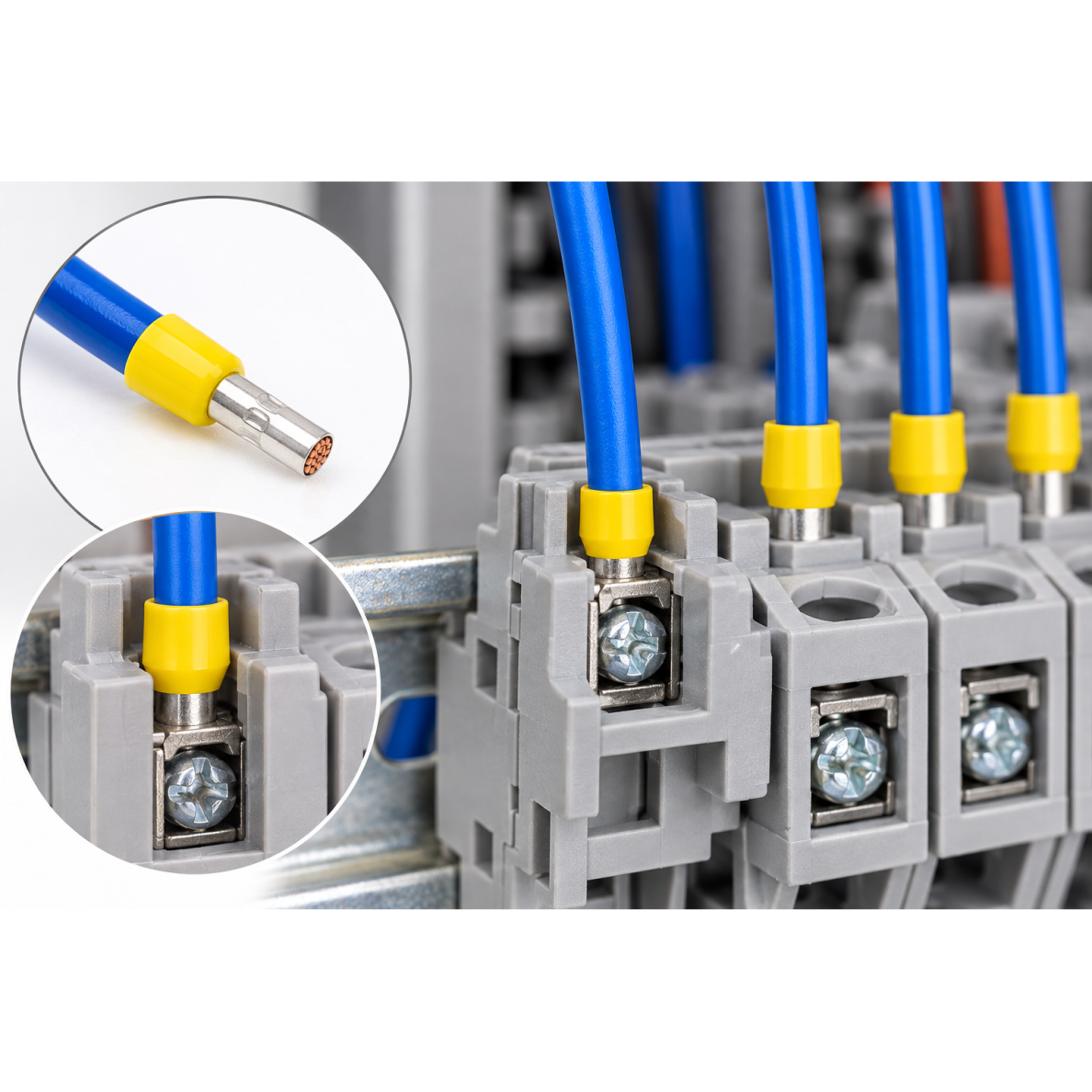

Extended insulated wire-end ferrule designed for terminating a 1 mm² stranded conductor before connection to a compatible terminal. The metal crimp sleeve is 12 mm long, while the total ferrule length is 18.4 mm. The metal section is made of tin-plated electrolytic copper, and the insulating collar is made of PA. Pack quantity – 100 pcs.

The ferrule is intended to gather the strands of a 1 mm² flexible conductor into one crimped contact section. This helps the conductor enter a compatible terminal neatly and reduces the risk of individual strands separating during installation. The 12 mm value refers to the metal sleeve length, not the total ferrule length.

A 12 mm metal contact section is useful when the terminal construction requires a longer formed conductor end. Suitability for a specific terminal must always be checked against the connected equipment design and manufacturer requirements.

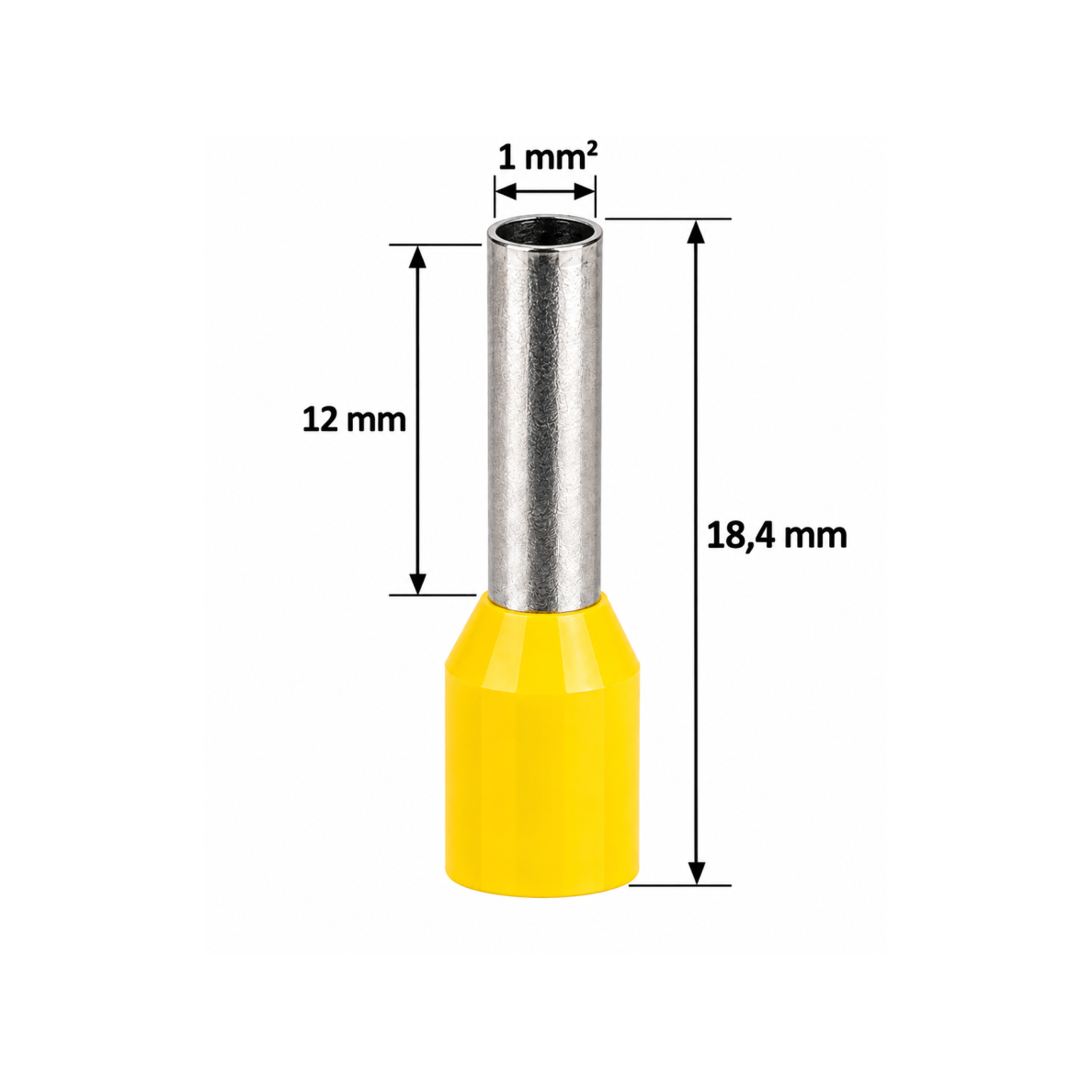

12 mm is the length of the metal crimp sleeve. It is not the overall ferrule length – the total length of APF-1,00W/12 is 18.4 mm.

Select the ferrule according to the nominal conductor cross-section and manufacturer technical data, not only by the colour of the insulating collar.

• Designed for 1 mm² stranded conductors.
• Extended 12 mm metal contact section.
• Crimp installation.
• Helps gather conductor strands into one contact section.
• Tin-plated electrolytic copper sleeve.
• PA insulating collar.
• Yellow colour for visual identification.
• 100 pcs per pack.

• Switchboard assembly.
• Automation and control panels.
• Control circuit conductor preparation.
• Connection of stranded conductors to compatible terminals.
• Equipment wiring preparation.
• Repair and refurbishment work.

1. Check that the nominal conductor cross-section is 1 mm².
2. Strip enough insulation for all conductor strands to enter the metal sleeve fully.
3. Do not damage or cut individual strands while stripping.
4. Insert all strands fully into the metal part of the ferrule.
5. Crimp using a suitable tool with a die intended for 1 mm² insulated wire-end ferrules.
6. After crimping, check the mechanical retention of the ferrule on the conductor.
7. Check that the crimped area is evenly formed, without cracks, sharp deformation or obvious under-crimping.
8. Before connecting to a terminal, check that the 12 mm contact section is suitable for the terminal design.

The crimping tool must be suitable for 1 mm² insulated wire-end ferrules. An incorrect ferrule size or crimping die can result in insufficient or excessive compression and a poor-quality connection.

• De-energise the circuit before work and verify absence of voltage.
• Select the ferrule according to the actual 1 mm² conductor cross-section.
• Do not damage individual conductor strands while stripping insulation.
• All strands must be fully inserted into the metal sleeve.
• Use a suitable crimping tool for 1 mm² insulated ferrules.
• After crimping, check mechanical retention and visual crimp quality.
• Before installation into a terminal, verify compatibility with wire-end ferrules.
• Electrical installation work should be carried out by qualified personnel.

APF-1,00W/12 | 1 mm² | 12 mm | yellow | 100 pcs

Extended insulated crimp wire-end ferrule for 1 mm² stranded conductors. Metal contact section length – 12 mm, total length – 18.4 mm. The tin-plated electrolytic copper sleeve and PA insulating collar help form a neat conductor end before connection to a compatible terminal.
