    Eye nut for overhead lines | hot-dip galvanized | 66x78mm | Ø38mm | carbon steel

    Code: ES-30201A01
    Inquire about this item
    Price 8.57 € VAT incl.
    ( 7.08 € VAT excl. )
    Buy more, pay less
    50+ pcs.  – 6.41 € for pcs. -25%
    Want another price? Suggest yours!

    Oval eye nut for overhead power lines – a hot-dip galvanized carbon steel fastening element designed for mechanical connections in power transmission and distribution overhead lines, poles and other energy infrastructure. The closed oval eye provides a convenient connection point for other line hardware, while the integrated threaded section allows the nut to be screwed onto a compatible threaded component. Product dimensions – 66×78mm, inner eye width – 38mm.

  • Product description

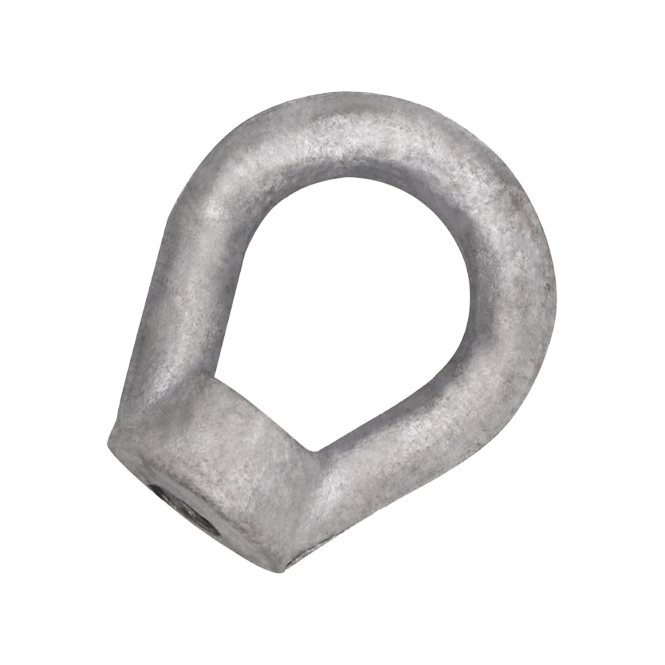

    Oval Eye Nut for overhead lines | hot-dip galvanized carbon steel | 66×78mm

    Oval Eye Nut – a mechanical overhead power line fitting designed for use in power transmission and distribution lines, pole assemblies and other energy infrastructure fastening systems. The integrated closed eye forms a mechanical connection point to which other overhead line fittings specified by the project can be attached.

    The product is made of carbon steel and protected by hot-dip galvanizing. The zinc coating helps protect the steel against corrosion, making the component suitable for long-term use in outdoor electrical infrastructure.

    For mechanical connection of overhead line fittings

    The eye nut design provides a closed mechanical fastening point. The nut body is screwed onto a compatible threaded element, while the upper eye is used for attaching other fastening or connecting components.

    66mm
    Width L
    38mm
    Internal width L1
    78mm
    Height H
    HDG
    Hot-dip galvanized

    Application

    The eye nut is designed for use as a mechanical connecting and fastening element in overhead power line structures. It can be used in fittings assemblies for power transmission lines, distribution networks, electrical substations and other energy infrastructure installations.

    The closed oval eye provides a strong connection point for mechanical fittings, while the internal thread in the lower section allows the component to be screwed onto a suitable threaded rod or another compatible threaded element.

    Oval eye design

    The product features a closed oval-profile eye. This construction forms a defined mechanical fastening point and helps transfer load through the solid steel body.

    Hot-dip galvanizing

    The carbon steel surface is protected by hot-dip galvanizing. The zinc coating forms a protective layer that helps reduce the effect of moisture and atmospheric exposure on the base metal.

    This type of surface treatment is widely used for outdoor overhead line fittings because these components are exposed for long periods to precipitation, humidity and temperature fluctuations.

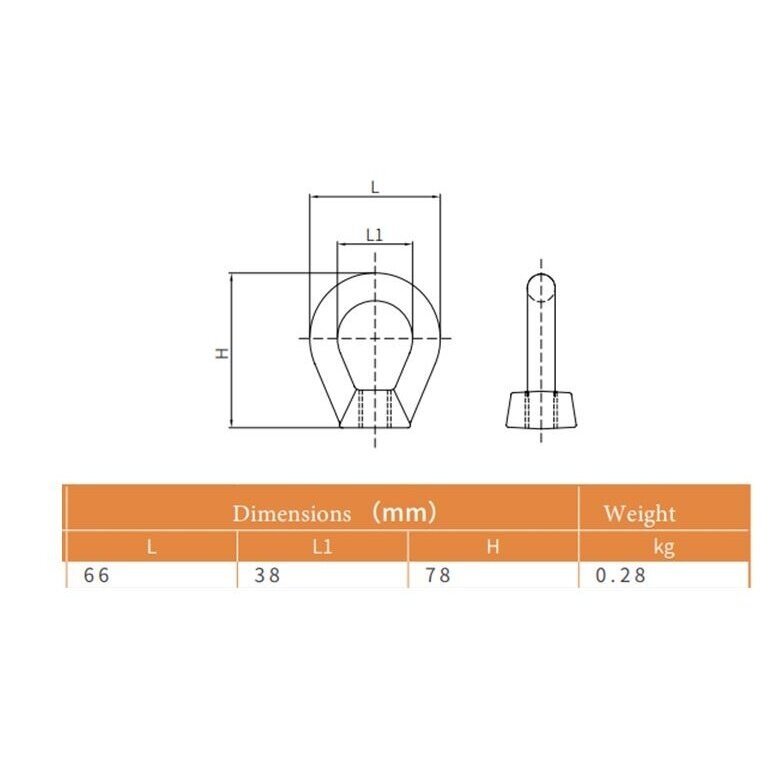

    Main dimensions

    Designation Value Description
    L 66mm Overall eye width
    L1 38mm Internal eye width
    H 78mm Overall height
    Weight 0.28kg Weight

    Technical specification

    Product type Oval Eye Nut
    Material Carbon steel
    Surface treatment Hot-dip galvanizing
    Width L 66mm
    Internal width L1 38mm
    Height H 78mm
    Weight 0.28kg
    Construction Closed oval eye with integrated threaded nut section
    Application For power transmission, distribution and other overhead line fitting systems

    Main features

    • Closed oval fastening eye.
    • Integrated threaded nut section.
    • Made of carbon steel.
    • Hot-dip galvanized surface.
    • 66mm overall width.
    • 78mm overall height.
    • Designed for outdoor electrical infrastructure fastening systems.

    Advantages

    • Solid eye construction provides a convenient mechanical connection point.
    • Threaded connection allows the component to be installed on a compatible threaded element.
    • Carbon steel body is suitable for mechanical fastening applications.
    • Hot-dip galvanizing helps protect the steel against atmospheric corrosion.
    • Compact dimensions allow the component to be integrated into various overhead line fitting assemblies.
    • Suitable for outdoor electrical infrastructure.

    Disadvantages / limitations

    • The final permissible mechanical load must be determined according to the design of the specific assembly.

    Suitable for

    • Power transmission overhead line fitting assemblies
    • Power distribution network structures
    • Mechanical fastening systems for overhead line supports
    • Mechanical fitting assemblies in electrical substations
    • Threaded connections requiring a closed fastening eye
    • Outdoor energy infrastructure

    Not suitable for

    • Assemblies requiring a documented working load where such load has not been confirmed
    • Use as an electrical current-carrying contact element
    • Use without evaluating the specific overhead line structure and mechanical loads

    Practical application principle

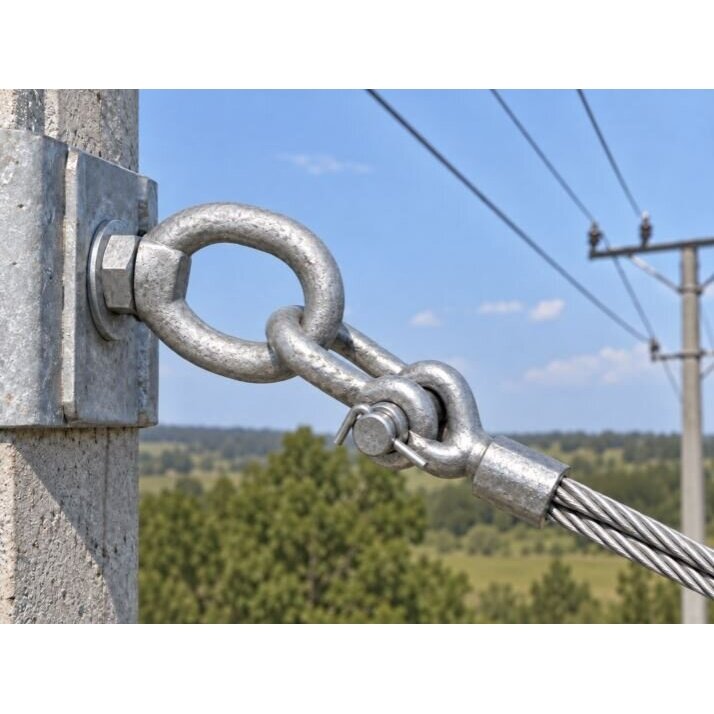

    An overhead line support or another energy infrastructure assembly has a threaded element to which another mechanical fitting component needs to be connected.

    The eye nut is screwed onto a compatible threaded element. The upper closed eye then serves as a mechanical connection point for another fitting component.

    This creates a compact connection in which a threaded fastening is used on one side and an eye-type mechanical connection on the other.

    Frequently asked questions (FAQ)

    What is an eye nut?

    It is a threaded mechanical component with an integrated closed eye, used in fastening and connection assemblies.

    Where is this eye nut used?

    In mechanical fitting assemblies for power transmission and distribution overhead lines, poles, substations and other energy infrastructure installations.

    What material is it made from?

    Carbon steel.

    Is the surface protected against corrosion?

    Yes. The product is hot-dip galvanized.

    What are the product dimensions?

    The overall width L is 66mm, the internal eye width L1 is 38mm, and the height H is 78mm.

    Important installation and mechanical safety information

    The eye nut must be selected according to the thread size of the specific assembly, the fastening structure and the design mechanical loads.

    Oval Eye Nut for overhead lines – a hot-dip galvanized carbon steel mechanical power line fitting with a closed oval eye and threaded connection. The width is 66mm, internal eye width 38mm, and height 78mm.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
