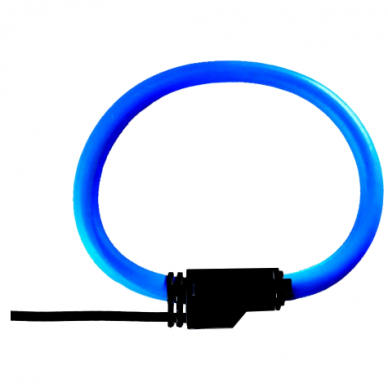

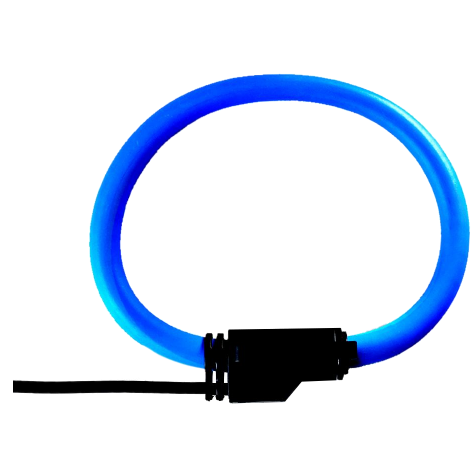

Flexible current measuring coil | Rogowski ring | 10kA | D50mm 2m cable | IP61

Technical Specifications

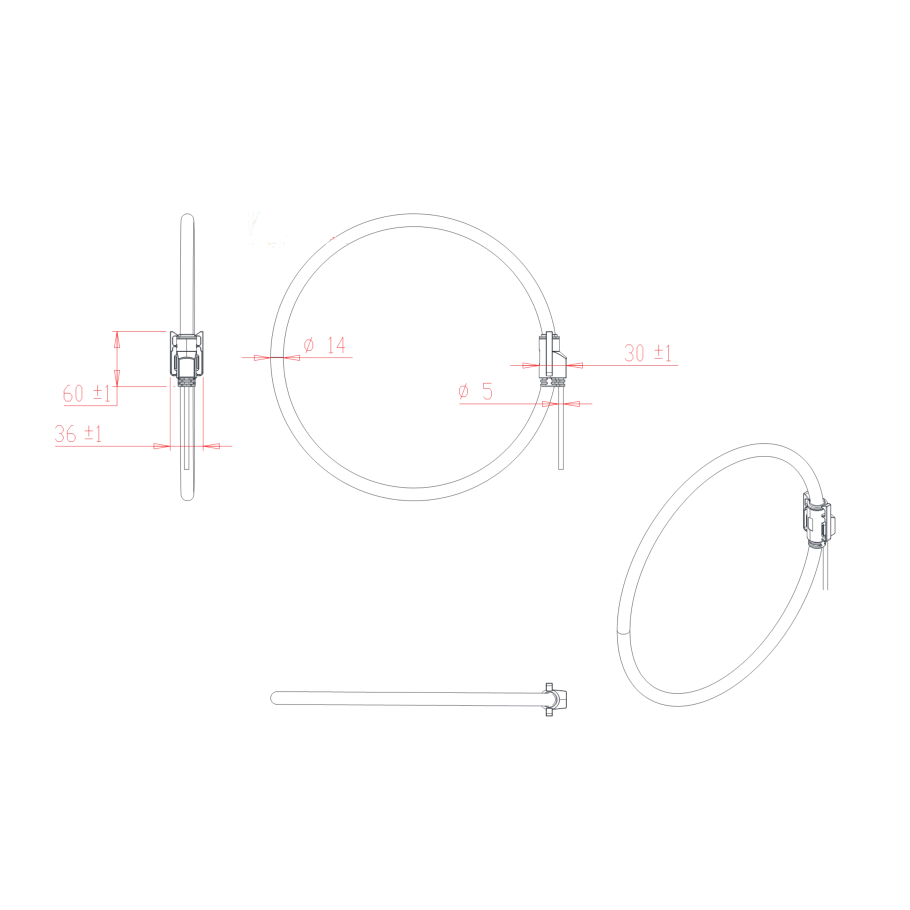

Inner diameter: 50 mm
Coil cross-section: 14 mm
Measurement range: up to 10 kA AC
Rated voltage: 1000 V CAT III, 600 V CAT IV
Ratio (calibrated @50Hz): 22.5 mV/kA ... 500 mV/kA
Accuracy: ±0.5 % (at vertical centered position)
Linearity: ±0.1 % (1 %–100 %)
Phase shift: <0.3° (45–65 Hz)
Frequency bandwidth (–3 dB): 1 Hz – 20 kHz
Operating temperature: –40...+85 °C
Dielectric strength: 7400 VAC / 60 s
Insulation resistance: ≥50 MΩ (500 VDC)
Cable length: 2 m
Housing material: thermoplastic rubber sheath (UL94 V-0), connectors – PC/ABS
Protection rating: IP61
Certificates: CE, RoHS 2.0

Functions and Features

Flexible and compact design: allows installation around cables of various sizes without disconnecting the system.

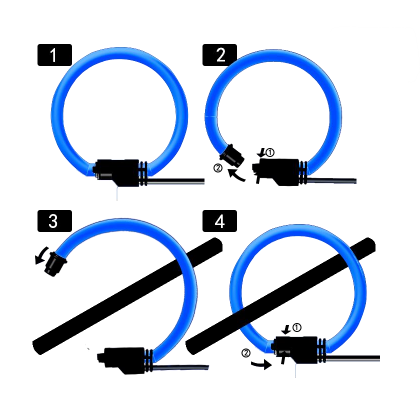

Easy installation: the coil is fixed around the wire or busbar.

Compatible with various devices: can be connected to power analyzers, laboratory instruments, data loggers, or DIN-rail meters.

Accurate AC current measurement.

Applications

For engineers and automation specialists: suitable for energy monitoring, current analysis, and integration with analyzers, meters, or control systems.

For electricians and technicians: used for equipment maintenance, protection testing, phase load balancing, and energy consumption monitoring. Can be used without interrupting the circuit, ideal for maintenance tasks.

For laboratories and research: perfect for scientific experiments requiring precise current signal measurement over a wide frequency range.

Advantages

Flexible and compact design – easy to use

Simple installation and connection

Wide range of applications

High sensitivity (up to 500 mV/kA)

Disadvantages

Does not measure direct (DC) current

Lower resistance to mechanical damage
