  • Flexible metal air duct | for ventilation systems | D203mm | 105μm | 10m | silver | LOP203

    Code: 5134

    Flexible metal duct – a reliable solution for ventilation systems where flexibility, quick installation, and efficient air distribution are required. Made of durable metal foil with a thickness of 105 microns, this duct maintains its shape and resilience even under challenging installation conditions. Suitable for residential, commercial, and industrial buildings.

  • Technical Specifications:

    Outer diameter: Ø203 mm

    Length (extended): 10 m

    Material: Metal foil

    Wall thickness: 105 microns (μm)

    Color: Silver

    Wire pitch: 48 mm

    Features:

    Flexible – easy to shape bends and turns according to installation needs

    Stable – maintains its shape due to spiral structure and quality wire construction

    Suitable for both intake and exhaust duct systems

    Resistant to mechanical stress and deformation

    Quick and easy installation

    Applications:

    Air supply and exhaust systems

    Kitchen hood duct installation

    Bathroom ventilation installations

    Air conditioning systems

    Heat recovery unit duct connections

    Temporary ventilation systems during construction or renovation

    Advantages:

    Elastic and lightweight – easy installation even in limited space

    Sufficient wall thickness – 105 µm ensures resistance to deformation

    Long length – 10 m suitable for longer installations without extra connections

    Compatible with most ventilation connectors and adapters

    Fits most standard joints

    Disadvantages:

    Not suitable where a completely airtight duct or high pressure is required

    May be vulnerable to strong bending or mechanical impact

    Not recommended for use with very high-temperature or corrosive fumes (unless additional insulation is provided)

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
  • Alternative products

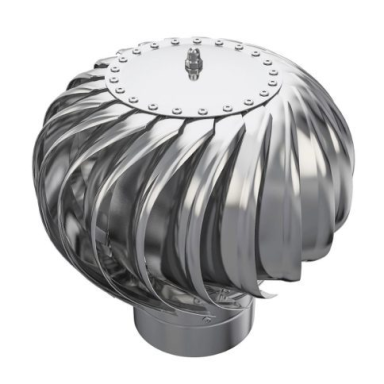

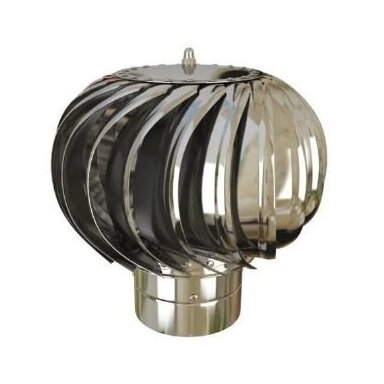

    Rotary deflector D200 | ball bearings | stainless steel | silver
    Code: 19490

    Stainless steel rotary deflector (wind turbine) D200 with ball bearings. Fits onto a D200 ventilation duct, extracts air without electricity and protects the duct from rain and snow.

    Price 120.52 € VAT incl.
    ( 99.60 € VAT excl. )

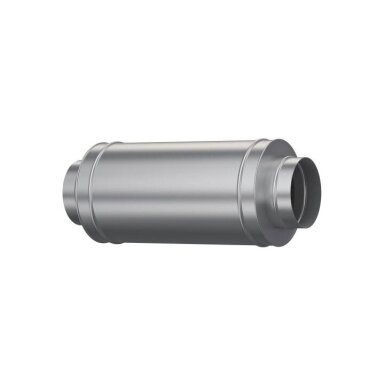

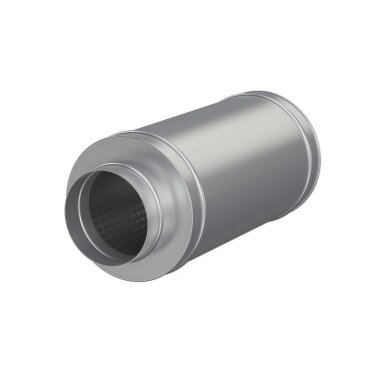

    Duct silencer | for ventilation | air ventilation systems | D200 | 600mm | silver | galvanized steel | 200DUS60
    Code: 04937

    The duct silencer is designed for effective noise reduction in ventilation, heat recovery, and industrial air supply and exhaust systems. This noise attenuator is engineered to absorb turbulent air vortices and aerodynamic noise generated by fans in round air ducts, significantly reducing the overall sound emitted by the system.

    The silencer is intended for use in general ventilation systems with clean air, non-explosive environments, and airflows free of sticky or aggressive particles.

    Integrated connection flanges simplify installation into standard round air ducts.

    To achieve maximum noise reduction efficiency, it is recommended to install the silencer as close to the fan as possible.

    Price 44.99 € VAT incl.
    ( 37.18 € VAT excl. )

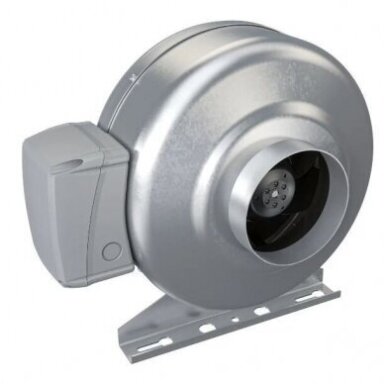

    Duct centrifugal fan El-Turbo-D 200 | D200 | 935 m³/h | 144 W | 230 V | 490 Pa | galvanized steel | silver | Eltdad-200
    Code: Eltdad-200

    Duct centrifugal fan El-Turbo-D 200 (Eltdad-200): D200, up to 935 m³/h, 490 Pa, 144 W, 230 V.

    Price 159.90 € VAT incl.
    ( 132.15 € VAT excl. )
