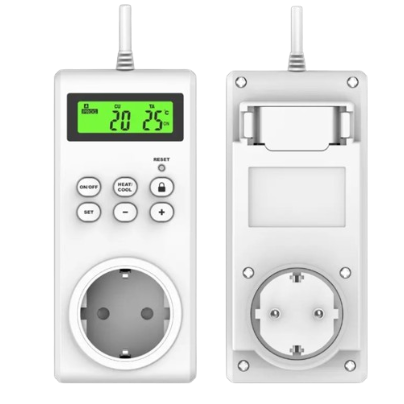

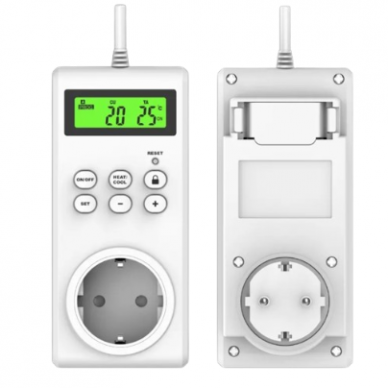

Floor heating thermostat | digital | Schuko type | 0~60℃ | 230V | 16A

Technical Specifications

Temperature Range: 0–60 °C (32–140 °F).
Temperature Calibration: 1–5 °C (ability to adjust temperature accuracy).
Hysteresis: -5–+5 °C (allows setting temperature fluctuations to avoid excessive on/off cycles of the device).
Temperature Measurement: Ability to display temperature in both °C and °F.
Maximum Rating: 230V, 16A.
Battery Type: 2 x LR44/AG13.
Material: PC + ABS.
Device Certifications: CE, RoHS, FCC (certifications according to European and global standards).

Application

Underfloor Heating: This thermostat is ideal for controlling underfloor heating systems in both homes and offices to achieve an optimal room temperature.
Easy Installation: Can be easily installed without the need for complicated installation work – simply plug in and start using.
Home and Office Temperature Control: A perfect solution for both residential and commercial properties where precise temperature control and comfort are needed.

Advantages

Ease of Use: Simple design with clearly visible buttons and screen allows the user to easily set the desired temperature without complex settings.
Calibration Option: The ability to calibrate the temperature and set the hysteresis makes the device more accurate and customizable to the user's needs.
Child Lock: The child lock ensures the thermostat is protected from unauthorized use by small children.
High-Quality Display: The LCD display with green backlighting allows for easy temperature readings even in dark rooms.
Additional Reset Function: The device allows for a quick reset to factory settings if you need to start fresh.
Energy Efficient: Low energy consumption and efficient temperature control contribute to overall energy savings.
Disadvantages

Battery Requirement: While the batteries are convenient and easy to replace, they may need to be periodically changed to ensure stable operation of the device.
Protection Rating: Although the thermostat has CE and RoHS certifications, its IP rating is IP20, meaning it is not resistant to moisture and is unsuitable for outdoor use or damp environments.
Temperature Range: While the thermostat supports a temperature range from 0 to 60 °C, some users may prefer a wider range, especially for more extreme environments.
The floor heating thermostat is a simple and effective solution for managing underfloor heating systems. Its features, including temperature calibration, hysteresis settings, and child lock, ensure it is easy to use and safe. With a simple design and quick installation, it is an excellent choice for both home and office use, ensuring comfort and energy efficiency.
