Frame for surface-mounted socket | switch | 1-gang | plastic | retro style | white

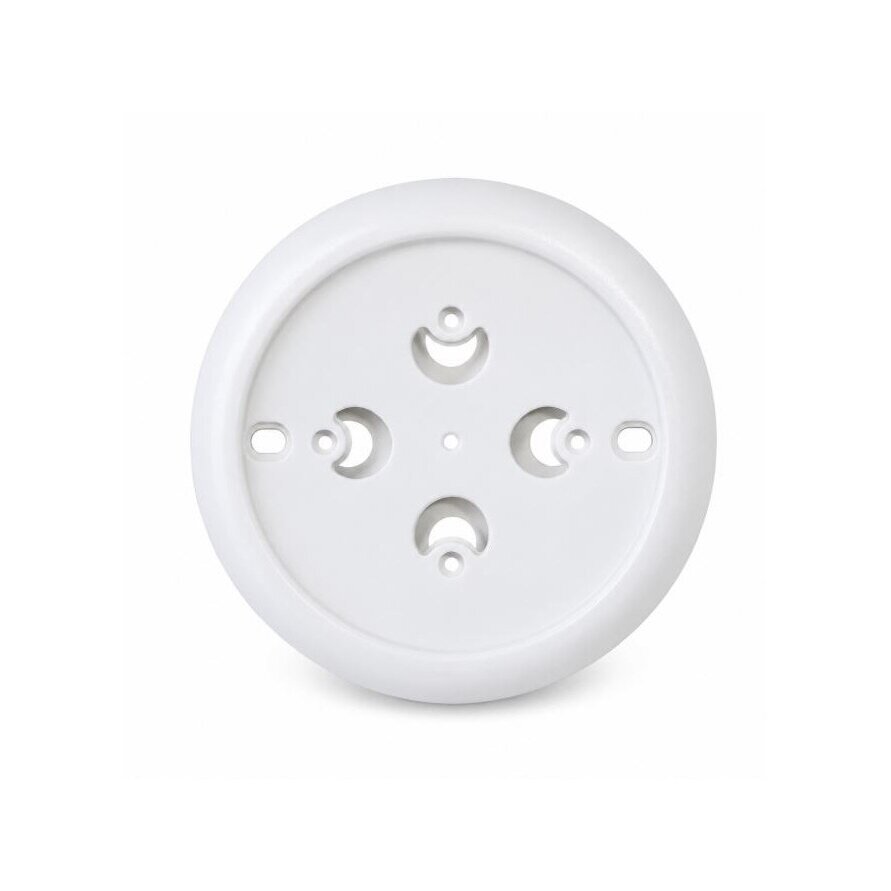

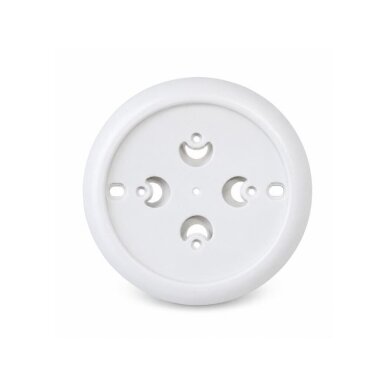

White single-gang surface-mounted frame – retro and loft style, 85 × 85 mm

Single-gang surface-mounted frame is designed to provide an aesthetic surround for one compatible surface-mounted electrical installation component. A compatible socket outlet or light switch can be installed in the frame, provided the selected component is suitable for this type of frame.

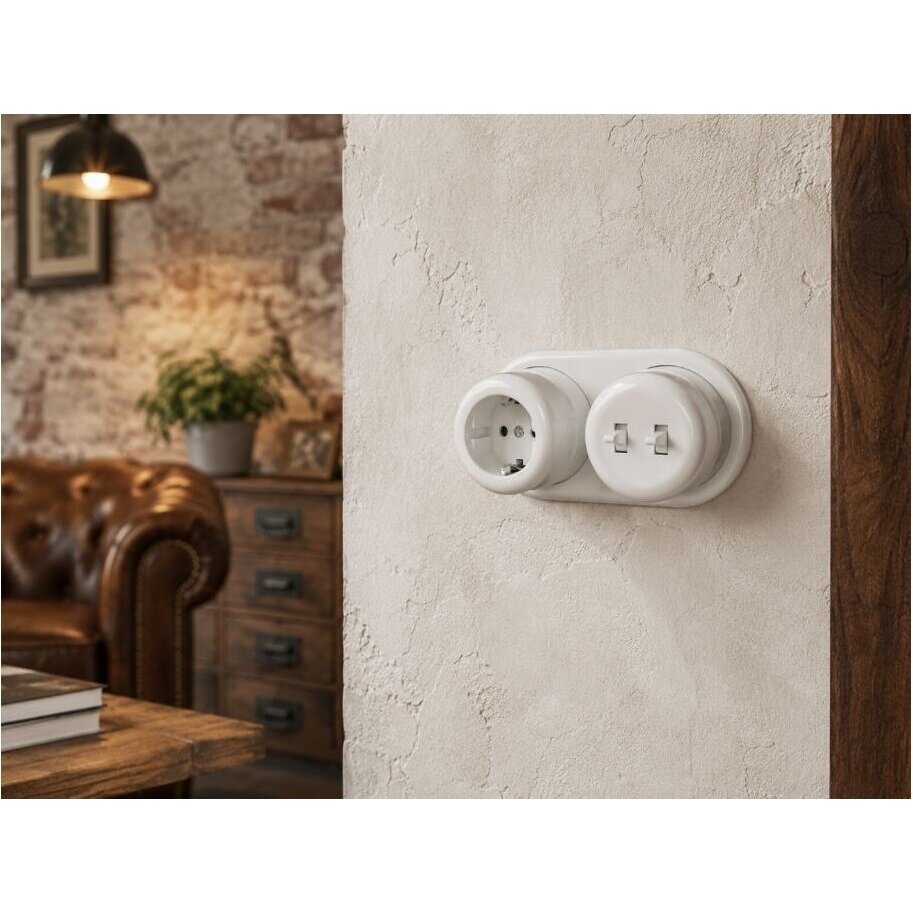

The classic white design is suitable for retro, vintage, loft, industrial and rustic interiors. The frame helps maintain a consistent appearance of electrical installation components and creates a neat overall composition on the wall.

The product is made of PVC plastic. The stated external dimensions are 85 × 85 mm. The frame is a finishing and joining element – it does not replace the socket outlet or switch itself, its internal mechanism or mounting base.

• One surface-mounted light switch.
• One surface-mounted socket outlet.

• Use switches and socket outlets in the same colour.
• Combine the frame with cable fixing elements of the same style.
• Maintain a consistent mounting height throughout the room.
• Plan the cable entry direction and component arrangement in advance.

• Single-gang design.
• Designed for surface-mounted switches and socket outlets.
• Designed to frame one electrical installation component.
• Retro, loft and vintage design.
• White housing colour.
• PVC plastic construction.
• External dimensions 85 × 85 mm.
• Suitable for exposed surface-mounted installations.
• Helps create a neat finished appearance around the component.
• Electrical mechanisms are selected separately.

1. Select the component to be installed. Check that the selected switch or socket outlet is compatible with the frame.
2. Plan the component position. Choose in advance where on the wall the switch or socket outlet will be installed.
3. Disconnect the power supply. Check that the circuits are de-energised.
4. Select the installation location. There must be enough space on the wall for the 85 × 85 mm frame and cable entries.
5. Check the frame position. Use a spirit level to ensure the single-gang frame is installed straight.
6. Mark the mechanism and fixing positions. Follow the mounting design of the specific switch or socket outlet.
7. Prepare the cable entry. Wires must not be pinched by the frame or the edges of the mechanism.
8. Install the electrical mechanism. Connect it according to the wiring diagram and terminal markings.
9. Fit the frame. Check that the component aligns precisely with the opening.
10. Secure the assembly. Do not overtighten the plastic parts.
11. Check the alignment. The component must be correctly aligned and must not press against the frame.
12. Restore power and check operation. The electrical installation must be checked by a qualified specialist.

• Use only with compatible surface-mounted components.
• Do not install a cracked, deformed or otherwise damaged frame.
• Do not overtighten plastic fixing points.
• Protect the frame from strong impacts and high temperatures.
• Do not use abrasive sponges or aggressive solvents.
• Clean with a soft dry or slightly damp cloth.
• Periodically check that the frame and mechanism have not become loose.
• Disconnect the power before dismantling the frame or electrical component.

White single-gang surface-mounted frame for retro installations

The single-gang frame is designed to provide an aesthetic surround for one compatible surface-mounted light switch or socket outlet.

The classic retro and loft-style design is suitable for vintage interiors, restored manor houses, country homes, wooden houses, lofts, hotels, restaurants and residential spaces.

The white frame is made of PVC plastic. Its external dimensions are 85 × 85 mm. The frame helps give a single electrical installation component a neat and finished appearance.

The product is a finishing element. The switch or socket outlet, internal mechanism and fixing parts must be selected separately according to the specific project.
