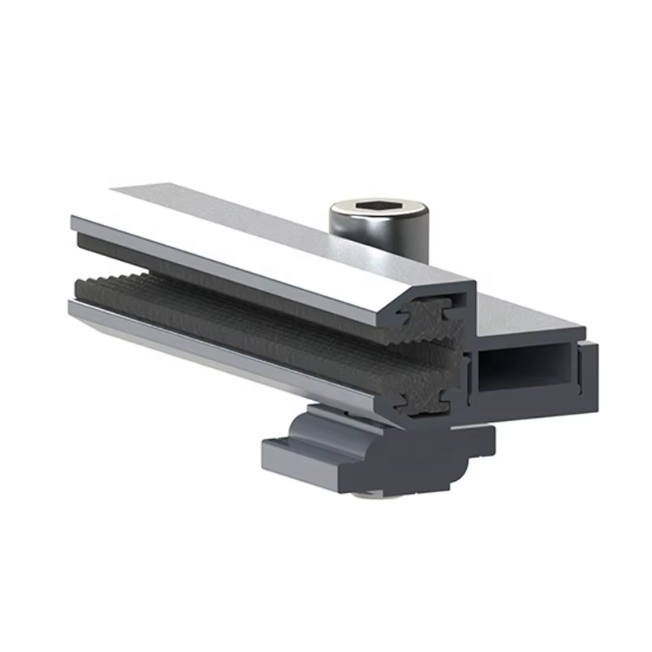

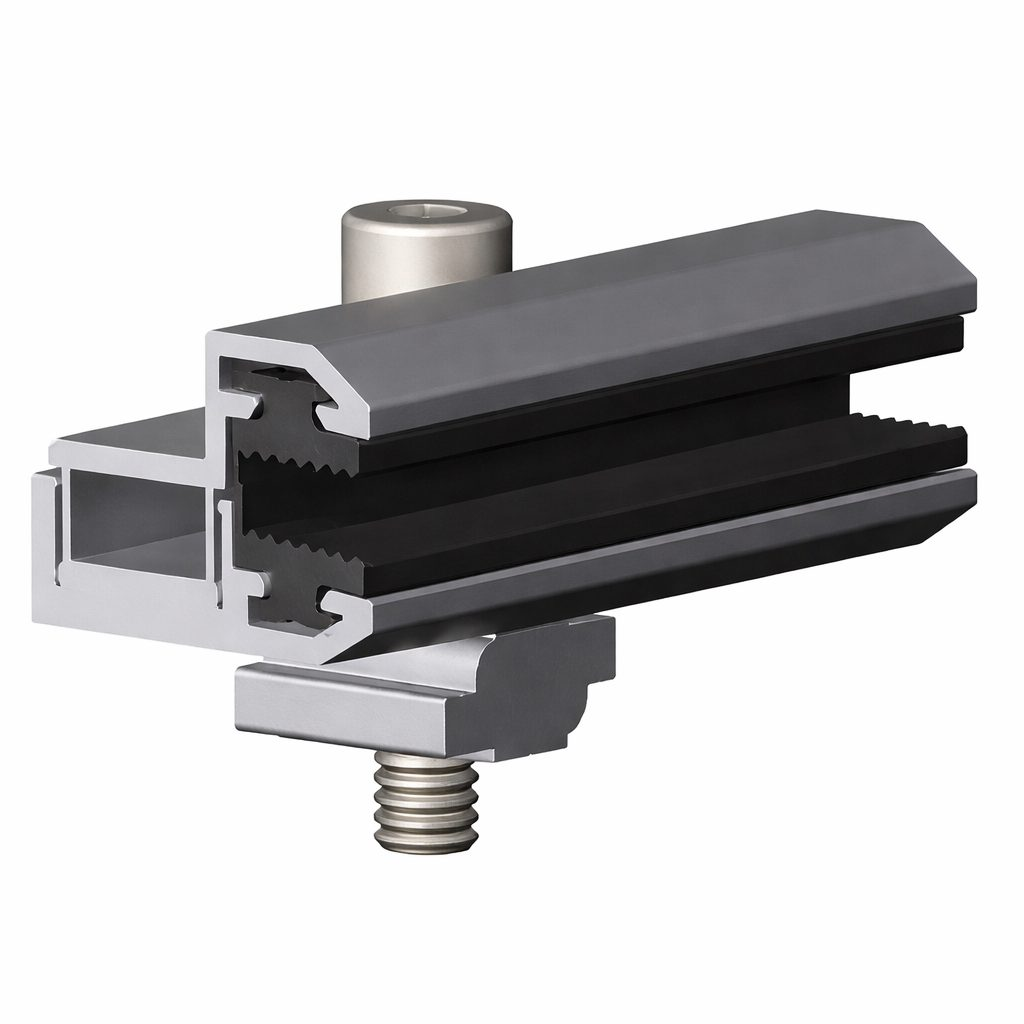

Frameless solar module mounting clamp | up to 60 m/s | for glass modules | anodized | for roof mounting

Technical Specifications

Product type: frameless solar module mounting clamp
Application: glass solar modules
Installation location: pitched roofs
Module orientation: horizontal / vertical
Materials:
Aluminum: AL6005-T5
Stainless steel: SUS304
Gasket: EPDM (for sealing)
Surface treatment: anodizing (12 μm)
Snow load: up to 1.4 kN/m²
Wind load: up to 60 m/s
Service life: ~25 years
Standards: AS/NZS 1170 / JIS4955:2011 / ISO9001

Functions

Frameless module mounting – securely fixes glass (frameless) solar modules to the structure
Sealing with EPDM gasket – protects the mounting point from water leakage
Wind resistance – structure withstands wind loads up to 60 m/s
Snow resistance – operates reliably under snow loads up to 1.4 kN/m²
Universal installation – suitable for both horizontal (landscape) and vertical (portrait) module orientation
Long-lasting construction – anodized aluminum and stainless steel ensure long service life
Fast installation – simple design allows quick and convenient system installation
Corrosion protection – anodized surface and SUS304 steel are resistant to environmental impact
Strong clamping – evenly distributes pressure and protects the module glass from damage

Usage

For home users: Installation of residential solar power systems on house roofs, aesthetic solution without visible frames, long-term and reliable module fastening
For engineers / designers: Designing solar system structures, calculating loads (compliant with international standards), integrating modern glass modules
For installers / contractors: Fast and convenient installation on site, universal solution for different module orientations, reliable sealing without additional solutions
For solar power systems: Commercial and industrial plants, rooftop solar systems, thin-film technology projects

Advantages

Suitable for frameless (glass) modules
High resistance to wind and snow
EPDM sealing – protection against moisture
Durable materials (aluminum + stainless steel)
Universal installation

Disadvantages

Not suitable for framed modules
Must be selected precisely according to glass thickness
Installation requires basic professional skills

What is this clamp made of?
The clamp is made of high-quality anodized aluminum and stainless steel and includes an EPDM rubber gasket that ensures sealing and protection against moisture.

Is this clamp suitable for all solar modules?
No, it is designed only for frameless (glass) modules.

Is it suitable for installation on any roof?
It is best suited for pitched roofs, especially metal sheet roofs.

Does it withstand strong wind and snow?
Yes, up to 60 m/s wind and 1.4 kN/m² snow loads.
