Hermetic angled cable | corrugated conduit entry into electrical distribution box | enclosure | 45° elbow | with nut and gasket | D10mm | G1/2" | IP68 | black

Technical Specifications

Product type: hermetic angled cable / corrugated conduit gland

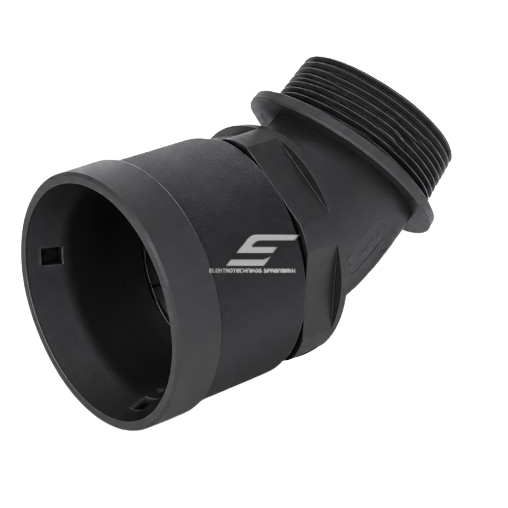

Construction: 45° elbow type
Thread: G1/2"
Suitable conduit / cable size: 10 mm

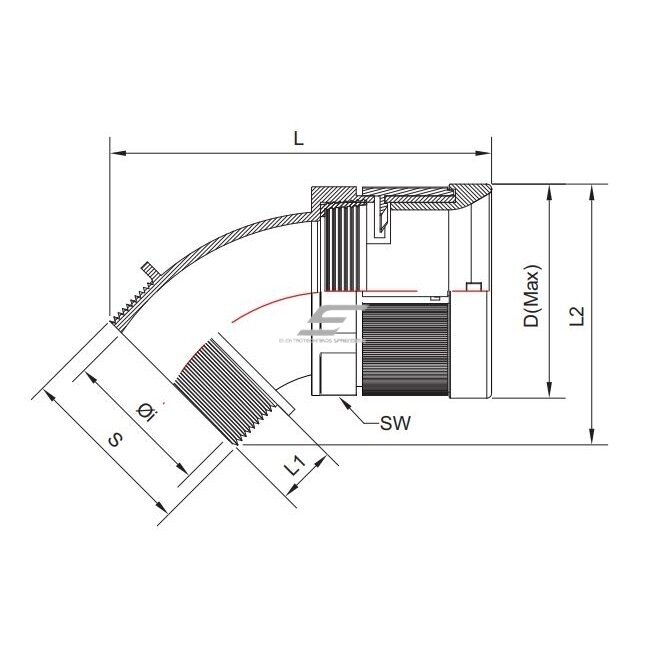

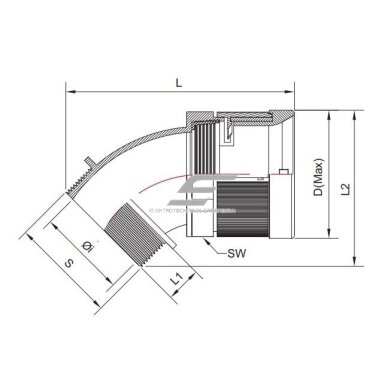

Internal passage diameter Øi: 15.0 mm
Outer body diameter ØD: 24.5 mm
Thread section length L1: 13.0 mm
Overall height L2: 35.5 mm
Overall length L: 62.5 mm
Thread outer dimension S: 20.5 mm
Nut wrench size SW: 19.7 mm
Material: high quality Polyamide 6 (PA6)
Color: black

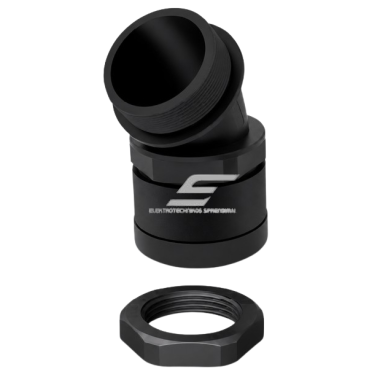

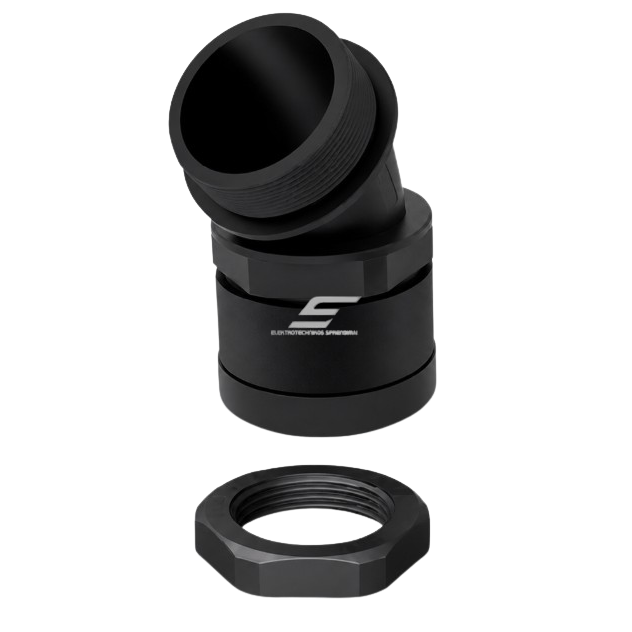

Set includes: gland + clamping nut + sealing gasket
Protection class: IP68 according to EN60529
Operating temperature: -40°C to +105°C
Short-term temperature: up to +150°C
Flammability class: UL94-HB
Free from: halogens and cadmium
Certificates: UL, CE, VDE

Functions

45° angled corrugated conduit outlet: Allows the corrugated conduit to be directed away from the enclosure at a gentle angle, keeping the cable route neat and mechanically safer.
Cable protection against sharp bending: The inclined shape reduces the possibility of severe kinking at the exit point and helps maintain a larger bending radius.

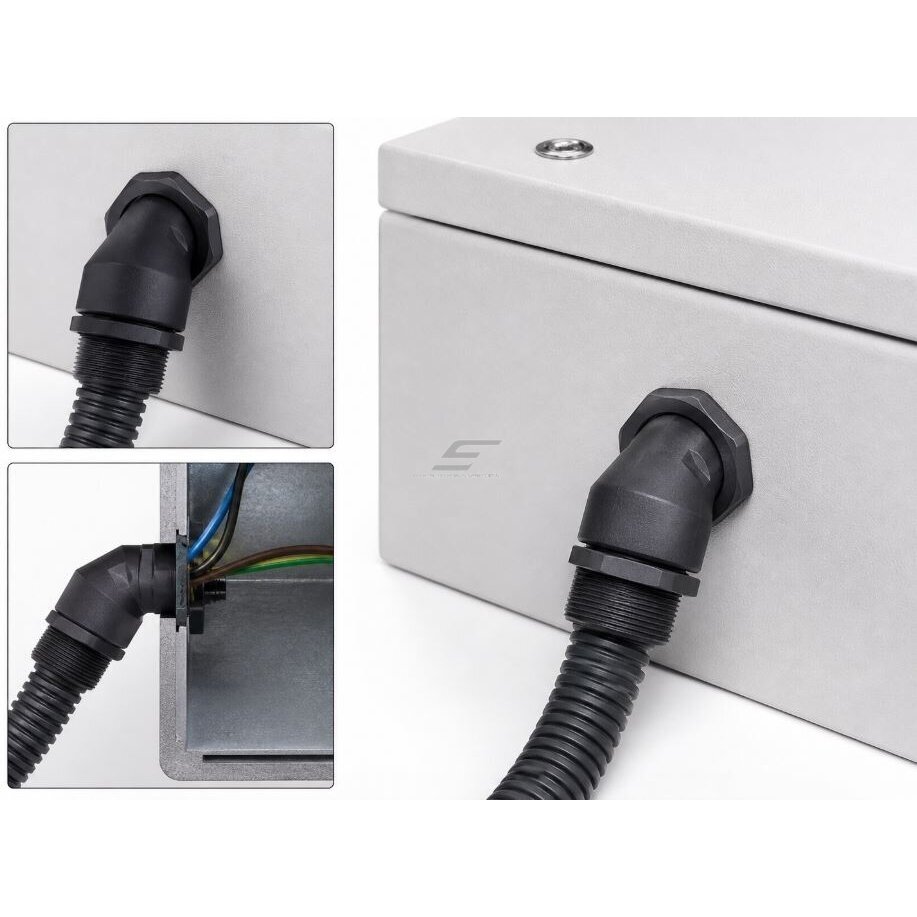

Hermetic entry into the enclosure: The sealing gasket and clamping nut prevent moisture, water, dust, or condensation from entering the electrical cabinet.
Mechanical fixation of the conduit: Firmly clamps the cable or corrugated protective conduit and prevents movement during vibration.
Resistance to demanding working conditions: The PA6 body maintains its strength both in outdoor and industrial environments.

Application

For household users: A solution for sealed and neat entry of corrugated conduits into outdoor electrical boxes, gate automation housings, garden pump control units, solar power distribution boxes, or garage installations. The 45° angle allows cables to be routed more smoothly and aesthetically.
For electricians: A convenient component for professional installations when not only a sealed gland is required, but also ergonomic cable route redirection. Especially useful in panel assembly where there is not enough space next to the enclosure for a straight outlet.
For engineers / automation specialists: Used in the design of automation cabinets, machine control enclosures, sensor boxes, and vibration equipment where cable direction optimization and IP68 sealing are essential.
For industrial specialists: Widely applied in railway wagons, production lines, ship installations, CNC machines, and other machinery.

Advantages

Convenient 45° angled cable / corrugated conduit outlet
High IP68 sealing level
Protects the cable from kinking
Strong mechanical fixation
Resistant to cold, heat, and vibration
Nut and sealing gasket included
Suitable for professional outdoor and industrial installations

Disadvantages

The angled shape requires planning the cable outlet direction in advance

Frequently Asked Questions (FAQ)

Is this cable gland waterproof for outdoor conditions?

Yes, the IP68 protection class means a very high sealing level against dust and water, making it suitable for outdoor electrical boxes and damp areas.

Does the set include everything needed for installation?

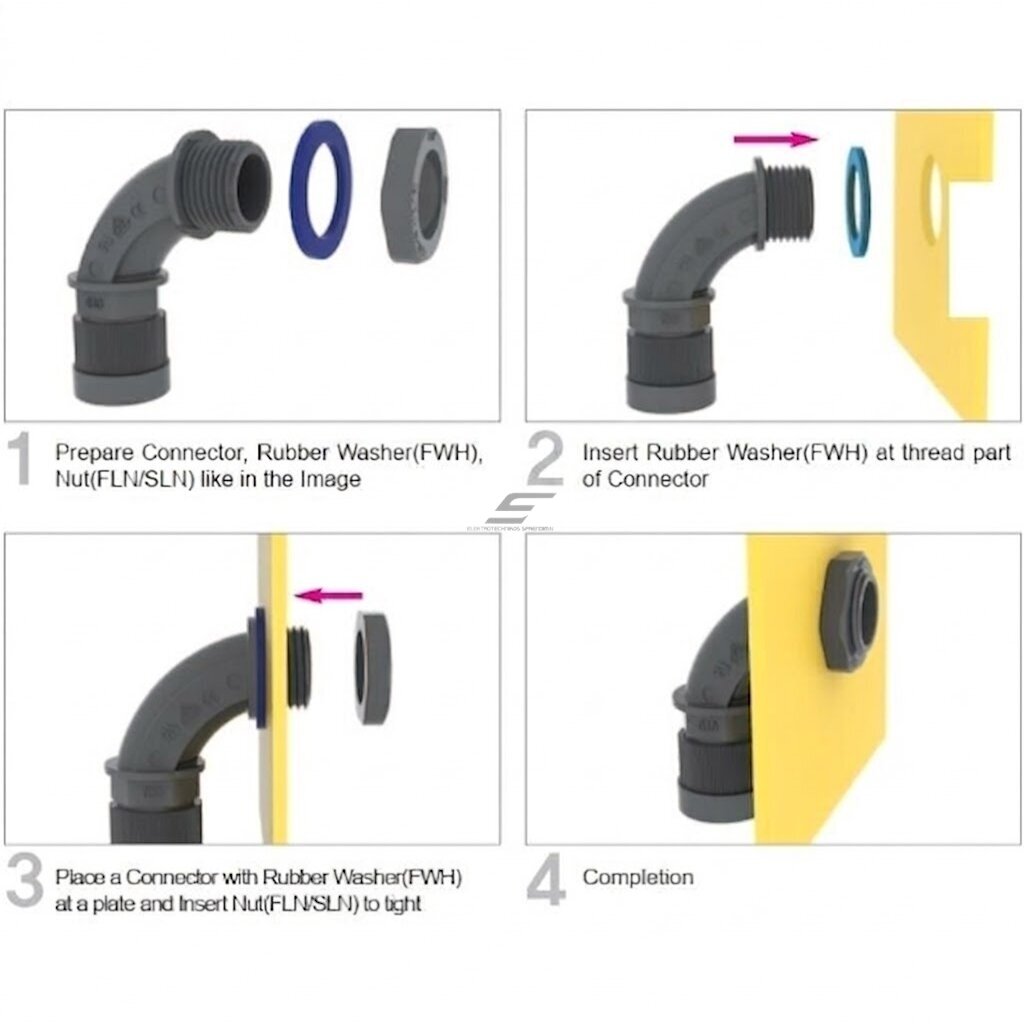

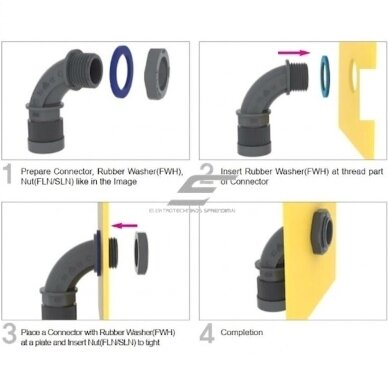

Yes, it comes complete with a rubber sealing gasket and fixing nut, so no additional parts are required for standard installation.

What cable thickness can be routed through this gland?

The internal passage diameter is Ø15.0 mm, therefore it is suitable for wires, cables, or protective hoses up to this diameter.

Is this material suitable for industrial environments?

Yes, PA6 polyamide offers high resistance to mechanical stress, temperature, vibration, and chemical exposure, therefore it is widely used in industry.
